Cisco Catalyst 9400 Series 24-Port 10 Gigabit SFP+ Line Card, MACsec-256, Hot-Swappable, for C9404R/C9407R/C9410R
Brand:
Cisco
Cisco Catalyst 9400 Series 24-Port 10 Gigabit SFP+ Line Card, MACsec-256, Hot-Swappable, for C9404R/C9407R/C9410R
€30459.5 inc. VAT
C9400-LC-24XS=
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet SFP+ Line Card
24x 10G SFP+MACsec-256Hot-swappableC9400 chassis

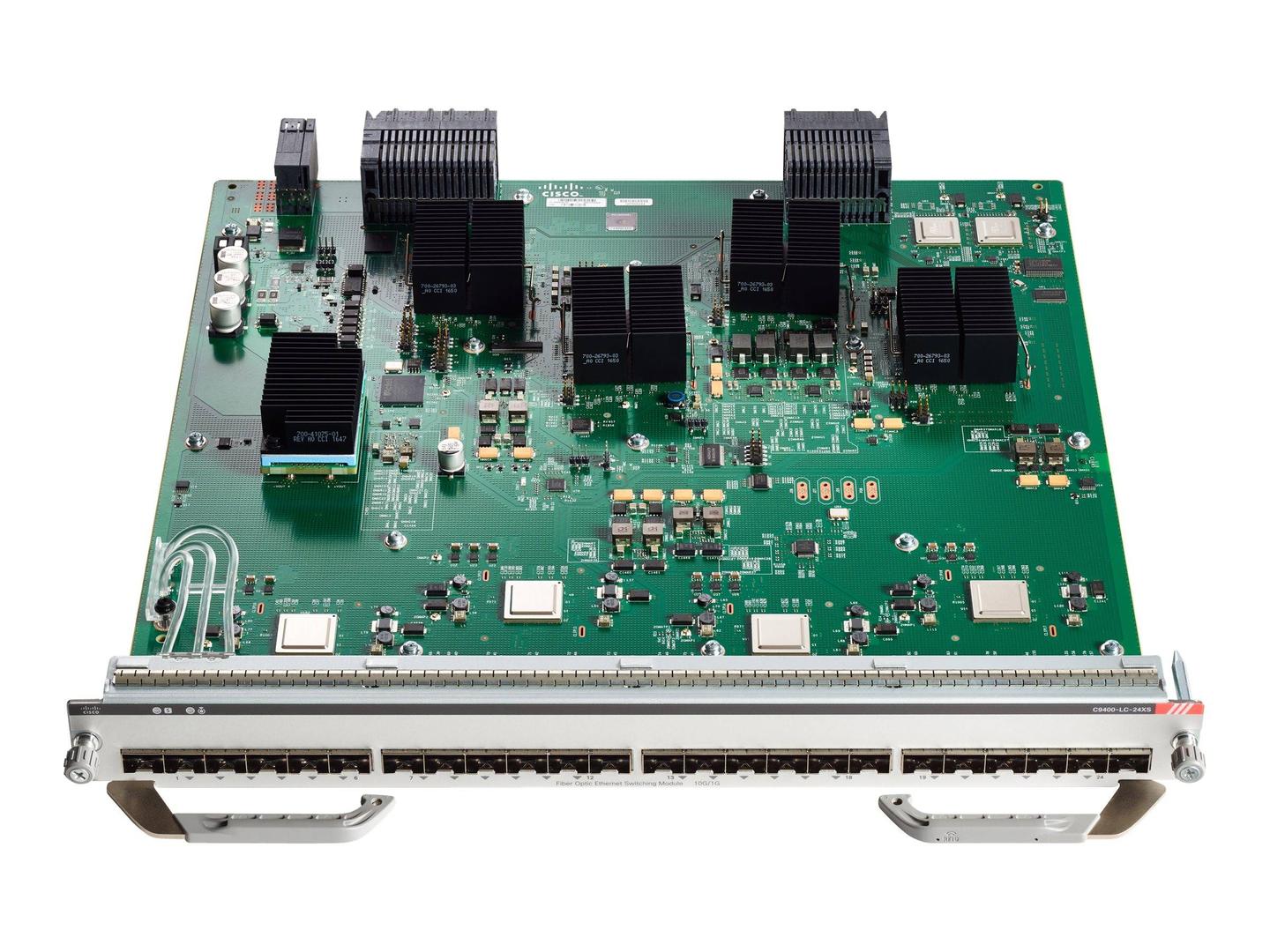

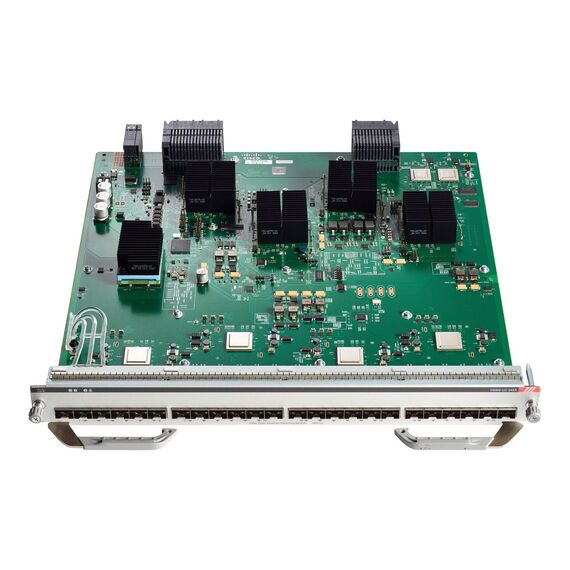

The Cisco C9400-LC-24XS= is a 24-port 10 Gigabit Ethernet SFP+ line card for the Catalyst 9400 modular switch family, used to add high-density 10G fibre aggregation or collapsed-access ports to an existing C9404R, C9407R or C9410R chassis. Each port accepts a 10G SFP+ or 1G SFP module, and both types can be mixed on the same card without restrictions.
The "=" suffix marks it as a spare part: it is supplied on its own for upgrades, expansions or replacements in a chassis you already run. It fits any non-supervisor slot and supports hot swapping, so you can add it without powering down the switch.
Before you order: The bandwidth each card actually gets depends on your supervisor and chassis: with Sup-1 every slot gets 80 Gbps (3:1 oversubscribed), with Sup-2 240 Gbps and with Sup-2XL 480 Gbps (line rate). It requires Cisco IOS XE 16.6.2 or later. Tell us your chassis and supervisor and we will confirm the throughput.
What's in the Box
- Cisco C9400-LC-24XS= line card
- Not included: SFP/SFP+ transceivers, chassis, supervisor, slot blank covers (C9400-S-BLANK)
What It Means in Practice
- Turns one chassis slot into 24 x 10G fibre ports — e.g. for building uplinks or server connections.
- Line rate on all 24 ports needs Sup-2/Sup-2XL (or Sup-1XL in the C9404R); with Sup-1 the card is 3:1 oversubscribed, which is usually fine for access aggregation.
- MACsec-256 in hardware encrypts links between buildings or to the core.
- Maximum per chassis: 48 ports in a C9404R, 120 in a C9407R, 192 in a C9410R.
What Will Not Work
- It does not fit Catalyst 4500-E, 9500, 9600 or 9300 switches — only Catalyst 9400 chassis.
- It does not run 25G (that is the C9400-LC-24XY) and provides no PoE.
- It cannot be installed in a supervisor slot.
- Transceivers are not included.
Key Features
Mixed 1G/10G
Each port takes SFP+ or SFP; mix freely on the same card.
MACsec-256
Hardware link encryption on every port.
Hot-swap and OIR
Insert or remove with the chassis running; automatic diagnostics and discovery.
Investment protection
Works with Sup-1, Sup-1XL, Sup-1XL-Y, Sup-2 and Sup-2XL.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The C9400-LC-24XS= is the straightforward way to add 10G fibre density to a Catalyst 9400 you already own. Before ordering, check your supervisor — it decides whether you get 80, 240 or 480 Gbps per slot — and order the optics together. See our network switches range for fixed-port alternatives.
✓ Buy it if you run a Catalyst 9400 chassis and need 24 more 10G/1G fibre ports.
✕ Skip it if you need 25G ports (choose C9400-LC-24XY) or copper/PoE ports.
→ Also consider the C9400-LC-24XY for 10/25G SFP28 ports with Sup-2.
Send us your chassis model, supervisor and IOS XE version and we will confirm compatibility before you order.
Features - Cisco - C9400-LC-24XS=
Standard
24-Port
Port Speed
- 1 Gbps,
- 10 Gbps
More Details
Product Code
677PK60
EAN Code
0889728044035
Manufacturer
Cisco
