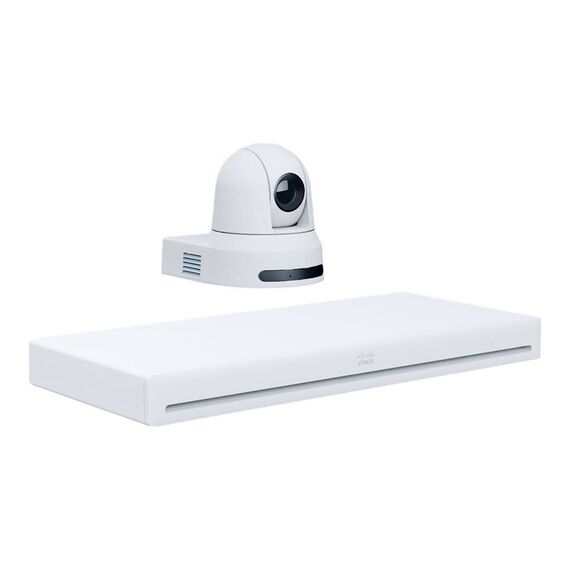

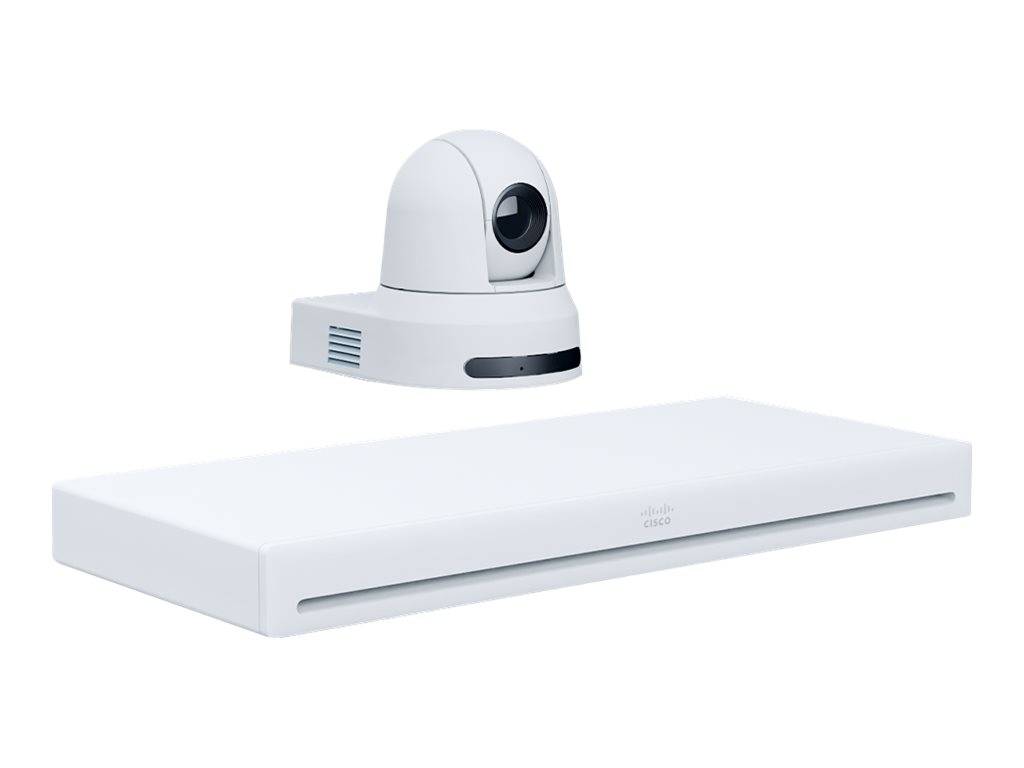

Cisco Room Kit EQ PTZ 4K Video Conferencing Kit with Codec EQ, 4K PTZ Camera 20x Optical Zoom and Room Navigator

The Cisco Room Kit EQ PTZ 4K is a modular video conferencing kit that combines the Codec EQ, the Cisco PTZ 4K camera with 20x optical zoom and a Room Navigator touch panel, built for large meeting rooms, boardrooms, training rooms and auditoriums. It runs Cisco RoomOS and joins Webex natively, or can run Microsoft Teams Rooms on Android.

This is the kit for rooms where a video bar is not enough: the camera sits wherever it frames the room best, the codec drives up to three 4K displays, and microphones and speakers are chosen to suit the room acoustics. It is an integrator-style system — plan the microphones, speakers and displays together with the kit.

• Cisco Codec EQ (CS-CODEC-EQ-K9)
• Cisco PTZ 4K Camera (CS-CAM-PTZ4K)
• Cisco Room Navigator, table stand version, First Light (CS-T10-TS-L)
• Regional power cord
• Microphones, speakers, displays and camera brackets are not included

• The Codec EQ has four PoE++ ports (90 W budget) that power the PTZ 4K camera, the Room Navigator and other Cisco peripherals — fewer power bricks in the room.
• Three HDMI outputs at up to 4K60 let you run a main screen, a second screen for content and a third for the far end or a confidence monitor.
• The PTZ 4K camera gives 4K at 30 fps or 1080p at 60 fps with 20x optical zoom — it can frame a presenter at the back of a long room without losing detail.
• Content can be shared over HDMI or USB-C, and the codec has Wi-Fi 6E for wireless sharing on the room network.

• It will not work as a complete room on its own: without microphones and speakers nobody in the room will be heard or hear the far end.
• It is not a USB webcam for a laptop — the camera connects to the codec over HDMI and the system runs RoomOS.
• The PTZ camera brackets (wall CS-PTZ4K-BRKT, ceiling CS-PTZ4K-CLNGMNT) are not in the box — order them if the camera will not sit on a shelf.
• AES67 audio networking needs an additional AV Integrator licence.
