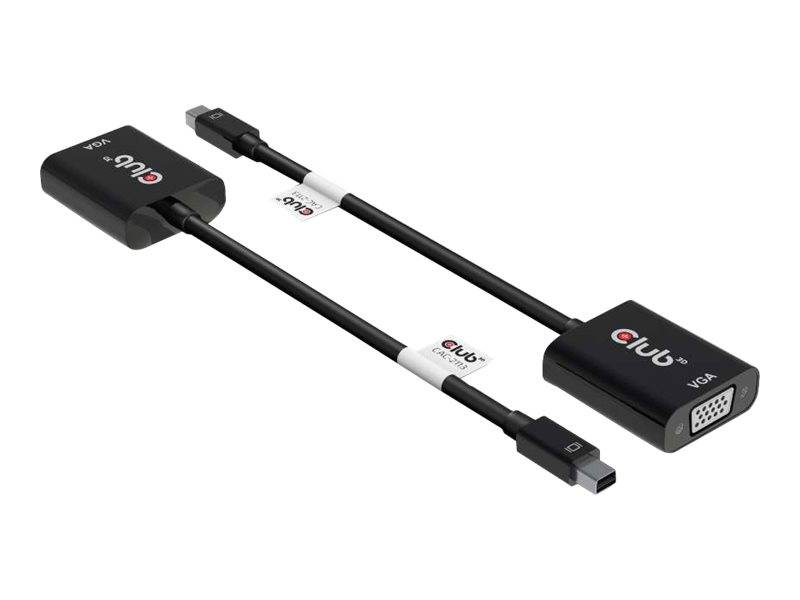

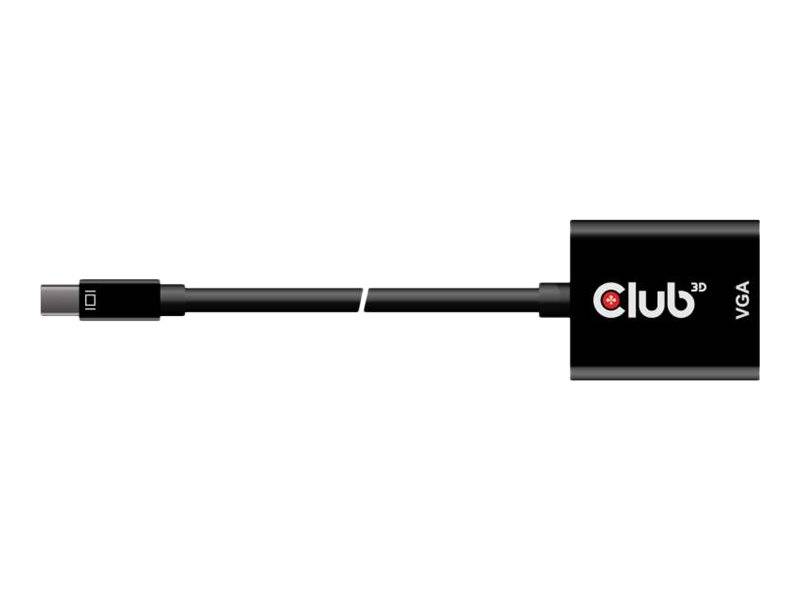

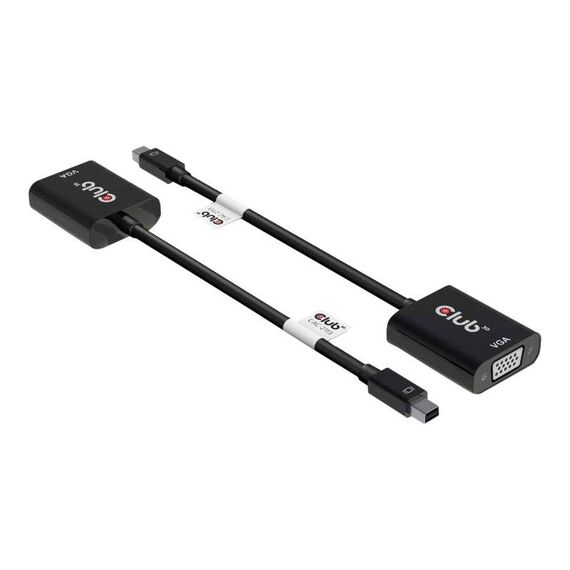

Club 3D CAC-2113 Mini DisplayPort to VGA Active Adapter Male to Female 1920x1200 60Hz Bus Powered Plug and Play Black

Brand:
Club 3D
Club 3D CAC2113 Adapter Mini DisplayPort CAC-2113
Club 3D CAC-2113 Mini DisplayPort to VGA Active Adapter Male to Female 1920x1200 60Hz Bus Powered Plug and Play Black
€24.79 inc. VAT
Buy
CAC-2113
€20.83
€24.79 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:337544
EAN Code
8719214471569
Manufacturer
Club 3D

Quick Specs

Conversion
Active Mini DisplayPort to VGA
Max Resolution
Up to 1920 x 1200 at 60Hz
Power
Powered by the Mini DP output
Weight / Colour
26 g / Black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Club 3D CAC-2113 Mini DisplayPort to VGA Active Adapter — a Mini DP laptop on a legacy VGA screen

Up to 1920 x 1200 at 60HzActive conversion, no DP++ neededPowered by the Mini DP output26 g dongle, black

The Club 3D CAC-2113 is a compact active adapter that converts a Mini DisplayPort output into an analogue VGA signal, letting a laptop, workstation or Mac with a Mini DP socket drive a legacy VGA monitor, projector or KVM at up to WUXGA 1920 x 1200 60Hz. Sold under part number CAC-2113, it has a Mini DisplayPort male plug on a short 22.86 cm lead and a VGA female socket at the other end, so you keep the VGA cable already run to the display. The conversion is done actively and powered by the Mini DisplayPort output itself — no external supply, no drivers, and no dependency on dual-mode DP++ support. Club 3D publishes automatic sink detection and compatibility with AMD, Nvidia and Intel graphics. Typically in stock with fast delivery across Cyprus.

Compatibility — check before buying:
The Mini DisplayPort plug is the source side and the VGA socket is the display side; the adapter converts in one direction only and cannot feed a Mini DisplayPort monitor from a VGA source. VGA is analogue and video-only, so no audio passes through. Club 3D publishes the resolution ceiling two ways — the shop page says Full HD 60Hz while the specification sheet says up to WUXGA 1920 x 1200p at 60Hz — so treat 1920 x 1200 60Hz as the maximum. There is a second documented inconsistency worth knowing: the shop page lists the connector as Mini DisplayPort 1.2, while the specification sheet describes a Mini DisplayPort 1.1a compliant receiver with 5.4 Gbps of bandwidth over two lanes. Either way the analogue VGA output is the limiting factor. Because VGA is analogue, HDCP-protected content generally will not pass.

Key Features


Active conversion, no DP++ required
Club 3D builds this as an active Mini DisplayPort to VGA adapter, so the digital-to-analogue conversion happens inside the dongle rather than relying on the graphics output emitting a legacy-compatible signal through a dual-mode DP++ port.

Powered by the Mini DisplayPort output
The adapter takes its power from the Mini DisplayPort connector, so there is no USB pigtail hunting for a spare port and no wall adapter. At 26 grams it lives permanently in a laptop bag without being noticed.

Up to 1920 x 1200 at 60Hz
Club 3D publishes support up to WUXGA 1920 x 1200p at 60Hz, and up to 1920 x 1080p Full HD for HDTV formats — enough for both widescreen office monitors and the 16:10 panels still found in meeting rooms.

Plug and play with automatic sink detection
No driver installation is needed, and Club 3D publishes automatic sink detection along with compatibility across AMD, Nvidia and Intel graphics, including use as one output in an AMD Eyefinity multi-monitor setup.

Technical Specifications

Identification
Brand Club 3D
Model CAC-2113
Part Number CAC-2113
MPN CAC-2113
EAN / GTIN 8719214471569
UPC 841615101757
Video
Input Mini DisplayPort male — the shop page lists 1.2, the specification sheet describes a 1.1a compliant receiver
Output VGA (HD-15) female
Conversion Active — digital Mini DisplayPort in, analogue VGA out; no DP++ dual-mode source required
Maximum Resolution Up to WUXGA 1920 x 1200p at 60Hz; up to 1920 x 1080p Full HD for HDTV formats
Bandwidth 5.4 Gbps over 2 lanes, as published in the specification sheet
Direction Source to display only
Audio
Audio None — VGA is an analogue video-only interface
Power
Power Powered by the Mini DisplayPort output; no external power supply required
Physical
Form Adapter on a short attached lead, Mini DisplayPort male to VGA female
Lead Length 22.86 cm (9 in)
Colour Black
Weight 26 g
Packed Weight 35 g
Mini DisplayPort Connector 2.7 x 1.1 x 0.9 cm
VGA Connector 4.18 x 3.8 x 1.57 cm
Retail Packaging 21.5 x 15 x 1.3 cm
Compatibility
Graphics AMD, Nvidia and Intel graphics; supports multi-monitor setups and AMD Eyefinity
Operating Systems Windows 11 on the current Club 3D page; the older specification sheet lists Windows 10, 8.1 and Apple OS X
Drivers None required — plug and play with automatic sink detection
Compliance ROHS, FCC and CE EMI requirements
In the Box
Contents 1 x Club 3D CAC-2113 Mini DisplayPort to VGA active adapter. A VGA cable is not included.
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Club 3D publishes a 24-month limited warranty on all products from the date of purchase, valid in the country of original purchase. Singular direct warranty is 1 year; beyond that we assist you with the manufacturer warranty process for its full duration.

Frequently Asked Questions

Does the CAC-2113 work with my Mini DisplayPort laptop or Mac?
It is designed for any Mini DisplayPort output that carries video, which includes Thunderbolt 1 and 2 ports on older Mac hardware as well as Mini DP sockets on mobile workstations and professional graphics cards. Because it converts actively it does not need the port to support DP++ dual mode, and no drivers are required.
Is a VGA cable included?
No. The adapter ends in a VGA female socket, which is the point — you plug in the VGA cable already running to the projector or monitor rather than replacing it. If no VGA cable exists, a Mini DisplayPort to VGA cable may suit you better than an adapter plus a separate lead.
Will sound reach the projector through this adapter?
No. VGA is an analogue video-only interface with no audio pins, so audio needs its own 3.5 mm or optical cable, or it stays on the laptop speakers.
What do I need to know before buying the CAC-2113?
Three things: the ceiling is 1920 x 1200 at 60Hz, the direction is fixed with Mini DisplayPort as the source, and no audio passes through. If the display offers HDMI or DisplayPort, use that instead — a digital link is sharper, particularly on small text.
Singular Expert Insight
The classic use for this adapter is the meeting room you do not control: a ceiling projector with one VGA cable dangling off the lectern, and a laptop whose only video output is Mini DisplayPort. That is a solvable problem for 26 grams in a laptop bag, and it is worth solving before the meeting rather than during it. Two practical notes. First, buy the active version — and this is one, powered off the Mini DP port — because passive Mini DP to VGA dongles depend on DP++ support that many outputs simply do not have. Second, VGA is analogue: expect softer text than a digital link, and if the projector also has an HDMI socket, use it with a Mini DisplayPort to HDMI adapter instead. Browse our DisplayPort cables and converters for the digital alternatives, or our PC monitors if the VGA panel itself is due for retirement.

Buyer’s Guide

Buy it if

Your laptop or workstation only offers Mini DisplayPort, the projector or monitor only offers VGA, a VGA cable is already run to it, and you want a pocket-sized adapter that needs no power supply and no drivers.

Skip it if

The display has an HDMI or DisplayPort input — use it, because digital is sharper. Also skip it if you need audio over the same link, if you need more than 1920 x 1200, or if the source port is full-size DisplayPort or USB-C rather than Mini DisplayPort.

Also consider

The Club 3D CAC-2013, the same active adapter for a full-size DisplayPort source; a Mini DisplayPort to HDMI active adapter if the projector has an HDMI input; or a Mini DisplayPort to VGA cable if you do not already own a VGA lead.
