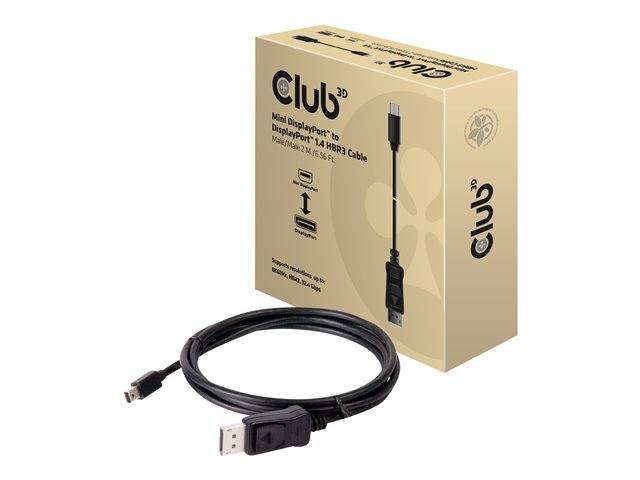

Club 3D CAC-1115 Mini DisplayPort to DisplayPort 1.4 HBR3 Cable 2 m Male to Male 8K 60Hz 4K 120Hz Black
Brand:
Club 3D
Club 3D CAC-1115 Mini DisplayPort to DisplayPort 1.4 HBR3 Cable 2 m Male to Male 8K 60Hz 4K 120Hz Black
€20.81 inc. VAT
CAC-1115
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Club 3D CAC-1115 Mini DisplayPort to DisplayPort 1.4 HBR3 Cable 2 m — 8K 60Hz or 4K 120Hz from a Mini DP output
32.4 Gbps HBR38K 60Hz or 4K 120HzDSC 1.2 + FEC2 m · Ultra-Flex
The Club 3D CAC-1115 is a 2-metre cable that takes a Mini DisplayPort output — the socket found on many workstations, Mac systems, professional graphics cards and Thunderbolt-era laptops — and feeds a full-size DisplayPort 1.4 monitor at up to 8K 60Hz or 4K 120Hz. Sold under part number CAC-1115, it is a passive cable rather than a converter: Mini DisplayPort and DisplayPort are the same electrical protocol, so nothing is translated and nothing needs power. Club 3D rates the link at the full HBR3 ceiling of 32.4 Gbps, with Display Stream Compression 1.2, Forward Error Correction and HDR support, and wraps it in a soft Ultra-Flex jacket with a latching DisplayPort plug. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
The source end is Mini DisplayPort and the display end is full-size DisplayPort — the cable does not work the other way round from a full-size DP source into a Mini DP monitor, and it is not a Thunderbolt data cable even though it fits a Thunderbolt 1 or 2 port on older Mac hardware. Reaching 8K 60Hz or 4K 120Hz requires DSC 1.2 support on both the graphics card and the monitor; Club 3D states explicitly that you should confirm DSC 1.2 is supported on your devices and keep the display firmware and graphics drivers current. The cable is backwards compatible with older DisplayPort standards, so an older Mini DP source will still work, simply at its own lower link rate.
Key Features
Full HBR3 bandwidth, no conversion
Mini DisplayPort carries the same signal as full-size DisplayPort, so this is a straight passive cable with no converter chip in the path. Club 3D rates it at DisplayPort 1.4 with HBR3 and 32.4 Gbps total — the maximum the standard allows.
8K 60Hz or 4K 120Hz
Club 3D publishes support for resolutions up to 8K 60Hz, or 4K at 120Hz for high-refresh gaming and creative work, both achieved with Display Stream Compression 1.2 in the pipeline.
DSC 1.2, FEC and HDR
Display Stream Compression 1.2 is VESA visually lossless compression; Forward Error Correction repairs link errors before they surface as sparkle or dropout. HDR is listed among the supported features, along with up to 32 inline audio channels.
Locking plug and Ultra-Flex jacket
The full-size DisplayPort end uses the standard latch so the cable will not work loose behind a monitor arm, and the soft Ultra-Flex jacket protects the conductors from bend and deformation damage in a tight cable run.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Mini DisplayPort has quietly become a legacy connector on consumer hardware but it is still everywhere in the installed base — older MacBook Pro and iMac systems, Dell and HP mobile workstations, and a great many professional AMD and NVIDIA cards that ship four Mini DP outputs instead of two full-size ones. The trap is that most Mini DP cables on the market are still HBR2-era parts, which cap you at 4K 60Hz no matter what the monitor can do. The CAC-1115 is a current DisplayPort 1.4 cable in a Mini DP shell, so a modern high-resolution panel behind an older Mini DP output is not held back by the cable. Do check the source: a 2013 laptop with a Mini DP socket is still a DisplayPort 1.2 device, and no cable changes that. Browse our DisplayPort cables and converters for other connector combinations, or our PC monitors if you are choosing the panel at the same time.
Buyer’s Guide
Buy it if
Your computer has a Mini DisplayPort output, your monitor has a full-size DisplayPort input, and you want the full 32.4 Gbps HBR3 link rather than an older HBR2 cable that would cap you at 4K 60Hz.
Skip it if
Your display input is HDMI, DVI or VGA — those need an active converter, not this cable. Also skip it if the source is full-size DisplayPort and the monitor is Mini DisplayPort, because this cable is wired for the opposite direction.
Also consider
A full-size DisplayPort 1.4 HBR3 cable if both ends are standard DP, an active Mini DisplayPort to HDMI adapter for an HDMI display, or a USB-C to DisplayPort cable if the laptop exposes DisplayPort Alt Mode over Type-C instead.
Features - Club 3D - CAC-1115
Colour
black
Length
2m
More Details
Product Code
04:222900
EAN Code
8719214470630
Manufacturer
Club 3D
