Club 3D CAC-2013 DisplayPort to VGA Active Adapter Male to Female 1920x1200 60Hz DP Powered Plug and Play Black
Brand:
Club 3D
Club 3D CAC-2013 DisplayPort to VGA Active Adapter Male to Female 1920x1200 60Hz DP Powered Plug and Play Black
€23.87 inc. VAT
CAC-2013
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Club 3D CAC-2013 DisplayPort to VGA Active Adapter — connect a legacy VGA display to a DisplayPort PC
Up to 1920 x 1200 at 60HzActive conversion, no DP++ neededPowered by the DisplayPort outputPlug and play, black

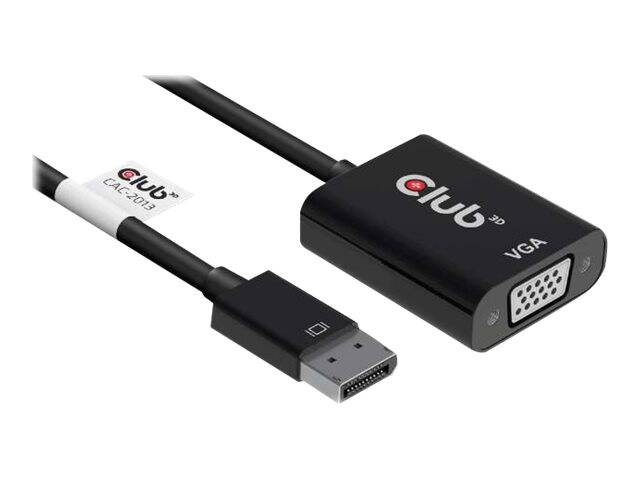

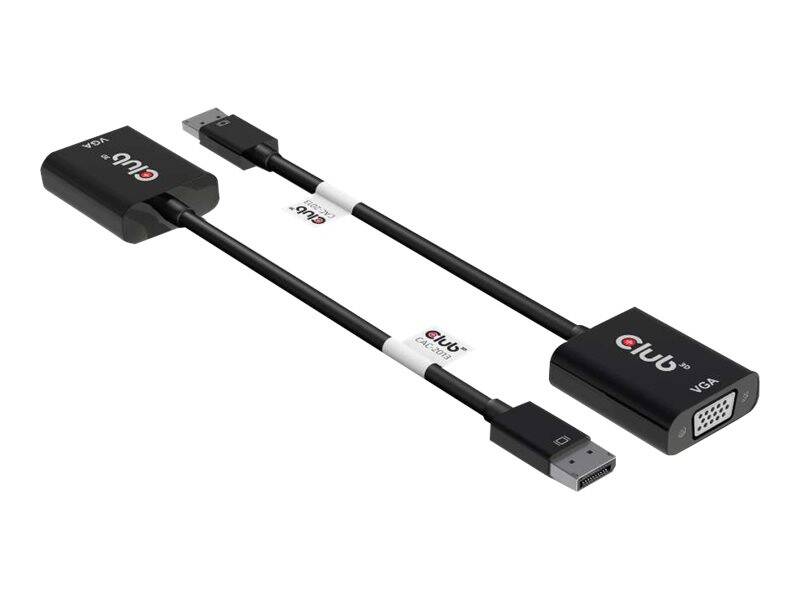

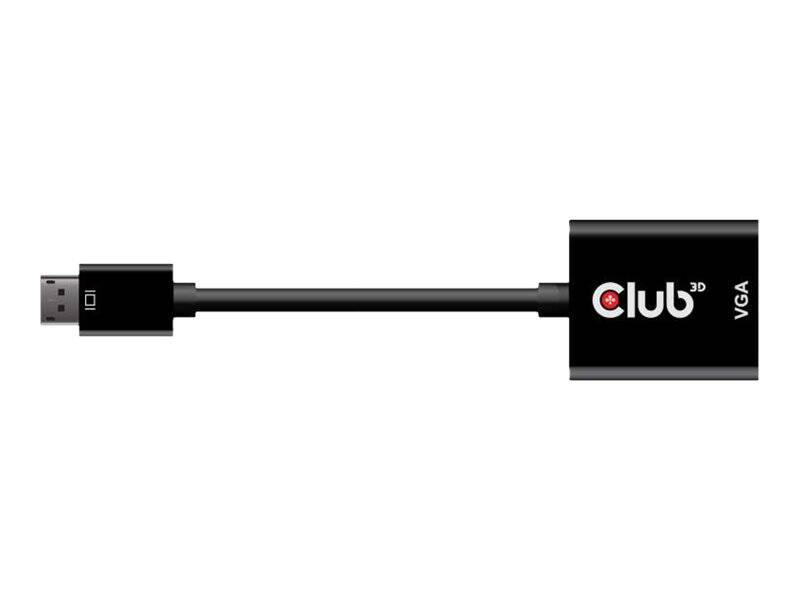

The Club 3D CAC-2013 is an active adapter that converts a DisplayPort output into an analogue VGA signal, so a current desktop, workstation or thin client can drive a legacy VGA monitor, projector or KVM at up to 1920 x 1200 60Hz. Sold under part number CAC-2013, it has a DisplayPort male plug on the computer side and a VGA female socket on the display side, so you keep using the VGA cable that is already run to the screen. It is an active converter powered by the DisplayPort output itself — no wall adapter, no drivers, and no dependency on the graphics card offering a dual-mode DP++ port. Club 3D publishes a VSIS-compliant VGA output and compatibility with AMD, Nvidia and Intel graphics. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
The DisplayPort plug goes into the computer and the VGA socket takes the cable to the display; the adapter converts in one direction only and cannot feed a DisplayPort monitor from a VGA source. VGA is analogue and video-only, so no audio passes through — sound needs its own cable. Club 3D publishes the maximum resolution two ways on the same page: the specification table says Full HD 60Hz while the description says up to 1920 x 1200 at 60Hz, which is WUXGA; treat 1920 x 1200 60Hz as the ceiling and expect nothing above it. Because the VGA output is analogue, HDCP-protected video generally will not pass. Club 3D lists Windows 11 as the supported operating system for this part.
Key Features
Active conversion, no DP++ required
Club 3D builds this as an active DisplayPort to VGA adapter, so the digital-to-analogue conversion happens in the adapter rather than relying on the graphics card emitting a legacy-compatible signal through a dual-mode DP++ port.
Powered by the DisplayPort output
The adapter draws its power from the DisplayPort connector itself. There is no USB pigtail to find a spare port for and no wall wart to lose, which matters on wall-mounted thin clients and in cable-managed lecterns.
Up to 1920 x 1200 at 60Hz
Club 3D publishes support up to WUXGA 1920 x 1200 at 60Hz, which covers both standard Full HD screens and the 16:10 panels still common on older office monitors and boardroom projectors.
Plug and play across AMD, Nvidia and Intel
No driver installation is required, and Club 3D lists compatibility with AMD, Nvidia and Intel graphics. The VGA output is described as VSIS-compliant, the analogue signalling standard that keeps image quality consistent across monitors.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Analogue VGA survives in exactly the places that are hardest to replace: boardroom projectors on a ceiling mount, teaching-room lecterns, analogue KVM drawers in a rack, and industrial panels bolted to a machine. In all of those, the VGA cable is already run and the expensive part is the labour, not the adapter. That is the case the CAC-2013 is built for — it keeps the existing cable and changes only the end that plugs into the PC. Where it is the wrong choice is a plain desk setup: if the monitor has an HDMI or DisplayPort socket, use it, because analogue conversion always costs some sharpness on small text. Also note the white sibling, the CAC-2003, which is the same active DisplayPort to VGA design in a white shell for lighter installations. Browse our DisplayPort cables and converters for the digital alternatives, or our PC monitors if the analogue panel is finally due for replacement.
Buyer’s Guide
Buy it if
The PC only offers DisplayPort, the display or projector only offers VGA, a VGA cable is already run to it, and you need up to 1920 x 1200 at 60Hz from a plug-and-play adapter with no external power.
Skip it if
The display has an HDMI or DisplayPort input — use it, because digital is sharper. Also skip it if you need audio over the same link, if you need more than 1920 x 1200, or if the source port is Mini DisplayPort or USB-C rather than full-size DisplayPort.
Also consider
The Club 3D CAC-2003, the same active DisplayPort to VGA adapter in white; a DisplayPort to VGA cable if you do not already own a VGA lead; or a Mini DisplayPort to VGA active adapter if the computer has a Mini DP socket instead.
Features - Club 3D - CAC-2013
Colour
black
Length
25m
More Details
Product Code
04:337543
EAN Code
8719214471576
Manufacturer
Club 3D
