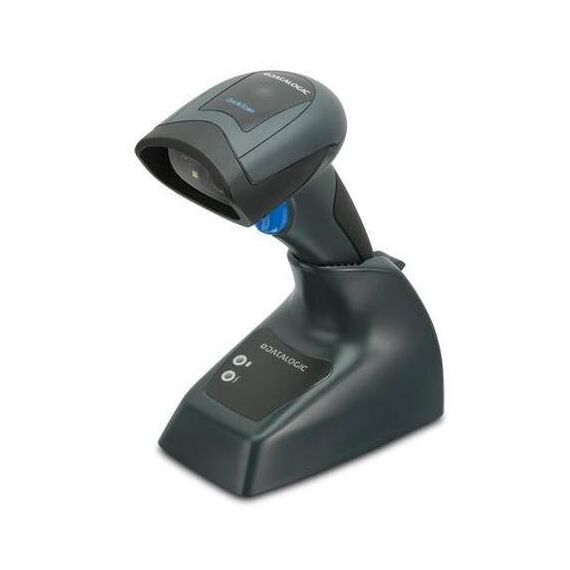

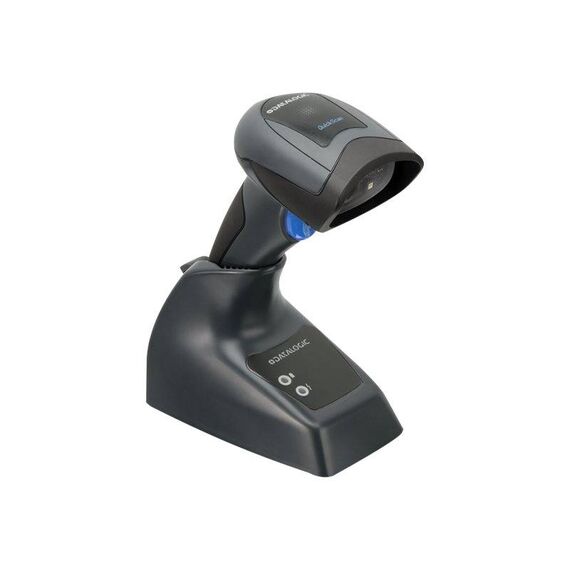

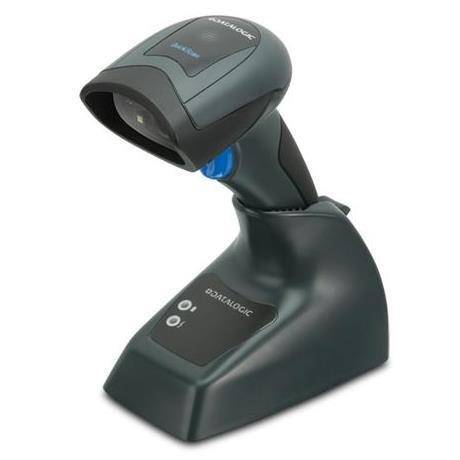

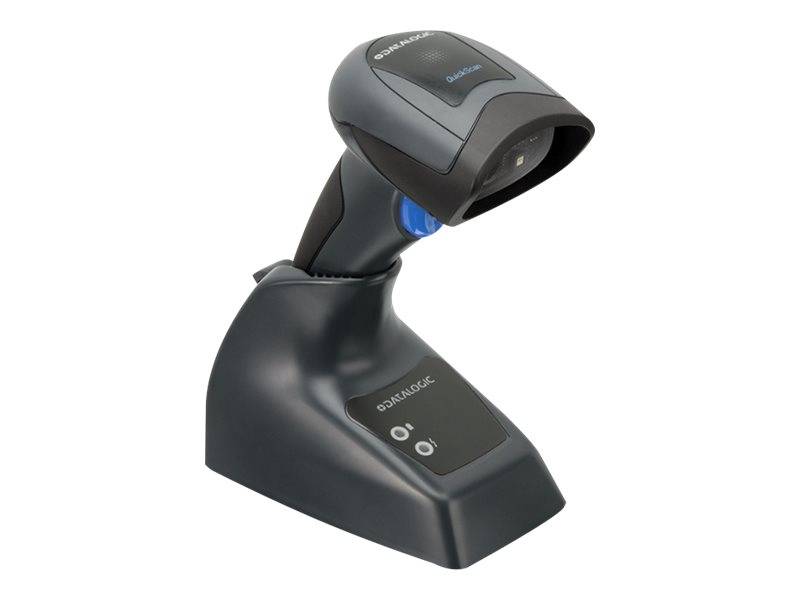

Datalogic QuickScan QM2131 Wireless 1D Scanner, STAR 433MHz, Base and USB Cable Kit, Black
Brand:
Datalogic
Datalogic QuickScan QM2131 Wireless 1D Scanner, STAR 433MHz, Base and USB Cable Kit, Black
€206.7 inc. VAT
QM2131-BK-433K1
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Wireless reading of long linear barcodes, with a USB-ready base kit
1D linear433MHz STARBase + USB cableGreen Spot
QM2131 is a cordless linear imager with a wide scan line that helps capture long barcodes on packaging, documents and utility bills. It communicates through Datalogic STAR 2.0 at 433MHz, rather than Bluetooth. The K1 kit includes the reader, base station and USB cable, so it differs from QM2131-BK-433, whose cable must be selected separately.
Before you order:
This is a 1D reader: it does not decode QR or Data Matrix. The stated 25m wireless range is measured in open air and depends on the installation. The base links the scanner to the host; it is not a Bluetooth adapter or a product database.
What's in the Box
- Black QM2131 433MHz reader
- Base station / charger
- USB cable 90A052258
What It Means in Practice
- For example, scan a long carton label near a receiving desk and send its code through the USB-connected base to your application. The wide line helps span the barcode at a comfortable distance; align it across the bars.
- Batch mode holds more than 500 linear codes for a configured offline workflow. Check upload and clearing settings before a stock count; the application manages products and quantities.
What Will Not Work
- No QR, Data Matrix or full 2D imaging.
- No direct Bluetooth pairing with a phone or tablet.
- IP42 is not waterproof. A 4h charge figure requires external 12V power; it is not a guarantee for USB charging.
Key Features
Wide linear field
A 56° field of view and long aiming line support long linear codes at close working distances. Reading depth still depends on barcode density and quality.
STAR radio with base
The 433MHz point-to-point link connects the reader to its base. It operates outside the common 2.4GHz Wi-Fi/Bluetooth band; site coverage still needs checking.
Serviceable battery package
The tool-free battery package replaces the lithium-ion battery and scanner charging contacts together. Green Spot, LED and an adjustable beeper confirm reading.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the K1 kit for a conventional USB workstation that needs cordless 1D scanning and an included base. Long barcode labels are the reason to compare its wide scan line. If the business uses QR coupons or Data Matrix labels, choose a 2D imager instead. Compare barcode scanners
Buyer’s Guide
✓
Buy it if
You need cordless linear barcode reading with a base and USB cable included.✕
Skip it if
You need QR/Data Matrix decoding or direct Bluetooth pairing.→
Also consider
Compare -433 if you already have the correct interface cable, and wireless 2D models if your code types require them.Tell us your equipment model, application and barcode examples so we can check compatibility requirements.
Features - Datalogic - QM2131-BK-433K1
Colour
black
More Details
Product Code
04:307195
EAN Code
5712505522110
Manufacturer
Datalogic
Technical specifications
Compatible Platforms
- PC
