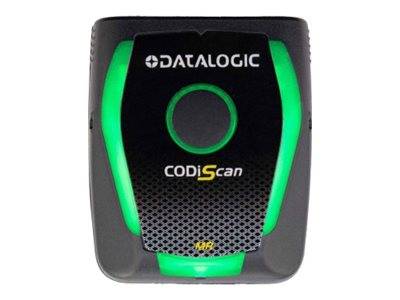

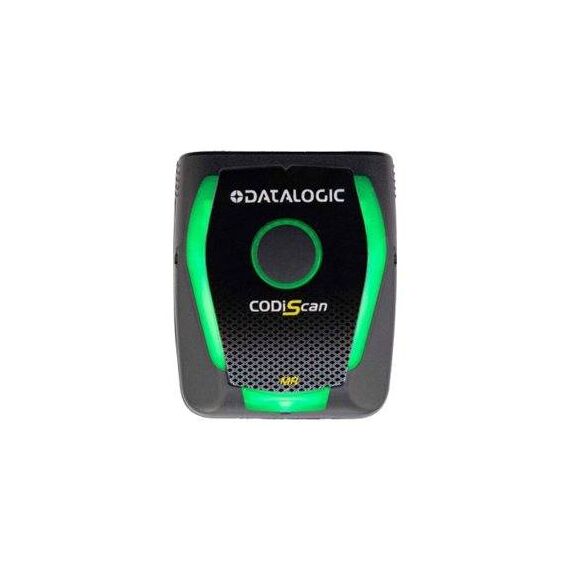

Datalogic CODiScan HS7600SR | Wearable 2D Area Imager | Bluetooth 5.2 + 802.11 b/g/n | Standard Range
The Datalogic CODiScan HS7600SR is a wearable 2D area imager that redefines how barcode scanning integrates into warehouse, logistics, and retail fulfilment workflows. At just 44 g, it is lighter than most pens — worn on the hand, neck, belt, or pocket, it leaves both hands completely free for picking, packing, sorting, and assembly tasks. Dual connectivity via Bluetooth 5.2 and IEEE 802.11 b/g/n WiFi, a 12,000-scan battery life per 2-hour charge, and three high-visibility LED blades with 180° good-read feedback make the CODiScan a productivity multiplier for high-throughput operations.
Truly Hands-Free — 44 g Worn Four Ways

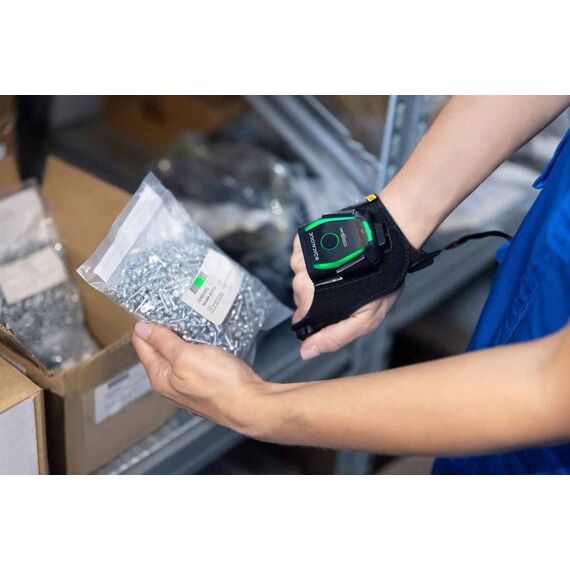

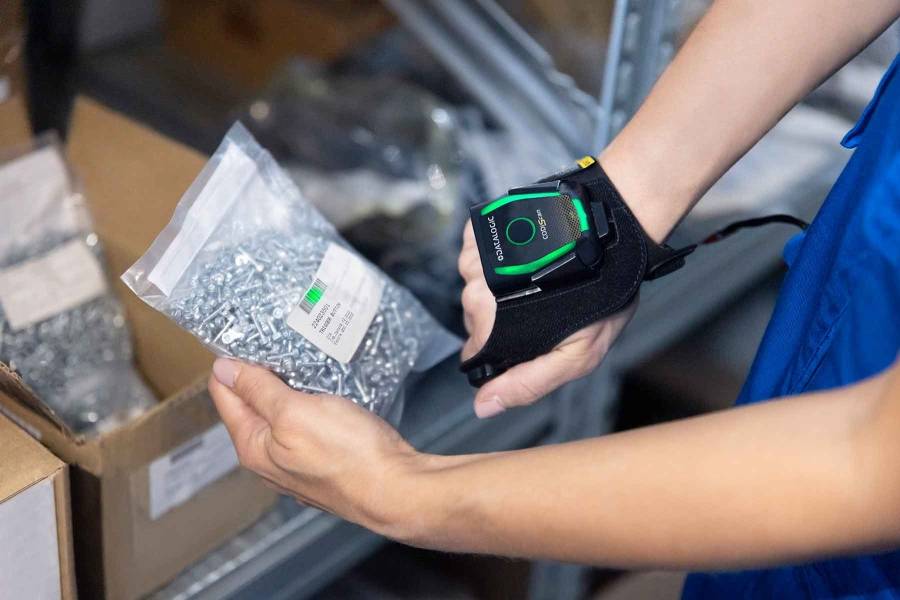

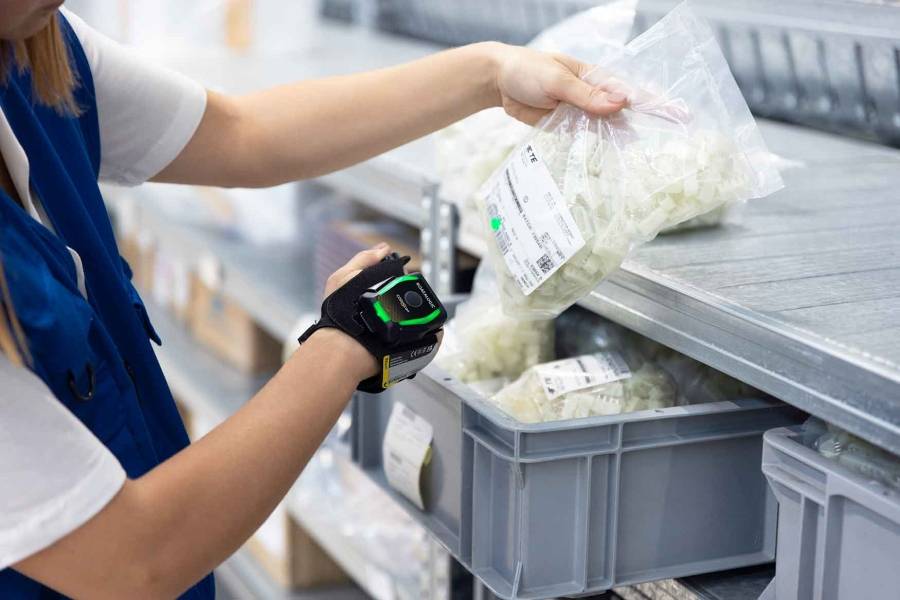

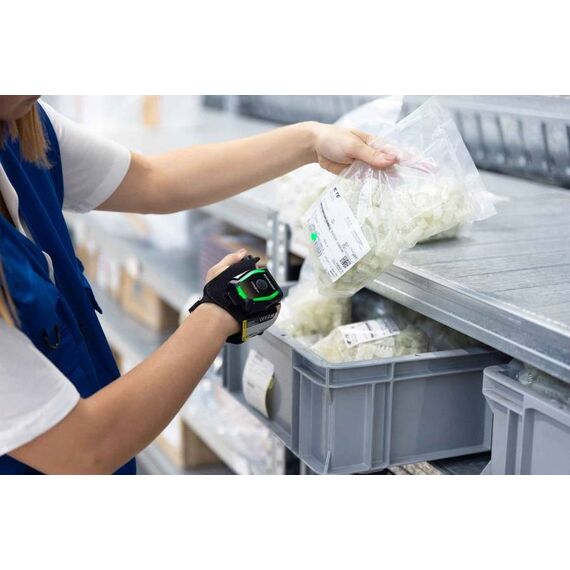

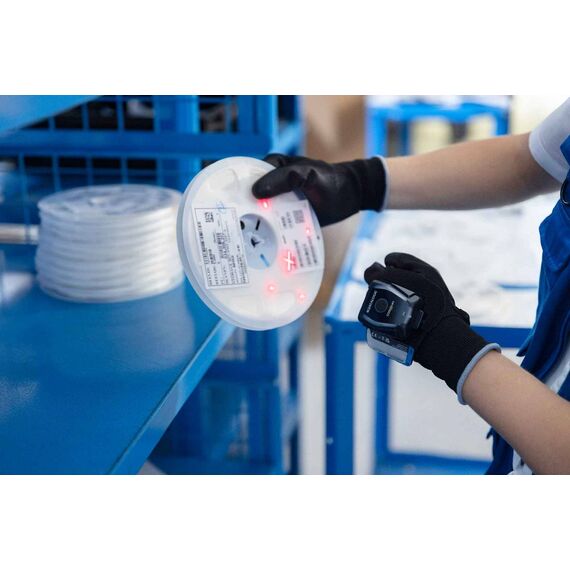

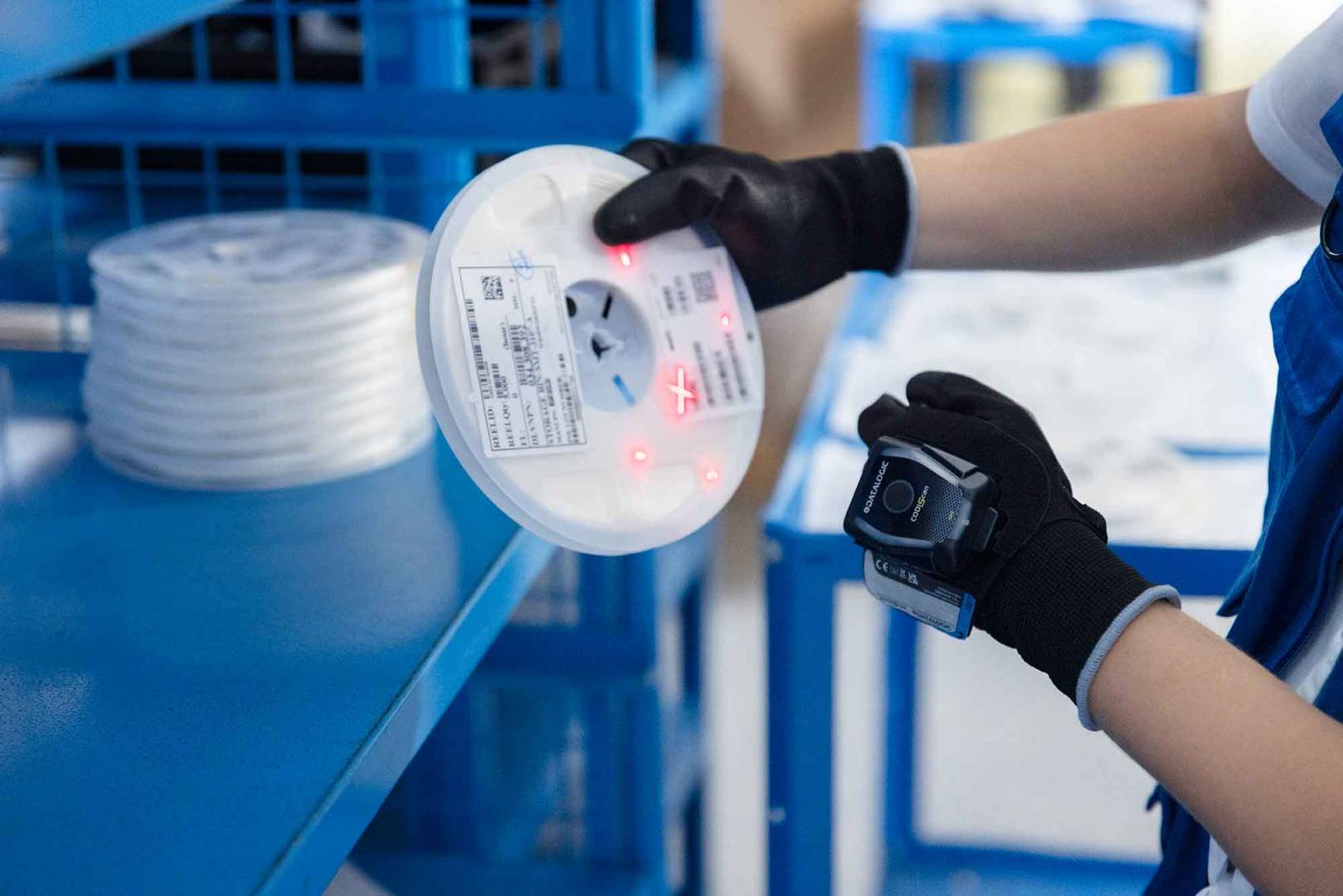

The CODiScan HS7600SR attaches via an adjustable multisize hand trigger for palm-worn scanning, or clips to a lanyard for neck or belt carry, or slips into a pocket — all without tools or specialist attachment hardware. Unlike ring scanners that require a dedicated ring mount, the CODiScan's mounting system adapts to body geometry and clothing type in seconds. Weighing only 44 g (1.5 oz), operators report zero fatigue carrying it across full shifts. The adjustable hand trigger accommodates both right- and left-handed use without reconfiguration, making it suitable for mixed-handedness picking teams.
Bluetooth 5.2 + 802.11 b/g/n — Dual Wireless Connectivity
The HS7600SR combines Bluetooth 5.2 with BLE (supporting SPP, HID, and HOGP profiles) and IEEE 802.11 b/g/n WiFi in a single device — connecting directly to Android mobile computers, tablets, and warehouse management systems over either radio. The Datalogic Gateway Connect accessory (GWU-HS7600) allows a single WiFi/Bluetooth gateway to manage up to 7 CODiScan units simultaneously, enabling team picking workflows where multiple wearable scanners share a single host connection. The Aladdin mobile app (Android) handles pairing, configuration, and firmware management without enterprise IT involvement.
12,000 Scans Per Charge — 2-Shift Endurance
A single 2-hour charge delivers 12,000 scans and 16 hours of operational use — covering two full warehouse shifts without returning to a charging station. The charging station (MC-HS7600, available separately) accommodates modular multi-slot configurations for fleet-scale charging. Battery status is indicated by the onboard LED: green above 50%, orange below — giving operators a clear shift-start readiness check without navigating menus.
180° LED Good-Read Feedback — Green Spot Technology
Three high-visibility LED blades emit good-read confirmation visible from up to 180 degrees — meaning overhead cameras, team supervisors, and the operator all see a successful scan simultaneously, without the operator needing to look at the device. Datalogic Green Spot projects a visible green dot onto the decoded barcode surface at successful decode, confirming accurate targeting in low-light conditions and at the 1.5 m (4.9 ft) standard range. Vibration and audio feedback complete a full three-mode confirmation system.
1D/2D Scanning — Standard Range to 1.5 m

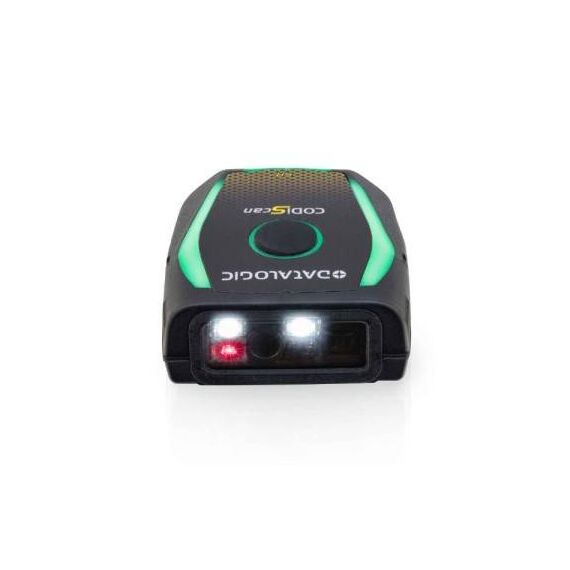

The 1,280 × 960 pixel sensor with green LED illumination and intelligent aiming reads all common 1D and 2D symbologies — UPC-A, EAN, Code 128, QR Code, DataMatrix, PDF417, and more — at distances up to 1.5 m (4.9 ft / 43 in). IP54 sealing protects against dust and splash in warehouse and logistics environments. The device withstands drops from 1.8 m (6 ft) to concrete — matching the drop tolerance of full-size handheld scanners despite its wearable form factor.
| Specification | Detail |
|---|---|
| Scanner Type | 2D Area Imager, Wearable, Cordless |
| Sensor Resolution | 1,280 × 960 pixels |
| Illumination | Green LED with intelligent aiming system |
| Scan Distance | Up to 1.5 m (4.9 ft / 43 in) — Standard Range |
| Symbologies | 1D and 2D (UPC/EAN, Code 128, QR, DataMatrix, PDF417 and all major variants) |
| Wireless | Bluetooth 5.2 with BLE (SPP, HID, HOGP) + IEEE 802.11 b/g/n |
| Gateway Connect | Up to 7 CODiScan units per gateway (GWU-HS7600, sold separately) |
| Scans per Charge | 12,000 / 16 hours (2-shift endurance) |
| Charge Time | 2 hours to full |
| IP Rating | IP54 |
| Drop Specification | 1.8 m (6 ft) to concrete |
| Weight | 44 g (1.5 oz) |
| Colour | Black / Green |
| Wearing Positions | Hand (trigger), neck (lanyard), belt (lanyard), pocket |
| Feedback | 3× LED blades (180° visibility), Green Spot, vibration, audio |
| Software | Datalogic Aladdin app (Android) for configuration and pairing |
How does the CODiScan compare to a ring scanner?
Ring scanners require a dedicated ring mount that slides onto the finger — comfortable for some, restrictive for others, and generally not transferable between users without adjustment. The CODiScan attaches via a palm-worn hand trigger that adjusts to any hand size in seconds, or clips to a lanyard for neck/belt carry when hands-free scanning is preferred but ring-worn isn't. It also fits in a pocket when temporarily not needed — a flexibility ring scanners cannot match.
What does the Gateway Connect (GWU-HS7600) enable?
The optional GWU-HS7600 gateway connects up to 7 CODiScan HS7600 units to a single fixed host via WiFi or USB, enabling team-picking configurations where multiple wearable scanners in a zone share a single connection to a WMS terminal. This eliminates the need for individual Bluetooth pairing sessions per operator and simplifies fleet management in large warehouse deployments.
Is the CODiScan HS7600SR suitable for long shifts?
Yes. The 12,000-scan / 16-hour battery covers two full warehouse shifts on a single 2-hour charge. At 44 g, operator fatigue from carrying the device is negligible. The three-LED blade good-read system and Green Spot reduce re-scan incidents, keeping throughput consistent throughout the shift.
What is the difference between the SR and HP (High Performance) variants?
The HS7600SR (Standard Range) reads barcodes up to 1.5 m (4.9 ft) — covering the vast majority of pick-and-scan, receiving, and retail fulfilment distances. An HP (High Performance) variant extends read distance for applications requiring longer-range scanning such as high-rack picking or conveyor scanning. Choose SR for standard shelf and tote scanning; HP for elevated or extended-distance applications.
