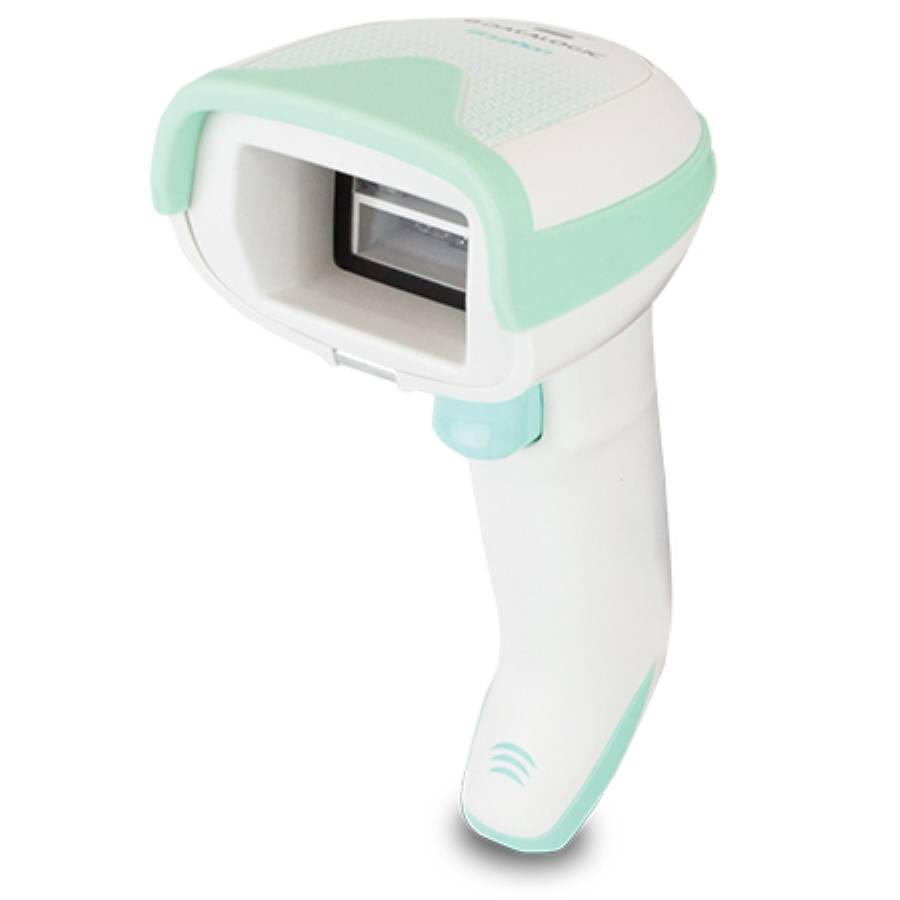

Datalogic Gryphon GBT4500-HC | 2D Imager Cordless Healthcare Scanner | Bluetooth 4.0 BLE | (BT Kit — Scanner + Cradle + Cable Incl.)
The Datalogic Gryphon GBT4500-HC is a cordless 2D area imager engineered for healthcare environments that demand both scanning precision and strict hygiene compliance. Built on the same antimicrobial platform as the Gryphon 4500-HC series, it replaces the STAR RF radio with Bluetooth 4.0 BLE — enabling direct wireless pairing with mobile computers, tablets, and Bluetooth-enabled workstations without a dedicated frequency band. The GBT4500-HC-BTK1 kit includes the scanner, the WLC4090-HC BT inductive charging base, and a USB cable for immediate deployment in clinical, pharmacy, and bedside point-of-care (BPOC) settings.
Healthcare-Grade Design & Antimicrobial Housing
The GBT4500-HC enclosure is treated with antimicrobial additives that actively inhibit bacterial growth on all contact surfaces — a critical requirement in hospitals, pharmacies, and clinical laboratories where device sharing between staff increases cross-contamination risk. The disinfectant-ready housing withstands daily cleaning with harsh chemical agents including alcohol and bleach-based solutions without surface degradation or colour change. The smooth white body minimises hard-to-clean crevices, and the design is specifically validated for BPOC compliance. A 3-year warranty from Datalogic reflects confidence in long-term performance under intensive healthcare disinfection protocols.
Bluetooth 4.0 BLE Connectivity
The GBT4500-HC communicates via Bluetooth 4.0 with BLE (Bluetooth Low Energy), providing wireless flexibility not available in the STAR RF variant. BLE allows the scanner to pair directly with Bluetooth-enabled tablets, mobile computers, and workstations without requiring a proprietary base station as the sole host connection. The WLC4090-HC BT base included in the BTK1 kit doubles as both a charging cradle and a Bluetooth-to-USB bridge, connecting to the host system via USB and transmitting scan data wirelessly from the scanner. Supported interfaces include USB HID, USB COM, and Keyboard Wedge, covering the vast majority of healthcare software environments without custom drivers.
2D Megapixel Imaging, Green Spot & Motionix
At the core of the GBT4500-HC is a 1MP 2D megapixel area imager with white illumination and a 4-dot aiming pattern with centre cross, reading all major 1D, 2D, postal, stacked, Digimarc, and DotCode symbologies at 35 images per second. Datalogic's exclusive Green Spot technology projects a bright green spot of light directly onto the barcode surface at the moment of successful decode — providing an unambiguous visual confirmation independent of screen or beeper, especially useful in shared patient-bay environments where audio confirmation disturbs patients. Motionix motion-sensing automatically activates the scanner when raised, reducing the time between picking up the device and completing a scan. 3GL (3 Green Lights) and vibration motor provide additional tri-modal good-read feedback.
Inductive Wireless Charging — No Contact Points

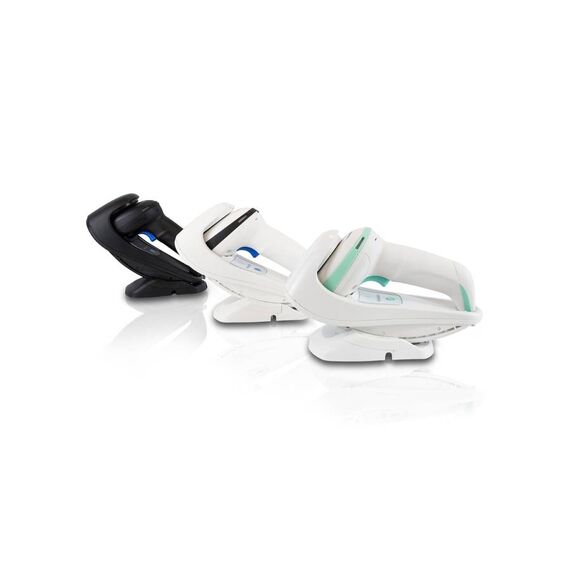

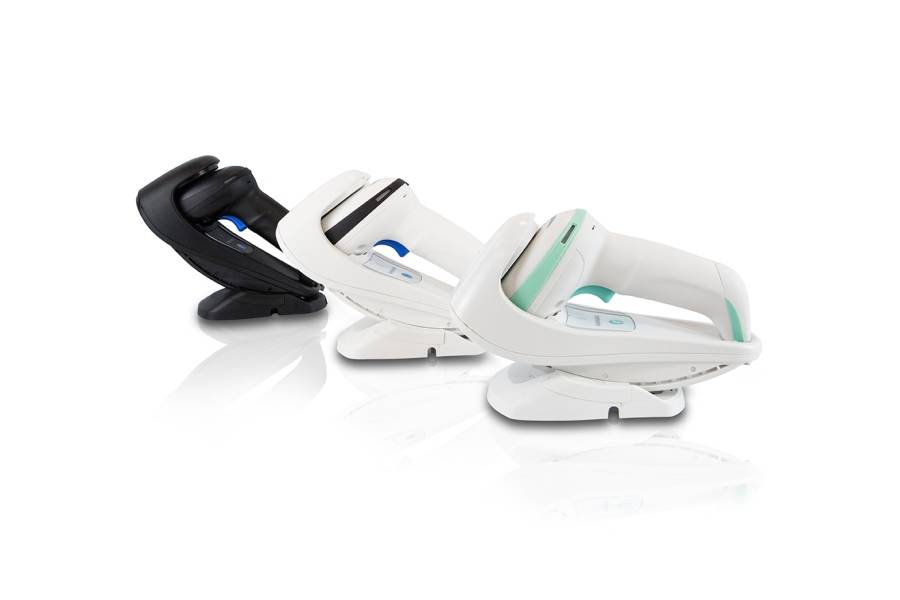

The WLC4090-HC BT base charges the GBT4500-HC inductively — there are no exposed metal charging contacts on the scanner or cradle. Physical contacts accumulate biofilm and corrode rapidly with repeated chemical disinfectant exposure; inductive charging eliminates this failure point entirely. The scanner rests in the cradle and begins charging automatically, with scan-while-charging capability ensuring workflows are never interrupted during top-up charges. The user-replaceable 3250 mAh Li-Ion battery supports hot-swapping between shifts without waiting for a full charge cycle.
Durability & Environmental Ratings
The GBT4500-HC carries an IP52 rating, protecting against dust ingress and low-pressure water spray typical of healthcare splash environments and surface cleaning. It withstands repeated drops from 1.8 metres (6 feet) — covering standard countertop and nurse station working heights. The operating temperature range of 0°C to 50°C covers clinical areas, medication storage rooms, and warm laboratory environments. The 35 IPS scan speed and omnidirectional reading capability ensure consistent throughput regardless of barcode orientation, reducing repeat scans and operator fatigue across long shifts.
| Specification | Detail |
|---|---|
| Imager Type | 2D Megapixel Area Imager, 1MP, Omnidirectional |
| Aiming System | 4-dot pattern with centre cross |
| Scan Speed | 35 IPS |
| Symbologies | 1D, 2D, Postal, Stacked, Digimarc, DotCode, Composite |
| Wireless | Bluetooth 4.0 BLE |
| Battery | Li-Ion 3250 mAh, user-replaceable |
| Charging | Inductive wireless (no contacts), scan-while-charging |
| IP Rating | IP52 |
| Drop Resistance | 1.8 m / 6 ft |
| Dimensions (L×W×H) | 166 × 109 × 68 mm |
| Weight | 235 g |
| Operating Temperature | 0°C to 50°C |
| Colour | White (healthcare) |
| Smart Features | Green Spot, Motionix, 3GL, vibration motor |
| Healthcare Features | Antimicrobial housing, disinfectant-ready, BPOC compliant |
| Warranty | 3 years |
| Kit Contents | Scanner + WLC4090-HC BT Inductive Cradle + USB Cable |
Frequently Asked Questions
What is included in the GBT4500-HC-BTK1 kit?
The BTK1 kit includes the GBT4500-HC scanner, the WLC4090-HC BT inductive wireless charging base, and a USB cable. The base connects to the host system via USB and transmits scan data wirelessly from the scanner via Bluetooth 4.0. No additional accessories are required for immediate out-of-the-box operation.
What is Datalogic Green Spot technology?
Green Spot is a Datalogic-patented technology that projects a small green dot of light directly onto the barcode at the precise moment it is successfully decoded. Unlike a simple LED indicator on the scanner body, the Green Spot appears on the item being scanned — giving the operator immediate on-target visual confirmation without needing to look away from the work area. It is especially valuable in quiet clinical environments where audio feedback must be minimised.
What is the difference between the GBT4500-HC and GM4500-HC?
Both are healthcare 2D scanners on the same Gryphon 4500-HC platform with the same antimicrobial housing, inductive charging, and imaging engine. The key difference is wireless technology: the GBT4500-HC uses Bluetooth 4.0 BLE (enabling direct pairing with mobile devices), while the GM4500-HC uses Datalogic's STAR 433 MHz RF system (providing better penetration through walls in larger clinical spaces). The GBT4500-HC also adds Green Spot, Motionix, and 3GL feedback not present on the GM4500-HC.
Is the GBT4500-HC BPOC compliant?
Yes. The GBT4500-HC is specifically validated for Bedside Point of Care (BPOC) medication scanning applications. Its disinfectant-ready antimicrobial housing, quiet vibration feedback option, and precise Green Spot confirmation make it well suited to bedside medication verification workflows where accuracy and hygiene are both critical.
