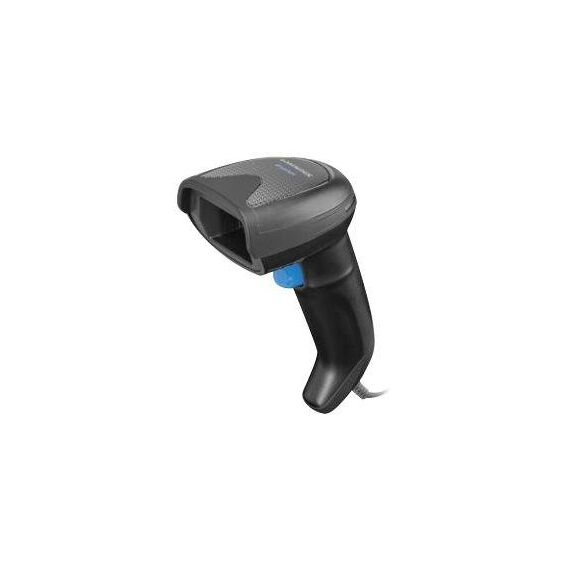

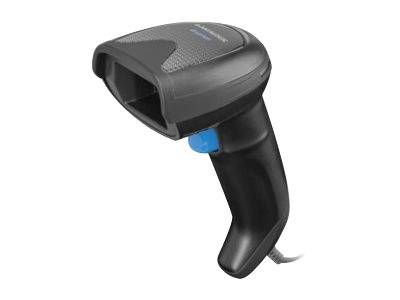

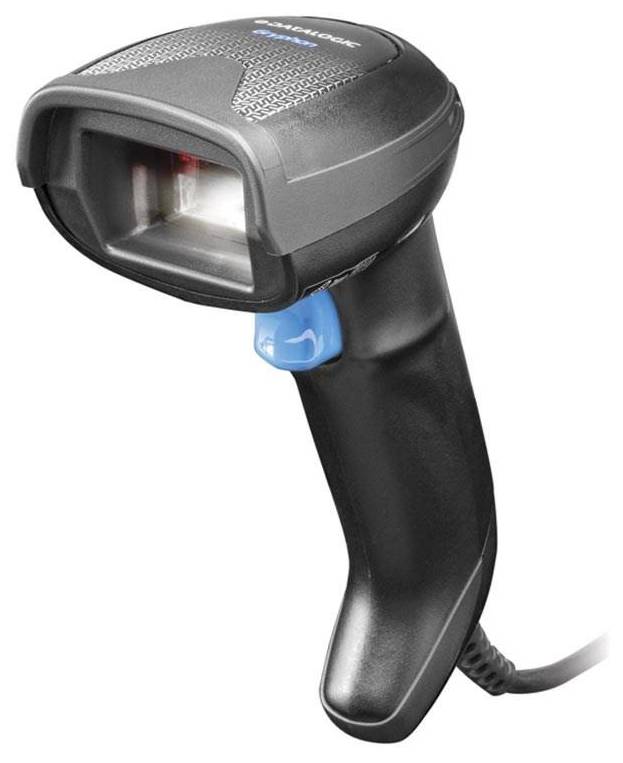

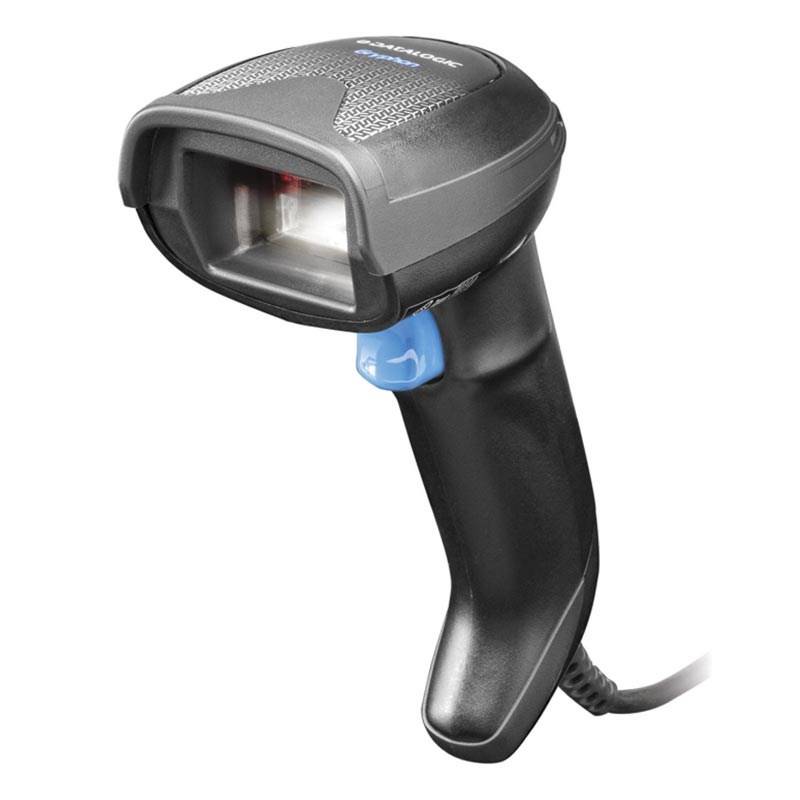

Datalogic Gryphon GD4520 Corded 2D USB Scanner Kit, USB Cable Included, Black

Brand:
Datalogic
Datalogic Gryphon GD4520 Black Corded 2D Barcode Scanner USB Kit
Datalogic Gryphon GD4520 Corded 2D USB Scanner Kit, USB Cable Included, Black
€230.94 inc. VAT
Buy
GD4520-BKK1
€194.07
€230.94 inc. VAT
Ships from EU stock: 23 item(s)
+ −
Add to wish list Ask a question
Product Code
04:355535
EAN Code
4060533217777
Manufacturer
Datalogic

Quick Specs

Codes
1D / 2D · 1280 × 800
Connection
Corded USB-only
Included
Scanner + USB cable
Feedback
Green Spot + 3GL
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

The USB 2D reader and cable, without a bundled base

1D + 2DUSB-onlyCable included

This black GD4520-BKK1 kit contains the corded 2D reader and USB cable. It reads merchandise labels, QR and Data Matrix, including compatible phone-screen codes, and sends data to your connected application. Motionix detects handling and changes between handheld and presentation modes; a stand is not included in this package.

Before you order:
BKK1 is the scanner-and-cable kit. BKK1B adds an All-in-One permanent base; BKK1S includes a separate stand. This is a USB-only GD4520, not a cordless GBT/GM or multi-interface GD4590.

What's in the Box

  • Black GD4520 scanner
  • USB cable 90A052258

What Will Not Work

  • Bluetooth/cordless scanning
  • RS-232 connection on this USB-only GD4520
  • Assuming HD, Digimarc or DPM options from other Gryphon configurations
  • A stand or permanent base is not supplied

Key Features


Target the intended code
The four-dot aimer and centre cross help frame the reading zone when several labels are close together.

Flexible working position
Motionix supports transitions between handheld and presentation use without requiring a wireless scanner.

Visible confirmation
Green Spot and two good-read LEDs form the 3GL indication, with an adjustable audible signal.

Technical Specifications

Identification
SKU GD4520-BKK1
EAN 4060533217777
Included Scanner and USB cable 90A052258; no stand/permanent base
Engine and reading
Sensor 1 MP, 1280 × 800 pixels
Formats Standard 1D and GS1 DataBar; QR/Micro QR, Data Matrix, Aztec, Han Xin, MaxiCode; postal; PDF417/MicroPDF417 and composite/stacked codes
Display reading Supported
Mode switching Motionix handheld/presentation sensing
Illumination / aiming Warm white / 650 nm red laser, 4-dot + centre cross
Motion / contrast 35 IPS / minimum 15%
Reading angles Pitch ±65°, skew ±65°, roll 360°
SR resolution 1D 4 mil / 0.102 mm; PDF417 5 mil / 0.127 mm; Data Matrix 7.5 mil / 0.195 mm
Feedback Green Spot, dual good-read LEDs (3GL), adjustable beeper
Image capture BMP / JPEG / TIFF; 256, 16 or 2 greyscale levels
Typical SR reading depth
Code 39 5 / 10 mil 7–38 / 2.2–58 cm
Data Matrix 10 / 15 mil 5.5–27 / 2.8–41 cm
EAN-13 13 mil 1–71 cm
PDF417 10 / QR 10 mil 2.5–41 / 5.5–24 cm
Conditions Depends on symbol length, angle, print resolution, contrast and ambient light
Power and construction
Interface / supply USB-only / 5 VDC
Current at 5 V Operating below 300 mA; idle below 90 mA
Dimensions / weight 166 × 68 × 109 mm / 161 g reader
Colour Black
Sealing / repeated drops IP52 / 1.8 m onto concrete
Temperature Operating 0–50 °C; storage −40–70 °C
Humidity / light / ESD 0–95% non-condensing / 0–100000 lux / 16 kV air
Compliance EU/China RoHS; IEC 60825 Class 2 aiming laser
Utilities Aladdin, OPOS, JavaPOS, remote host download
Manufacturer term 5-year factory warranty; seller terms separate

Frequently Asked Questions

Does BKK1 include a counter stand?
No. The official list includes scanner and USB cable; compare BKK1B for a permanent base or BKK1S for a stand.
Does Motionix mean it is wireless?
No. Motionix changes reading mode when handling is detected; the GD4520 connects to the host by USB cable.
Singular Expert Insight
Choose BKK1 when you need the reader and cable without a bundled support. For regular hands-free counter work, compare the base-equipped kits before ordering an accessory separately. Engine capability stays distinct from the included mounting hardware. Compare scanner kits and connections

Buyer’s Guide

✓

Buy it if

 You need a corded 2D USB reader and already have no requirement for a supplied base.
✕

Skip it if

 Your installation needs a bundled counter base or wireless mobility.
→

Also consider

 BKK1B with permanent base, or BKK1S with stand.
Tell us your host and barcode samples to check the engine and interface requirements.
