Datalogic Gryphon I GD4520 Barcode Scanner | 1D/2D Imager | USB | Kit | Black

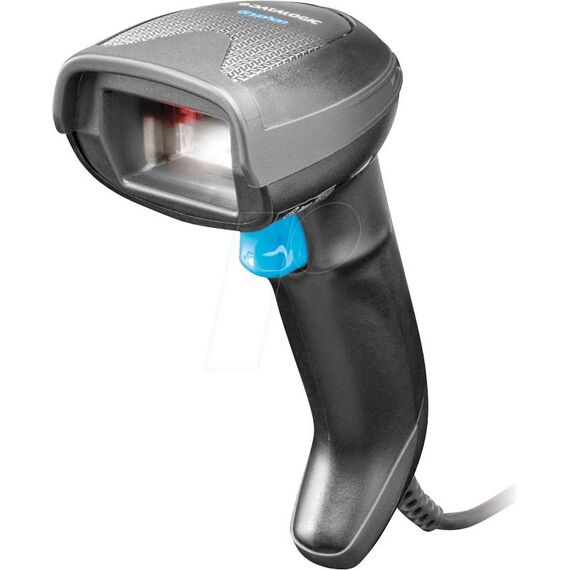

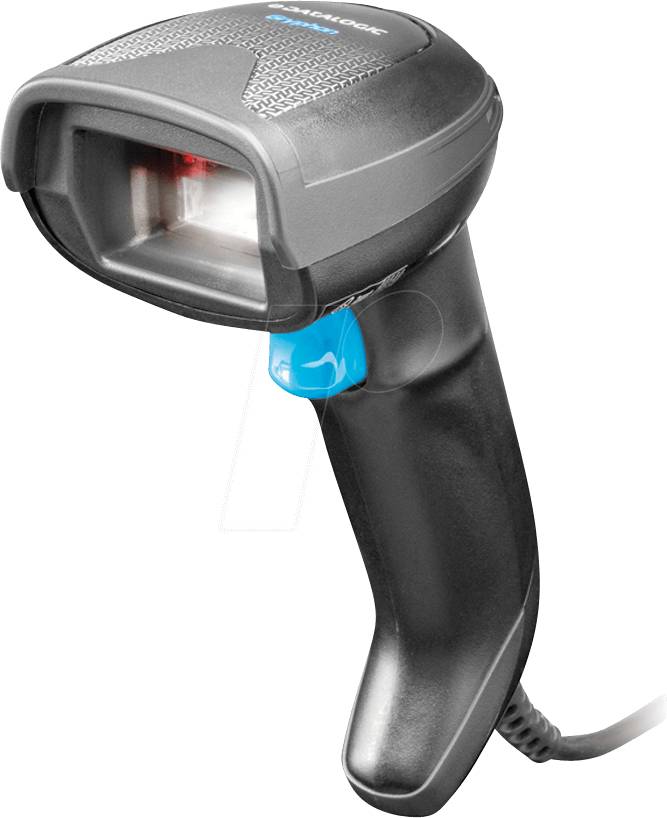

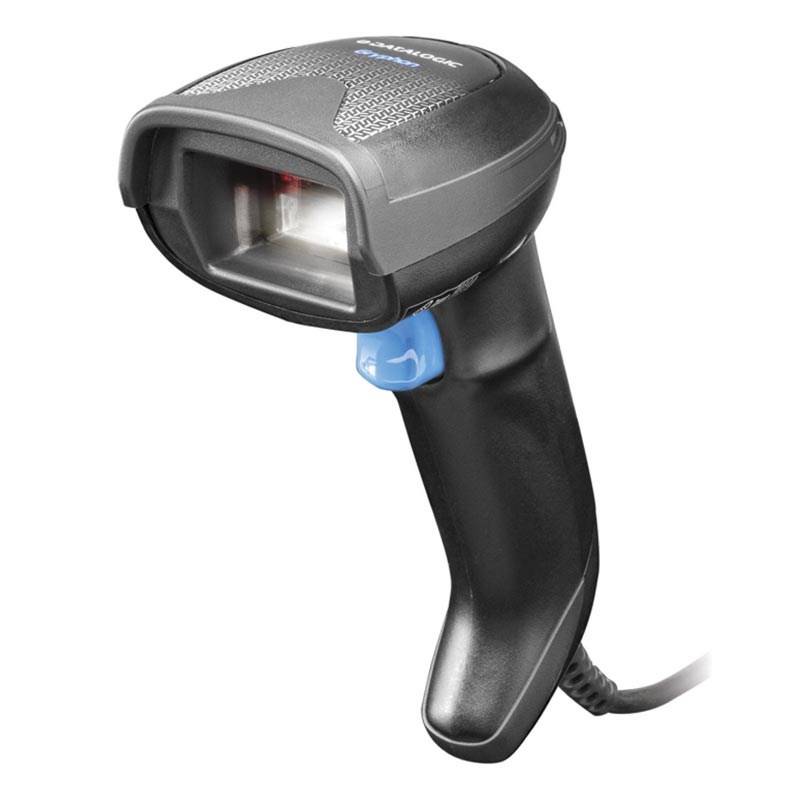

Datalogic Gryphon I GD4520 Barcode Scanner
1D/2D Imager · 1 Megapixel · USB-C · IP52 · Motionix · Kit · Black
The Datalogic Gryphon I GD4520 is a premium corded 1D/2D barcode scanner from the Gryphon 4500 series, designed for retail, healthcare, and general-purpose environments that demand reliable scanning performance. Its 1 Megapixel (1280×800) area imager reads all standard 1D and 2D barcodes omnidirectionally with a motion tolerance of 35 IPS. Motionix technology automatically switches between handheld and presentation scanning modes based on the operator's natural gestures. This kit includes the scanner and USB cable, ready to use out of the box.
| SKU | GD4520-BKK1 |
| EAN | 5706998329301 |
| Scanner Type | 1D/2D Area Imager · Omnidirectional |
| Imager Sensor | 1 Megapixel CMOS · 1280 × 800 pixels |
| Illumination | Warm White LED |
| Aiming | 4-Dot + Center Cross · Red Laser 650 nm |
| Motion Tolerance | 35 IPS |
| Reading Angles | Pitch ±65° · Roll 360° · Skew ±65° |
| 1D Barcodes | Code 39, Code 128, UPC/EAN, GS1 DataBar, Codabar, MSI, I 2 of 5, Code 93 and more |
| 2D Barcodes | QR Code, Data Matrix, PDF417, Aztec, MaxiCode, MicroPDF417, Micro QR, Han Xin, Postal codes and more |
| Special Capabilities | Digimarc · Image Capture (BMP, JPEG, TIFF) |
| Smart Technology | Motionix™ auto handheld/presentation switching · Green Spot decode feedback · 3GL indicators |
| Interface | USB-C / USB (host powered) |
| IP Rating | IP52 |
| Drop Resistance | 1.8 m (5.9 ft) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 16.6 × 6.8 × 10.9 cm |
| Weight | 161 g |
| Colour | Black |
| Enclosure | Disinfectant-ready |
| Configuration | Datalogic Aladdin software |
| In the Box | GD4520 Scanner · USB Interface Cable |
BUYER'S GUIDE
Best For: Retail POS, pharmacy, hospitality, healthcare, and general-purpose scanning environments. The GD4520 excels at reading standard-size 1D and 2D barcodes from labels, screens, and printed coupons — with the versatility to switch automatically between handheld and hands-free modes.
Standard vs. HD: Choose this standard range model for typical retail and POS barcodes (EAN-13, QR, Data Matrix on product labels). If you need to read very dense or miniature codes — such as those on circuit boards or pharmaceutical blister packs — consider the GD4520-BKK1-HD instead.
Know Before You Buy: Corded USB only — no Bluetooth. Stand not included in this kit. IP52 offers protection against light dust and drips, not immersion or outdoor exposure.
Premium Build: At 161 g with a disinfectant-ready housing, 1.8 m drop resistance, and Datalogic's Three Green Lights (3GL) visual decode confirmation, the GD4520 is engineered for professional full-shift use.
