Datalogic Gryphon GD4590-HD | 2D Megapixel HD Imager | Motionix | 4-Dot Aimer | Multi-IF | Black / Scanner only

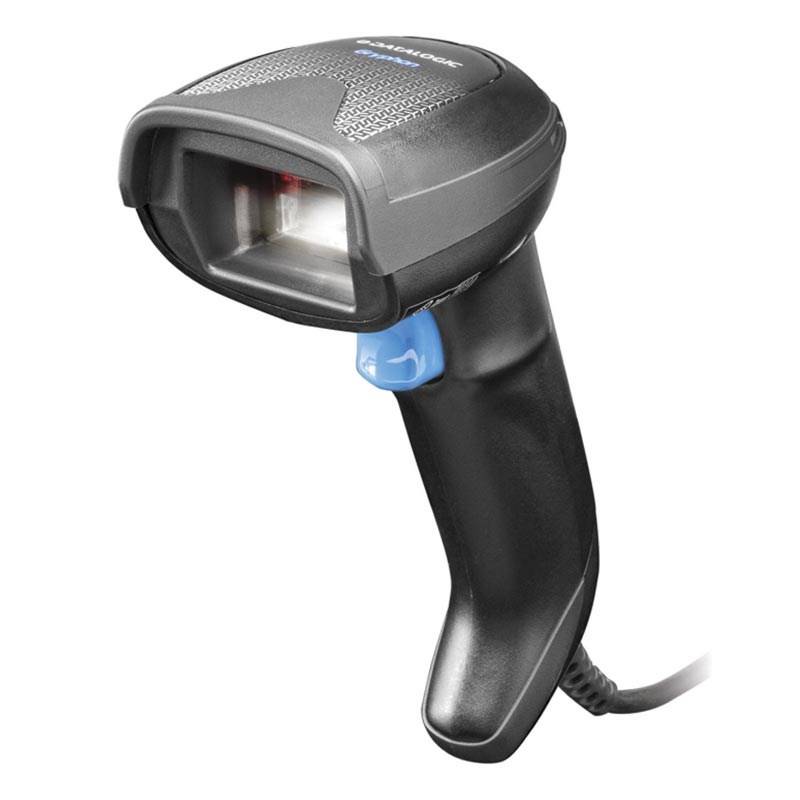

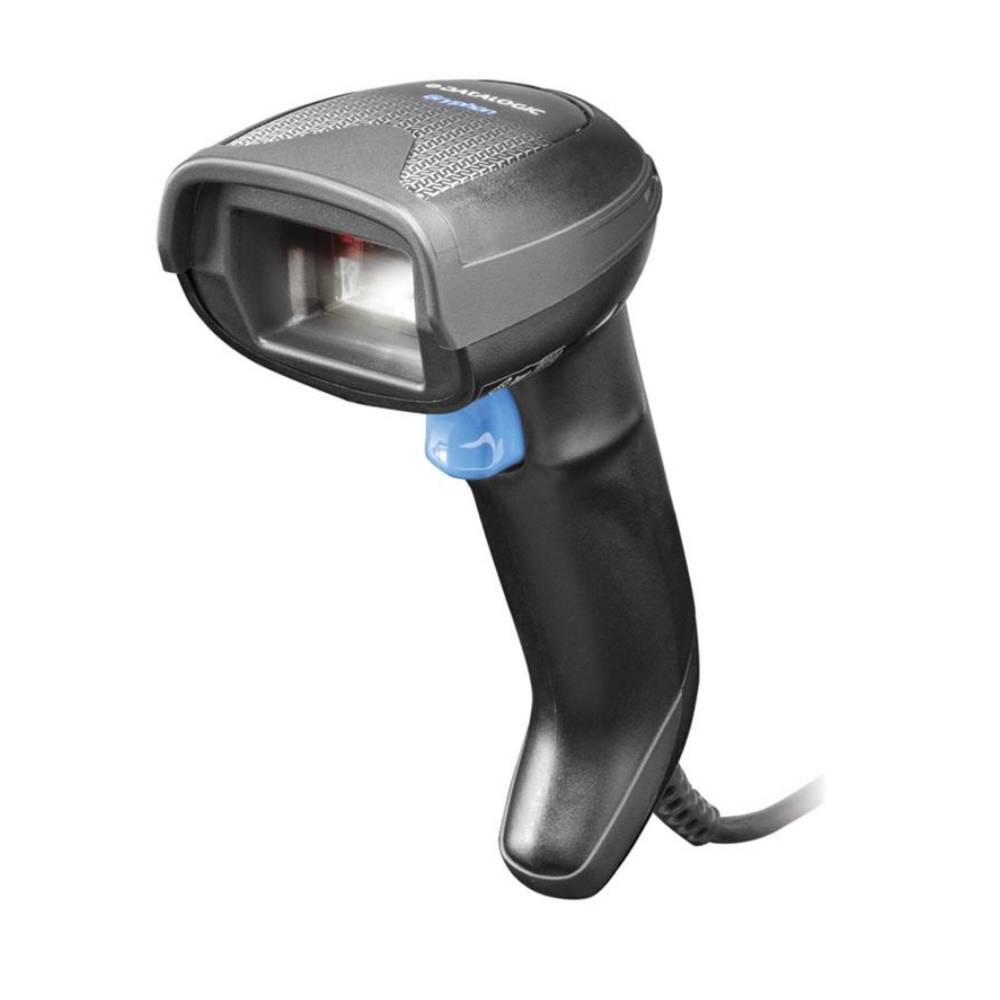

Datalogic Gryphon I GD4590 HD
Black · 2D Megapixel HD Imager · High Density Optics · DPM · Motionix · 4-Dot Aimer · Multi-IF · Scanner Only
The Datalogic Gryphon I GD4590 HD is the High Density variant of Datalogic's premium corded GD4590 handheld scanner series. It shares the same megapixel sensor, warm-white illumination, Motionix motion-sensing technology, and 4-Dot aimer with centre cross as the standard GD4590, but is fitted with dedicated High Density optics specifically engineered to read miniature, condensed, and Direct Part Marked (DPM) barcodes that standard-range imagers cannot resolve. It is the preferred choice for healthcare (surgical tools), electronics manufacturing (PCB serial labels), and pharmaceutical applications where barcode density exceeds standard retail specifications. This SKU is scanner only — no cable or stand is included.
| Part Number | GD4590-BK-HD |
| EAN | 5706998327611 |
| Colour | Black |
| Scanning Technology | 2D Megapixel Imager · High Density (HD) optics · Warm-white illumination · Omnidirectional |
| HD Applications | Direct Part Marking (DPM) · Pharmaceutical labels · PCB/electronics serial codes · Surgery tool marking · High-density 2D codes |
| Aimer | 4-Dot with centre cross — precise targeting in dense/multi-barcode environments |
| Mode Switching | Datalogic Motionix — auto-detects handheld or presentation mode from operator movement |
| 1D Barcodes | All standard symbologies · UPC/EAN · Code 39/128 · GS1 DataBar · and more |
| 2D Barcodes | QR Code · Data Matrix · Aztec · MaxiCode · Micro QR · Han Xin · PDF417 · Postal · Composite |
| Green Spot | Yes — projected on barcode at decode |
| Interface | USB · RS-232 · Keyboard Wedge — multi-interface auto-detect |
| Sealing | IP52 |
| Drop Resistance | 1.8m (5.9ft) onto concrete |
| Operating Temperature | 0°C to 50°C · Storage: -40°C to 70°C |
| In the Box | GD4590 HD Scanner only — cable and stand not included, order separately |
BUYER'S GUIDE
Best for: Healthcare facilities tracking surgical instruments with DPM codes, pharmaceutical dispensing workflows with 2D DataMatrix on unit-dose packaging, electronics manufacturing with PCB serial codes, and any industrial application requiring reliable reading of barcodes printed at densities beyond standard retail specifications.
Why buy it: The GD4590 HD provides all the premium features of Datalogic's flagship corded 2D scanner — Motionix, Green Spot, 4-Dot aimer, warm-white illumination, IP52, 1.8m drop — but targeted at the specialised scanning challenges that standard optics cannot solve. If your application involves DPM, pharma labels, or ultra-dense 2D codes, this is the correct variant.
Know before you buy: The GD4590-BK-HD is scanner only — no cable, no stand. Order your preferred interface cable separately. HD optics have a narrower optimal working range than standard optics; the scanner is designed for close-range precision reading, not extended-range general purpose scanning. If you need standard retail scanning distances, the GD4590-BK is the correct model.
Bottom line: Datalogic's premium 2D scanner with specialist optics for the applications that demand it — DPM, pharmaceutical, and high-density industrial barcode reading at the highest level of accuracy.
