Datalogic Gryphon I GD4590 Barcode Scanner | 1D/2D Imager | USB/RS-232/KBW | Scanner Only | Black

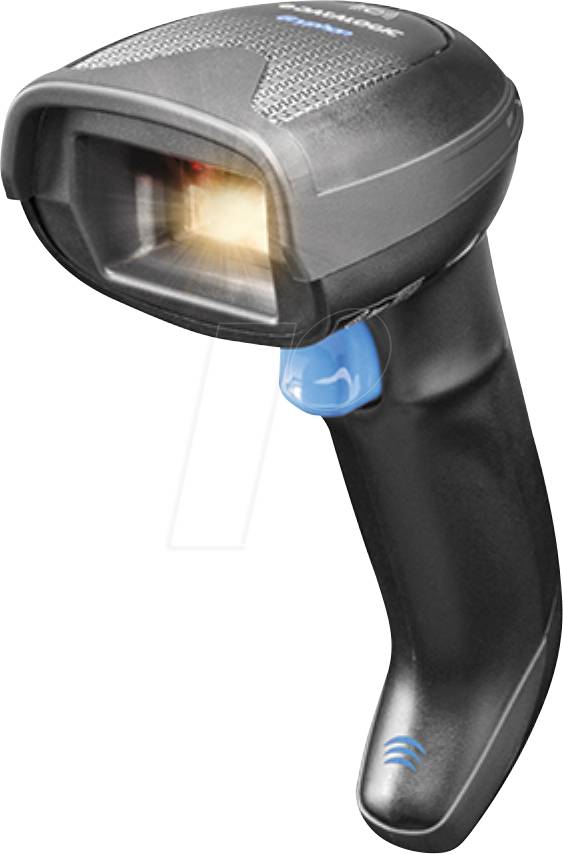

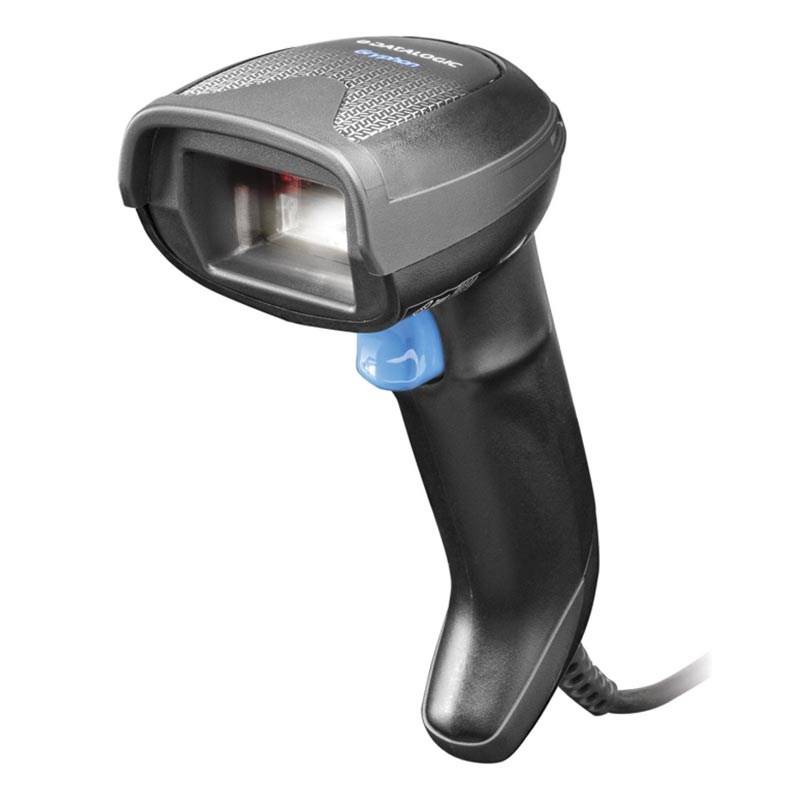

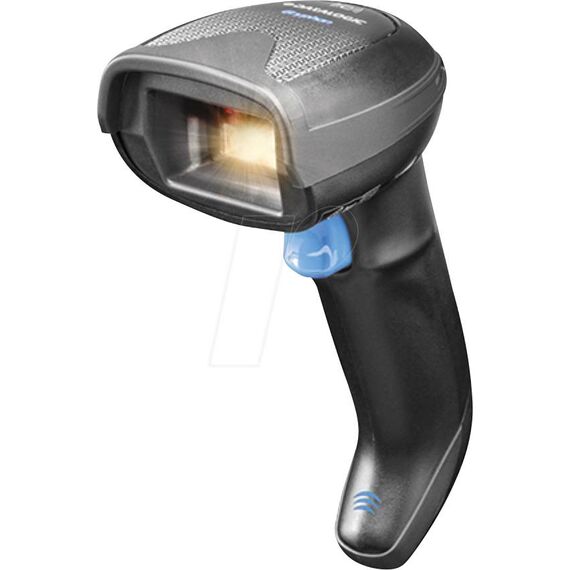

Datalogic Gryphon I GD4590 Barcode Scanner
1D/2D Imager · 1 Megapixel · Multi-Interface · IP52 · Motionix · Scanner Only · Black
The Datalogic Gryphon I GD4590 is the multi-interface variant of the premium Gryphon 4500 series, offering the same outstanding 1 Megapixel omnidirectional 2D imaging as the GD4520 but with full multi-interface support: USB, RS-232, Keyboard Wedge (KBW), and RS-485. This makes the GD4590 the right choice for environments with legacy POS systems, IBM terminals, or RS-232 connected hosts that cannot use USB. Motionix technology automatically switches between handheld and presentation scanning modes. The scanner-only variant ships without a cable — choose and pair the appropriate interface cable for your specific host system.
| SKU | GD4590-BK |
| EAN | 5706998292698 |
| Scanner Type | 1D/2D Area Imager · Omnidirectional |
| Imager Sensor | 1 Megapixel CMOS · 1280 × 800 pixels |
| Illumination | Warm White LED |
| Aiming | 4-Dot + Center Cross · Red Laser 650 nm |
| Motion Tolerance | 35 IPS |
| Reading Angles | Pitch ±65° · Roll 360° · Skew ±65° |
| 1D Barcodes | Code 39, Code 128, UPC/EAN, GS1 DataBar, Codabar, MSI, I 2 of 5, Code 93 and more |
| 2D Barcodes | QR Code, Data Matrix, PDF417, Aztec, MaxiCode, MicroPDF417, Micro QR, Han Xin, Postal codes and more |
| Special Capabilities | Digimarc · Image Capture (BMP, JPEG, TIFF) |
| Smart Technology | Motionix™ auto handheld/presentation switching · Green Spot decode feedback · 3GL indicators |
| Interfaces | USB · RS-232 · Keyboard Wedge (KBW) · RS-485 (IBM 46xx) — cable sold separately |
| IP Rating | IP52 |
| Drop Resistance | 1.8 m (5.9 ft) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 16.6 × 6.8 × 10.9 cm |
| Weight | 161 g |
| Colour | Black |
| Enclosure | Disinfectant-ready |
| Configuration | Datalogic Aladdin software |
| In the Box | GD4590 Scanner only · Interface cable sold separately |
BUYER'S GUIDE
Best For: Retail POS, pharmacy, healthcare, hospitality, and any environment with mixed or legacy host systems. The GD4590 is the multi-interface choice when USB alone is not enough — RS-232 cash registers, IBM 46xx terminals, and keyboard wedge setups all work natively.
GD4590 vs. GD4520: Same premium 1 Megapixel imager, same Motionix technology, same IP52/1.8m drop durability. The only difference is interface support: GD4590 adds RS-232, KBW, and RS-485 on top of USB. If you only need USB, the GD4520 is the simpler and often more cost-effective choice.
Know Before You Buy: This is a scanner-only SKU — no cable included. Order the Datalogic interface cable that matches your host system. IP52 protects against light dust and drips, not immersion. Corded only — no Bluetooth.
Premium Build: At 161 g with disinfectant-ready housing, 1.8 m drop resistance, and Datalogic's Three Green Lights (3GL) visual decode confirmation, the GD4590 is engineered for full-shift professional use.
