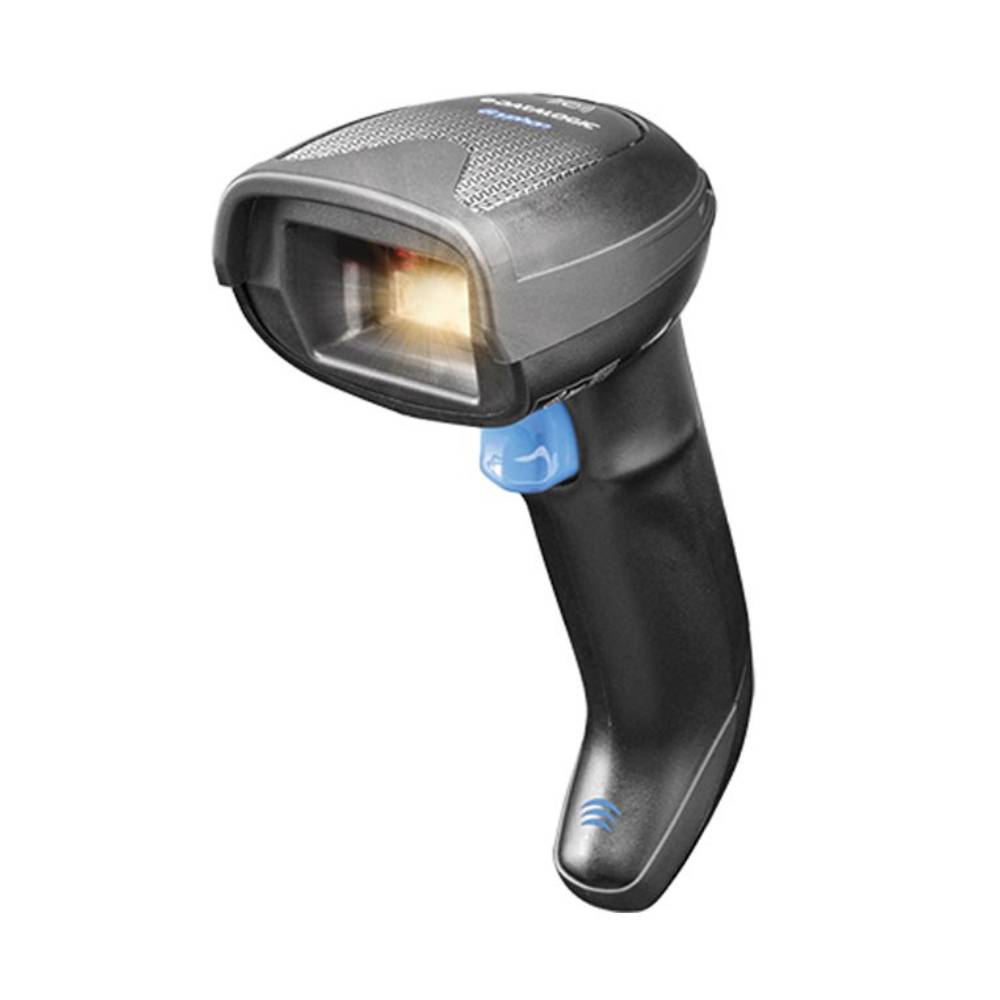

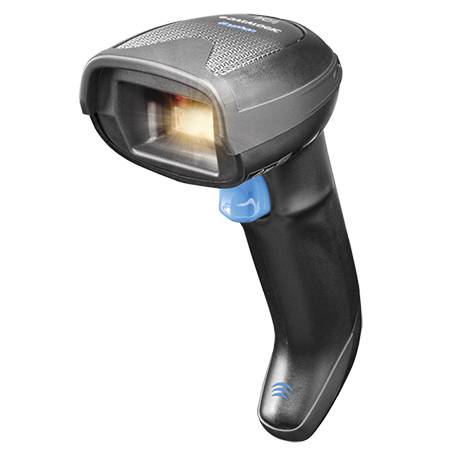

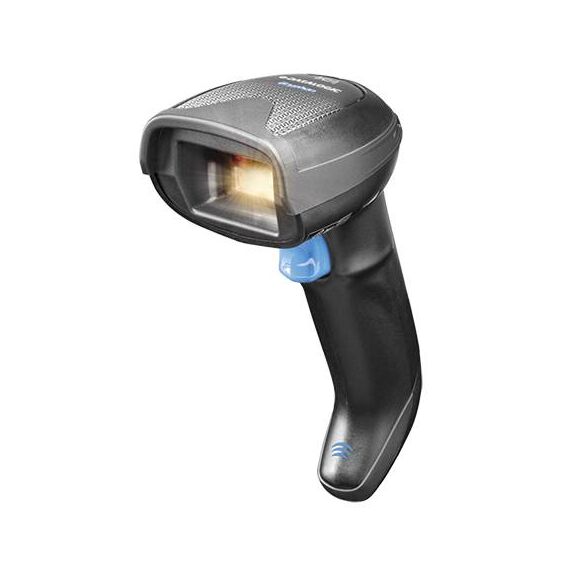

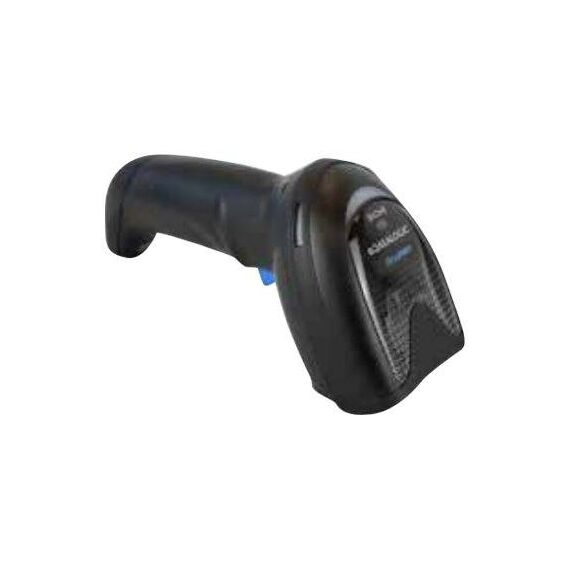

Datalogic Gryphon I GM4500 | Wireless 2D Omnidirectional Imager | 433 MHz STAR | USB Kit (Scanner + Cradle + Cable Incl.)
The Datalogic Gryphon I GM4500 is a wireless 2D omnidirectional area imager combining high-resolution 1 MP scanning with Datalogic's proprietary 433 MHz STAR Cordless System for reliable, interference-resistant connectivity up to 25 m. Motionix motion-sensing technology switches seamlessly between handheld and hands-free presentation modes, while inductive cradle charging eliminates contact wear for long-term reliability. This USB kit includes the scanner, WLC4090-BK-433 inductive cradle, and USB cable — everything needed to deploy immediately.
Inductive Charging — No Contacts, No Maintenance
Unlike conventional cradle chargers that rely on metal contact pins — which corrode, bend, and require regular cleaning — the GM4500 charges inductively through the cradle wall. There are no exposed electrical contacts on either the scanner or the WLC4090 base. This eliminates one of the most common failure points in deployed scanner fleets, reduces maintenance overhead, and supports full scan-while-charging operation so the scanner is always ready when picked up.
Motionix — Intelligent Mode Switching
Datalogic's Motionix motion-sensing technology detects when the scanner is picked up from the cradle and instantly switches to handheld mode, and returns to hands-free presentation mode when placed back. This eliminates manual mode toggling, removes operator error from the equation, and keeps scanning workflows smooth at busy checkouts and workstations where the scanner alternates between hands-free and handheld use continuously.
1 MP 2D Omnidirectional Imaging at 400 Reads/sec
The 1 megapixel area imager reads all common 1D and 2D symbologies omnidirectionally at up to 400 reads per second — no barcode orientation required. Datalogic's white-illumination optics with 4-dot aimer and centre cross deliver a very high depth of field and consistent performance on damaged, dirty, and poorly printed codes. The system also supports Digimarc digital watermarking and document capture, extending its use beyond standard barcode scanning.
433 MHz STAR Cordless System
The STAR Cordless System operates on the 433 MHz band — less congested than 2.4 GHz Wi-Fi and Bluetooth environments — providing stable, interference-resistant communication up to 25 m open air. Batch mode stores scans locally when out of range and transmits on reconnection. The 3,250 mAh Li-Ion battery delivers 30,000+ scans per charge with a 4-hour recharge time, supporting full single- and multi-shift retail and logistics operations.
Durability & Feedback
Rated IP52 for dust and light-splash resistance, with drop tolerance from 1.8 m (6 ft). Three-green-light (3GL) confirmation, Green Spot technology projecting a green dot onto the barcode at successful decode, and vibration feedback ensure the operator always knows a scan registered — essential in noisy retail and warehouse environments.
| Specification | Detail |
|---|---|
| Scanner Type | 2D Area Imager, 1 MP, Omnidirectional |
| Light Source | White illumination, 4-dot aimer with centre cross |
| Scan Rate | 400 reads/sec |
| Motion Tolerance | 35 IPS |
| Symbologies | 1D, 2D, PDF417, Postal, stacked, composite, Digimarc |
| Wireless System | Datalogic STAR Cordless System, 433 MHz |
| Wireless Range | 25 m (82 ft) open air |
| Interface | USB (via cradle) |
| Battery | Li-Ion 3,250 mAh, user-replaceable |
| Scans per Charge | 30,000+ |
| Charging | Inductive (contactless), scan-while-charging, 4 hrs |
| IP Rating | IP52 |
| Drop Specification | 1.8 m (6 ft) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | 285 g (10.1 oz) |
| Dimensions | 181 × 71 × 100 mm (7.1 × 2.8 × 3.9 in) |
| Colour | Black |
| Kit Contents | Scanner + WLC4090-BK-433 inductive cradle + USB cable 90A052258 |
What is included in the GM4500-BK-433K1 kit?
The kit includes the GM4500-BK scanner, the WLC4090-BK-433 inductive cradle base, and USB cable 90A052258. No additional accessories are required to begin scanning.
How does inductive charging work on the Gryphon GM4500?
The scanner charges through the cradle wall using electromagnetic induction — no contact pins on the scanner or cradle are required. This eliminates corrosion and contact wear, and allows the scanner to be used while sitting in the cradle (scan-while-charging).
What is the difference between the 433 MHz and 910 MHz versions?
Both use Datalogic's STAR Cordless System but operate on different radio frequencies. The 433 MHz version (this kit) suits European and international markets, while the 910 MHz version is primarily used in North America. Range and performance are comparable at 25 m open air.
What does Motionix technology do?
Motionix uses an integrated motion sensor to detect when the scanner is lifted from the cradle, automatically switching to handheld mode, and when replaced, switching back to hands-free presentation mode — with no manual button press required.
