Datalogic PowerScan PBT9600 | Auto Range Cordless Scanner | Bluetooth 5.0 | Up to 20 m | Green Spot | (USB Kit — Scanner + Cradle + Cable Incl.)
The Datalogic PowerScan PBT9600-AR is a cordless Bluetooth 5.0 industrial barcode scanner with Auto Range technology — the ability to read barcodes from near contact all the way to 20 metres away, automatically, without mode switching or manual focus adjustment. For warehouse operations where scanning distances vary from close picklists to high-rack locations, the PBT9600-AR eliminates the need to carry two scanners. IP65/IP67 sealing, 2.5 m drop resistance, and Datalogic's Green Spot feedback complete a genuinely industrial-grade package.

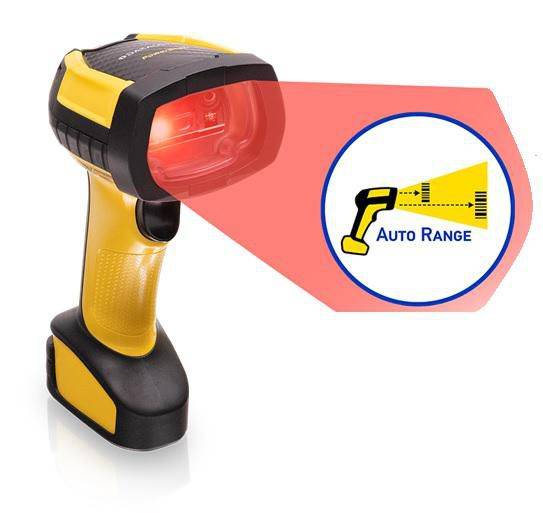

Auto Range — Near Contact to 20 Metres
The AR scan engine is the defining feature of this model. It automatically adjusts its focal range to match the distance to the barcode — from items held close in the hand to barcodes on shelving up to 20 m away. There is no button to press, no mode to switch, no manual adjustment. In warehouses where operators scan at the floor level and then need to read location codes on high racking in the same pass, the PBT9600-AR handles both without breaking the workflow.
Bluetooth 5.0 — Industrial Reliability

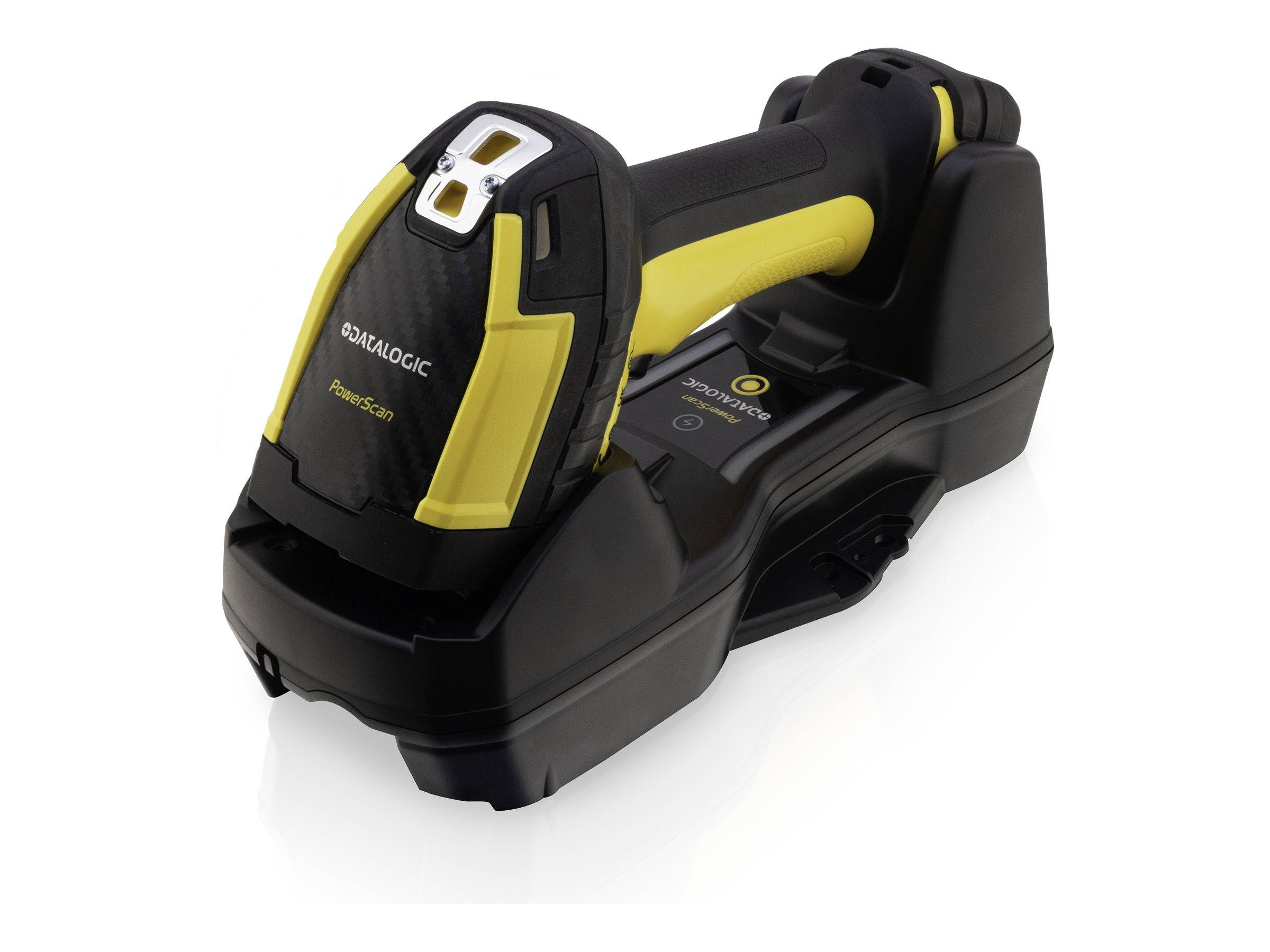

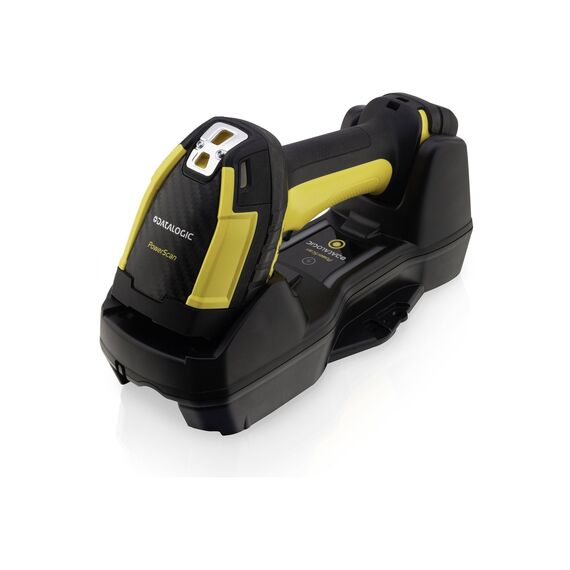

Bluetooth 5.0 delivers faster data throughput and more stable connections in RF-dense industrial environments compared to earlier Bluetooth versions. The PBT9600-AR pairs to the included USB cradle, which connects to the host system via USB. Wireless range supports free operator movement across large warehouse bays without connection dropouts.
Green Spot Good-Read Feedback
Datalogic's Green Spot projects a visible green dot onto the barcode at the point of a successful read — giving the operator instant visual confirmation at any distance, including at 10–20 m where audio feedback cannot be relied upon. On damaged or dirty labels where an audible beep might leave doubt, the Green Spot removes ambiguity from every scan.
IP65/IP67 — Certified for 50 Drops at 2.5 m
Fully sealed against dust (IP6X) and rated for both water jets (IP65) and short immersion (IP67). Drop-tested to 2.5 m onto hard concrete for 50 consecutive drops — not a single-drop certification, but a multiple-impact standard that reflects real warehouse conditions. The trigger is rated for 10 million actuations.
| Specification | Detail |
|---|---|
| Model | PBT9600-ARRB |
| Series | Datalogic PowerScan 9600 |
| Scan Engine | Auto Range (AR) — near contact to 20 m |
| Connectivity | Bluetooth 5.0 |
| IP Rating | IP65 / IP67 |
| Drop Spec | 2.5 m to hard concrete — 50 drops certified |
| Trigger Durability | 10 million actuations |
| Good-Read Feedback | Green Spot, beeper, vibration |
| Battery | Li-ion rechargeable (wireless charging compatible) |
| Interface | USB (via cradle) |
| Kit Contents | Scanner + cradle + USB cable + power supply + power cord |
Frequently Asked Questions
What does Auto Range mean — how far can it actually scan?
Auto Range automatically adjusts from near contact to 20 metres depending on where the barcode is. There is no manual focus adjustment or mode change required — the scanner detects the distance and adjusts the optics accordingly.
What is the difference between the PBT9600 and PM9600?
The PBT9600 uses Bluetooth 5.0. The PM9600 uses Datalogic's STAR proprietary radio at 433 MHz or 910 MHz. Bluetooth is the better choice when the host system already supports BT; STAR is preferred in RF-dense environments where Bluetooth interference is a concern.
Does the PBT9600-AR support wireless charging?
Yes — the PowerScan 9600 series is compatible with Datalogic's inductive wireless charging system. The standard USB cradle in this kit charges via cable; wireless charging cradles are available separately.
Is the 2.5 m drop spec for a single drop or repeated drops?
50 consecutive drops from 2.5 m onto hard concrete — not a single-impact test. This reflects how scanners actually fail in industrial use, through repeated drops over time.
