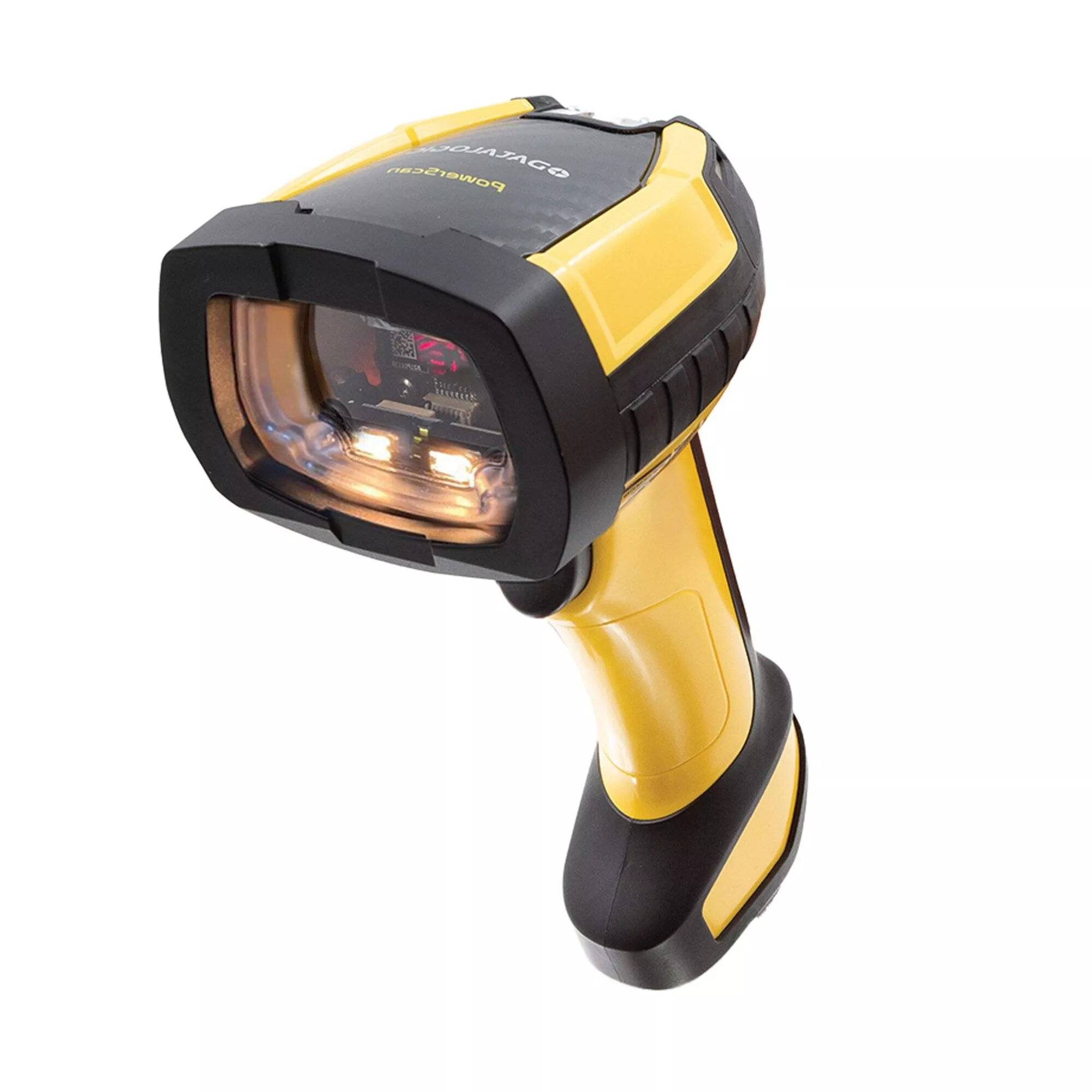

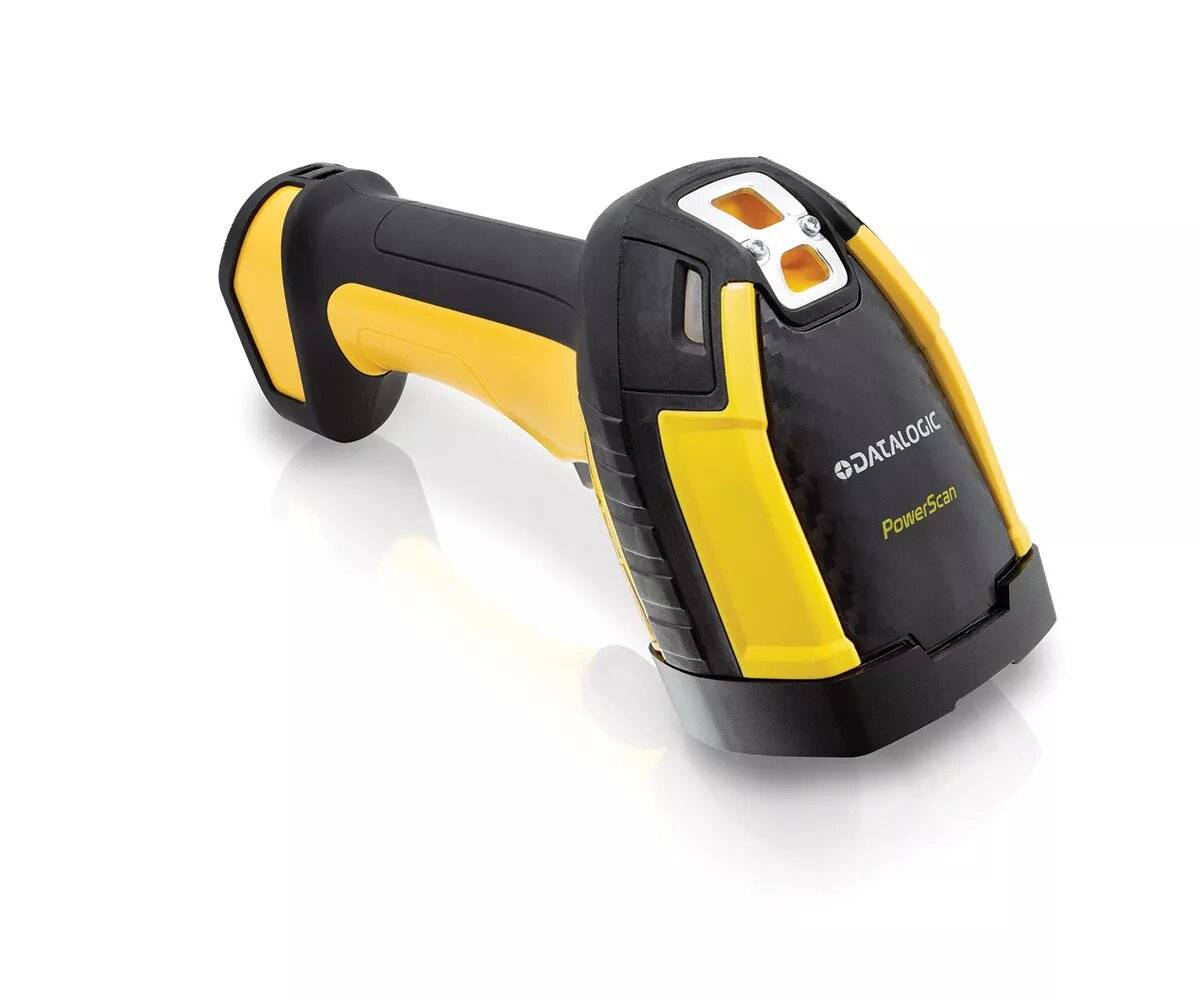

Datalogic PowerScan PM9600-SR | Industrial 2D Area Imager | 433 MHz STAR | (Scanner Only)
The Datalogic PowerScan PM9600-SR is a professional-grade industrial cordless 2D area imager built for the most demanding logistics, warehousing, and manufacturing environments. Dual IP65+IP67 sealing, 50-drop certification from 2.5 m, a 10-million-hit trigger, and a 3,350 mAh removable battery delivering 80,000 scans per charge place it in a different class from commercial-grade scanners. The 433 MHz STAR Cordless System provides a 150 m open-air wireless range. This listing is for the scanner only — a compatible cradle and cable must be purchased separately.
Dual IP65+IP67 Sealing & Extreme Drop Tolerance
The PM9600-SR carries both IP65 (dust-tight + water jet resistant) and IP67 (dust-tight + temporary immersion to 1 m) ratings simultaneously — a level of environmental protection rarely achieved in handheld scanners. It withstands 50 consecutive drops from 2.5 m (8.2 ft) to concrete at ambient temperature, and operates across a -20°C to 50°C temperature range. For environments involving wash-down, freezer aisles, outdoor docking, or explosive-atmosphere-adjacent areas, the PM9600's ruggedness provides a reliability baseline that commercial scanners cannot match.
433 MHz STAR Cordless — 150 m Wireless Range
The proprietary 433 MHz STAR Cordless System delivers a 150 m open-air range at low speed and 100 m at high speed — significantly outranging Bluetooth and 2.4 GHz systems in RF-congested industrial facilities. The 433 MHz band is less susceptible to interference from Wi-Fi networks, forklift radios, and motor inverters common in production and warehouse environments. Point-to-point and multi-point configurations are supported, and the removable battery (RB variant) allows hot-swap operation so the scanner is never out of service during a shift battery change.
80,000 Scans Per Charge — Removable Battery
The 3,350 mAh Li-Ion removable battery delivers 80,000 scans per full charge — enough for multiple shifts without returning to a charging cradle. Charge time is 2.5 hours to 95% and 3.2 hours to full. The RB (Removable Battery) design allows a discharged battery to be swapped for a pre-charged one in seconds, enabling continuous 24/7 operation without downtime. Battery management across a fleet can be handled externally using multi-bay charging docks (available separately).
Standard Range 2D Imaging — All Industrial Symbologies
The 1,280 × 800 pixel sensor with white LED illumination and 630–680 nm VLD aimer decodes all standard 1D and 2D symbologies at 3 mil (1D) and 6 mil (2D) minimum resolution. The 38° × 24° field of view and standard range optics cover all typical industrial barcode reading distances. Supported 2D codes include DataMatrix, QR Code, Aztec, MaxiCode, Han Xin, DotCode, PDF417, MicroPDF417, and all GS1 DataBar variants — covering GS1 Digital Link and supply-chain traceability applications.
Industrial Feedback & Ergonomics
Datalogic's 3GL (Three Green Lights) technology provides unmistakeable multi-angle good-read confirmation visible across a busy production line. Green Spot projects a visible dot onto the decoded barcode for precision confirmation, and the adjustable-tone beeper and vibrator complete a three-mode feedback system suited to both noisy and noise-sensitive environments. The trigger is rated to 10 million actuations — a meaningful longevity benchmark for high-throughput industrial scanning. Weight is 425–455 g depending on configuration.
| Specification | Detail |
|---|---|
| Scanner Type | 2D Area Imager, Industrial Cordless |
| Sensor Resolution | 1,280 × 800 pixels |
| Illumination | White LED |
| Aimer | 630–680 nm VLD (Visible Laser Diode) |
| Field of View | 38° H / 24° V |
| SR Resolution | 3 mil (1D) / 6 mil (2D) |
| 1D Symbologies | All standard linear codes, GS1 DataBar variants |
| 2D Symbologies | QR, Micro QR, DataMatrix, Aztec, MaxiCode, Han Xin, DotCode, PDF417, MicroPDF417, MacroPDF, Postal (10 types), composites |
| Wireless System | Datalogic STAR Cordless, 433 MHz |
| Wireless Range | 150 m / 492 ft (low speed) — 100 m / 328 ft (high speed) |
| Battery | Li-Ion 3,350 mAh, removable (hot-swap) |
| Scans per Charge | 80,000 |
| Charge Time | 2.5 hrs to 95% / 3.2 hrs to full |
| IP Rating | IP65 + IP67 (dual) |
| Drop Specification | 50 drops from 2.5 m (8.2 ft) to concrete |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Trigger Life | 10 million actuations |
| Weight | 425–455 g |
| Dimensions | 71 × 203 × 107 mm (W × H × D) |
| Feedback | 3GL, Green Spot, LED, adjustable beeper, vibration |
| Kit Contents | Scanner only (RB = Removable Battery) — cradle and cable required separately |
What does the RB suffix mean — is a cradle included?
RB stands for Removable Battery, indicating this scanner ships with a user-swappable Li-Ion pack. No cradle or cable is included. To add charging and USB/RS-232 communication, the compatible base cradle is the BC9030-433 (standard) or BC9630-433 (with PSU). The full kit SKU is PM9600-SR433RBK10, which bundles the cradle, cable, power supply, and power cord.
How does 433 MHz compare to Bluetooth for industrial use?
The 433 MHz STAR Cordless System offers a 150 m open-air range versus Bluetooth's typical 10–100 m, and operates on a dedicated frequency band less congested by Wi-Fi, Bluetooth, and other 2.4 GHz industrial devices. This reduces packet loss and reconnection events in environments with many wireless devices, forklifts, and metal racking that attenuate 2.4 GHz signals.
What is the difference between the PM9600-SR and PM9600-HP?
SR (Standard Range) reads 1D codes down to 3 mil and 2D codes down to 6 mil resolution — suitable for standard warehouse and logistics labels. HP (High Performance) reads 1D down to 2.5 mil and 2D down to 4 mil, covering high-density labels, smaller DPM codes, and more challenging industrial applications. The SR model covers the large majority of warehouse and distribution use cases.
Can the PM9600 operate in freezer or cold-chain environments?
Yes. The PM9600-SR is rated to -20°C (-4°F), making it one of the few industrial cordless scanners suitable for freezer warehouses and cold-chain logistics without a heated enclosure. The IP65+IP67 sealing also handles condensation that occurs when the scanner moves between temperature zones.
