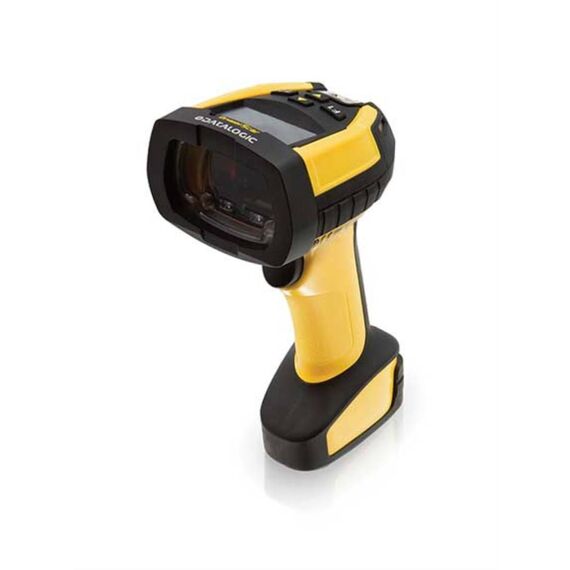

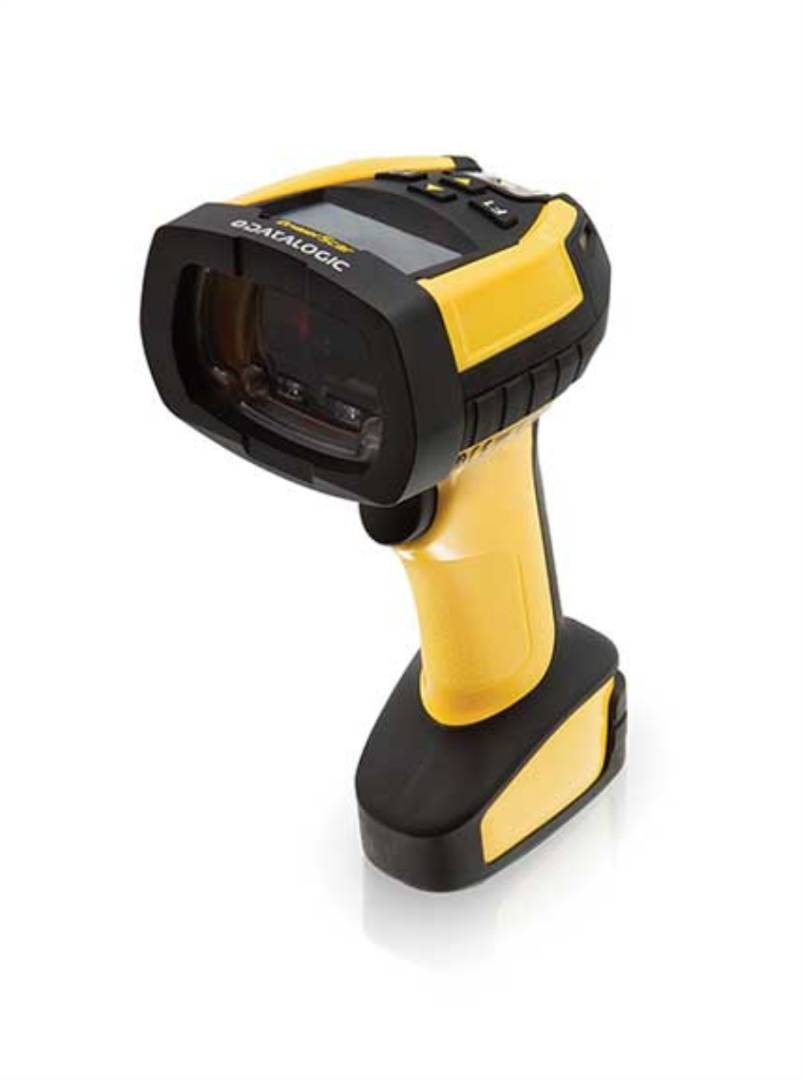

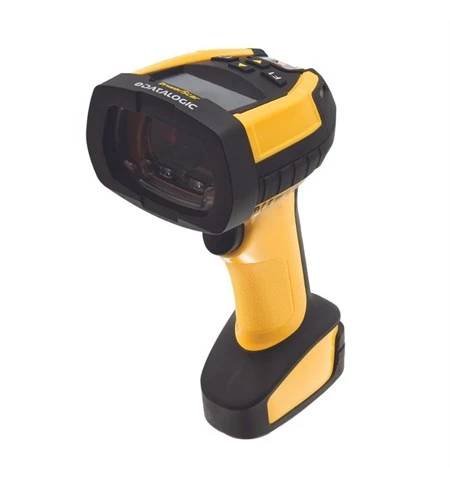

Datalogic PowerScan PM9600-DHP | Industrial Cordless 2D Scanner | HP Imager | Display & 4-Key Keypad | 433 MHz | USB Kit (Scanner + Cradle + Cable Incl.)
The Datalogic PowerScan PM9600-DHP is a premium industrial cordless barcode scanner combining High Performance 2D imaging with an integrated display and 4-key keypad. Workers get instant on-scanner feedback — scan confirmation, error alerts, and guided workflows — without a separate terminal. With 433 MHz RF, IP65 sealing, and a complete USB kit, it is ready for the most demanding industrial deployments.

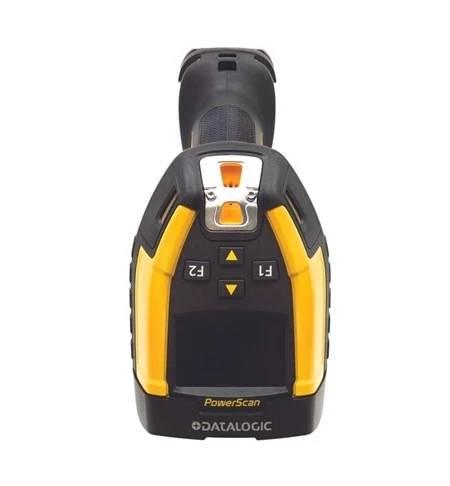

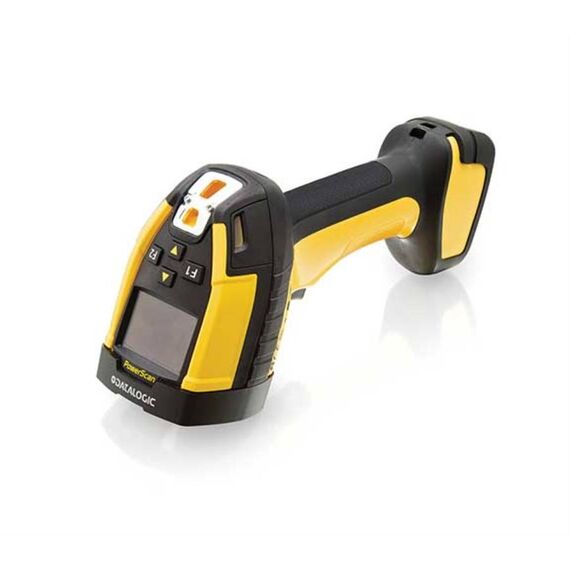

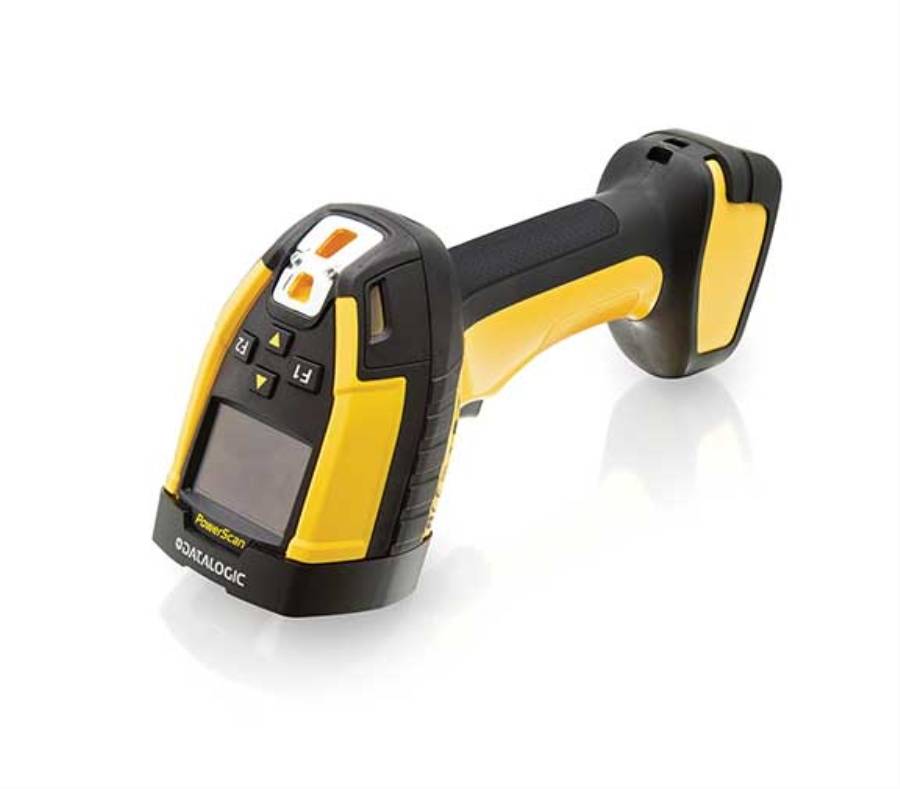

The DHP variant adds an integrated display and 4-key keypad to the standard PM9600-HP. Workers receive visual confirmation of each scan, error messages, and can navigate simple on-device workflows — reducing round trips to a fixed terminal and improving accuracy in pick, pack, and verify operations.
The HP imager reads standard and difficult barcodes — damaged labels, poor print quality, screen-displayed codes — quickly and reliably. Omni-directional scanning means no alignment needed; point and scan at any angle.
The 433 MHz radio frequency provides robust wireless connectivity with excellent penetration through shelving, machinery, and concrete walls — ideal for environments where Bluetooth may be unreliable or where a dedicated RF infrastructure is already in place.

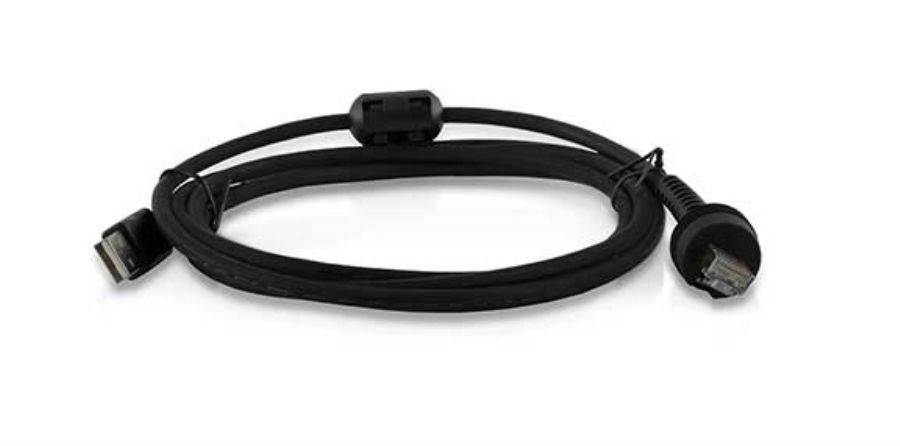

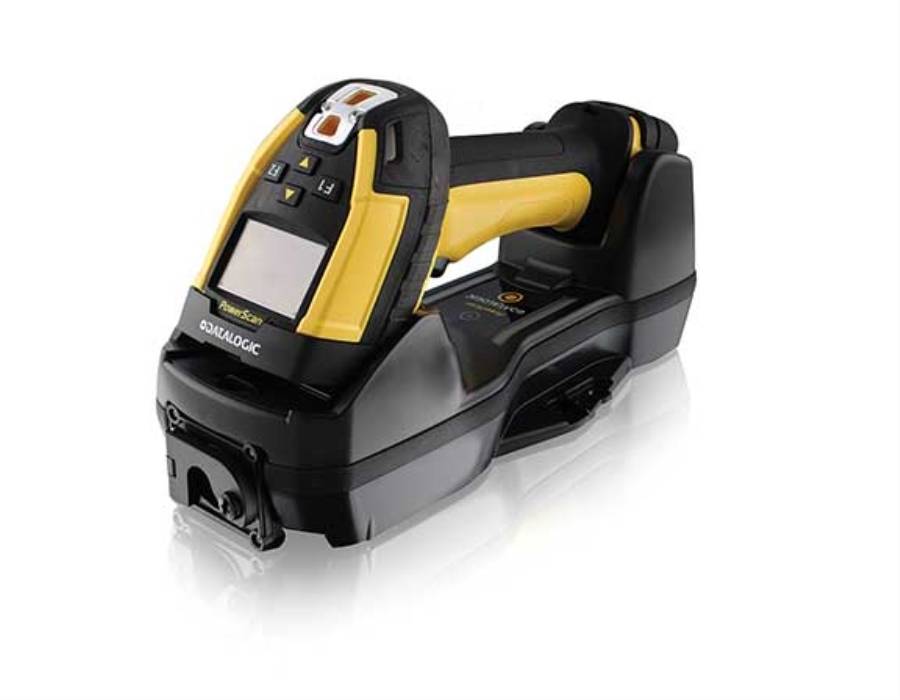

This kit includes the PM9600-DHP scanner, BC9680-433 cradle, and USB communication cable. Everything needed for USB host deployment — plug in, pair, and start scanning.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | PowerScan PM9600-DHP |
| SKU | PM9600-DHP433RBK10 |
| Imager Type | High Performance (HP) 2D Imager |
| Display | Integrated display + 4-key keypad |
| Wireless | 433 MHz RF |
| Interface (Kit) | USB |
| Sealing | IP65 |
| Barcodes Supported | 1D, 2D, PDF417, QR, DataMatrix, Postal |
| Kit Contents | Scanner + BC9680-433 Cradle + USB Cable |
Frequently Asked Questions
The integrated display can show scan confirmations, error messages, battery status, and simple workflow prompts. The 4-key keypad allows workers to navigate menus or confirm actions without returning to a terminal.
The scanner and imager are identical. The DHP adds an integrated display and 4-key keypad for on-scanner feedback. Choose DHP when workers need confirmation at the point of scan; choose HP for straightforward scanning without a display.
The scanner is identical. RBK10 connects to USB hosts; RBK20 connects to RS-232 serial hosts. Choose based on your host system's available interface.
433 MHz RF provides better signal penetration in metal-heavy environments — through shelving, machinery, and concrete walls — where Bluetooth connections can be unstable or where a dedicated RF infrastructure is already deployed.
