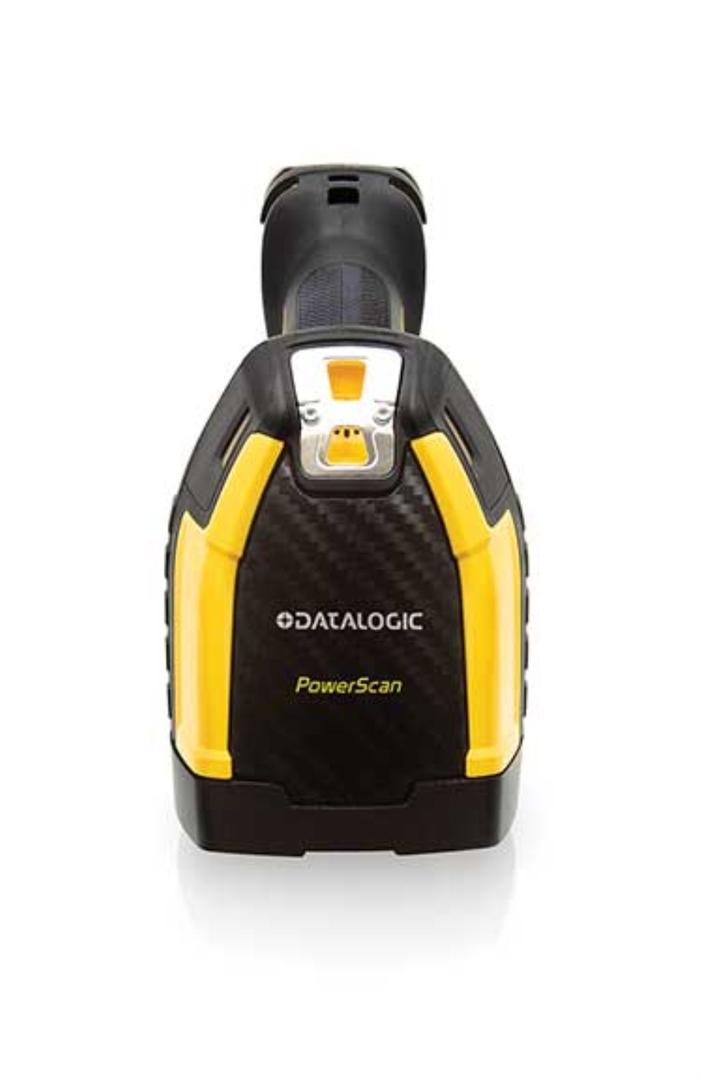

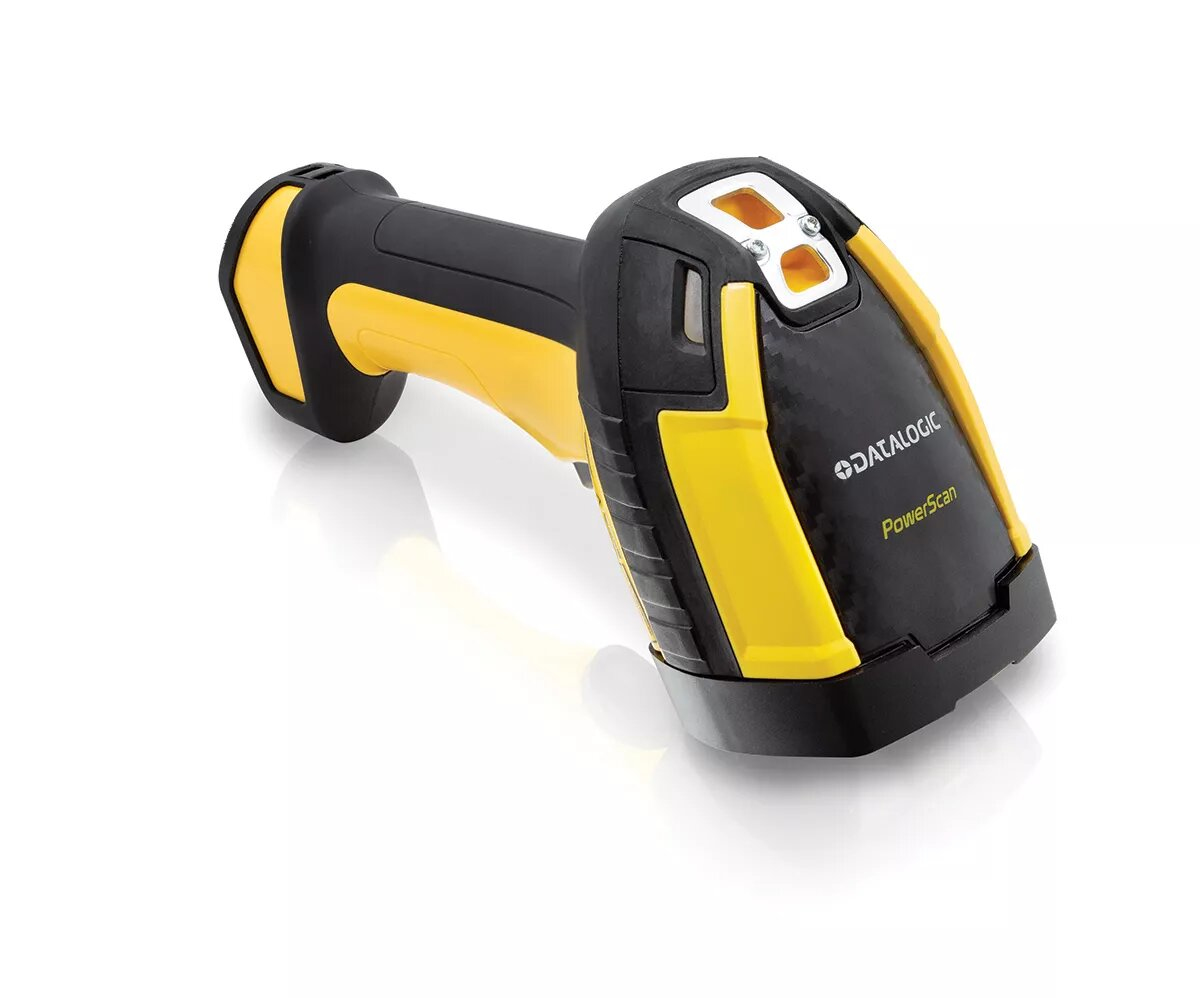

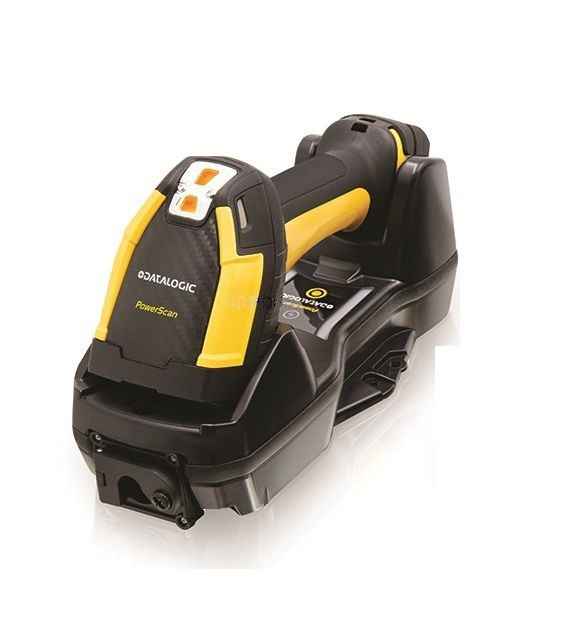

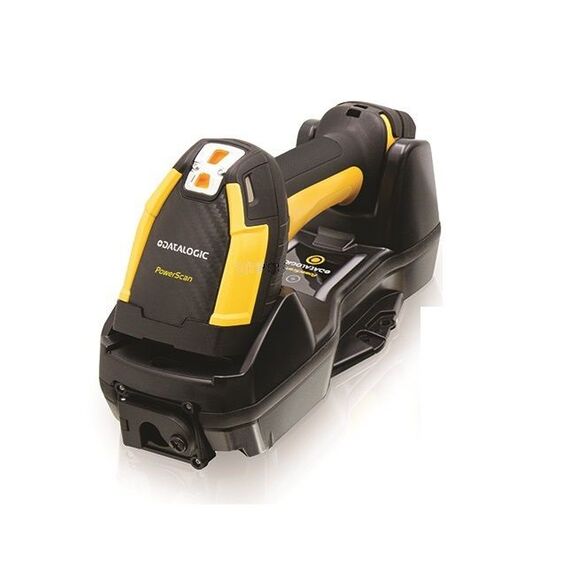

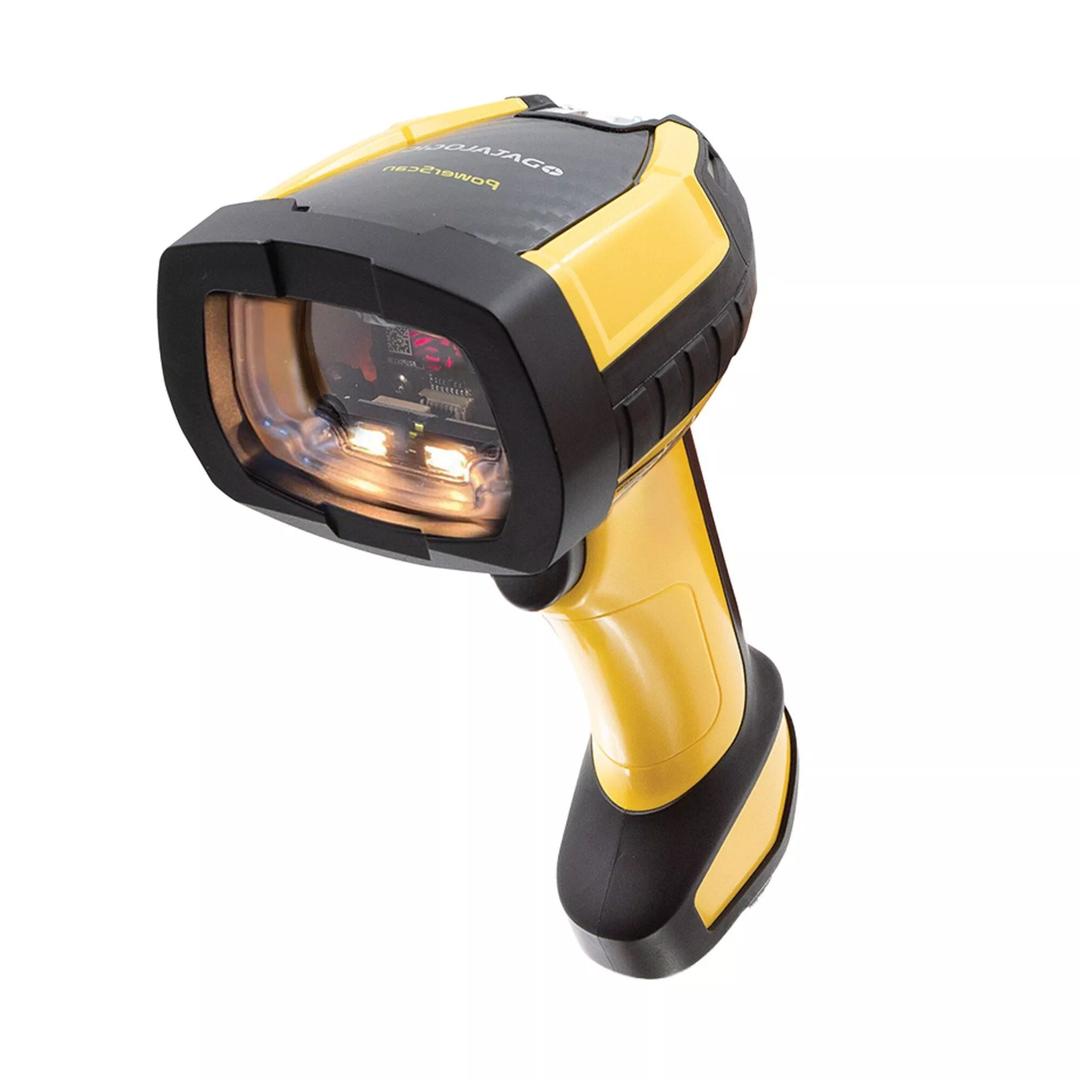

Datalogic PowerScan PM9600-HP | Ultra-Rugged Industrial 2D Imager | STAR 433 MHz RF | (Scanner Only)
The Datalogic PowerScan PM9600-HP is a flagship industrial cordless 2D barcode imager engineered for demanding environments where standard scanners fail — warehouses, manufacturing floors, logistics docks, and outdoor operations. The HP (High Performance) dual-camera design extends the reading range well beyond standard imagers, while STAR 433 MHz RF cordless technology delivers reliable wireless communication without the interference vulnerabilities of Wi-Fi or Bluetooth. The PM9600-HP433RB is the scanner-only configuration with a removable 3350 mAh battery — no cradle or cables included, making it ideal for fleet expansions or multi-cradle deployments.
Ultra-Rugged Industrial Build
The PM9600-HP is rated IP65 and IP67 simultaneously — fully sealed against dust and capable of withstanding immersion in up to 1 metre of water for 30 minutes. It survives repeated drops from 2.5 metres onto hard concrete, covering even overhead conveyor and mezzanine working heights. The trigger mechanism is tested to 10 million activations, ensuring it remains crisp and responsive through years of high-throughput scanning. An ergonomic, centre-of-gravity balanced design reduces operator fatigue during extended shifts, and the modular cradle system allows interface expansion (USB, RS-232, Ethernet) without replacing the scanner.
High Performance 2D Imaging

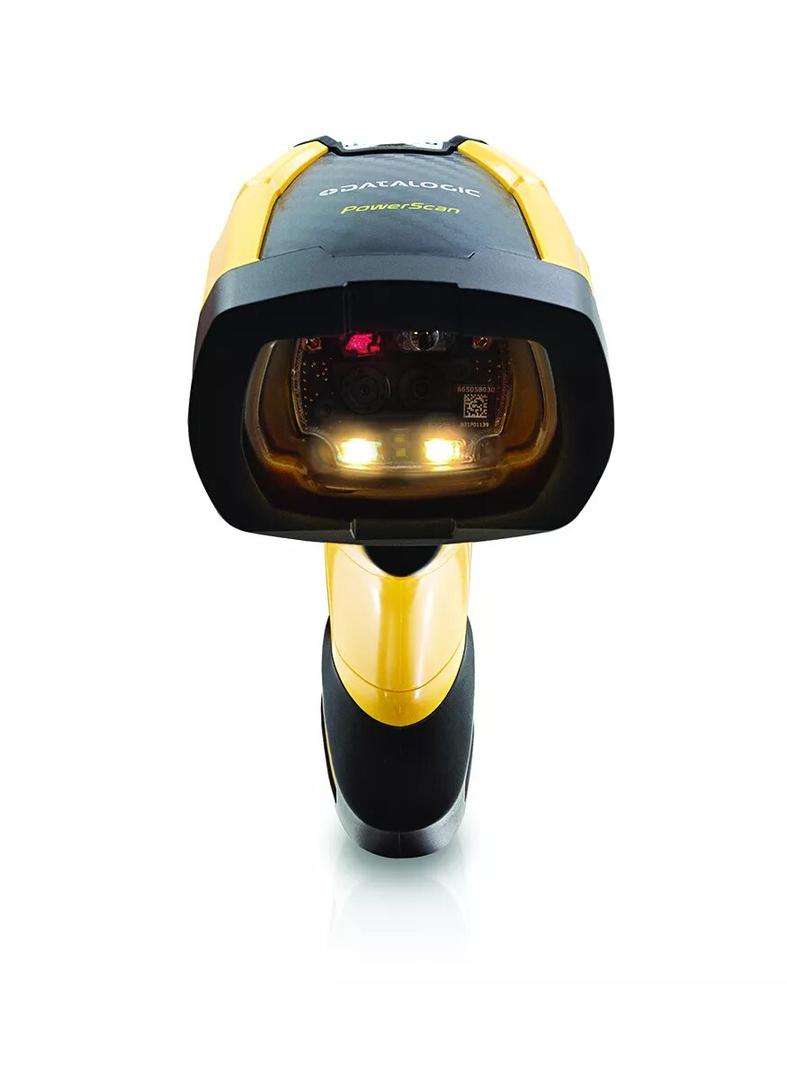

The HP variant uses a dual-camera configuration to achieve extended reading distances on 1D, 2D, postal, stacked, and composite barcodes — ideal for reading labels on high shelving, pallets, or conveyor-fed items at arm's length and beyond. White light illumination ensures consistent reads on glossy, damaged, or low-contrast labels. The omnidirectional scanning capability means operators do not need to orient the scanner to the barcode, reducing scan attempts and increasing throughput by up to 20% versus comparable competitive devices. All standard symbologies are fully supported, including QR Code, Data Matrix, PDF417, Code 128, and GS1 formats.
STAR 433 MHz RF Cordless System
The Datalogic STAR (Simultaneously Transmitting And Receiving) 433 MHz system provides bidirectional communication between scanner and base station with a range of up to 50 metres in typical indoor environments. Unlike Bluetooth or Wi-Fi, the STAR system operates on a dedicated 433 MHz frequency band, avoiding interference from wireless LAN networks, mobile devices, and other 2.4 GHz/5 GHz equipment common in busy industrial settings. Point-to-point and point-to-multipoint configurations are supported, allowing a single base to serve multiple PM9600 scanners. The base station connects to the host system via USB, RS-232, or Ethernet depending on the cradle model selected.
3GL & Motionix Smart Feedback
The PM9600-HP includes two Datalogic-exclusive productivity technologies. 3GL (3 Green Lights) emits a bright tri-directional green halo visible from any angle around the scanner, providing unambiguous good-read confirmation even in noisy environments where a single LED or beeper is insufficient. Motionix is a motion-sensing system that detects when the operator raises the scanner and automatically powers it from sleep — eliminating the need to press the trigger to wake the device and reducing the time between picking up the scanner and completing a scan. A 1.8" OLED display provides at-a-glance status information including battery level, connectivity status, and scan counts.
Battery Life & Inductive Charging
The removable 3350 mAh Lithium-Ion battery delivers approximately 80,000 scans per charge — enough to cover multiple back-to-back industrial shifts without interruption. The user-replaceable design allows hot-swapping: a depleted battery can be exchanged in seconds without returning the scanner to a fixed docking point. Compatible Datalogic base stations support inductive wireless charging, eliminating physical charging pins that corrode or bend under industrial conditions. Smart battery technology reports health status via the OLED display, giving operators advance warning before capacity drops below operational thresholds.
| Specification | Detail |
|---|---|
| Imager Type | 2D Area Imager, Dual Camera (High Performance), Omnidirectional |
| Illumination | White light |
| Symbologies | 1D, 2D, Postal, Stacked, Composite (incl. QR, Data Matrix, PDF417, GS1) |
| Wireless System | Datalogic STAR 433 MHz RF |
| Wireless Range | Up to 50 m (indoor, line-of-sight) |
| Battery | Li-Ion 3350 mAh, removable/user-replaceable |
| Scan Count | ~80,000 scans per charge |
| Charging | Inductive wireless (via compatible BC9600 base, sold separately) |
| IP Rating | IP65 + IP67 |
| Drop Resistance | 2.5 m onto concrete |
| Trigger Life | 10 million hits |
| Display | 1.8" OLED |
| Smart Features | Motionix motion-sensing, 3GL good-read feedback |
| Operating Temperature | 0°C to 50°C |
| Warranty | 3 years |
| Configuration | Scanner + Battery only — cradle & cable NOT included |
Frequently Asked Questions
What does "RB" mean in PM9600-HP433RB — what is included?

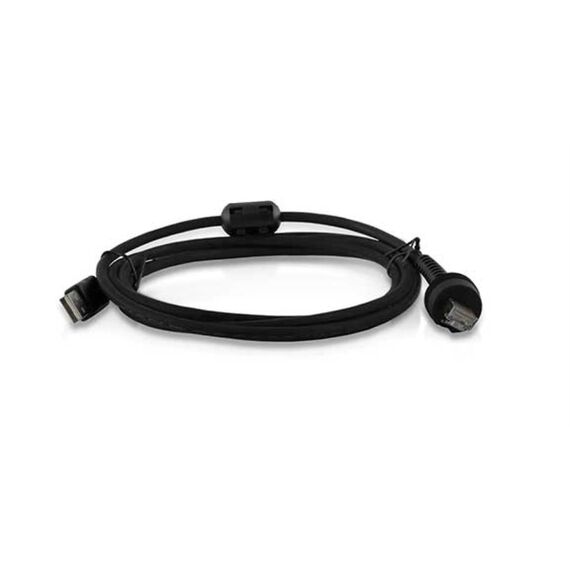

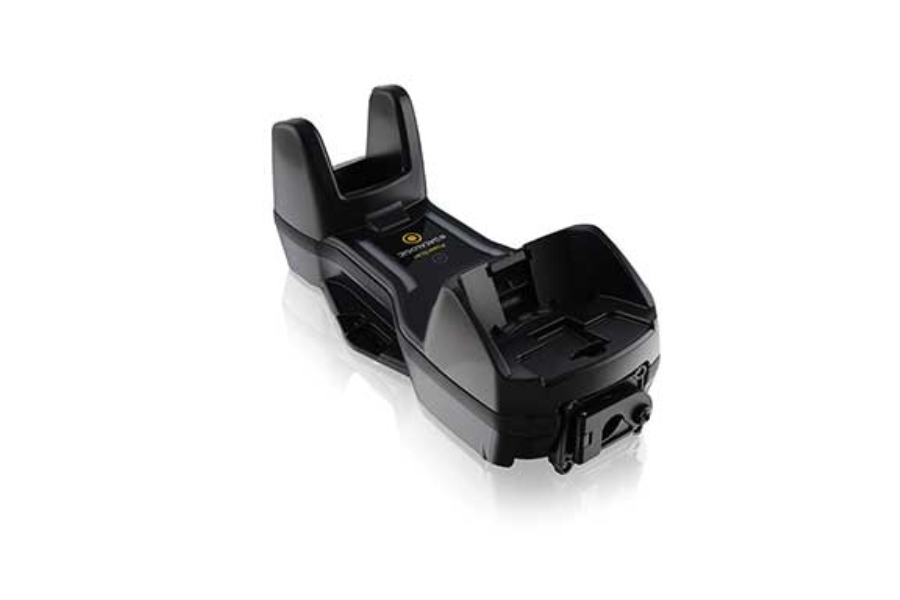

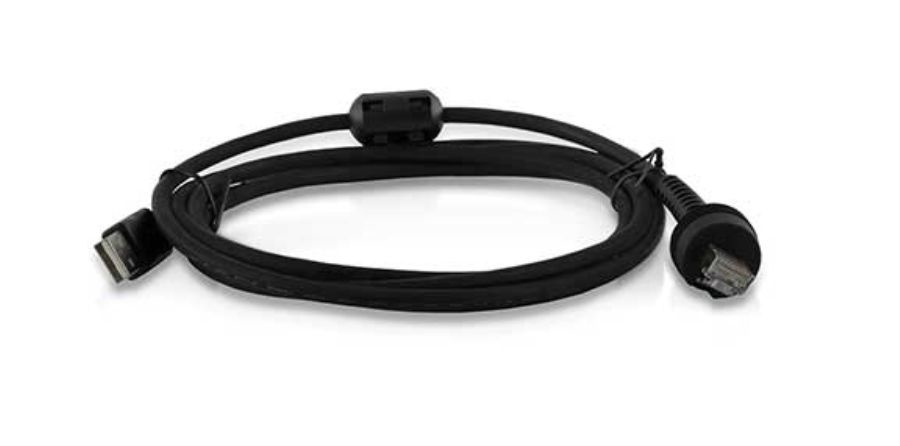

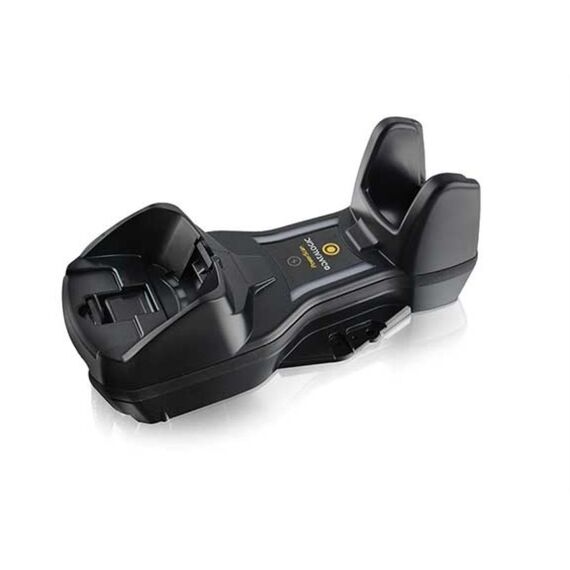

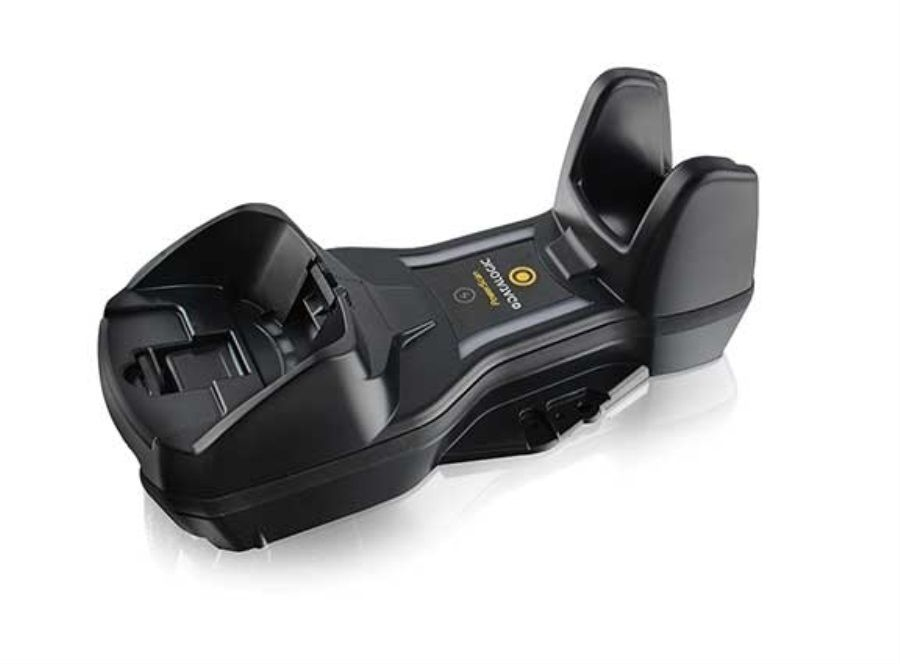

RB stands for Removable Battery. This configuration includes the PM9600-HP scanner and a 3350 mAh Li-Ion battery only. No base station, cradle, power supply, or interface cables are included. These must be purchased separately — Datalogic BC9600 base stations are available in USB, RS-232, and Ethernet variants.
What is the difference between the PM9600-HP and PM9600-SR?
The HP (High Performance) model uses a dual-camera system that extends the reading range to over 2 metres on standard barcodes, making it ideal for reaching items on high shelving or pallets. The SR (Standard Range) model uses a single camera optimised for close- to mid-range scanning up to approximately 1 metre. For most industrial applications with varied label distances, the HP is the preferred choice.
Does the PM9600-HP433RB support inductive wireless charging?
Yes — compatible Datalogic BC9600 base stations support inductive wireless charging, meaning the scanner charges through the cradle surface without physical contact pins. This eliminates the corrosion and wear that standard charging contacts suffer under industrial conditions. The scanner also supports scan-while-charging operation so productivity is never interrupted during top-up charges.
What is Motionix technology and how does it improve scanning speed?
Motionix is Datalogic's motion-sensing system built into the PM9600. It detects when the operator picks up or raises the scanner and automatically wakes it from sleep mode — no trigger press required to activate. In high-volume scanning environments where the device is frequently set down and picked up, Motionix eliminates the fraction-of-a-second delay between picking up the scanner and completing the first scan, adding measurable throughput improvement across a full shift.
