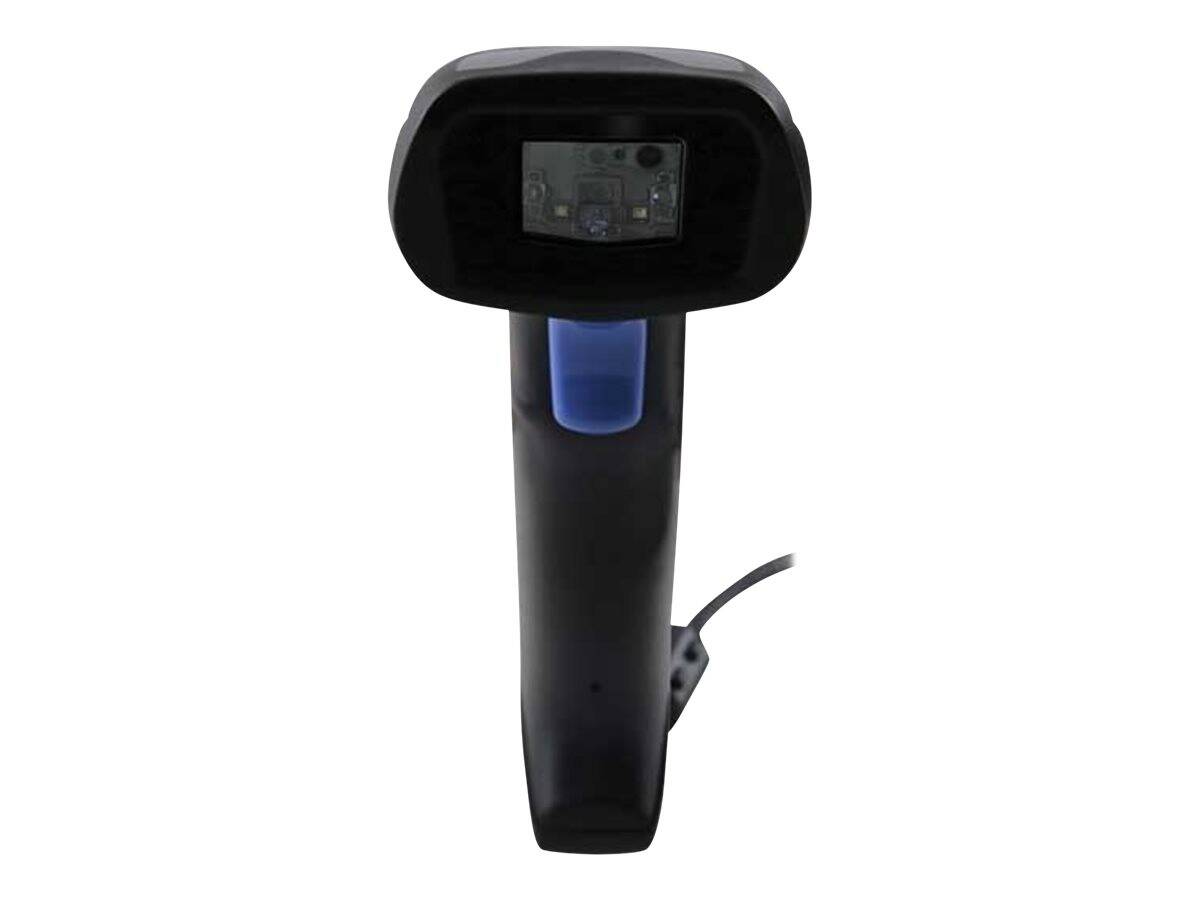

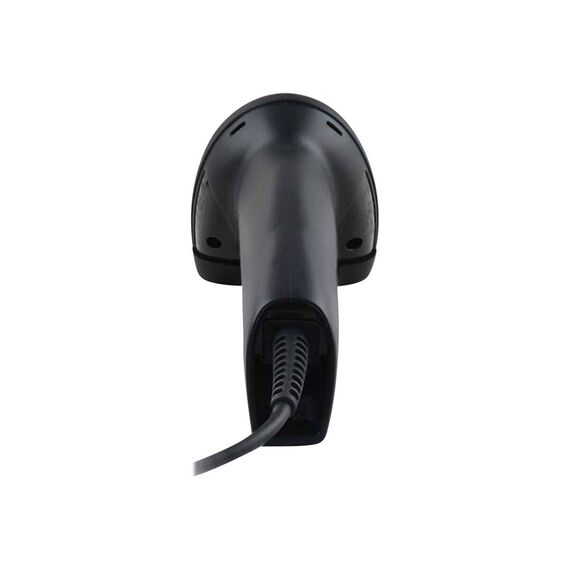

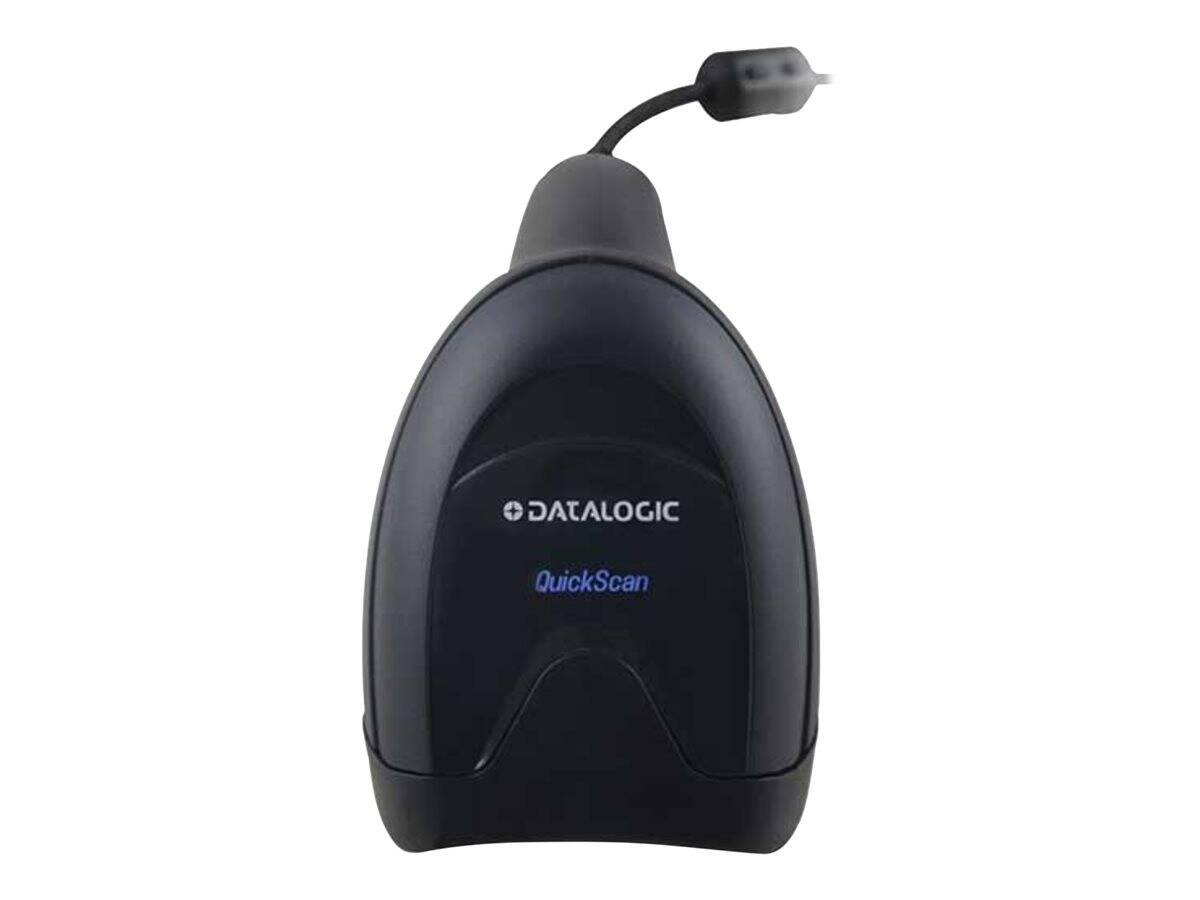

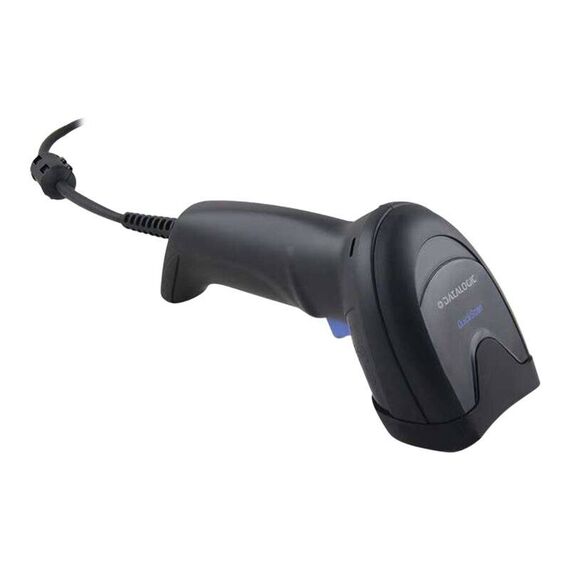

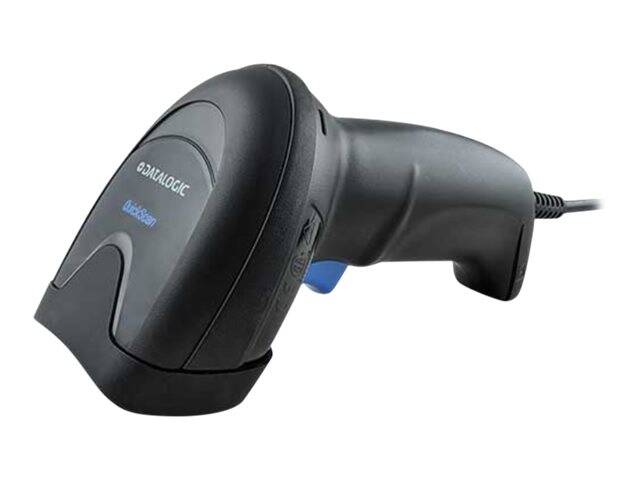

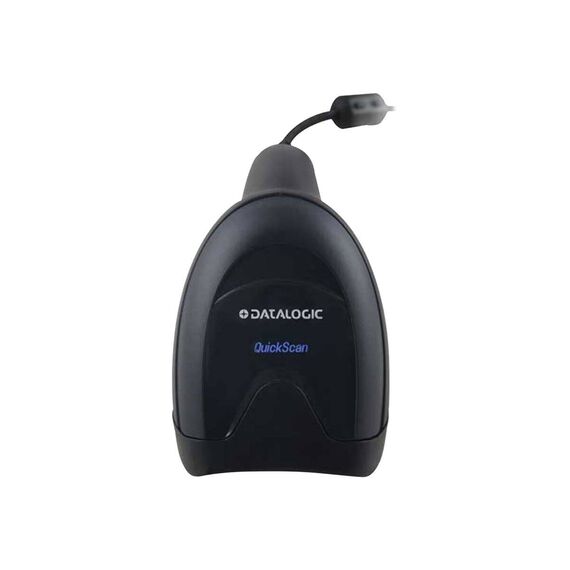

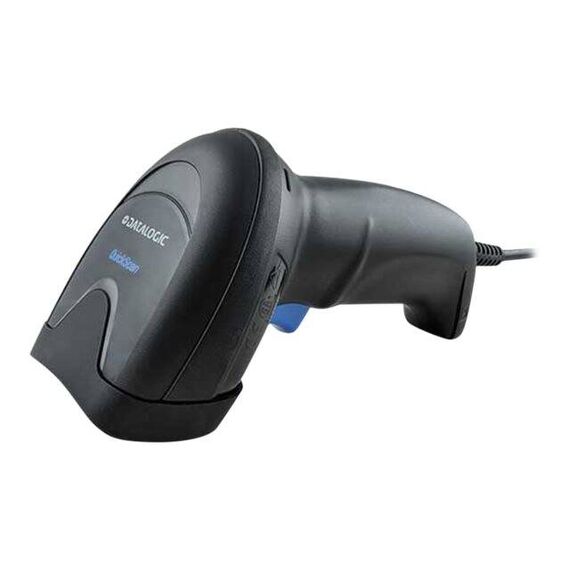

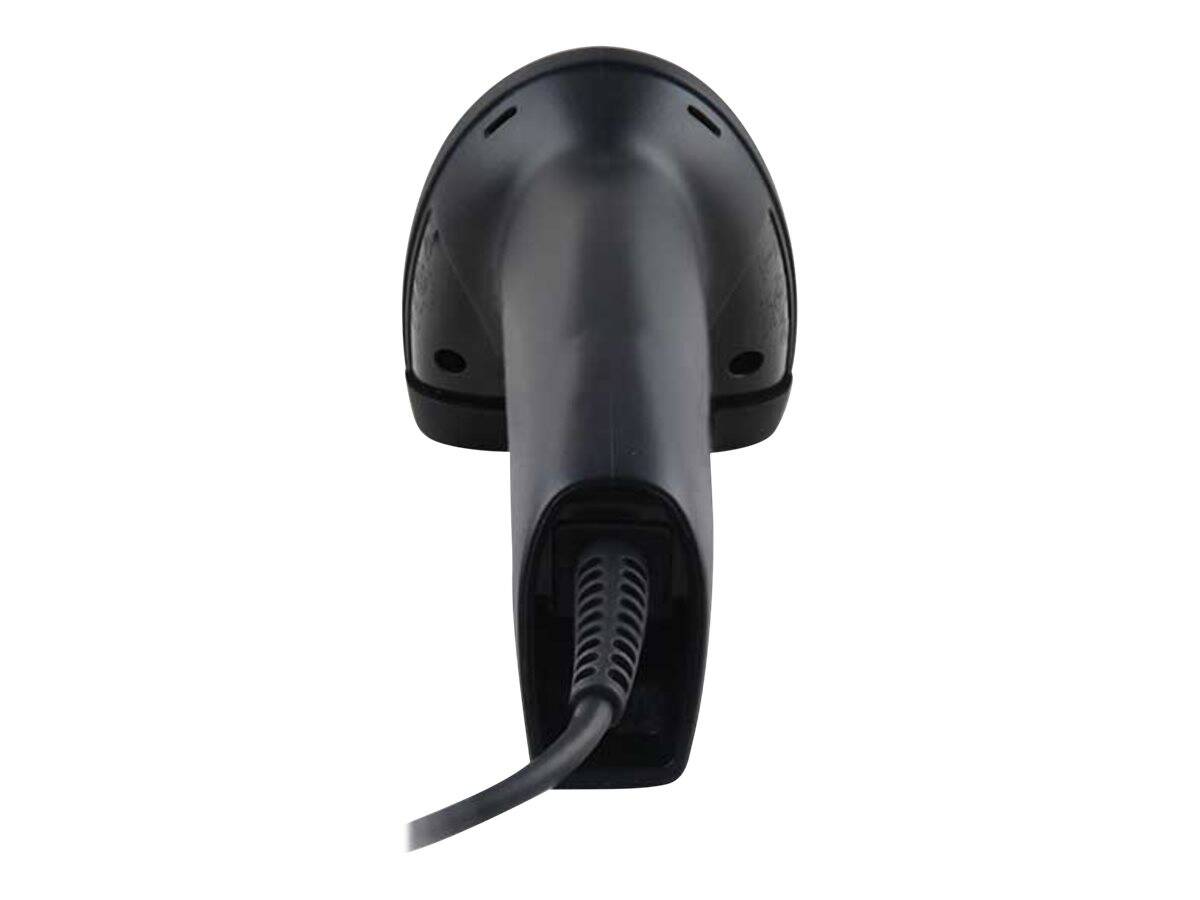

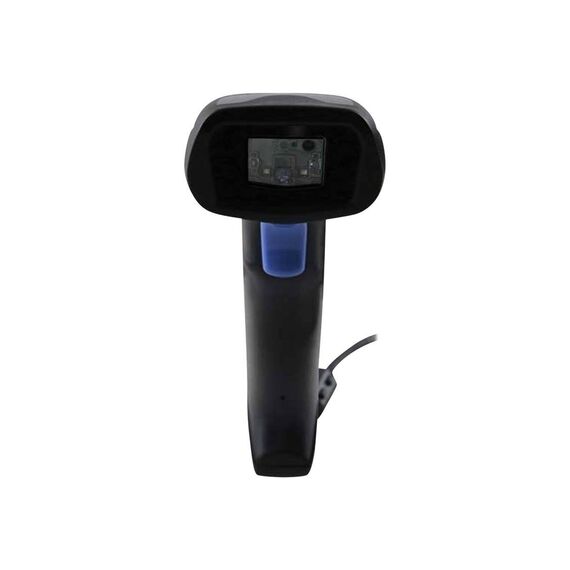

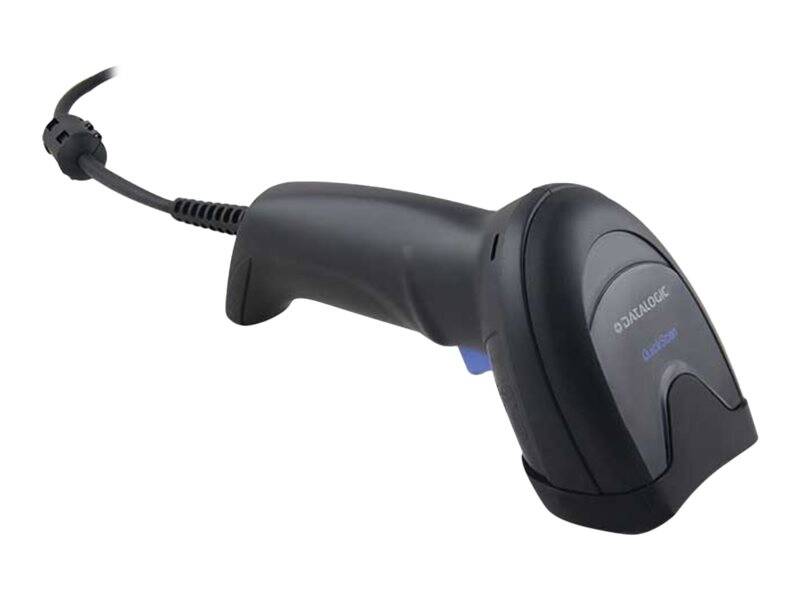

Datalogic QuickScan QD2590 1D/2D Barcode Scanner, 1 MP, USB cable kit, no stand, Black

Brand:
Datalogic
Datalogic QuickScan QD2590 Black 2D Barcode Scanner USB Cable Kit
Datalogic QuickScan QD2590 1D/2D Barcode Scanner, 1 MP, USB cable kit, no stand, Black
€109.56 inc. VAT
Buy
QD2590-BKK1
€92.07
€109.56 inc. VAT
Ships from EU stock: 39 item(s)
+ −
Add to wish list Ask a question
Product Code
03:280525
EAN Code
5704174529378
Manufacturer
Datalogic

Quick Specs

Reads
1D / 2D / screen codes
Host interfaces
USB / RS-232 (appropriate cable)
Package
Scanner + USB cable, no stand.
Engine
1 MP · 1280 × 800 · IP52
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

QuickScan QD2590 · USB cable kit, no stand

1D + 2D1 MP imagerUSB / RS-232Black

The black QD2590-BKK1 combines the megapixel 2D scanner with a USB cable for handheld checkout work. It differs from the bare QD2590-BK by including the lead, and from BKK1S by omitting the stand.

Before you order:
BKK1 includes USB cable 90A052258 but no stand. For the kit with Auto Flex stand choose the separately listed BKK1S. RS-232 operation requires the corresponding separate cable.

What's in the Box

  • QD2590 black scanner
  • USB cable 90A052258

What It Means in Practice

  • The supplied USB lead provides the intended wired starting point for a compatible POS host.
  • Use the megapixel reading ranges below to judge your label sizes and working distances; a single maximum distance is not a universal guarantee.
  • A stand is a separate decision here: choose the stand kit if you want the included Auto Flex support.

What Will Not Work

  • QD2590 is corded; Bluetooth and radio operation belong to different QuickScan models.
  • The supplied USB cable does not provide an RS-232 connection; that requires the appropriate separate cable.

Key Features


Megapixel decoding
The 1280 × 800 imager supports 1D/2D, screen codes, OCR-A/OCR-B/MICR and Digimarc as documented for the QD family.

Precise aiming and confirmation
Blue aiming triangles and Green Spot help select the right code and confirm successful reading.

Flexible wired host selection
USB and RS-232 support let you choose the host interface with the corresponding cable and configuration.

Technical Specifications

Identification
Manufacturer SKU QD2590-BKK1
EAN / GTIN 5704174529378
Reading
Engine 1 MP imager / 1280 × 800
Barcode families 1D / GS1 DataBar, QR / Micro QR / Data Matrix / Aztec / Han Xin / MaxiCode / DotCode, PDF417 / MicroPDF417, postal / composite
Minimum code sizes 1D 3 mil / PDF417 3 mil / Data Matrix 5 mil / QR 6.7 mil
Typical reading ranges Code39 5 mil: 0.5–25 cm; 10 mil: 0.5–38 cm; Data Matrix10 mil: 0.5–21.5 cm; EAN/UPC13 mil: 0.5–51 cm; PDF4176.7 mil: 0.5–21 cm; QR20 mil: 0–37 cm
Range conditions Depend on symbol length, scan angle, print resolution, contrast and ambient light
Aimer / illumination Blue LED triangles / red LED
Motion tolerance 30 IPS
Minimum contrast 15%
Angles Pitch ±65° / roll 360° / skew ±65°
Read confirmation Green Spot / LED / adjustable beeper
Interfaces & power
Supported host interfaces USB / USB-C / RS-232; suitable cable required
Power 5 V DC
Current Operating below 400 mA; idle below 90 mA, at 5 V
Physical & environment
Dimensions / weight 148 × 68 × 126 mm / 145 g
Protection / drops IP52 / repeated 1.5 m drops onto concrete
Ambient light 0–110000 lux
Temperature Operating 0–50 °C; storage/transport -40–70 °C
Humidity / ESD 0–95% non-condensing /16 kV air discharge
Trigger endurance 10 million activations
Utilities Datalogic Aladdin / OPOS / JavaPOS; application setup required
Manufacturer term 5-year factory warranty, manufacturer terms apply
Advanced decoding Digimarc / OCR-A / OCR-B / MICR
Colour Black

Frequently Asked Questions

Is a stand included?
No. BKK1 includes scanner and USB cable. BKK1S adds the Auto Flex stand.
Is this different from QW2520?
Yes. QD2590 has a 1280 × 800 megapixel engine and USB/RS-232 support; QW2520 is the VGA USB-only model.
Singular Expert Insight
BKK1 is the practical QD2590 choice for an operator who wants the USB lead included but does not need an included stand. Compare BKK1S if hands-free positioning is part of the station design; compare BK only if you already have an appropriate cable or plan a different interface. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You want the black megapixel scanner with USB cable supplied.
✕

Skip it if

 You need an included stand or cordless operation.
→

Also consider

 BKK1S adds Auto Flex stand; BK is scanner only; WHK1 is the white USB kit.
Tell us your POS model, application and barcode examples so we can check the connection requirements.
