Delock 95272 M.2 2242 Key B+M to 2.5 Gigabit LAN Network Module RJ45 Intel i225V PCIe PXE with Slot Bracket

Brand:
DeLOCK
Delock 95272 M.2 2242 2.5 Gigabit LAN Module Intel i225V
Delock 95272 M.2 2242 Key B+M to 2.5 Gigabit LAN Network Module RJ45 Intel i225V PCIe PXE with Slot Bracket
€62.78 inc. VAT
Buy
95272
€52.76 €58.62
€62.78 inc. VAT
Ships from EU stock: 40 item(s)
+ −
Add to wish list Ask a question
Product Code
04:445565
EAN Code
4043619952724
Manufacturer
DeLOCK

Quick Specs

Interface
M.2 2242 key B+M (PCIe)
Ports
1× RJ45 2.5 Gbps
Controller
Intel i225V
Form factor
M.2 2242
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Delock 95272 — M.2 2242 2.5 Gigabit LAN Module, Intel i225V

2.5 GigabitM.2 2242Intel i225VPXE

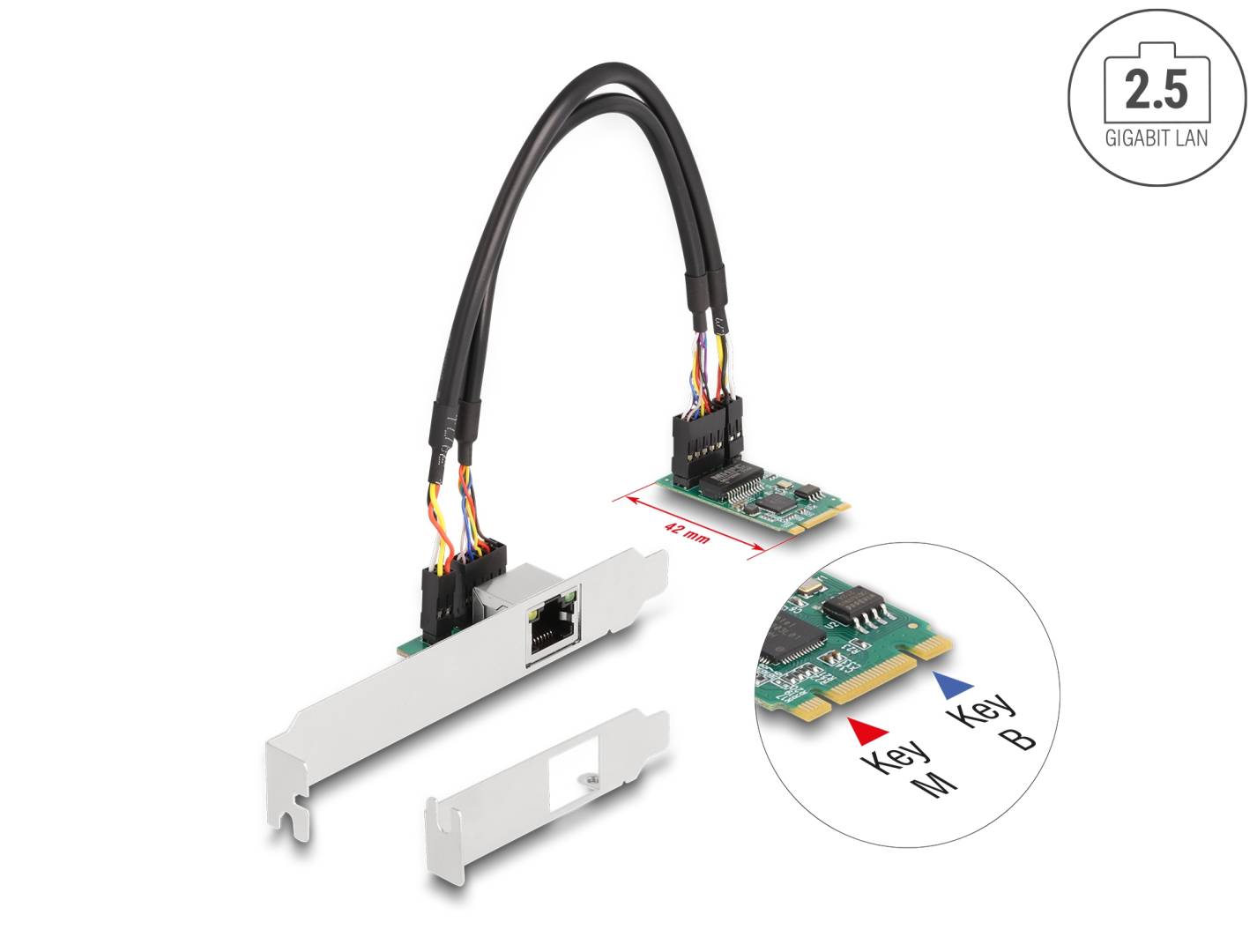

The Delock 95272 is a M.2 2242 2.5 Gigabit LAN module that adds a 2.5 Gigabit RJ45 port to a PC or mini PC through a free M.2 slot. The small M.2 2242 module connects by a 25 cm cable to an RJ45 port on a slot bracket, so a spare M.2 slot becomes a 2.5G network port. It uses the Intel i225V controller and connects at 10/100/1000/2500 Mbps. A dedicated network card is the usual fix when the onboard port has failed, when the machine needs a second, separate network, or when it should move to a faster link than the motherboard offers.

Compatibility — check before buying:
Check the slot: the module needs a free M.2 slot with key M or B+M that is wired for PCIe (not a SATA-only M.2 slot), plus a free slot opening in the case for the RJ45 bracket. 2.5 Gbps needs a 2.5G partner: the switch or router port must support 2.5GBASE-T, otherwise the link runs at 1 Gbps. Cat5e cable is enough. M.2 is not always PCIe: SATA-only M.2 slots will not work. Operating systems listed by Delock: Windows 10/11. Send us the PC or server model and we confirm the fit.

Best For

✓ 2.5G switches and NAS
✓ Workstations moving to multi-gig
✓ Fast backups to a NAS
✓ Video editing over the network
✓ Home labs
✓ Replacing a 1G onboard port

Key Features


2.5 Gigabit (NBASE-T)
Up to 2.5 Gbps over ordinary Cat5e cabling, backwards compatible with 1 Gbps and 100 Mbps.

M.2 module

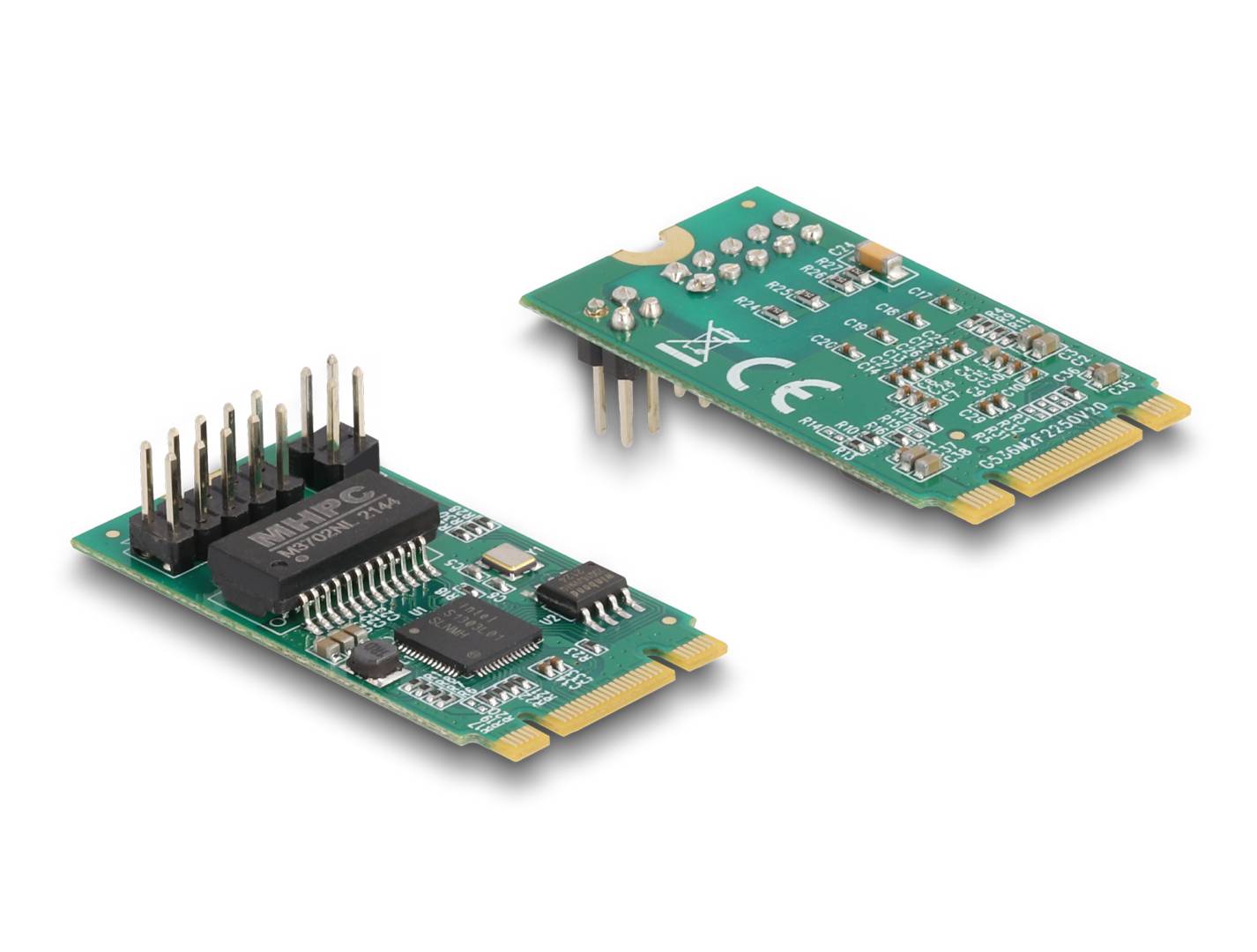

Installs in an M.2 slot and leads the RJ45 port out through a slot bracket on a cable.

Network features
Supports PXE, Wake-on-LAN, 9K jumbo frames, link/activity LED.

Uses a spare M.2 slot
Turns an unused PCIe M.2 slot into a 2.5G network port — handy when all PCIe slots are taken.

Technical Specifications

Identification
Brand Delock
Product Delock M.2 Key B+M male to 1 x 2.5 Gigabit LAN
Part Number 95272
EAN / GTIN 4043619952724
Item No. 95272
Network
Ports 1× RJ45 2.5 Gigabit Ethernet
Speeds 10/100/1000/2500 Mbps
Controller Intel i225V
Features PXE, Wake-on-LAN, 9K jumbo frames, link/activity LED
Host Interface
Bus M.2 2242 (key B+M), PCIe 2.0

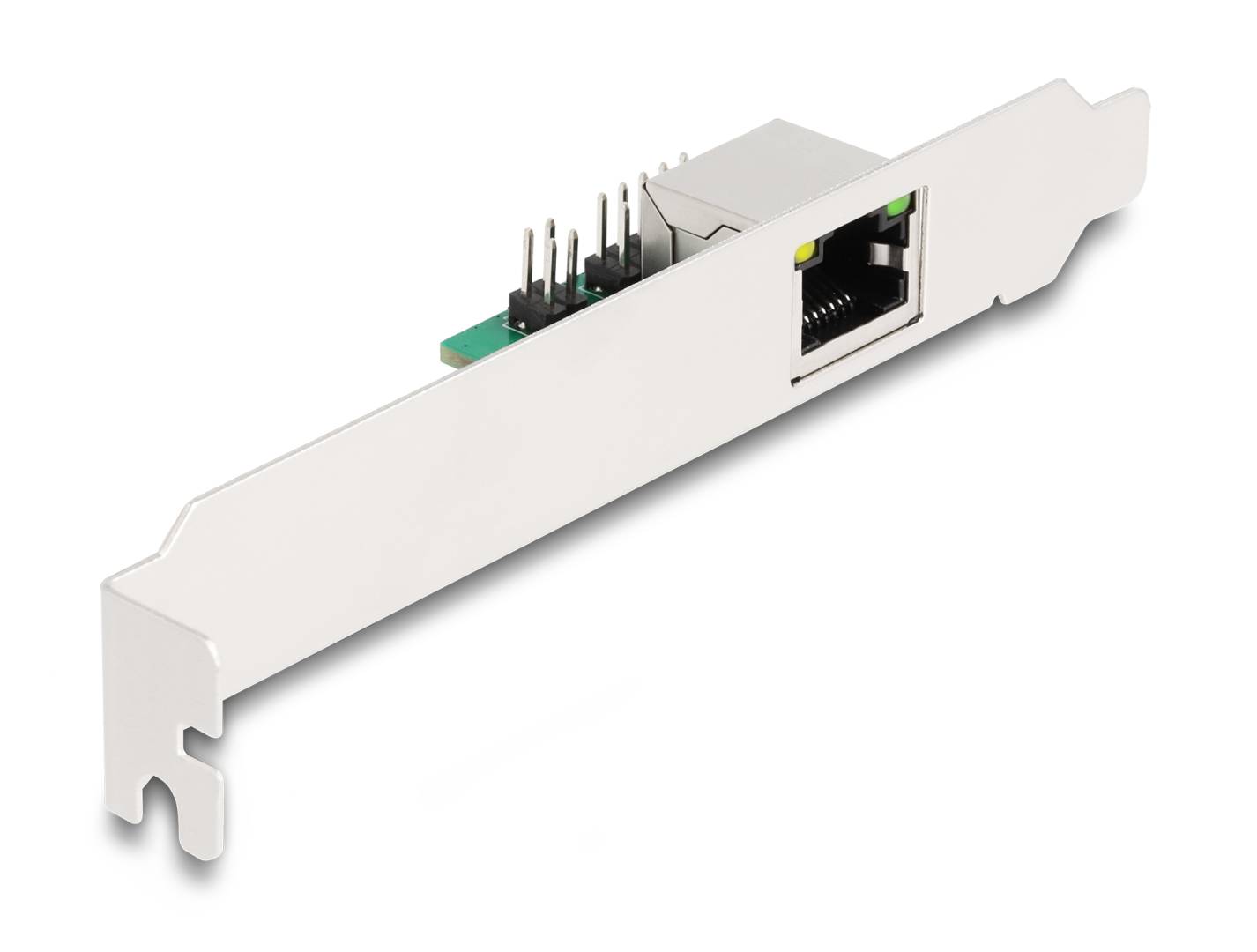

Brackets Standard and low-profile slot brackets for the RJ45 port

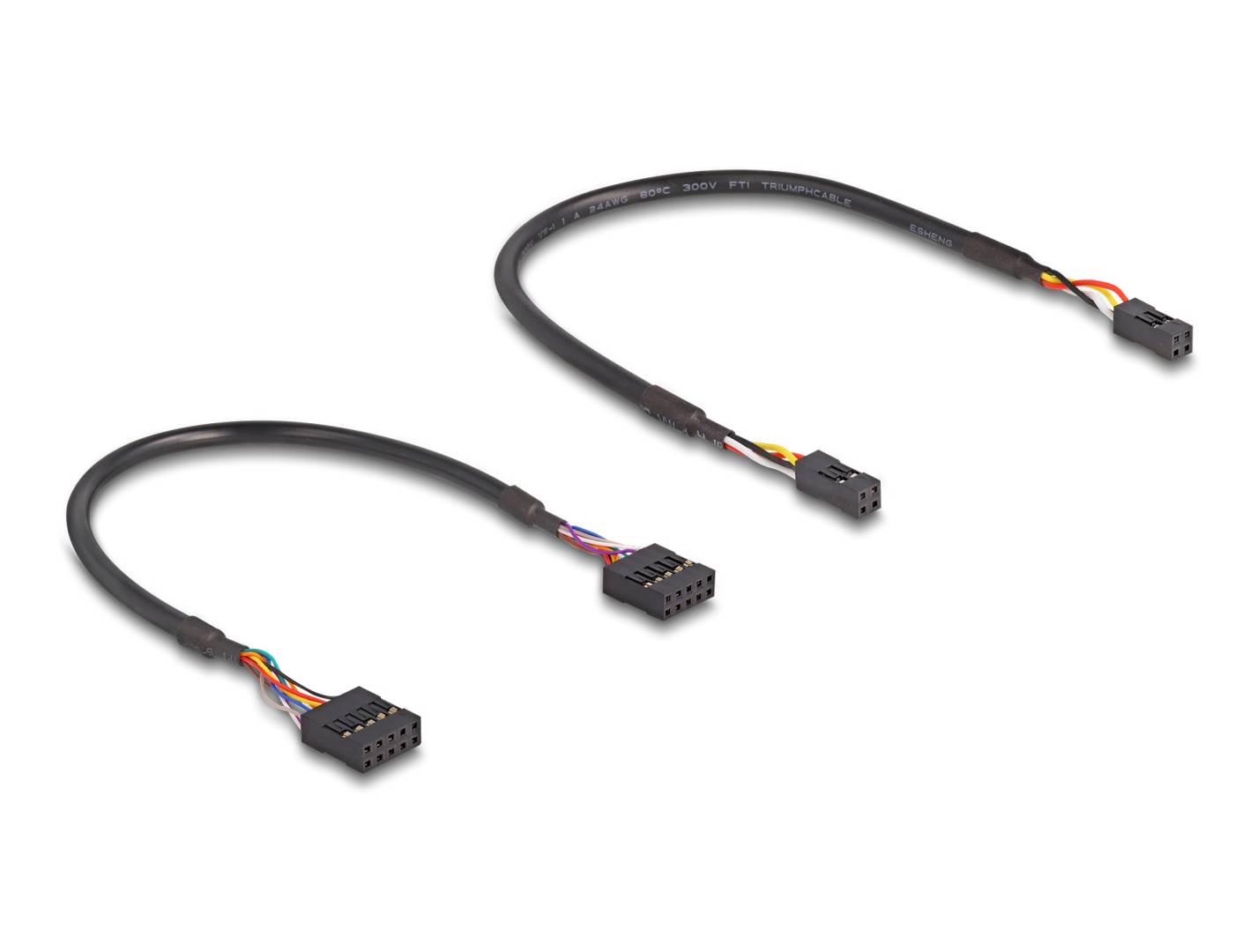

Cable approx. 25 cm (module to RJ45 bracket)
Compatibility
Operating Systems Windows 10/11
Physical
In the Box
Included Converter, 2× connecting cable, slot bracket, low-profile bracket, driver CD, user manual
Not Included Network cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Delock does not publish a warranty term for this model on its official product pages. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it fit my computer?
It needs a free M.2 slot with key M or B+M that is wired for PCIe (not a SATA-only M.2 slot), plus a free slot opening in the case for the RJ45 bracket. Full-height and low-profile brackets are supplied.
Will I get 2.5 Gbps?
Only when the switch or router port supports 2.5GBASE-T. Connected to a normal Gigabit port it runs at 1 Gbps.
Which operating systems are supported?
Delock lists: Windows 10/11.
Can I keep using the onboard network port?
Yes. The card adds its own port; the onboard port keeps working, so you can run separate networks or keep one as a backup.
Singular Expert Insight
We suggest the 95272 for PCs, mini PCs and NAS builds whose PCIe slots are full but which still have a spare PCIe M.2 slot. Browse more network cards or network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You have a free PCIe M.2 slot and need a 2.5G port.

Skip it if

Your only free M.2 slot is SATA-only.

Also consider

StarTech.com ST2GPEX — 2.5G PCIe x1 card.
