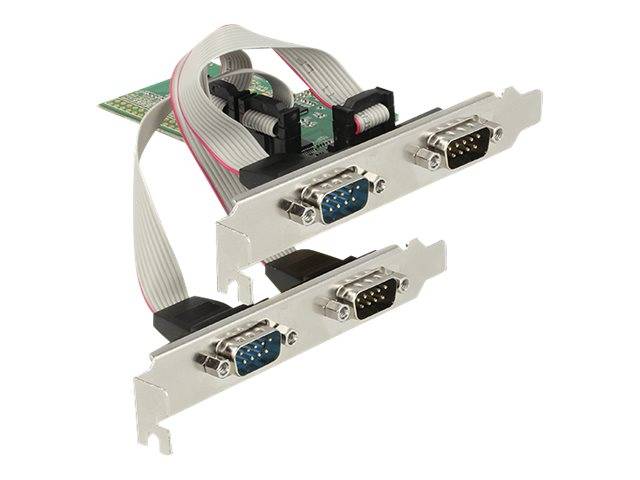

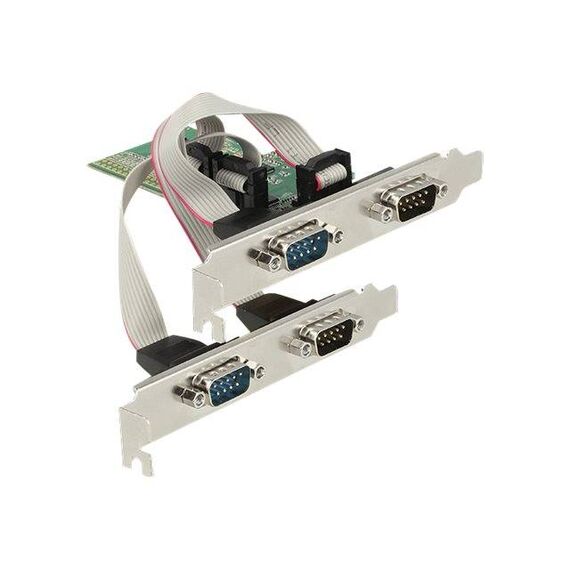

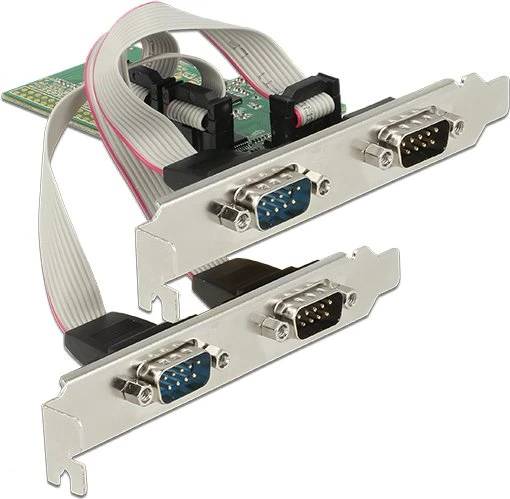

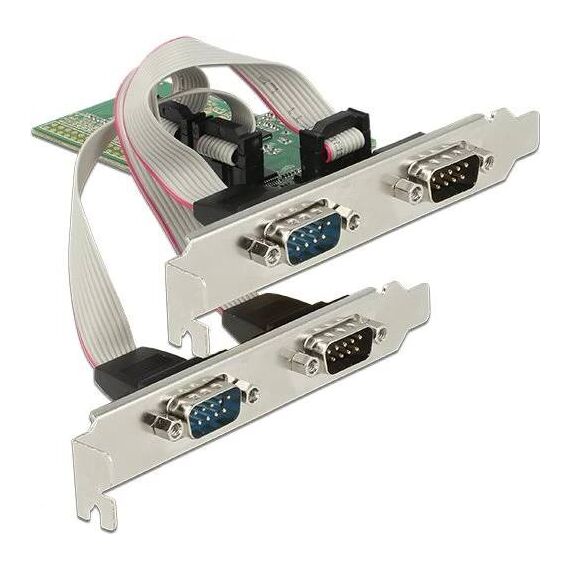

DeLock PCI Express Card / 4 x Serial RS-232 / low profile | 89557
Please sign in so that we can notify you about a reply
Special Features
- 5 kV ESD protection for all signals
- I/O address and IRQ assigned by the system
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | Networking |
| Ports | RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 230.4 Kbps |
| Features | 256-byte FIFO |
| Processor / Memory | Processor / Memory |
| Processor | ASIX AX99100 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x RS-232 - 9 pin D-Sub (DB-9) (on bracket) |
| Miscellaneous | Miscellaneous |

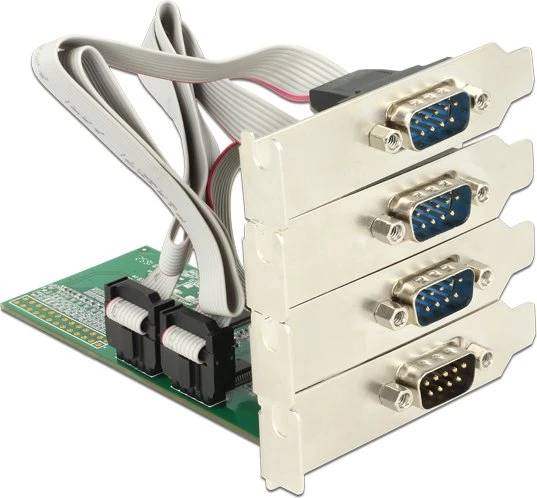

| Included Accessories | 1 x bracket with two DB9 connectors, 4 x low-profile brackets |
| Package Type | Retail |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits) |
Features - DeLOCK - 89557
More Details
Product Code
04:224645
EAN Code
4043619895571
Manufacturer
DeLOCK
