DIGITUS DN-81200-01 HP Compatible SFP+ Transceiver 10G SR 850 nm LC Multimode up to 300 m with DDM

Brand:
Digitus
Digitus HP-compatible SFP+ 10G MM 850nm 300m with D | DN-81200-01
DIGITUS DN-81200-01 HP Compatible SFP+ Transceiver 10G SR 850 nm LC Multimode up to 300 m with DDM
€62.97 inc. VAT
Buy
DN-81200-01
€52.92
€62.97 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
04:365842
EAN Code
4016032446149
Manufacturer
Digitus

Quick Specs

Speed
10 Gbps · SFP+ SR
Fibre & Reach
Multimode · up to 300 m
Coded For
HP / HP Aruba
Diagnostics
DDM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-81200-01 — HP-Compatible 10G SR SFP+

10 Gbps850 nm multimodeHP codedUp to 300 m

The DIGITUS DN-81200-01 is a 10 Gbit SFP+ transceiver for multimode fibre, reaching up to 300 m at 850 nm over a duplex LC connection, with digital diagnostics. It is the HP-coded version of DIGITUS’ 10G SR module, made for HP and HP Aruba switches that check the coding of the optics they accept. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.

Compatibility — check before buying:
This is the HP-coded version. For Cisco, Ubiquiti and other switches that accept generic MSA optics, DIGITUS sells the DN-81200. It needs multimode fibre; DIGITUS gives 300 m without naming the OM grade, so check older fibre with us. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 10G uplinks on HP / Aruba switches
✓ Server links inside one building
✓ Multimode runs up to 300 m
✓ Replacing HP-coded SR optics
✓ Spare optics at a lower cost
✓ Mixed HP estates

Key Features


Coded for HP
Programmed for HP and HP Aruba switches, so the switch accepts it as a supported optic.

Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.

Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand DIGITUS (ASSMANN)
Model HP-compatible SFP+ 10G MM 850nm 300m with DDM
Part Number DN-81200-01
EAN / GTIN 4016032446149
Pack Size Single unit
Interface
Form Factor SFP+
Standard 10G Ethernet (IEEE 802.3ae), SR type
Data Rate 10 Gbps

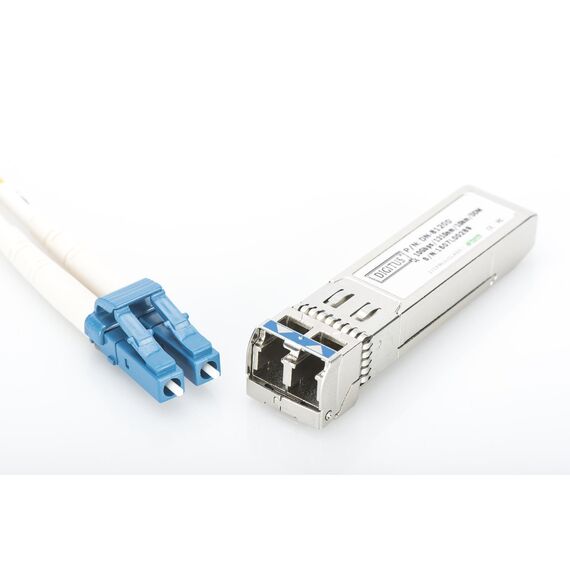

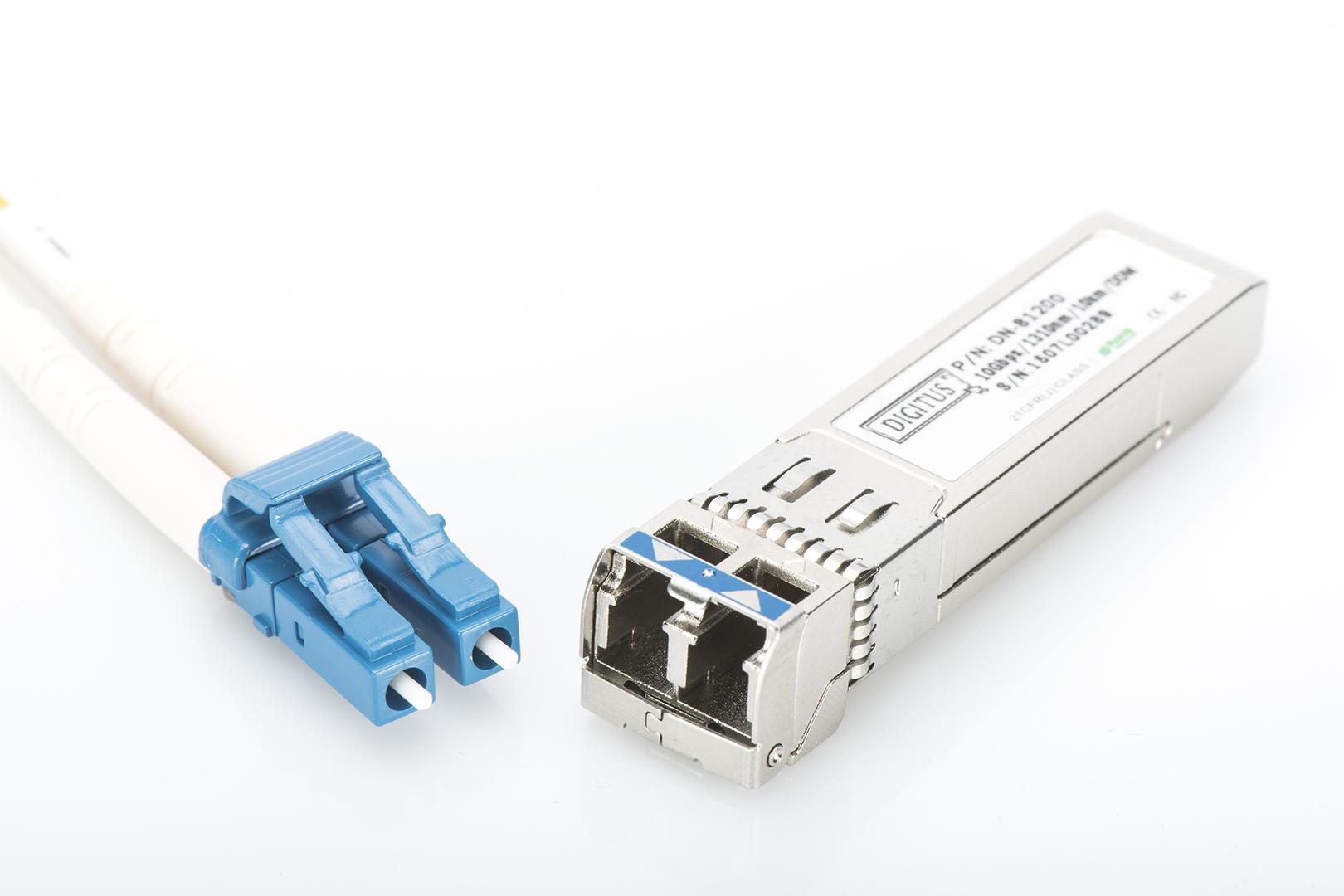

Connector Duplex LC
Optics & Reach
Wavelength 850 nm
Fibre Multimode
Reach Up to 300 m (DIGITUS does not split this by OM grade)
Tx Power −5 to −1 dBm
Rx Sensitivity −11.5 dBm
Environment & Power
Operating Temperature 0 to 70 °C
Supply 3.3 V
Diagnostics (DDM) Yes
Laser Class Class 1 (EN 60825-1)
Compatibility
Designed For HP and HP Aruba switches with SFP+ ports
Link Partner Another 10G SR module on multimode fibre, of any brand
In the Box
Included 1 module
Not Included Fibre patch cords and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term DIGITUS does not publish a warranty term for this transceiver; the ASSMANN 25-year system warranty applies to structured cabling only. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

DN-81200-01 or DN-81200?
Same 10G SR optics. The -01 is coded for HP and HP Aruba switches; the DN-81200 is the generic MSA version for other brands.
How far will it reach?
DIGITUS publishes up to 300 m on multimode fibre without splitting by OM grade. On older OM1 or OM2 fibre the reach is shorter — send us the fibre type and length.
Are fibre patch cords included?
No. You get 1 module. The patch cord for the Duplex LC connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
DIGITUS codes this module for HP and HP Aruba switches. In other brands’ switches it may be rejected — for those DIGITUS sells the generic MSA version. Send us the switch model and we check it.
Singular Expert Insight
We offer the DN-81200-01 for HP and Aruba switches that need a coded 10G SR optic at a lower cost. For other brands, the DN-81200 is the right part. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 10G over multimode up to 300 m on an HP or HP Aruba switch.

Skip it if

Your switch is another brand (DN-81200), or your fibre is single-mode.

Also consider

DIGITUS DN-81201-01 for HP-coded 10G single-mode.
