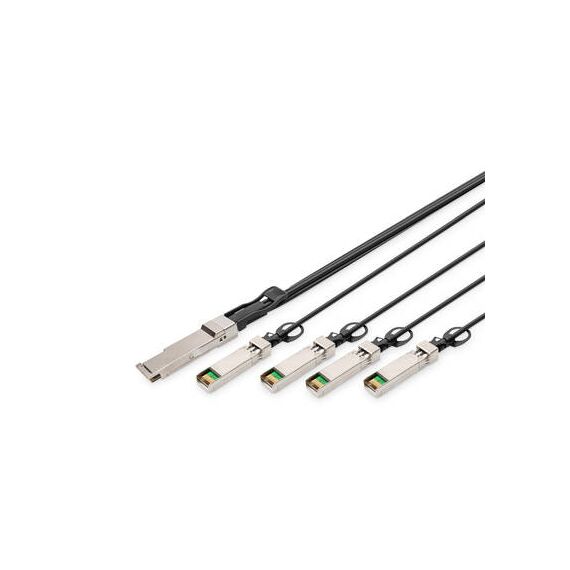

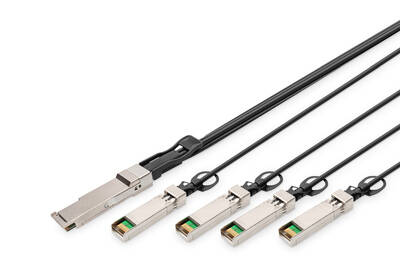

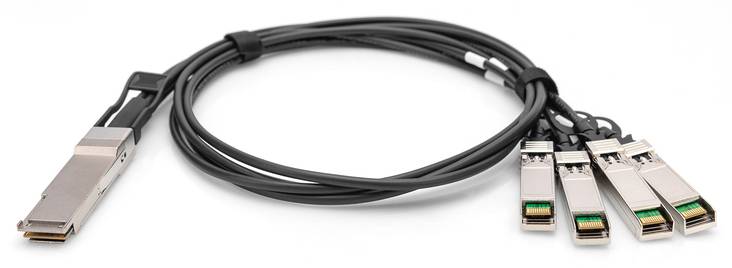

DIGITUS DN-81325 QSFP+ 40G to 4 × SFP+ 10G Breakout DAC Cable, 5 m, Black

Brand:
Digitus

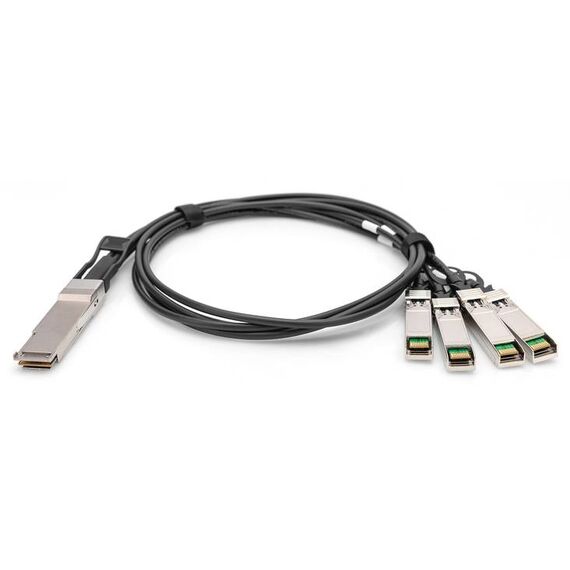

DIGITUS DN-81325 Black QSFP+ to Four SFP+ Breakout DAC Cable, 5 m
DIGITUS DN-81325 QSFP+ 40G to 4 × SFP+ 10G Breakout DAC Cable, 5 m, Black
€141.63 inc. VAT
Buy
DN-81325
€119.02
€141.63 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
CF75263
EAN Code
4016032485018
Manufacturer
Digitus

Quick Specs

Length
5 m
40G end
1 × QSFP+
10G branches
4 × SFP+
Requirement
Host breakout support
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-81325 — 40G to 4 × 10G Breakout, 5 m

5 mQSFP+4 × SFP+40G → 4 × 10G

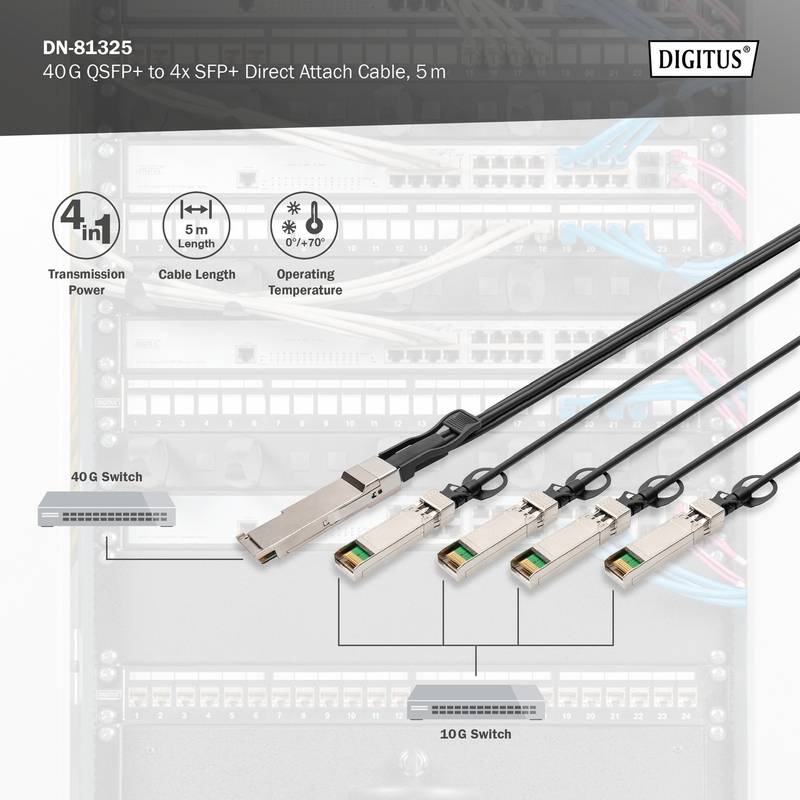

DN-81325 is a 5 m DAC that links one compatible 40G QSFP+ port to four 10G SFP+ connections. The breakout arrangement connects nearby servers, switches or NAS equipment with suitable ports. Before buying, confirm that the QSFP+ host supports the required breakout mode.

Compatibility — check before buying:
Check the switch, 4 × 10G configuration, coding and firmware at every end. DIGITUS’s vendor list does not establish support for every model. This cable is 5 m long and does not support DDM.

Key Features


One QSFP+ and four SFP+ branches
The physical fanout provides four 10G connections when the host operates in a supported mode.

Fixed 5 m length
Measure the route to each device and allow room for cable management.

Serial I²C management
The official specification includes I²C while separately declaring no DDM support.

Technical Specifications

Identity and breakout link
Model / SKU DIGITUS DN-81325
EAN / GTIN 4016032485018
Cable type Direct attach breakout cable (DAC)
Exact length 5 m
Port arrangement 1 × QSFP+ 40G to 4 × SFP+ 10G
QSFP+ / SFP+ interfaces 38-pin QSFP+; 20-pin SFP+
Ethernet interoperability 40G to four separate 10G links; host breakout support/configuration required
Channel reference rate Up to 10.3125 Gbps per channel, manufacturer figure
Manufacturer series reach reference Up to 5 m for the series; this SKU is a fixed 5 m assembly
Host integration
Management interface Serial, I²C
DDM support No
Manufacturer compatibility attribute Cisco; verify exact host model, coding and firmware
Manufacturer-listed vendor references Allnet, Cisco, 3Com, D-Link, Dell, Edimax, Etherwan, Enterasys, Extreme, Finisar, Force10, Fortinet, Huawei, IBM, Juniper, Linksys, Netgear, Nortel, Riverstone, ZTE, Zyxel; model-specific support must be checked
Electrical and environmental references
Nominal supply voltage +3.3 V, manufacturer reference
Operating temperature 0 to +70 °C
Storage temperature −40 to +85 °C
Colour Black cable, verified manufacturer photo
Package
Contents 1 DN-81325 breakout DAC assembly, 5 m
Pack dimensions (D × W × H) 26 × 26 × 3 cm
Pack gross weight 0.21 kg
Net weight, current datasheet 0.20 kg
Unpackaged dimensions, manufacturer reference 26 × 26 × 3 cm; 5 m cable length listed separately

What's in the Box

1 DIGITUS DN-81325 breakout DAC cable, 5 m, with one QSFP+ and four SFP+ ends

What Will Not Work

Not a switch or a four-port RJ45 cable; suitable QSFP+/SFP+ ports are required.
Does not enable breakout on a host that lacks support.
Does not provide DDM; the I²C interface does not establish digital diagnostic support.

Frequently Asked Questions

Will it automatically split every QSFP+ port into four 10G links?
The port must support the required switch mode/configuration. Confirm 4 × 10G breakout for the exact model and firmware.
Does I²C mean DDM is available?
No. DIGITUS specifies serial I²C management and separately states DDM: no. These are different capabilities.
Is measuring the distance to one host enough?
Check the routes to every SFP+ endpoint, cable management and breakout mode before choosing the fixed 5 m length.
Singular Expert Insight
Record the QSFP+ host and all four SFP+ device models together with firmware. Then check breakout mode and actual cable routes so the 5 m length serves every end. Check the breakout configuration and hosts with us

Buyer’s Guide

Buy it if

You have a verified QSFP+ 40G-to-four-SFP+ 10G configuration within the 5 m route length.

Skip it if

You need QSFP+-to-QSFP+, DDM, RJ45 or have a host without breakout support.

Also consider

The required length of the same architecture, or another link type supported by the exact host.
