Digitus Pre-Assembled Fiber Optic Breakout Cable OM4 50m, 8 Fibres, LC/UPC to LC/UPC, LSOH Dca, Black
Brand:
Digitus
Digitus Pre-Assembled Fiber Optic Breakout Cable OM4 50m, 8 Fibres, LC/UPC to LC/UPC, LSOH Dca, Black
€351.82 inc. VAT
DK-24338U050BK-BBB
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Digitus OM4 Fiber Optic Breakout Cable — 8 fibres, LC/UPC, 50 m
OM4 multimode8 fibresLC/UPC both ends50 m · LSOH Dca

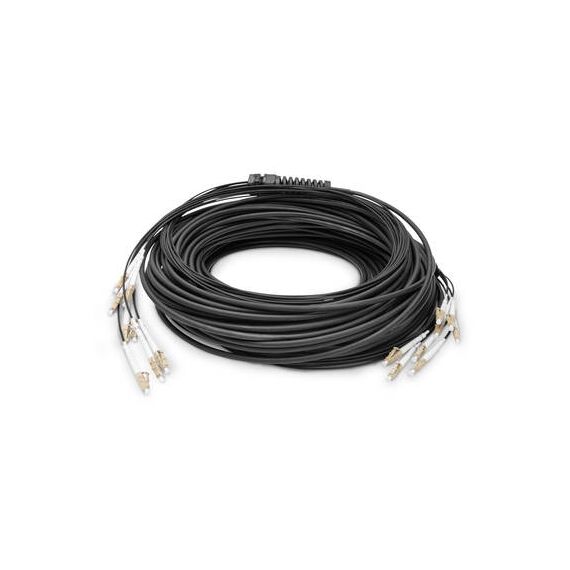

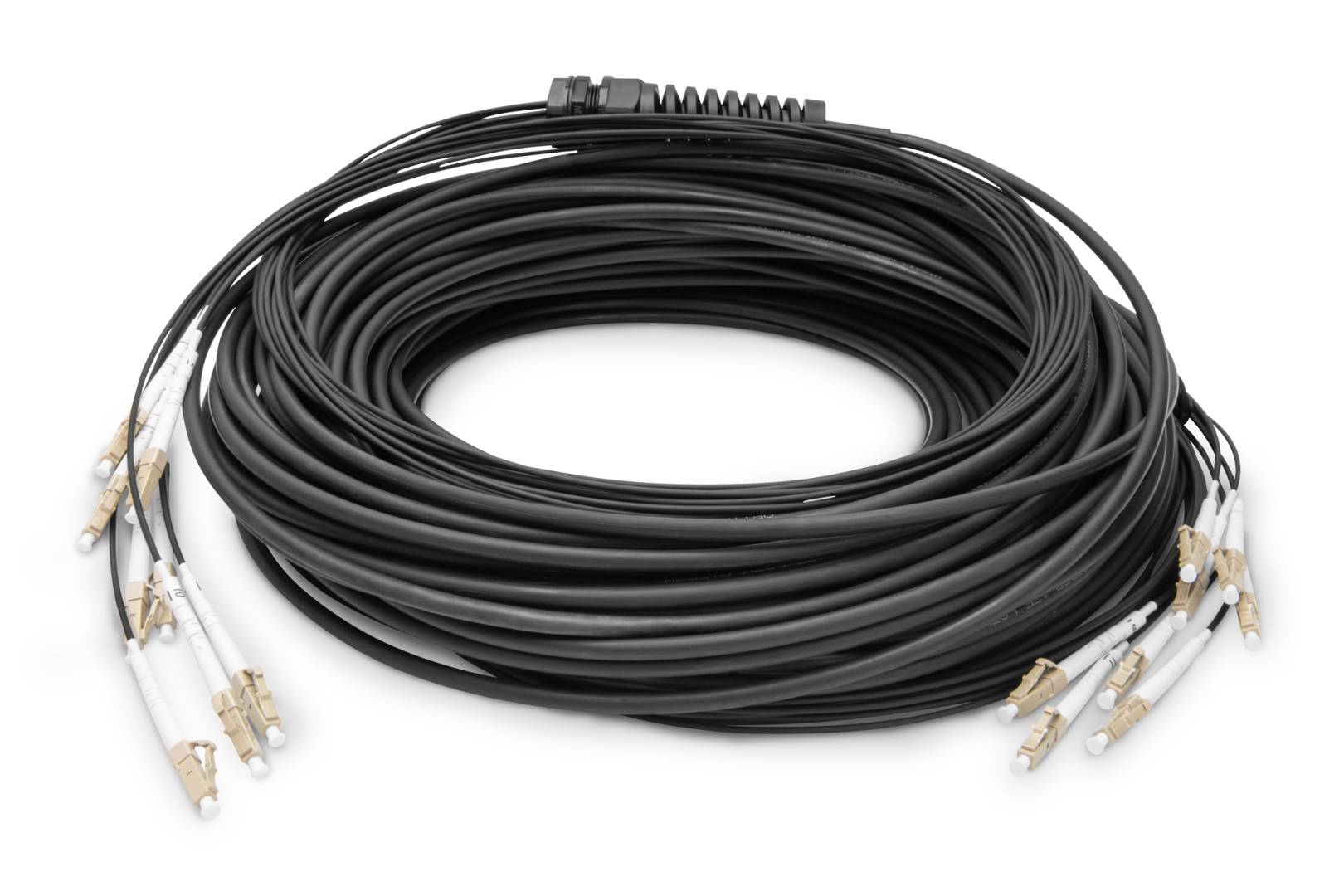

The Digitus pre-assembled fiber optic breakout cable is a 50-metre OM4 multimode trunk with 8 fibres, factory-terminated with LC/UPC connectors on both ends, for building backbone links between racks, rooms or floors without on-site splicing.
Because it arrives ready-terminated and tested, you pull it, open the protective pulling sleeves and plug the LC connectors straight into patch panels or switches. Eight fibres give you four duplex links (or spare fibres for growth) in one cable with a 6 mm diameter.
Before you order: Check the length before ordering: pre-terminated cables cannot be shortened, so measure the real route including slack loops at both racks.
What's in the Box
- 1 × Digitus pre-assembled universal breakout cable, OM4, 8 fibres, 50 m

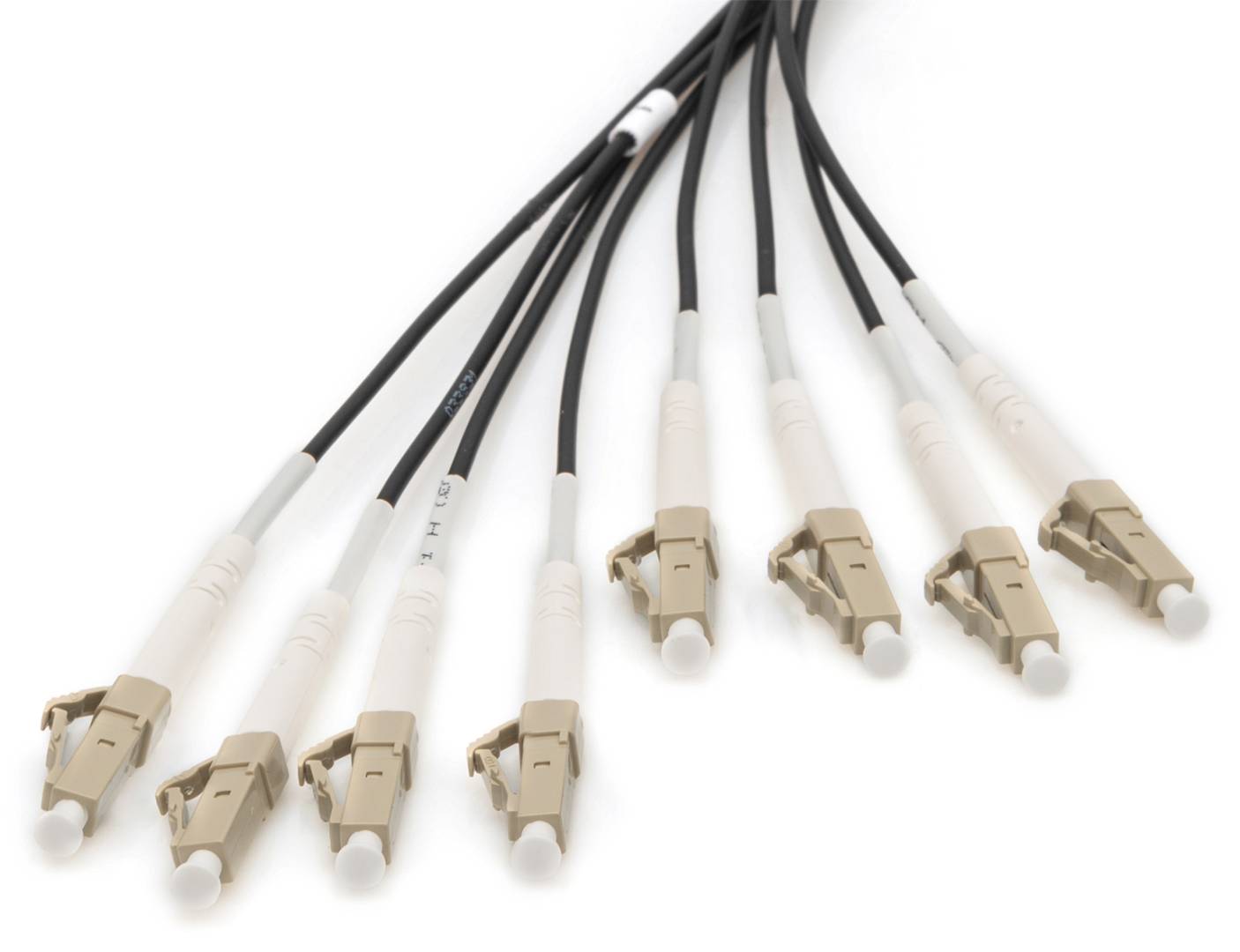

- 8 × LC/UPC connectors on each end, protected by a pulling aid with protective tube on both sides
What It Means in Practice
- Eight fibres = up to four duplex 10G/40G-capable multimode links (depending on the optics), or two links plus spares.
- No fusion splicing on site — ideal when you have no splicing equipment or need the link the same day.
- The protective tube (30.5 mm outer diameter) and ring band must pass through your ducts and cable entries; check that openings are large enough.
- LSOH halogen-free jacket with CPR class Dca suits indoor building installations.
What Will Not Work
- It will not work with single-mode (OS2) optics or single-mode patch panels.
- LC/UPC only — it will not plug into SC, ST or MPO ports without adapters, and it is not APC.
- It cannot be cut to length; a shorter route still needs the full 50 m to be stored as slack.
- No outdoor rating is published, so do not use it for direct burial or exposed outdoor runs.
Key Features
Factory terminated
LC/UPC on both ends, max insertion loss 0.3 dB, min return loss 30 dB.
OM4 performance
50/125 µm laser-optimised multimode fibre for high-speed short-range links.
Pulling aid both sides
Connectors are protected during installation and only exposed at the rack.
LSOH Dca jacket
Halogen-free (EN 50267-2-3), CPR class Dca, black, 6.0 mm diameter.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For an 8-fibre multimode backbone up to 50 m, a pre-terminated breakout cable saves the cost and time of on-site splicing. Plan the ducts for the pulling sleeve and order the right length. For the rest of the rack — panels, cable managers and shelves — see our rack accessories.
✓ Buy it if you need a ready-terminated OM4 multimode backbone of about 50 m with LC connectors.
✕ Skip it if your network is single-mode, uses MPO/SC, or runs outdoors.
→ Also consider Shorter OM4 breakout cables, LC duplex patch cords and LC patch panels.
Not sure about the length or optics? Send us the route and the equipment on both ends and we will check before you order.
Features - Digitus - DK-24338U050BK-BBB
Colour
black
Length
50m
More Details
Product Code
04:430578
EAN Code
4016032485148
Manufacturer
Digitus
