DIGITUS CAT 6A Keystone Module · Shielded RJ45 · Tool-Free with Reclosable Cable Manager · 10GBASE-T · 12-Pack
Brand:
Digitus
DIGITUS CAT 6A Keystone Module · Shielded RJ45 · Tool-Free with Reclosable Cable Manager · 10GBASE-T · 12-Pack
€57.24 inc. VAT
DN-93617-12
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS CAT 6A Keystone Module with Intelligent Cable Manager — 12-Pack
CAT 6A · 10GBASE-TReclosable cable managerTool-freePack of 12

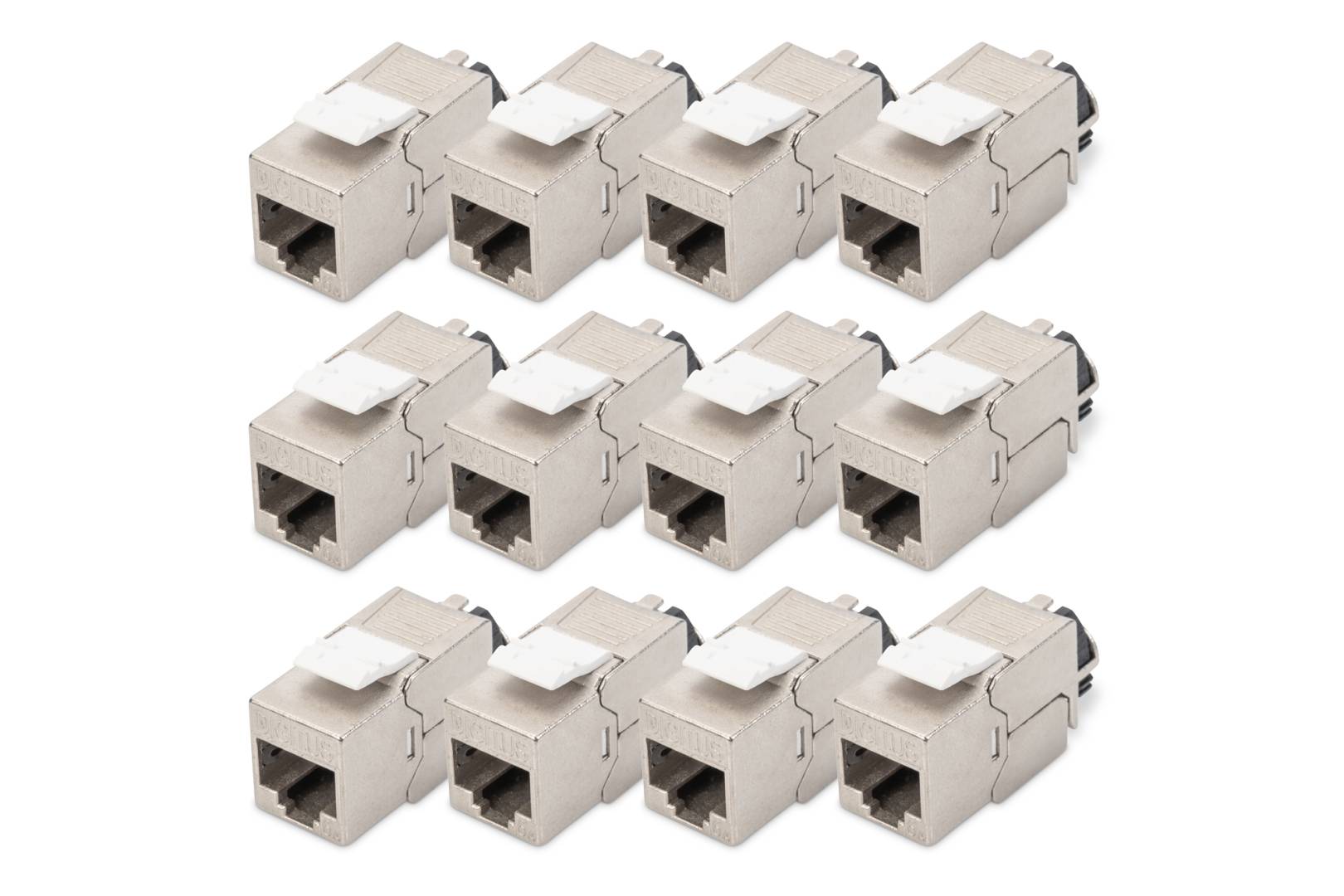

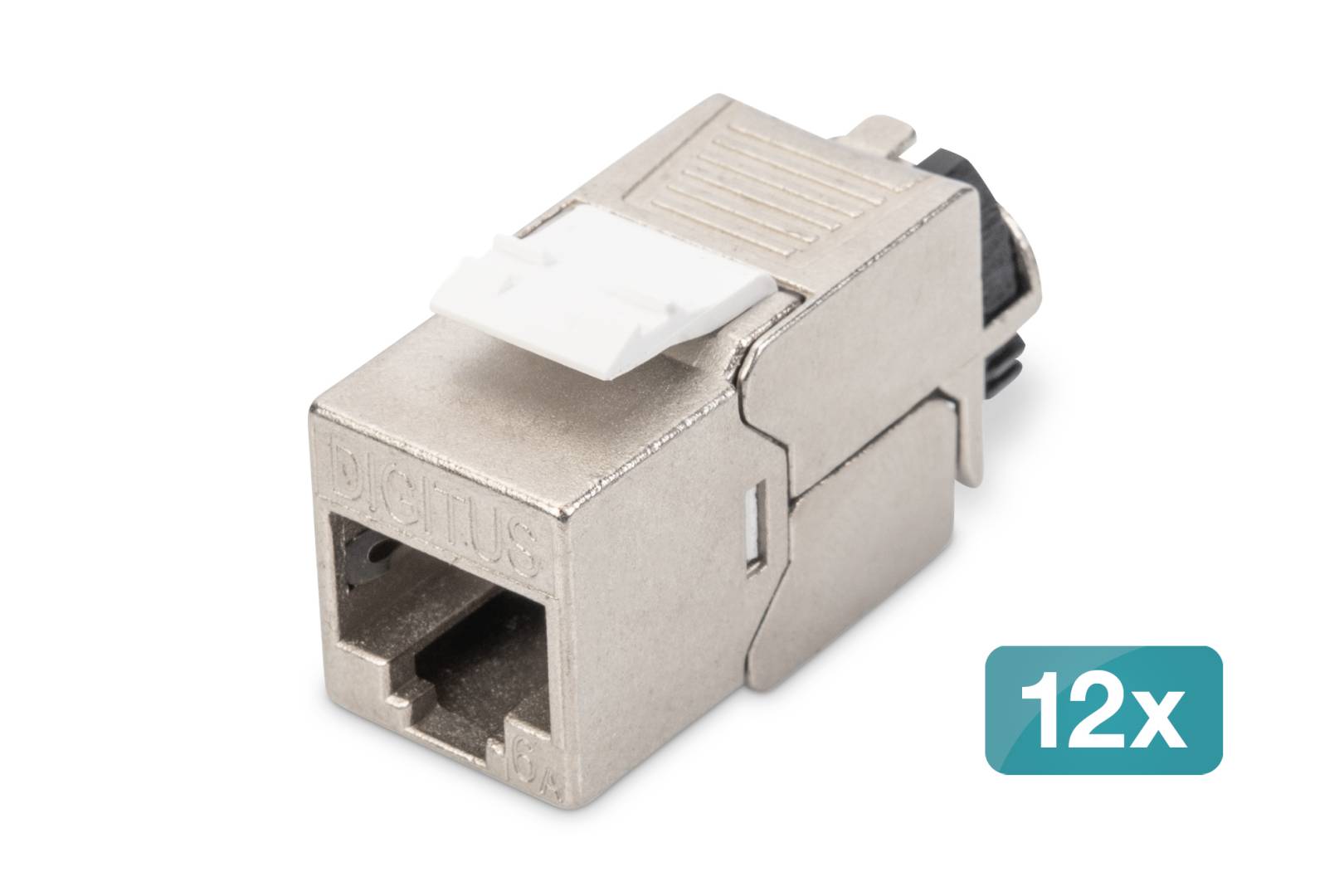

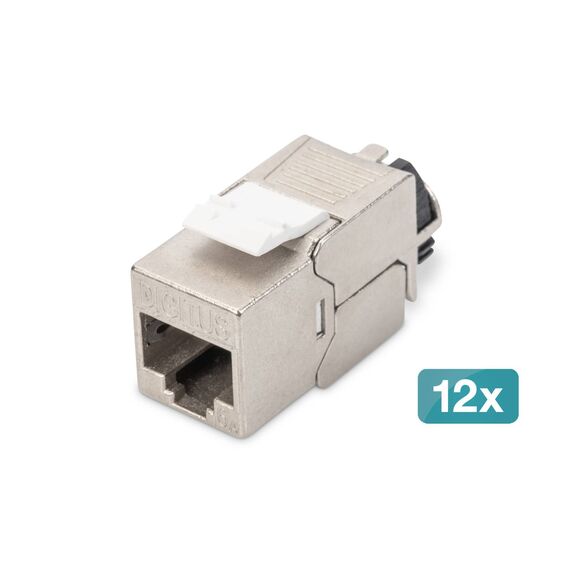

The DIGITUS DN-93617-12 is a pack of 12 shielded CAT 6A RJ45 keystone modules with tool-free termination and a reclosable "intelligent" cable manager for strain relief and cable fixing, rated to 500 MHz for 10GBASE-T. It suits installers wiring patch panels and data outlets who want the cable held firmly in each module.
The nickel-plated zinc die-cast body has 360° shield contact and a metal locking lever. At 21.0 x 14.5 x 34.5 mm the module allows a full row in a 19-inch 1U panel, and DIGITUS rates it for at least 1000 mating cycles.
What's in the Box
- 12x DIGITUS CAT 6A keystone module, shielded, with intelligent cable manager
- Dust protection cap on each RJ45 socket
- No patch panel, face plate or cable included
What It Means in Practice
- 10GBASE-T to 100 m channel when the full link is shielded CAT 6A — the usual standard for new office and building cabling.
- Tool-free LSA termination: lay the pairs in the colour-coded T568A or T568B slots and close the module, no punch-down tool needed.
- 360° shield contact carries the cable screen into the panel, so earthing works the way shielded cabling requires.
- PoE, PoE+ and 4PPoE (802.3af/at/bt) are supported, so access points and cameras can be powered over the same link.
- The reclosable cable manager clamps the cable behind the module, so pulling on the cable does not stress the terminations — and it can be reopened for re-work.
What Will Not Work
- CAT 6A performance needs shielded CAT 6A cable and patch cords end to end; with lower-category parts the link drops to that category.
- It is a keystone jack, not a cable plug — it needs a keystone patch panel, outlet or box.
- Conductors outside AWG 26–22 are not specified.
Key Features
Intelligent cable manager
Reclosable clamp for strain relief and cable fixing.
10GBASE-T, 500 MHz
CAT 6A per ISO/IEC 11801 and EN 50173-1.
Metal locking lever
Tool-free closing with a metal lever; ≥1000 mating cycles.
Row mounting
21.0 x 14.5 x 34.5 mm body for a full row in 19-inch 1U panels.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Shielded CAT 6A is the safe default for new copper cabling: 10G to 100 m, full PoE support and room for Wi-Fi 6/7 access points. The module is only one part of the channel — keep cable, panel and patch cords at the same category and earth the rack and panel properly.
✓ Buy it if you want CAT 6A keystones with firm cable fixing and strain relief built in.
✕ Skip it if you only need basic 1G cabling — an unshielded CAT 6 keystone costs less.
→ Also consider DIGITUS DN-93615-12 (same category, without the cable manager).
Not sure it fits your panel or outlet? Send us its model and we will check compatibility before you order.
Features - Digitus - DN-93617-12
More Details
Product Code
04:591495
EAN Code
4016032491057
Manufacturer
Digitus
