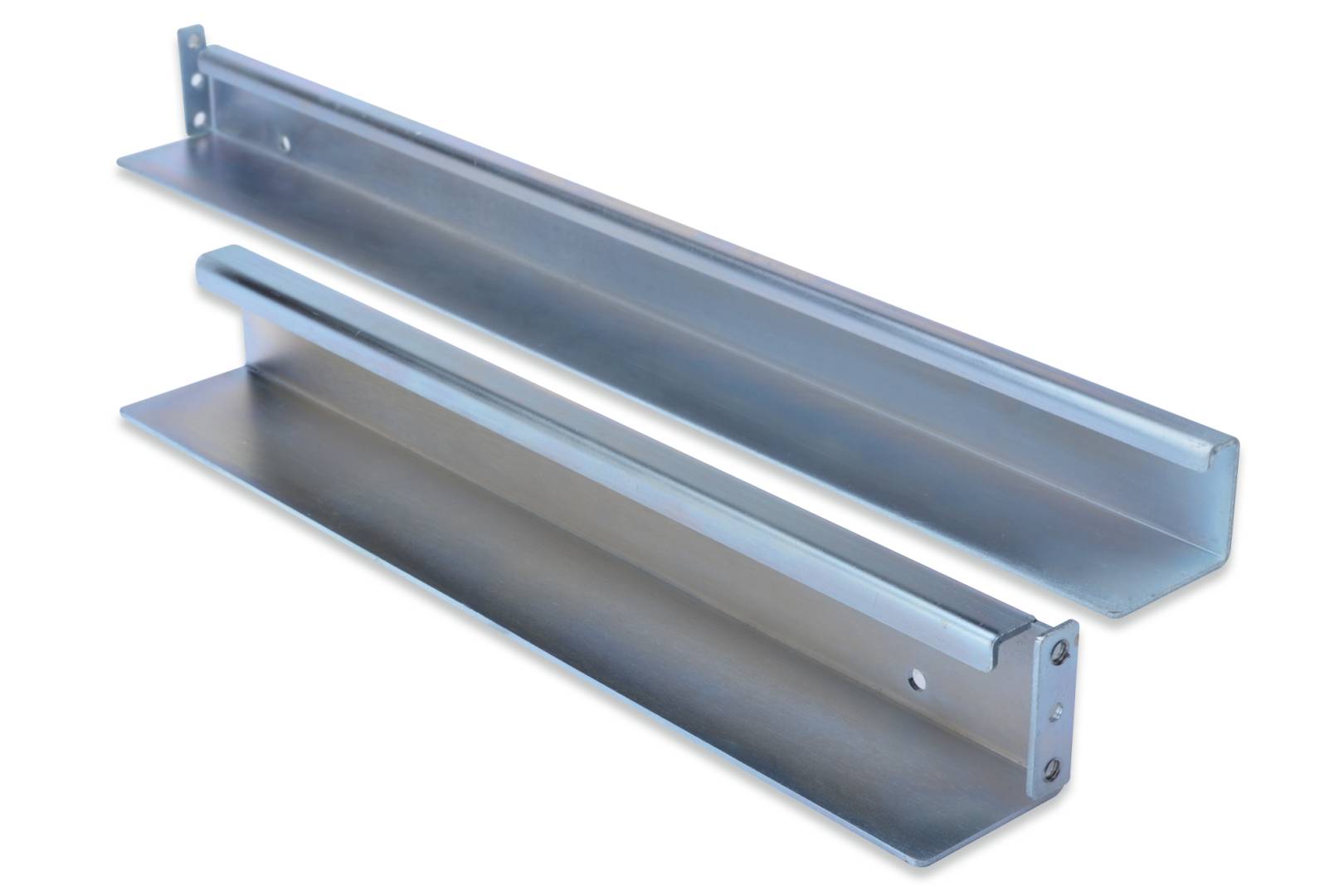

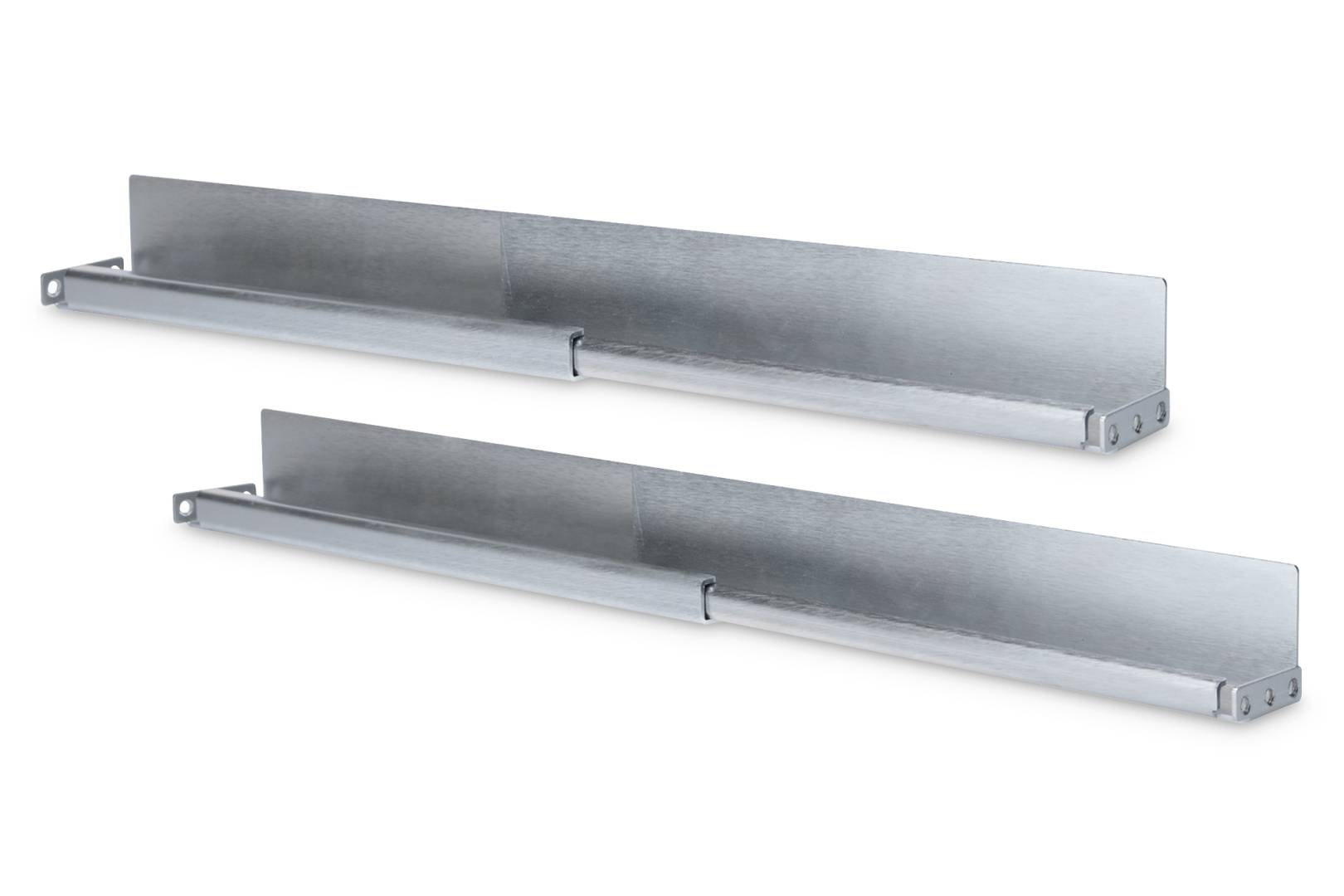

DIGITUS L-Shaped Slide Rails for 19" Network & Server Cabinets, 100 kg
Set of 2 rails100 kg load500–750 mm adjustable2 mm galvanised steel
The DIGITUS DN-19 GS-SRV is a pair of L-shaped support rails for 19-inch DIGITUS Unique network and server cabinets, adjustable in depth from 500 to 750 mm and rated for 100 kg — used to carry heavy rackmount equipment such as servers, UPS units and storage systems that come without their own rail kit.

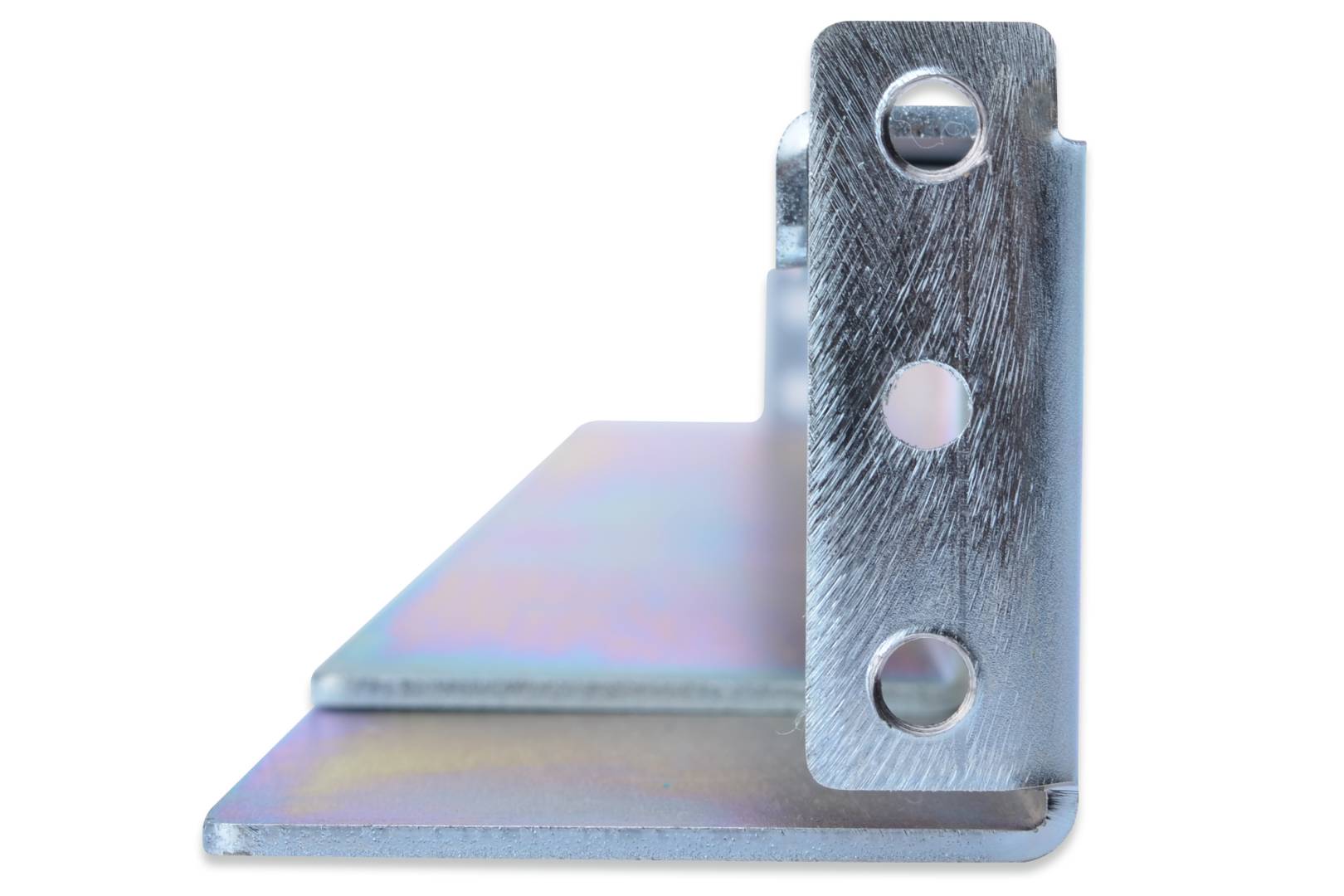

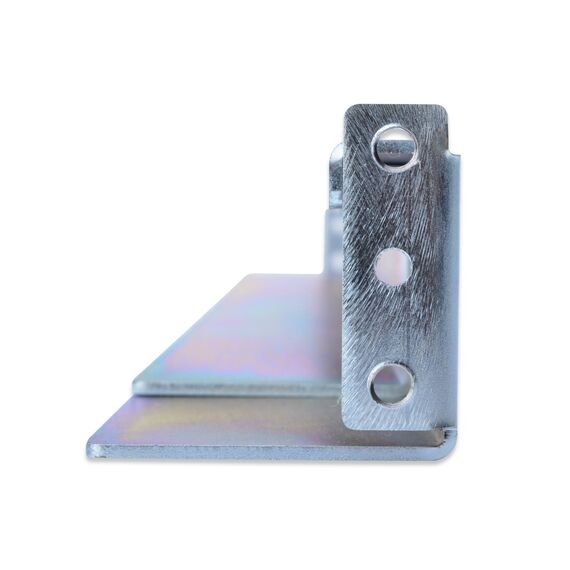

Each rail consists of an inner and an outer profile that slide into each other to match the distance between your front and rear 19" rails; once set, the equipment rests on the L-shaped ledge. The rails are made of 2 mm galvanised sheet steel in light grey RAL 7035 and fix through threaded holes, so no cage nuts are needed.
Before you order: DIGITUS calls these "slide rails", but they are fixed L-shaped support rails, not telescopic server slides — the equipment does not pull out on them. DIGITUS lists them for its Unique and Unique Light network cabinets (800 and 1000 mm depth) and Unique Server-N (1000 mm). Fit in other brands is not published; tell us your cabinet model first.
What's in the Box
- 1 × set of slide rails (2 rails, each with inner and outer profile)
- Fastening material
What It Means in Practice
- Heavy 19" equipment sits on the rails instead of hanging from its front ears, which protects the ears and the front rails.
- Adjustable depth 500–750 mm covers the rail spacing of 800 and 1000 mm deep DIGITUS cabinets.
- Threaded holes speed up installation — screw straight in without cage nuts.
- Rails take up no usable rack height beyond the unit they support.
What Will Not Work
- They are not telescopic: equipment cannot be slid out for service on these rails.
- They will not fit cabinets where the front-to-rear rail distance is below 500 mm or above 750 mm.
- They will not fit wallmount cabinets or 2-post racks without rear rails.
- Fit in non-DIGITUS cabinets is not confirmed by the manufacturer.
Key Features
100 kg load
Rated for heavy servers, UPS and storage systems.
Adjustable 500–750 mm
Inner and outer profiles slide to match your rail spacing.
No cage nuts
Fixing via threaded holes for quick installation.
2 mm galvanised steel
Rigid, corrosion-resistant sheet steel in RAL 7035.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Support rails are the cheapest insurance for heavy 19" gear: front ears alone were never meant to carry a 30 kg UPS. Measure the distance between your front and rear rails before ordering — it is the one number that decides fit. For lighter or non-rackmount equipment, a fixed shelf from our rack accessories range is the alternative.
✓ Buy it if you have a DIGITUS Unique cabinet and need to support heavy rackmount equipment up to 100 kg.
✕ Skip it if you need pull-out rails for service access, or your cabinet is another brand with unconfirmed rail spacing.
→ Also consider a 4-point fixed shelf for non-rackmount equipment, or the equipment manufacturer's own rail kit.
Tell us your cabinet model and the device you want to support, and we will confirm fit before you order.
Features - Digitus - DN-19 GS-SRV
Colour
grey
More Details
Product Code
04:173730
EAN Code
4016032366461
Manufacturer
Digitus
