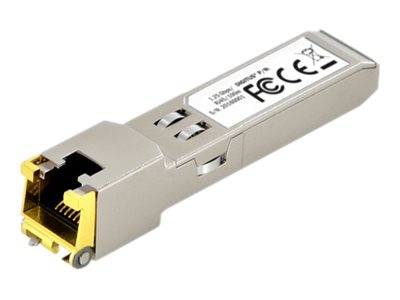

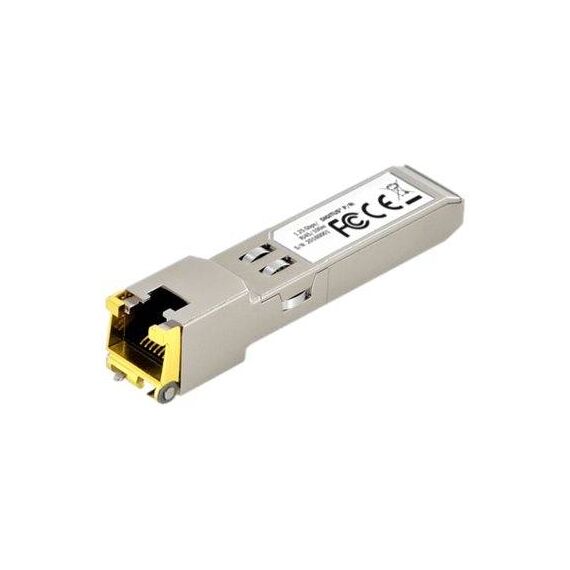

DIGITUS DN-81210 / SFP+ transceiver module / 10 GigE, 5 GigE, 2.5 GigE / 1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T / RJ-45 / up to 100 m | DN-81210

Product Features

· Data transfer rate: 10 Gigabit max. (IEEE802.3 compatible)
· Compatible standards: 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T
· Cable length: 1000Base-T: 100 m, 5 / 2.5GBase-T: 50 m, 10GBase-T: 30 m
· MSA (Multi Source Agreement) compliant
· Hot pluggable - installation possible while in operation
· Auto MDI/MDI-X
· Operating temperature: 0°C to 65°C
· Storage temperature: -40°C to 85°C
· Serial communication protocol: I²C clock rate: 200 Hz
· Compatibel with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet,  Mikrotik , ENTERASYS, RIVERSTONE ,  Unifi, Ubiquiti, ZyXEL, ZTE

Special Features

· Compatible with IEEE 802.3 standard and most common switch vendors
· Hot-pluggable SFP footprint
· Distance: Up to 100 m (1 Gbit)
· High operating temperature: 0°C to 65°C
· Easy plug-and-play installation

Product Specification

Device Type	SFP+ transceiver module
Form Factor	Plug-in module
Networking	Networking
Connectivity Technology	Wired
Cabling Type	1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T
Data Link Protocol	GigE, 10 GigE, 5 GigE, 2.5 GigE
Data Transfer Rate	10 Gbps
Max Transfer Distance	100 m
Features	Auto-uplink (auto MDI/MDI-X), hot swappable, uni-directional
Compliant Standards	IEEE 802.3
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Ethernet 10GBase-T - RJ-45 female
Miscellaneous	Miscellaneous
Compliant Standards	Plug and Play, MSA
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	11.5 cm
Shipping Depth	9 cm
Shipping Height	3 cm
Shipping Weight	40 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	65 °C
