DIGITUS DN-95117 / PoE injector (rack-mountable / external) / AC 100-240 V / 370 Watt / output connectors: 24 / 1U / 19" | DN-95117
Please sign in so that we can notify you about a reply
DIGITUS DN-95117 / PoE injector (rack-mountable / external) / AC 100-240 V / 370 Watt / output connectors: 24 / 1U / 19" | DN-95117
Description

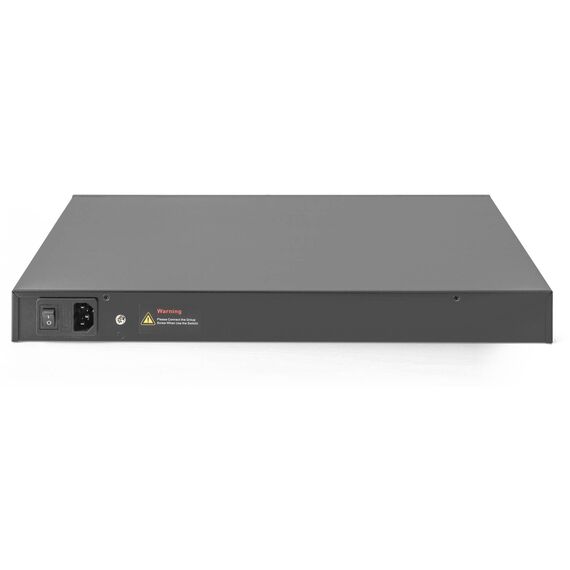

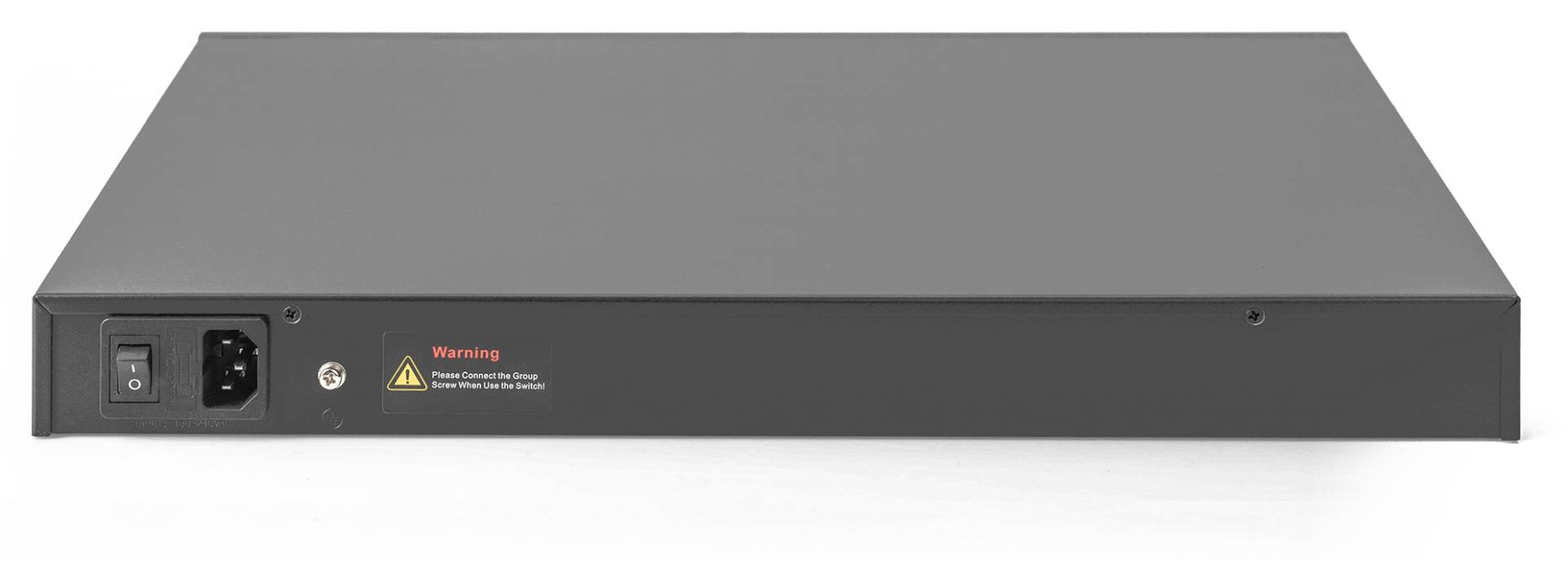

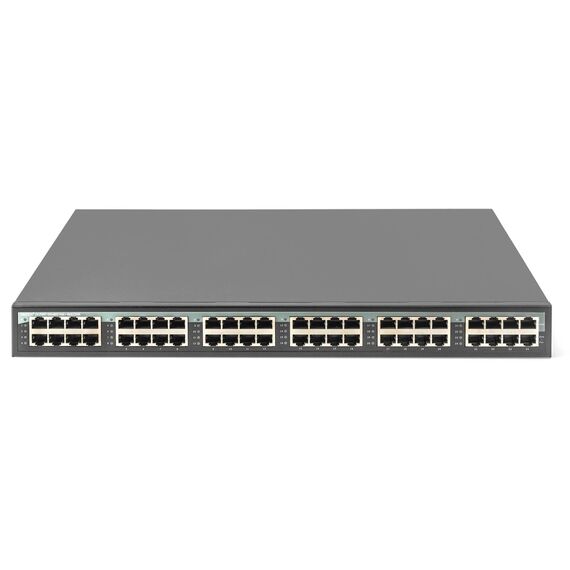

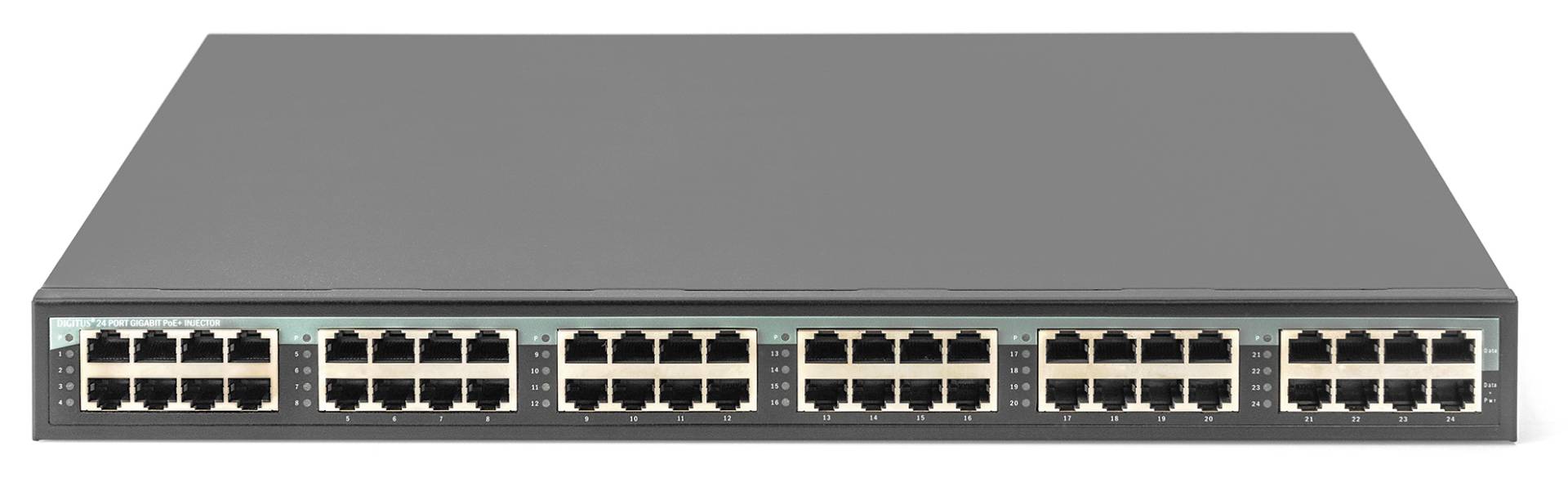

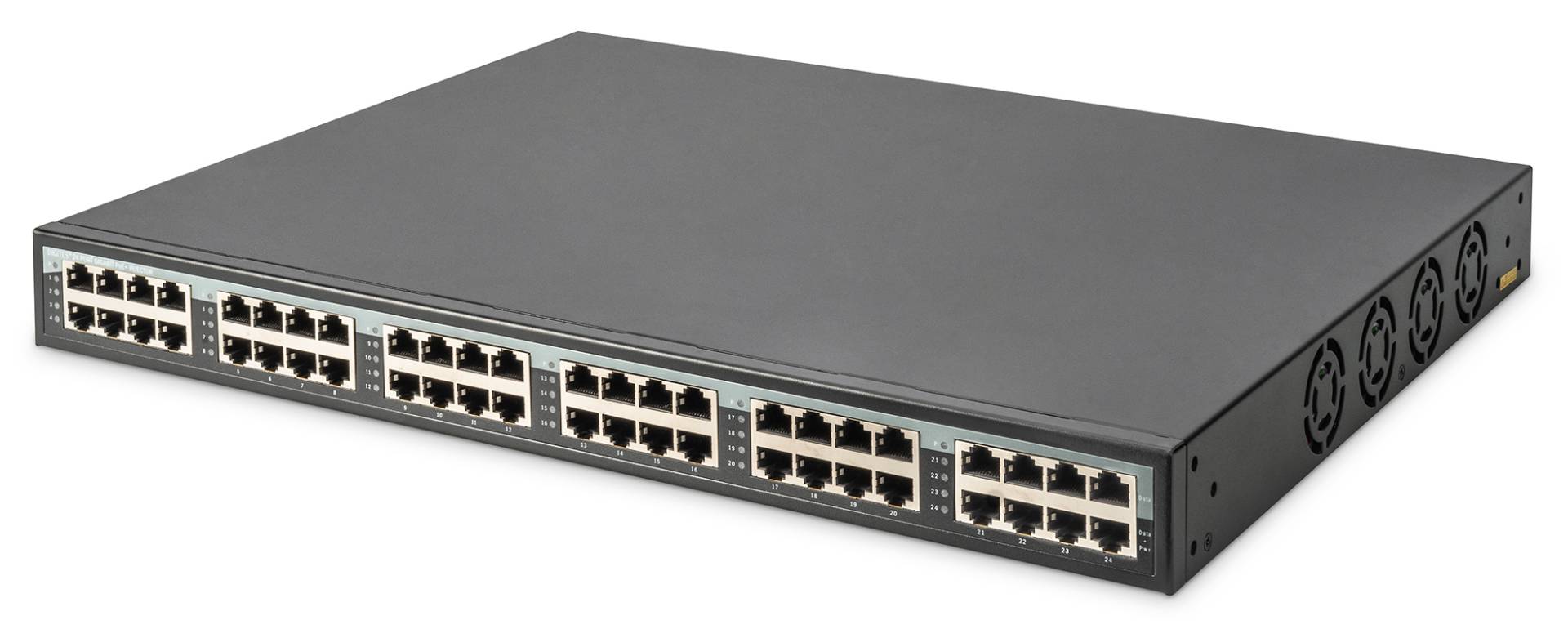

The DIGITUS DN-95117 is a 24 port gigabit PoE+ mid-span hub (PoE injector). It offers 24 input ports for data and 24 output ports which make data and PoE available. Each PoE-port supports connected devices in accordance with the IEEE802.3af and IEEE802.3at PoE standard with 15.4 watts and/or 30 watts, such as PoE access points, PoE IP-telephones or PoE IP cameras, for example. The switch makes available a maximum budget of 370 watts for all ports and maximum budget of 30 watts per port.
DIGITUS DN-95117 / PoE injector (rack-mountable | DN-95117
Special Features
- 24 gigabit ports with PoE+ support
- 370 watt performance with up to 30 watts per port
- Compatible with the IEEE802.3af and IEEE802.3at standards
- Automatic surge protection
Product Specification
| Device Type | PoE injector - rack-mountable / external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 24 x RJ-45 |
| Power Capacity | 370 Watt |
| Surge Suppression | Yes |
| Interfaces | 24 x Gigabit LAN - RJ-45 |
| Rack Mounting Kit | Included |
| MTBF | 100,000 hours |
| Features | Full duplex support, half duplex support, overload protection, short-circuit protection |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 45 °C |
| Width | 44 cm |
| Depth | 34.5 cm |
| Height | 4.5 cm |
| Shipping Width | 40.5 cm |
| Shipping Depth | 50.5 cm |
| Shipping Height | 9.5 cm |
| Shipping Weight | 5.33 kg |
Features - Digitus - DN-95117
More Details
Product Code
03:149292
EAN Code
4016032430384
Manufacturer
Digitus
