DIGITUS DN-95421 Gigabit Ethernet/PoE++ Surge Protector, 35 mm DIN Rail, IP40, Grey

Brand:
Digitus

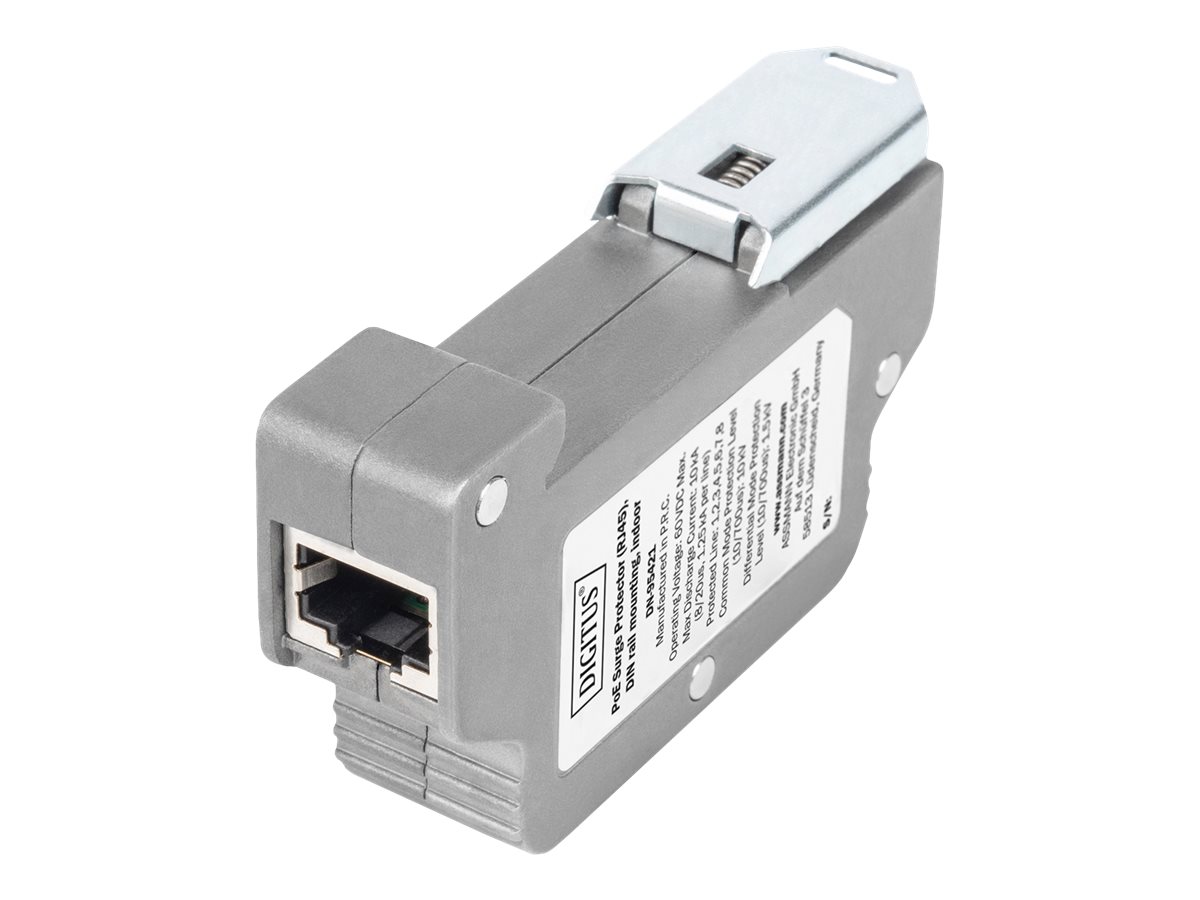

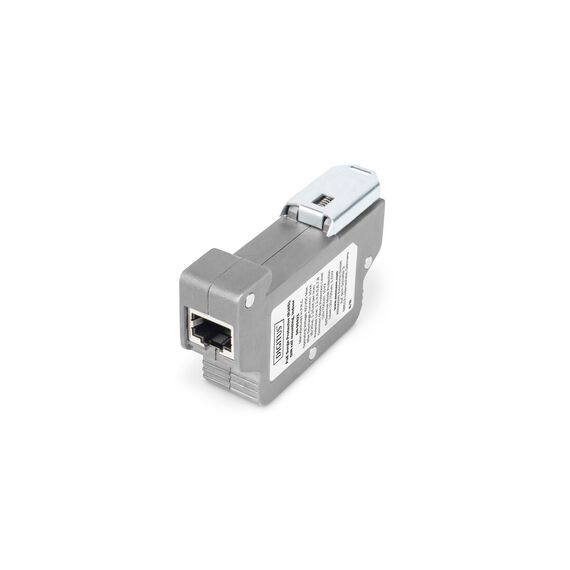

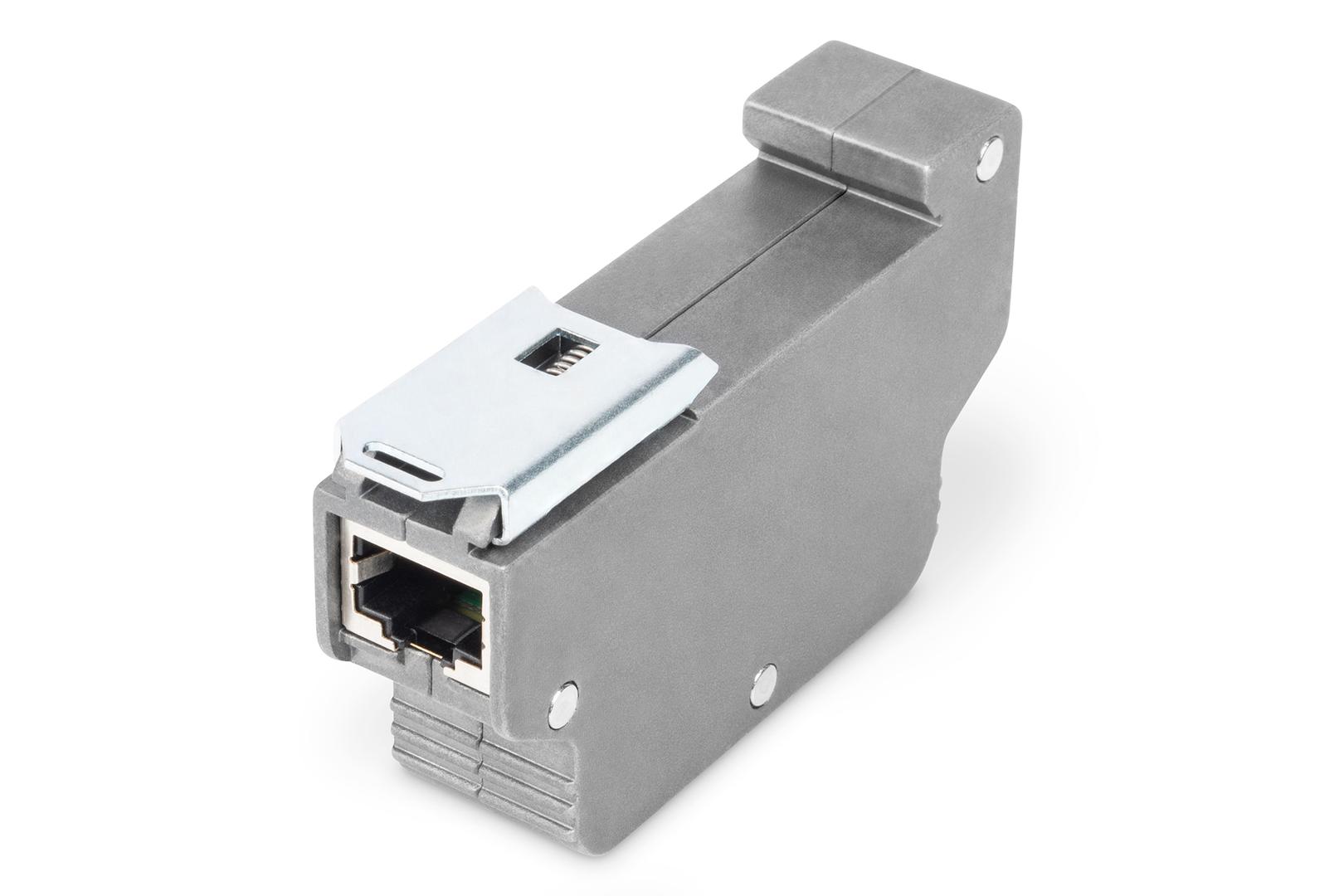

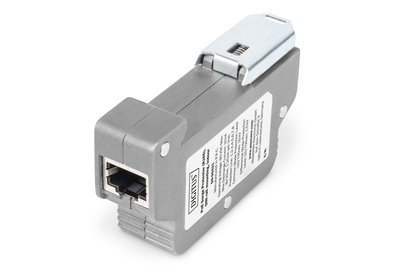

DIGITUS DN-95421 Grey RJ45 PoE Surge Protector with DIN Rail Clip
DIGITUS DN-95421 Gigabit Ethernet/PoE++ Surge Protector, 35 mm DIN Rail, IP40, Grey
€67.01 inc. VAT
Buy
DN-95421
€56.31
€67.01 inc. VAT
Ships from EU stock: 96 item(s)
+ −
Add to wish list Ask a question
Product Code
04:380097
EAN Code
4016032473053
Manufacturer
Digitus

Quick Specs

Ethernet
10/100/1000 Mbps
PoE
IEEE 802.3af/at/bt
Mounting
35 mm DIN rail
Location
Indoor, IP40, grounded
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-95421 — Ethernet/PoE Line Surge Protection

Gigabit EthernetPoE++DIN 35 mmIP40

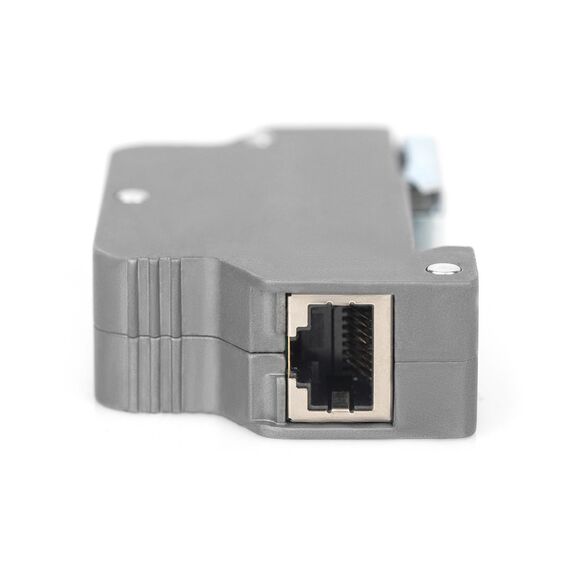

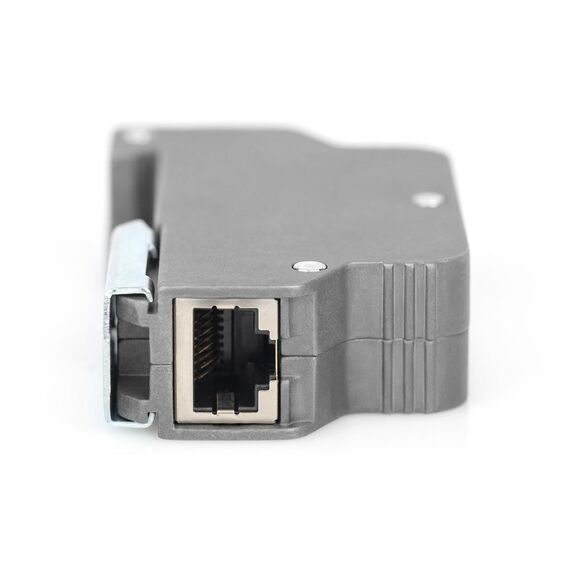

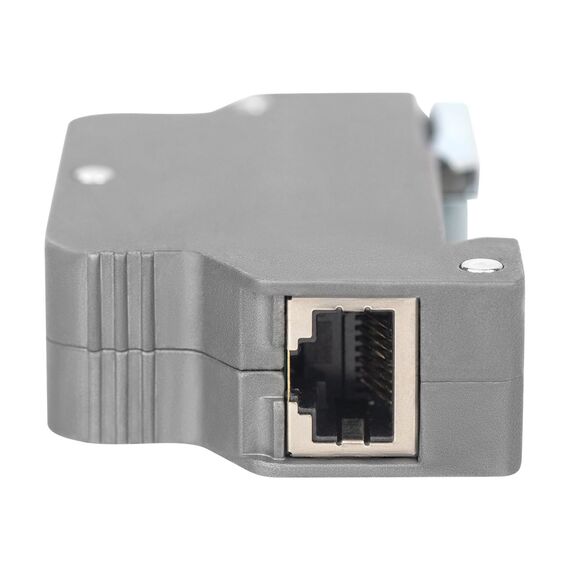

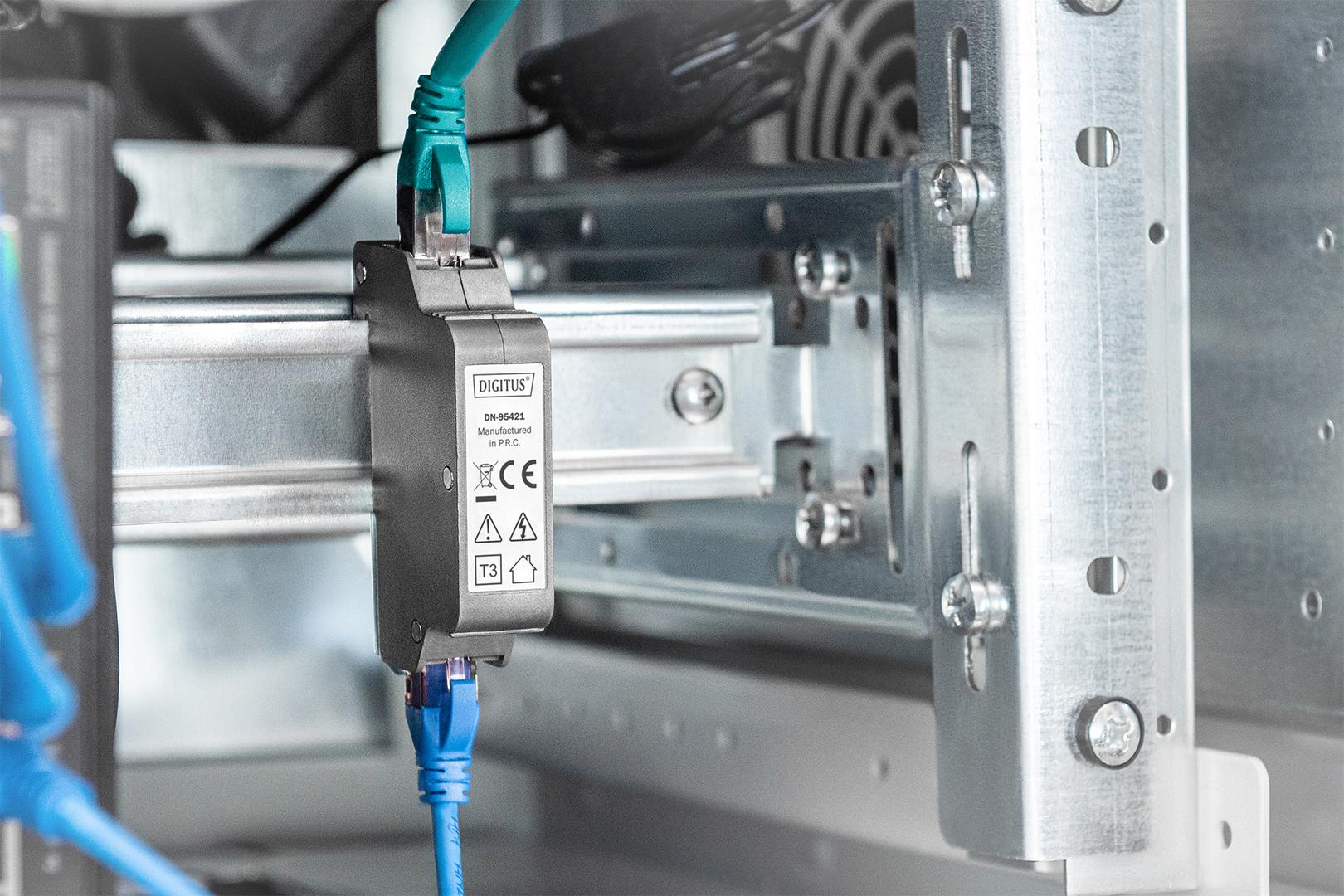

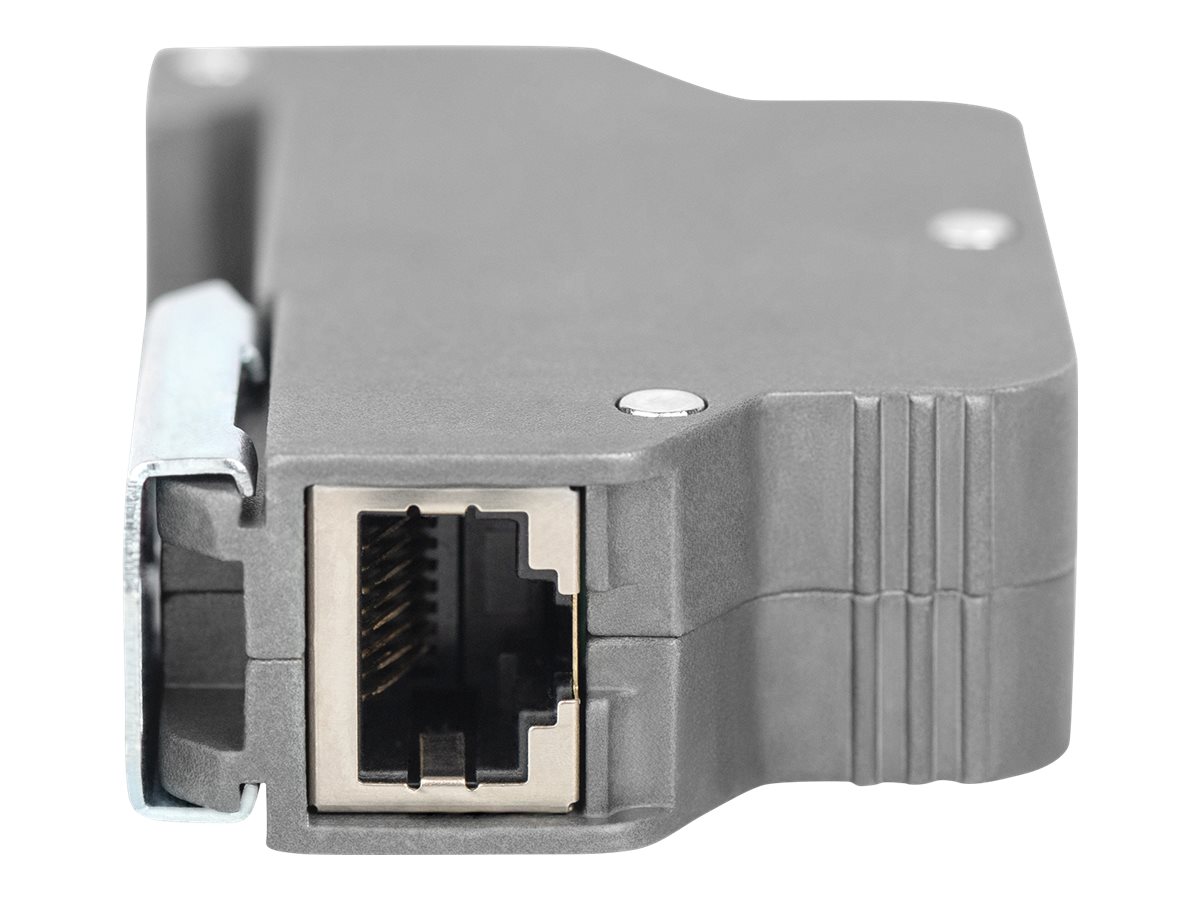

DN-95421 sits inline on one Ethernet/PoE link to protect against voltage surges. Its shielded RJ45 input and output support Gigabit Ethernet and PoE/PoE+/PoE++. The grey metal housing clips onto a 35 mm DIN rail indoors.

Compatibility — check before buying:
Effective protection requires connection to a grounded conductor via the DIN rail. Check voltage, current and the complete PoE link budget. This protector does not generate PoE power, and IP40 does not permit exposure to water.

Key Features


One data and PoE link
One RJ45 input and output pass 10/100/1000 Mbps Ethernet and IEEE 802.3af/at/bt PoE.

Specified surge tests
The manufacturer lists 10 kV common-mode and 1.5 kV differential-mode protection with a 10/700 µs waveform. These are defined test ratings.

DIN mounting and grounding
The 35 mm rail provides mounting and a grounding path; effective protection depends on a properly grounded installation.

Technical Specifications

Identification and connections
Brand / model DIGITUS DN-95421
EAN / GTIN 4016032473053
Device type Single-link indoor Ethernet/PoE surge protector

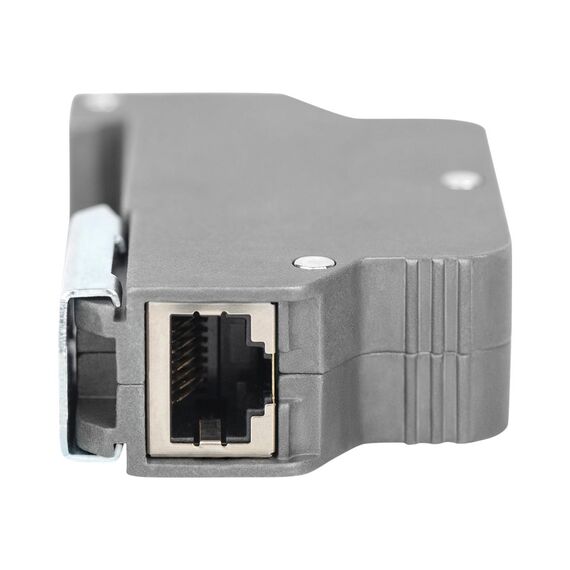

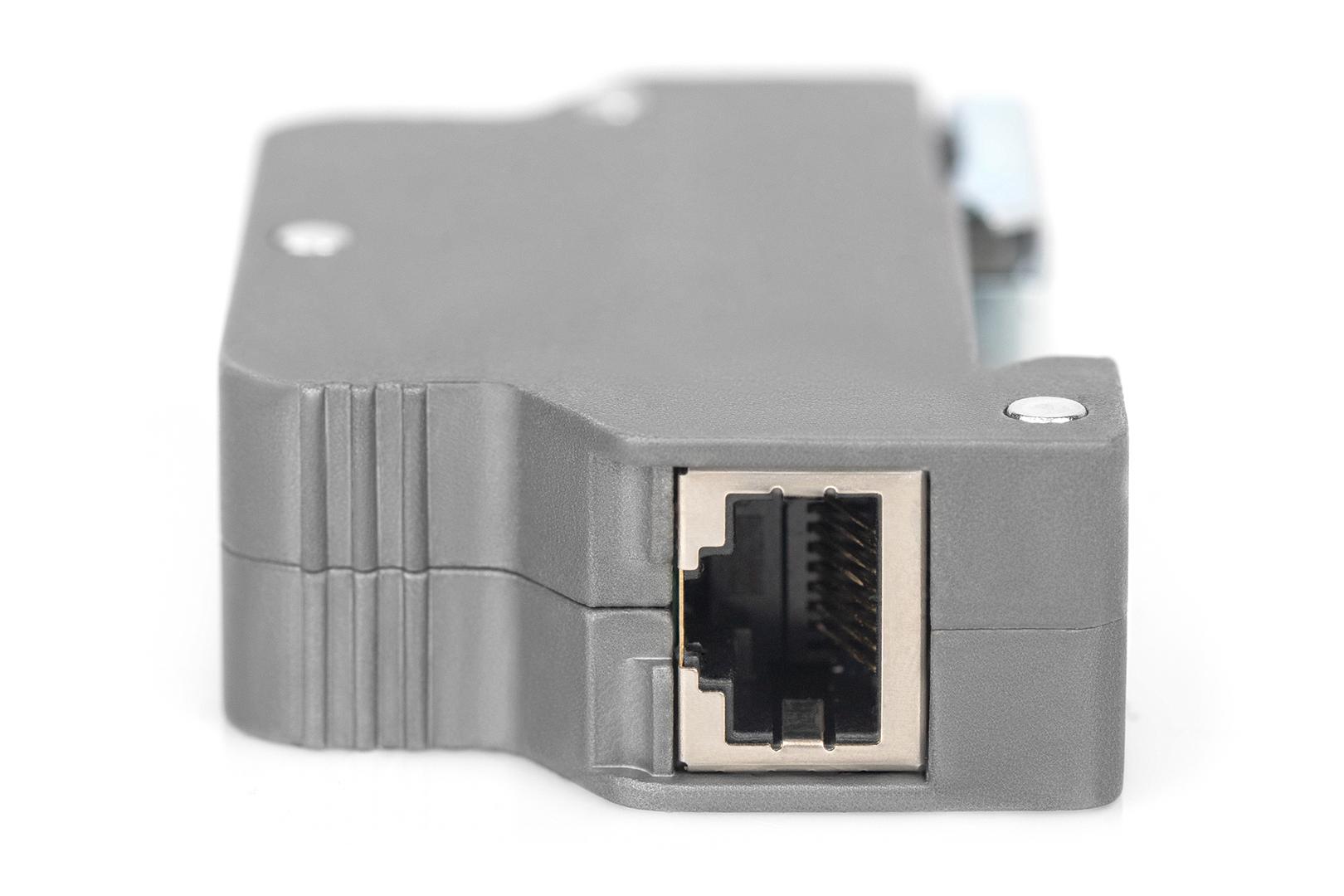

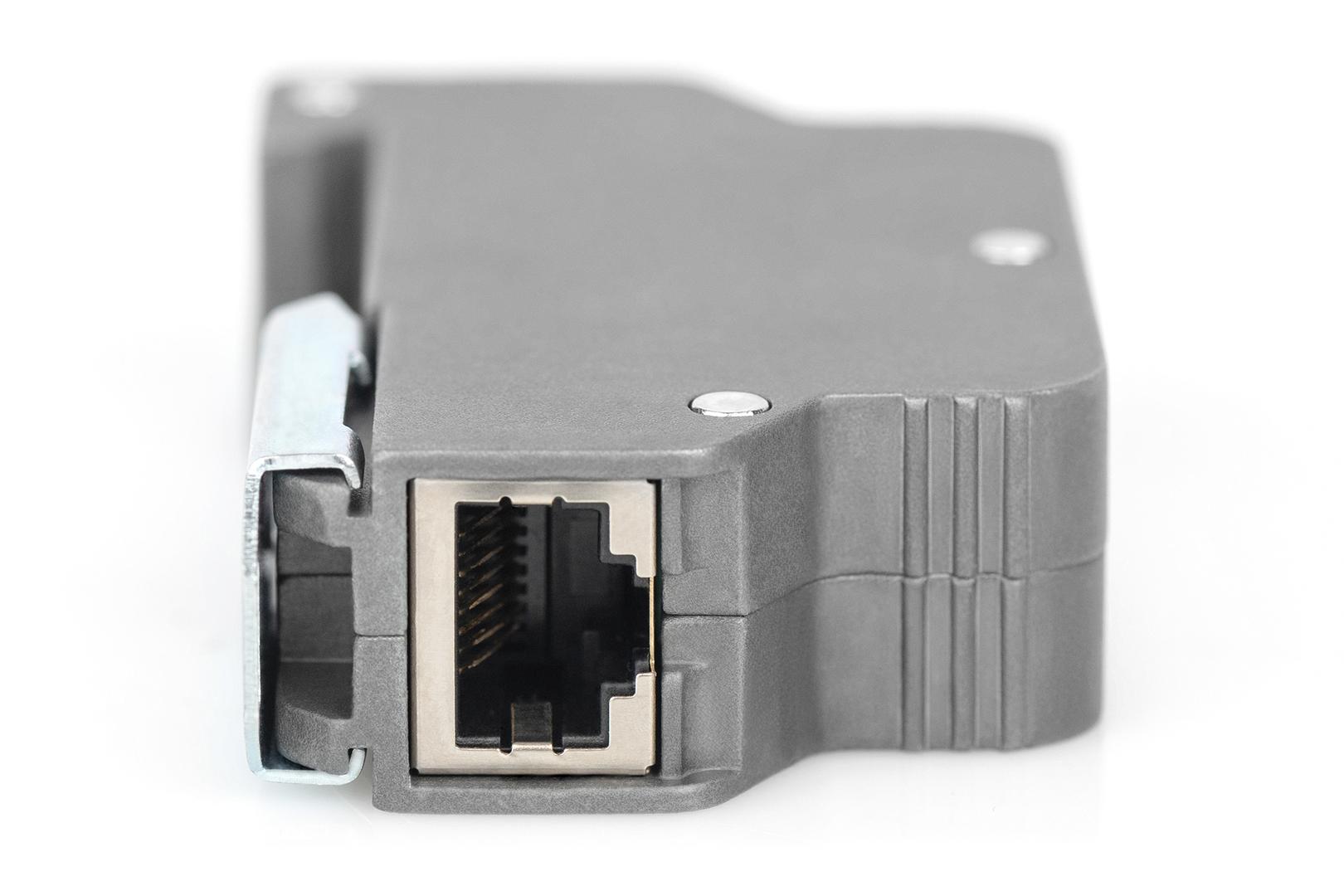

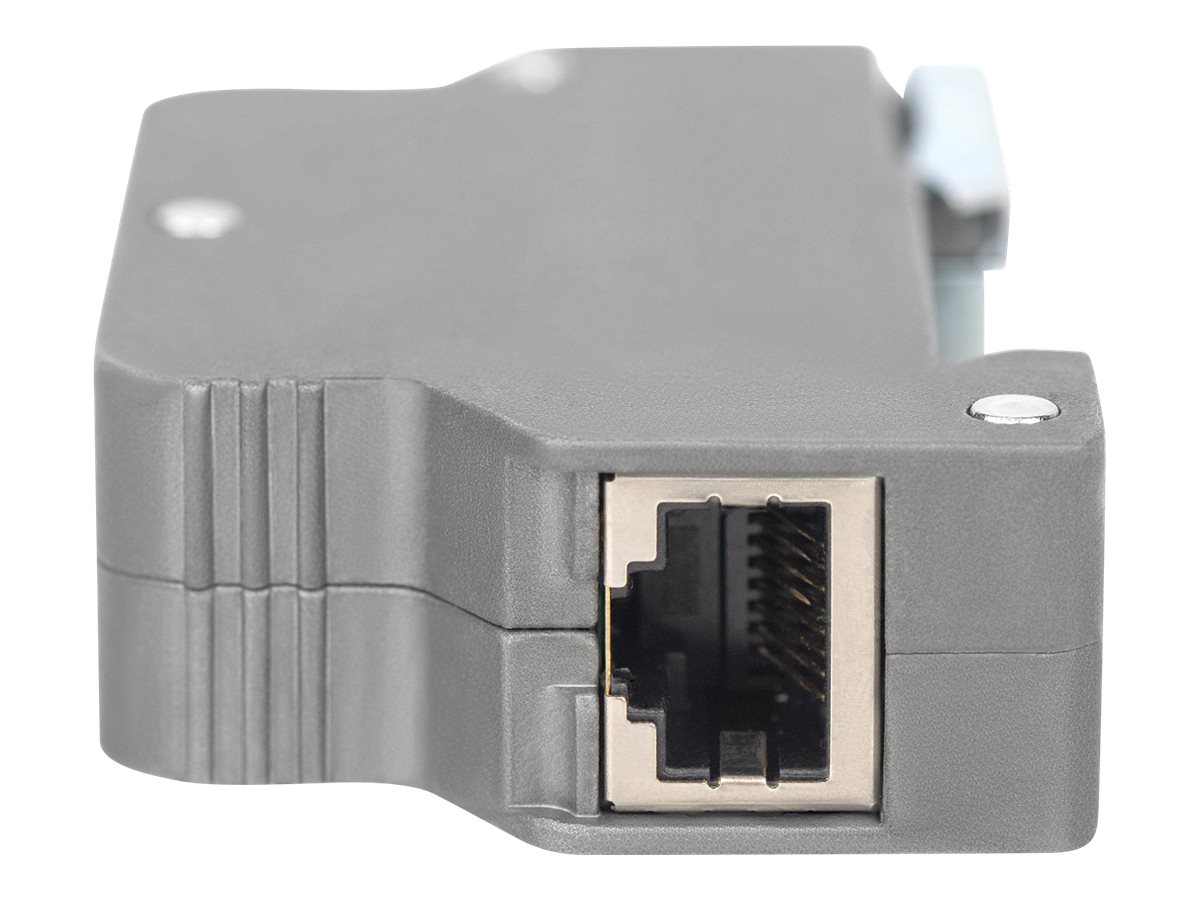

Input / output 1 shielded RJ45 input + 1 shielded RJ45 output
Ethernet 10/100/1000 Mbps; IEEE 802.3, 802.3u, 802.3ab
PoE standards IEEE 802.3af / at / bt; PoE / PoE+ / PoE++
Electrical pass-through limits
Maximum DC voltage 60 VDC
Maximum current 1 A for 2 pairs; 2 A for 4 pairs
Maximum electrical power 120 W maximum; not power generated by the protector
QIG PoE++ reference 110 W IEEE 802.3bt / PoE++ support reference; verify the complete PoE link budget
Surge performance — manufacturer test references
Protected conductors All 8 RJ45 conductors, pins 1–8
Common-mode protection 10 kV, 10/700 µs test waveform
Differential-mode protection 1.5 kV, 10/700 µs test waveform
Maximum discharge current 10 kA total, 8/20 µs; 1.25 kA per line
Response time 5 ns
Published insertion / return loss −1 dB / −20 dB at 10 MHz / 100 MHz, per QIG
Installation and physical details

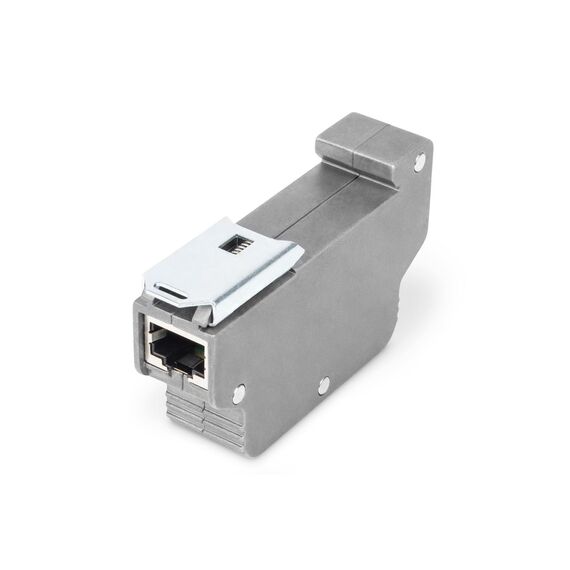

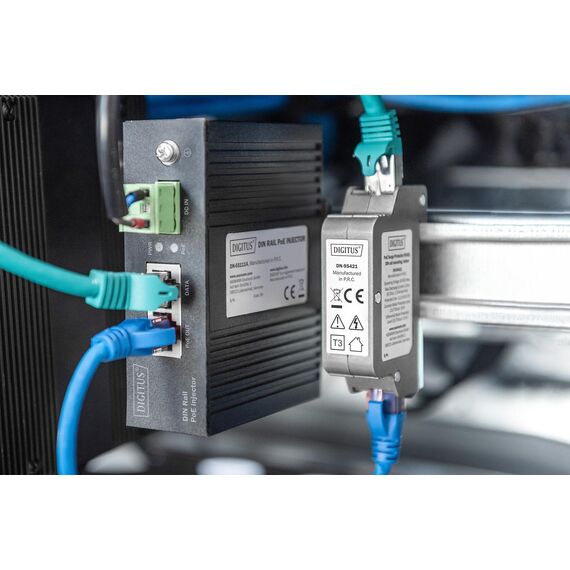

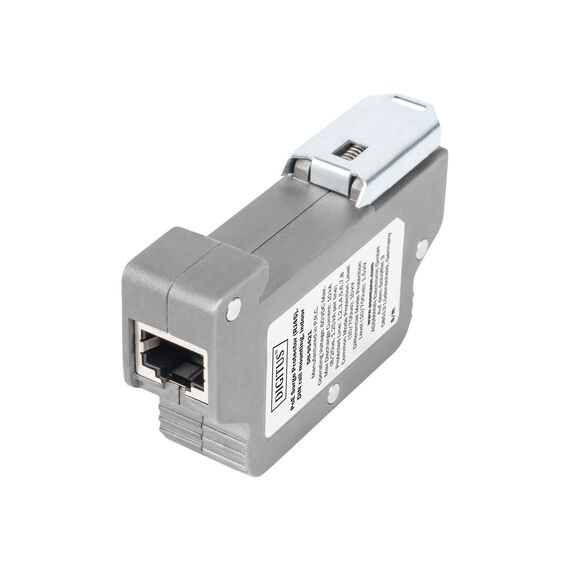

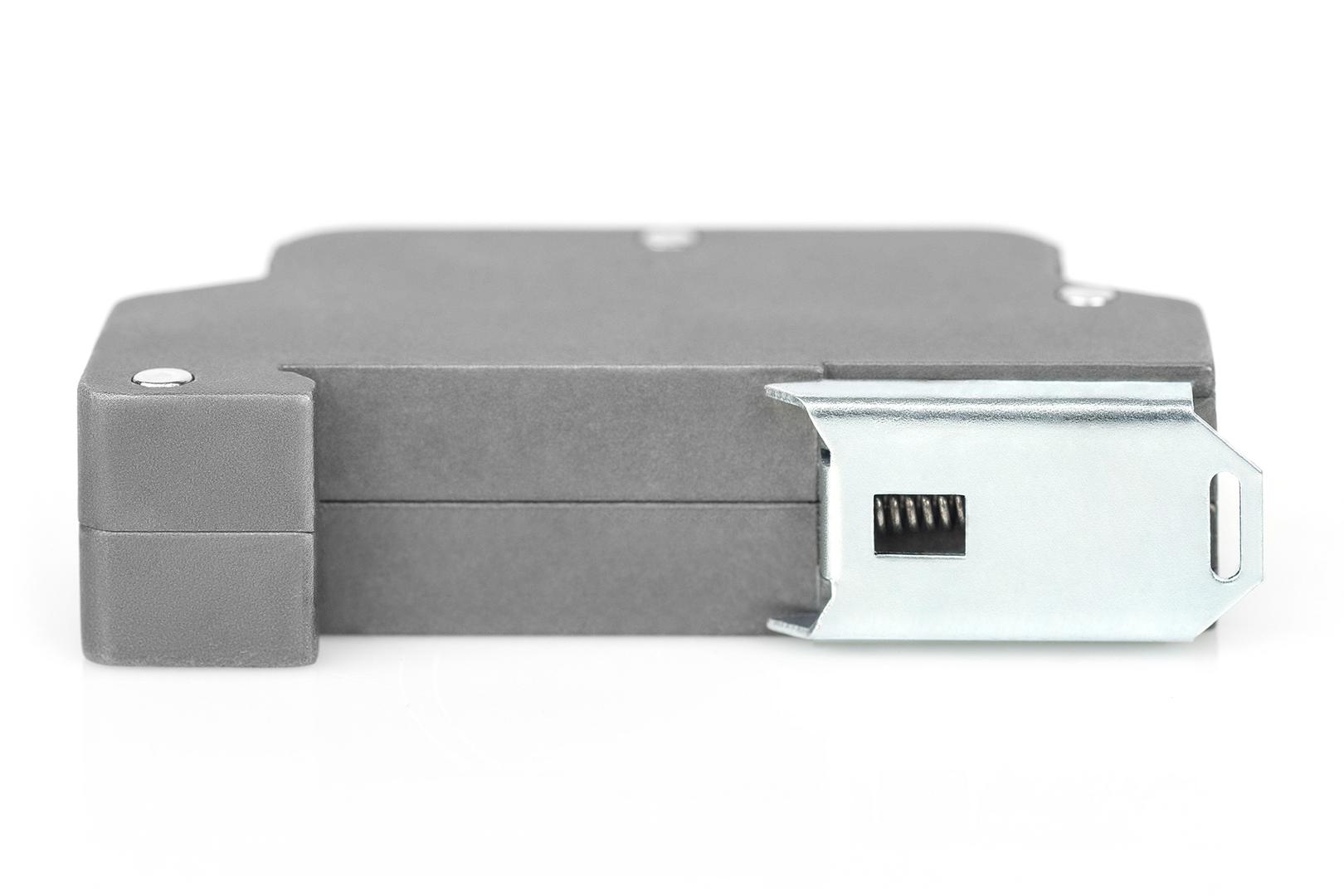

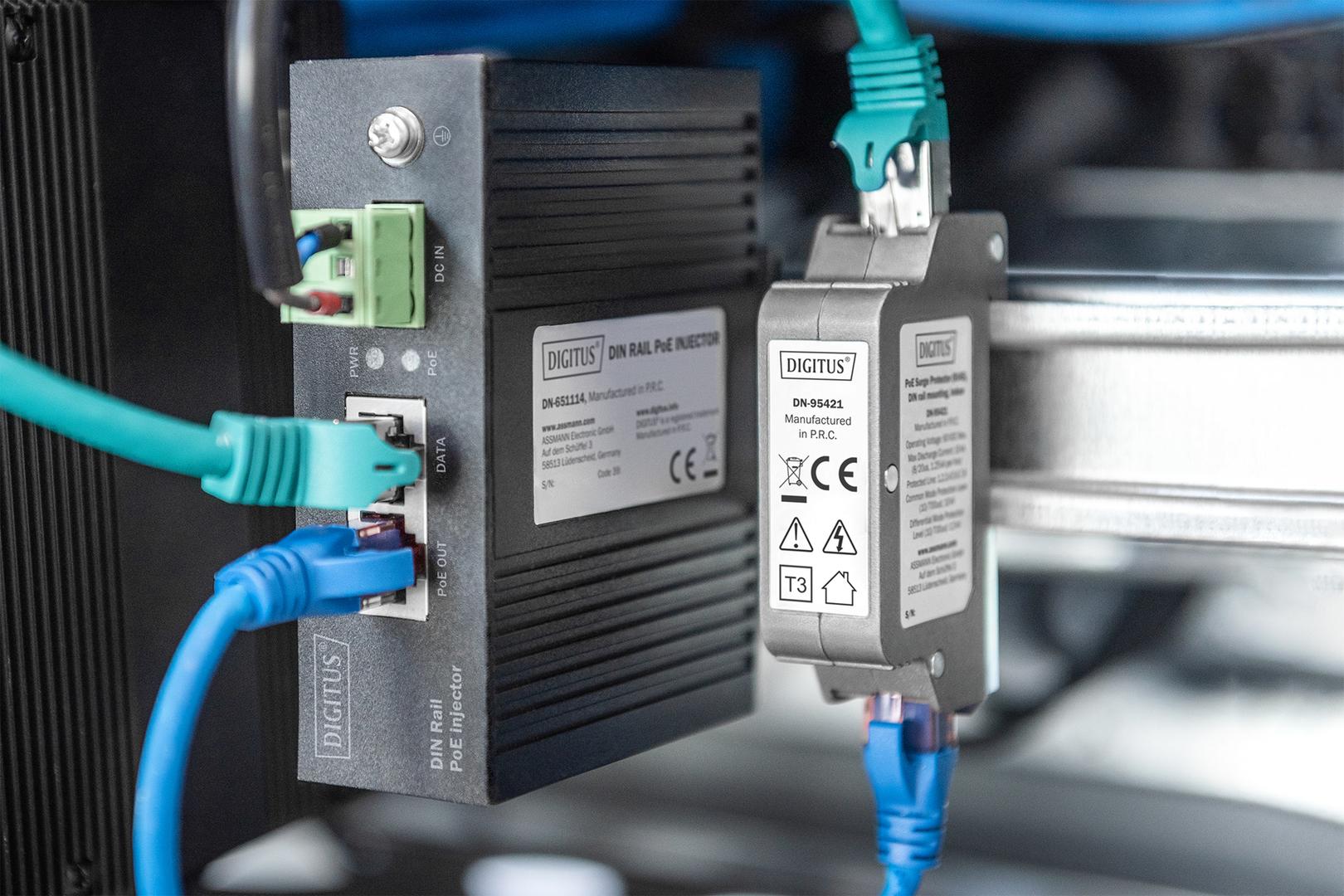

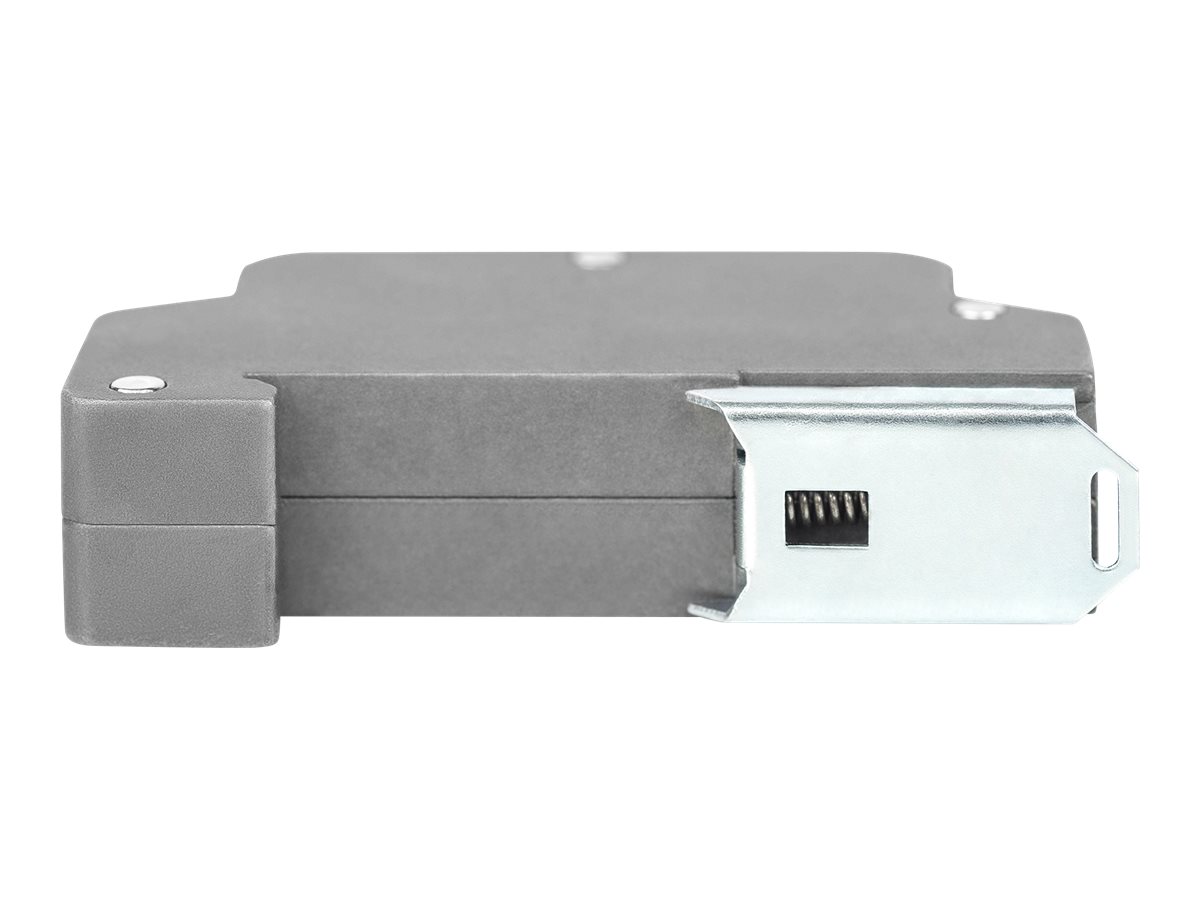

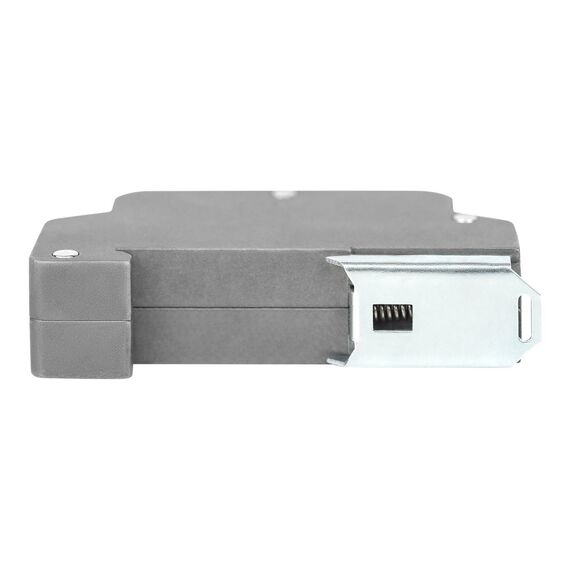

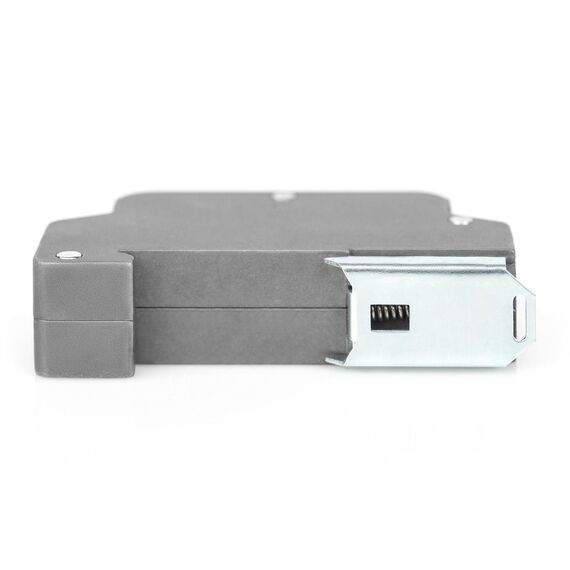

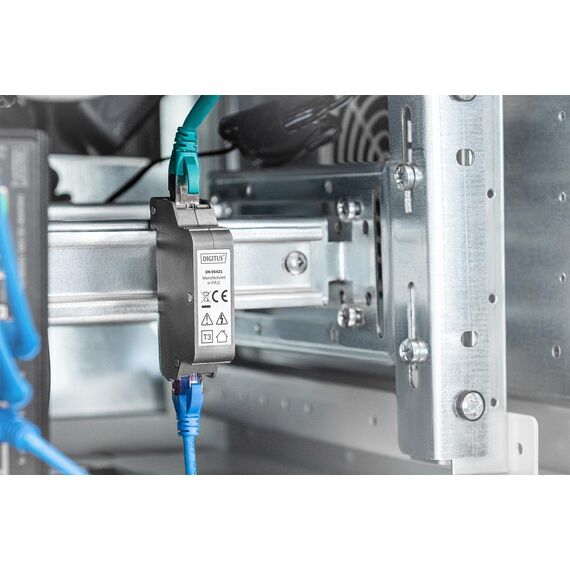

Mounting Snap-on 35 mm DIN rail
Grounding requirement Ground via DIN rail; a grounded conductor is required for effective protection
Housing / colour Zinc alloy / grey
Ingress rating / location IP40; indoor use only
Dimensions (H × D × W) 77.2 × 45 × 19 mm
Product weight 115 g
Environment
Operating / storage temperature −40 to +85 °C / −40 to +85 °C
Operating humidity 20–80% RH, non-condensing
Storage humidity 10–90% RH, non-condensing
Maximum operating altitude 2,000 m
Published compliance and immunity references
Compliance references CE, RoHS, WEEE, per manufacturer QIG
EMI references FCC CFR47 Part 15; EN 55035; EN 55032
ESD immunity IEC 61000-4-2: ±6 kV contact, ±8 kV air
Radiated immunity IEC 61000-4-3: 10 V/m, 80 MHz–2 GHz
Electrical fast transient reference IEC 61000-4-4: power port ±2 kV; data port ±1 kV
Surge immunity reference IEC 61000-4-5 power port: ±1 kV differential, ±2 kV common mode
Conducted immunity IEC 61000-4-6: 10 V, 150 kHz–80 MHz
Mechanical immunity references IEC 60068-2-6 vibration; 60068-2-27 impact; 60068-2-32 free fall
Single-unit packaging
Package dimensions (D × W × H) 5.5 × 8.7 × 3.1 cm
Package gross weight 0.15 kg, current manufacturer logistics

What's in the Box

1 DN-95421 surge protector with DIN mounting
1 quick installation guide

What Will Not Work

Does not act as a PoE injector, switch or mains socket protector.
Not for outdoor installation or exposure to water.
Surge test ratings do not guarantee protection against every event or a direct lightning strike.

Frequently Asked Questions

Does it supply 120 W of PoE power?
No. 120 W is the manufacturer’s maximum electrical pass-through rating. The QIG separately references 110 W PoE++ support. Power available at the device depends on the source, cable and complete PoE budget.
Does 10 kV protection apply in every situation?
It refers to a common-mode 10/700 µs test. The differential-mode rating is 1.5 kV. Specified grounding is required and finite test ratings do not cover every surge event.
Can it sit beside an outdoor camera?
The protector is indoor-only with IP40. An outdoor-camera application needs a suitable indoor location for DN-95421 and proper grounding, as shown in the manufacturer’s diagram.
Singular Expert Insight
Check the mounting location and rail grounding first. Then confirm the PoE source, camera or other device requirements and cabling so that protection and available power match the installation. Discuss the PoE and installation requirements with us

Buyer’s Guide

Buy it if

You need surge protection for one Gigabit Ethernet/PoE link on a properly grounded indoor DIN rail.

Skip it if

You need mains socket protection, an outdoor waterproof housing or speeds above Gigabit.

Also consider

The installation’s overall protection and grounding, together with a suitable PoE source and cabling.
