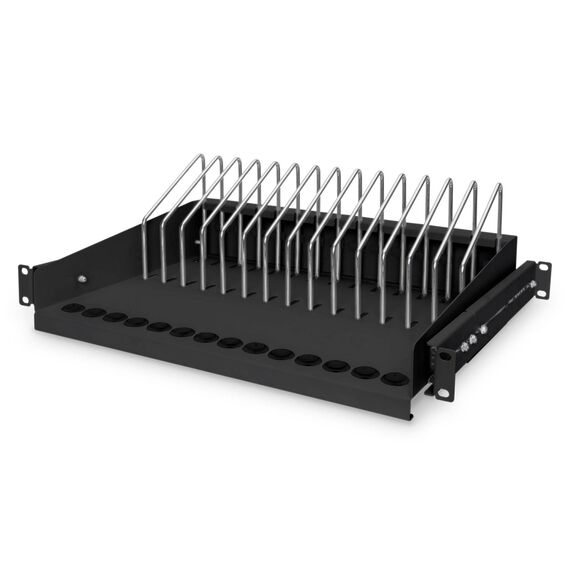

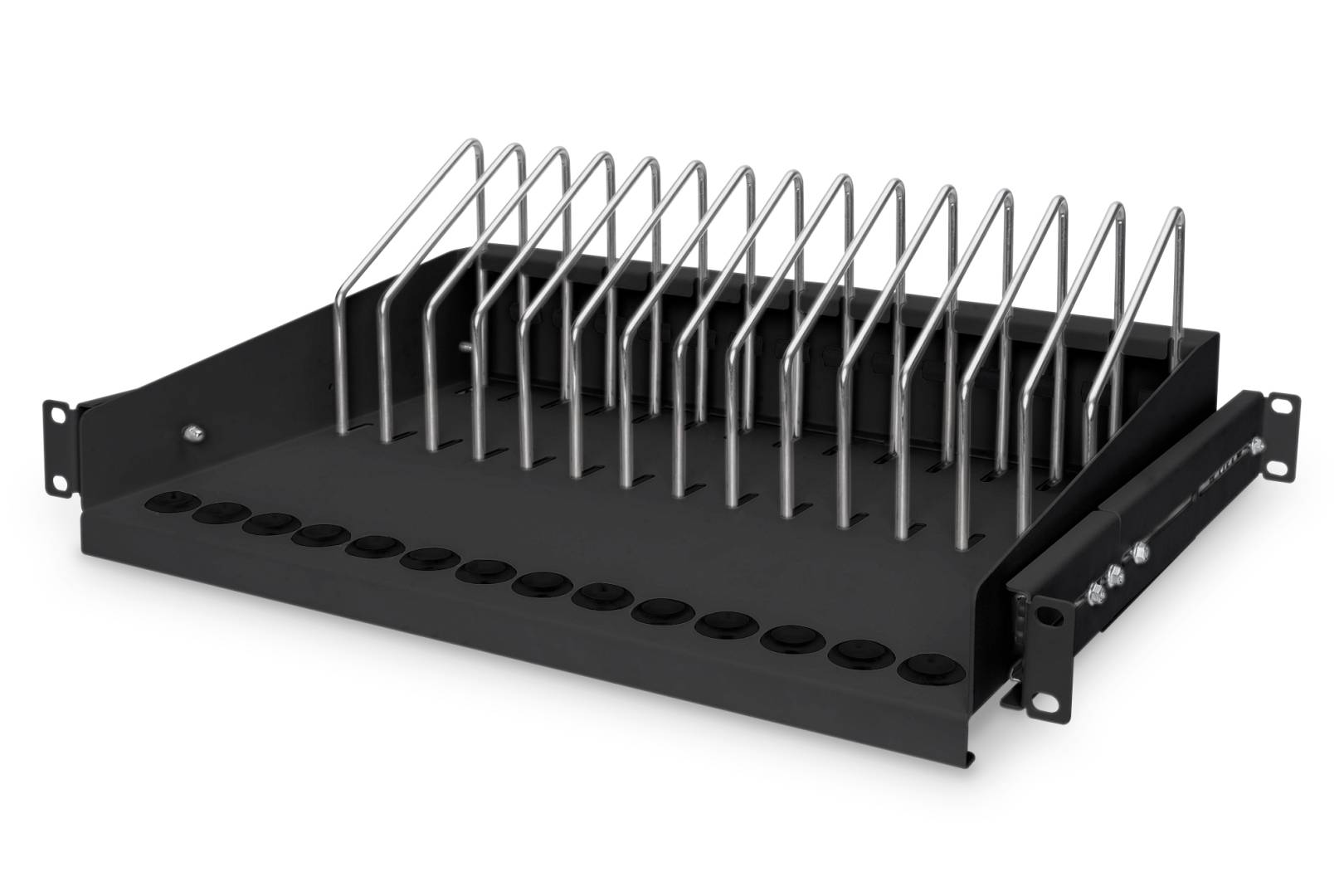

Digitus DN-97665 - Rack shelf - black, RAL 9005 - 1U - 19" - for P/N: DN-31102-B | DN-97665
Please sign in so that we can notify you about a reply
Product Features

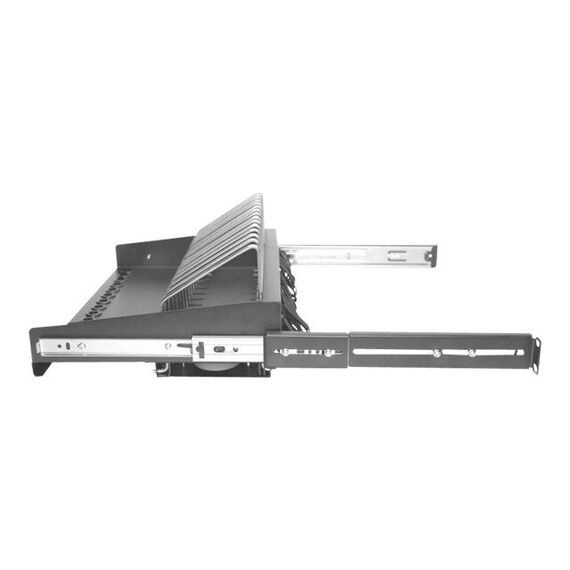

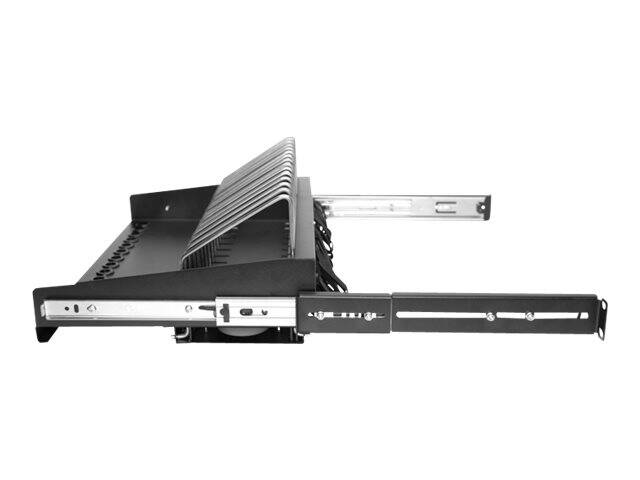

· 482.6 mm (19") installation on one rack unit (4.5 rack units required for full height)· Extendible (Maximum pull-out depth: 620 mm)
· Stable sheet steel
· Max. usable depth for device storage: 250 mm
· Required depth between profile rails for 4-point installation: 345 mm
· 2-point installation possible (rear angle mounting bracket can be unscrewed)
Special Fetures

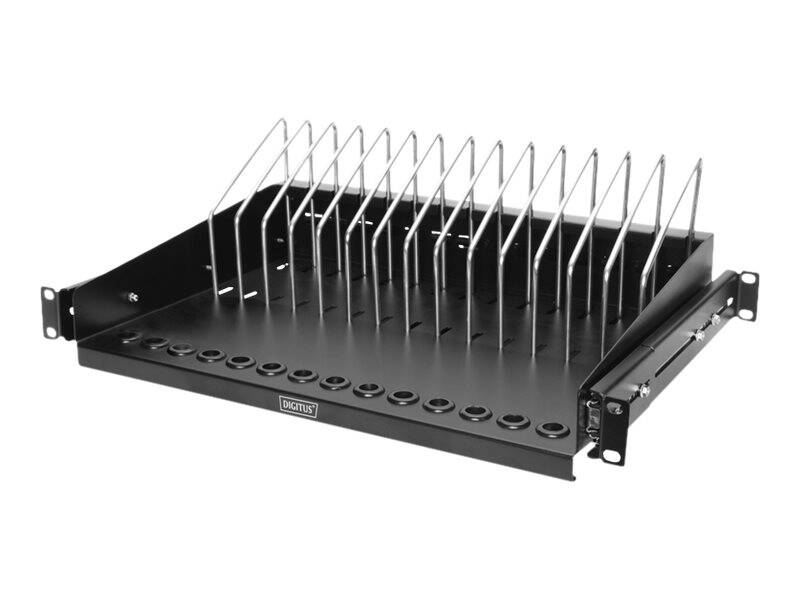

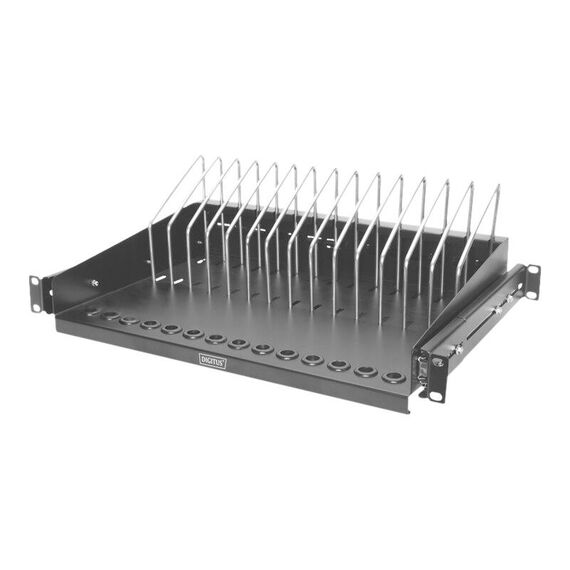

· 14 spaces with a width of 28 mm each· Sturdy steel brackets hold devices in place

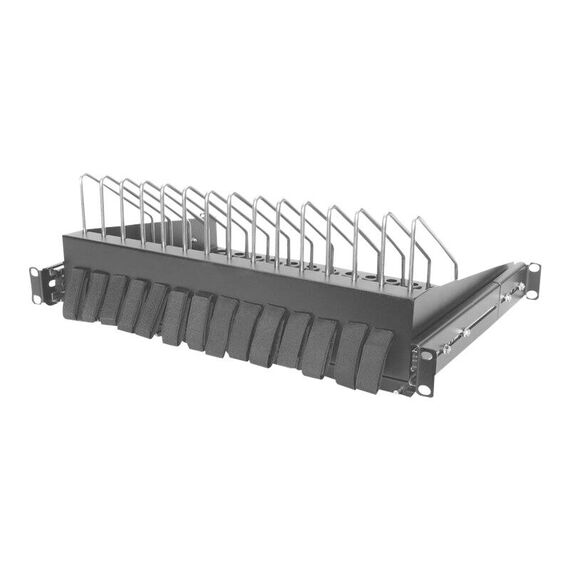

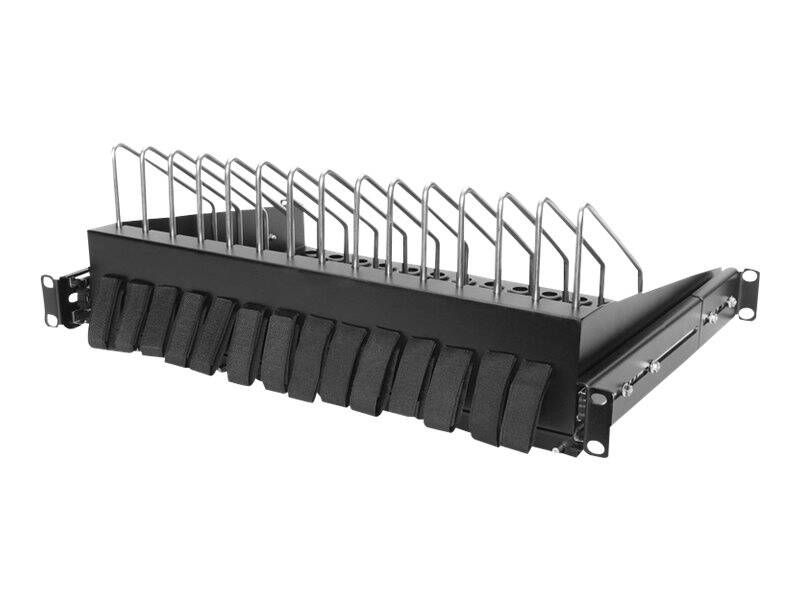

· Cable feedthrough and Velcro strap on the rear
· Excess cable storage on the underside (20x410x140 mm)
Product Specification
| Product Type | Rack shelf |
| Product Material | Steel |
| Package Content | Mounting hardware |
| Rack Size | 19" |
| Height (Rack Units) | 1U |
| Width | 48.3 cm |
| Depth | 34 cm |
| Height | 17.5 cm |
| Adjustable Depth | Up to 62 cm |
| Weight | 3.1 kg |
| Shipping Dimensions (WxDxH) / Weight | 50 cm x 34.5 cm x 18.5 cm / 3.4 kg |
| Colour | Black, RAL 9005 |
| Miscellaneous | |
| Features | Touch fastener, integrated cable management, extended depth, 14 device bays (2.8 cm width) |
| Compatibility Information | |
| Designed For | P/N: DN-31102-B |
Features - Digitus - DN-97665
More Details
Product Code
03:161148
EAN Code
4016032463085
Manufacturer
Digitus
