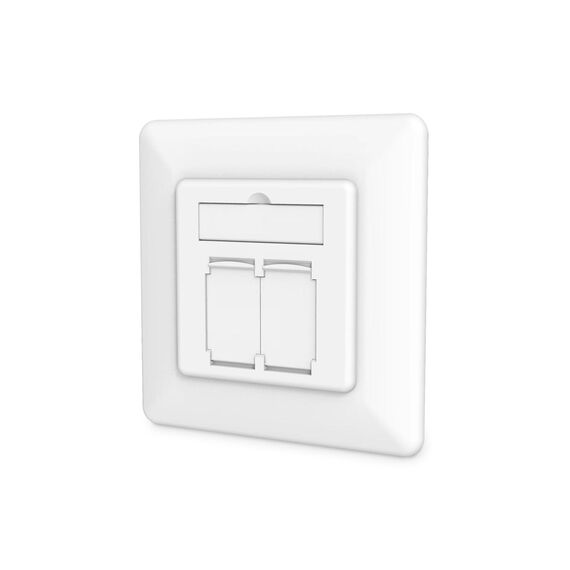

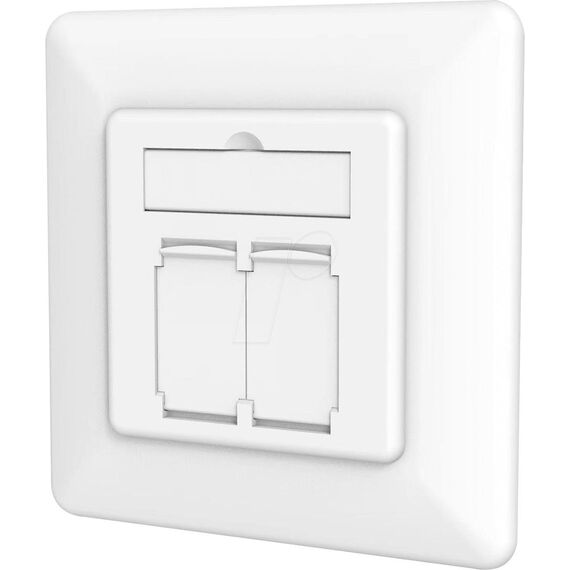

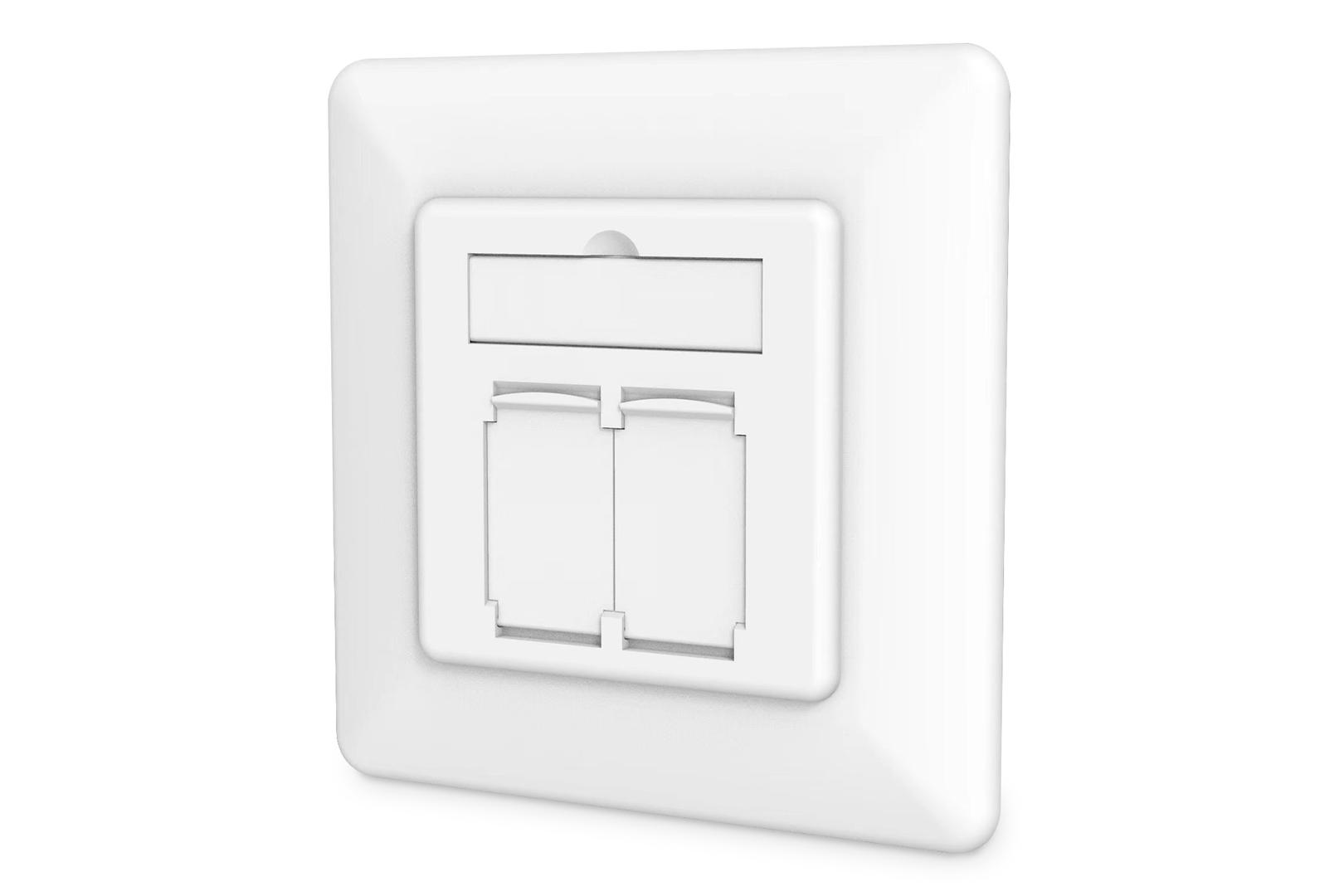

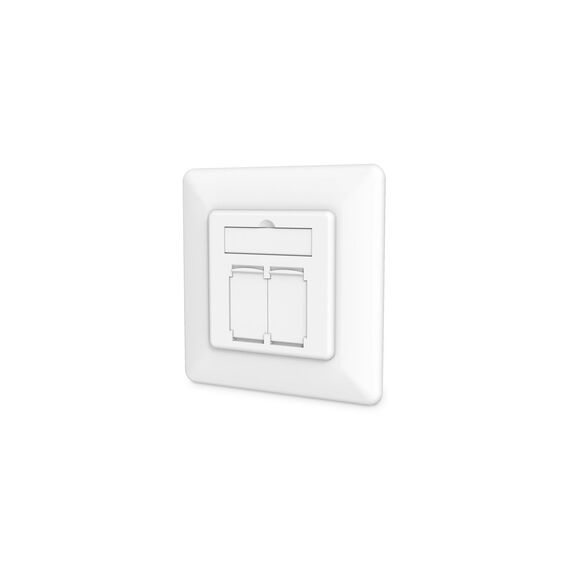

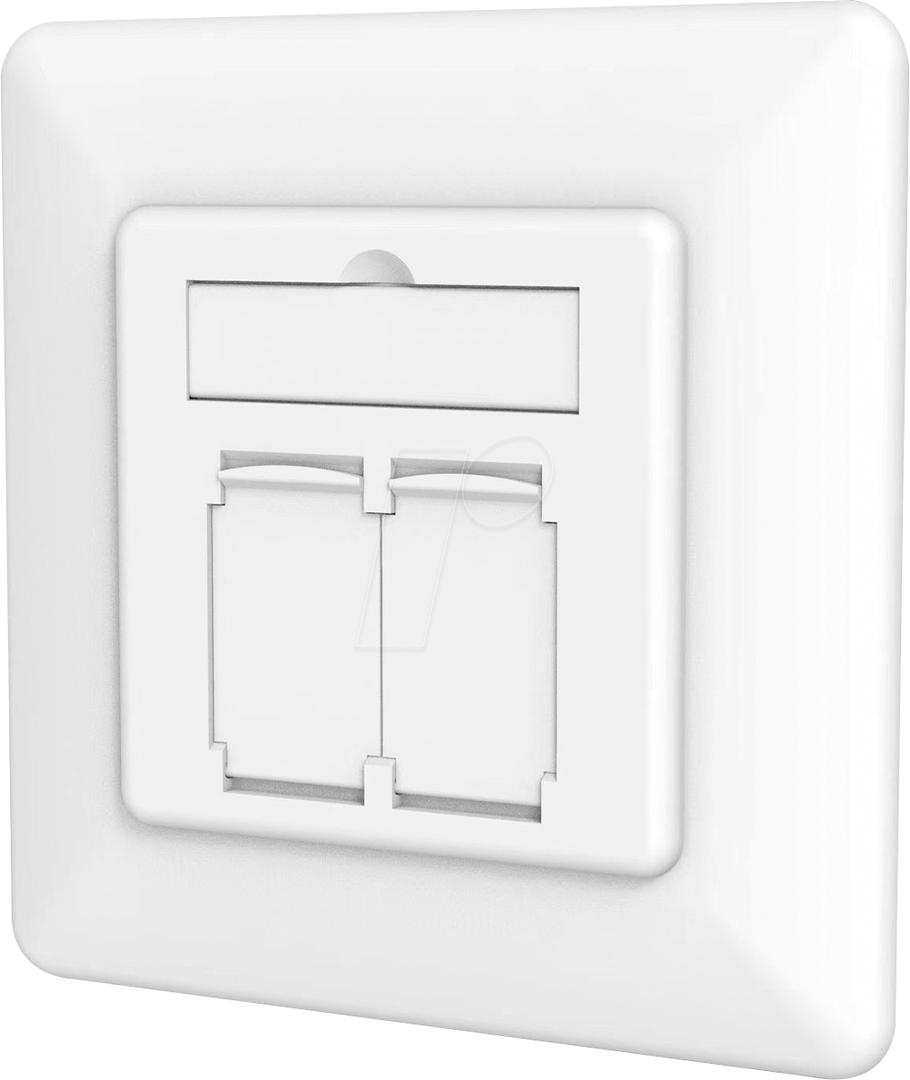

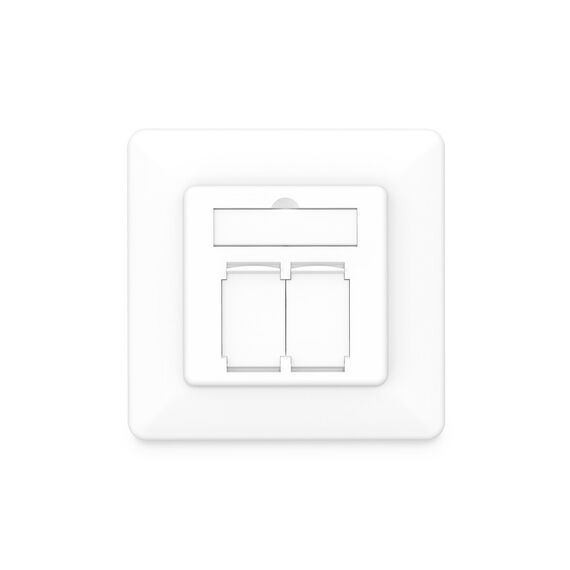

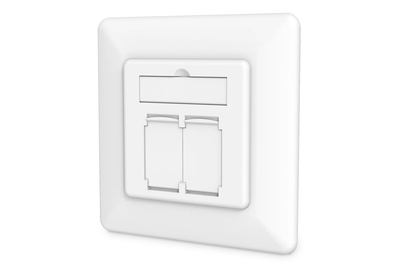

Digitus - Faceplate - flush mountable - CAT 6a - shielded - RJ-45 X 2 - white, RAL 9003 | DN-9010/8-2

Product Features

· Transmission property: Category 6A
· Area of application: Up to 500 MHz, 10GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
· General properties:
· Suitable for installation in trunking, surface and flush mount
· 2x RJ45 female, 8P8C
· Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
· Integrated strain relief for installation cables

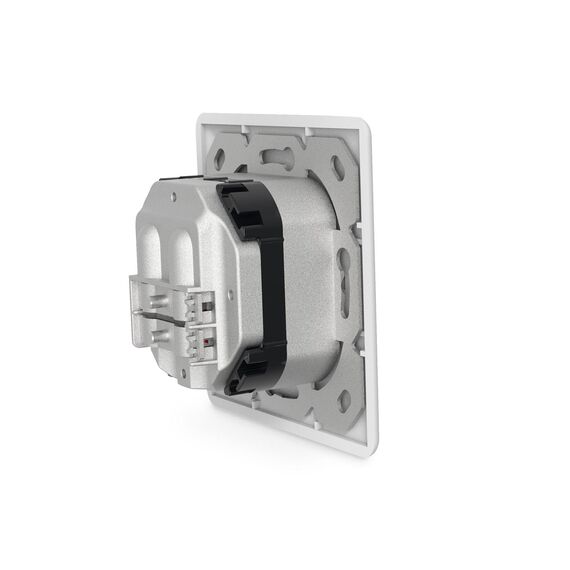

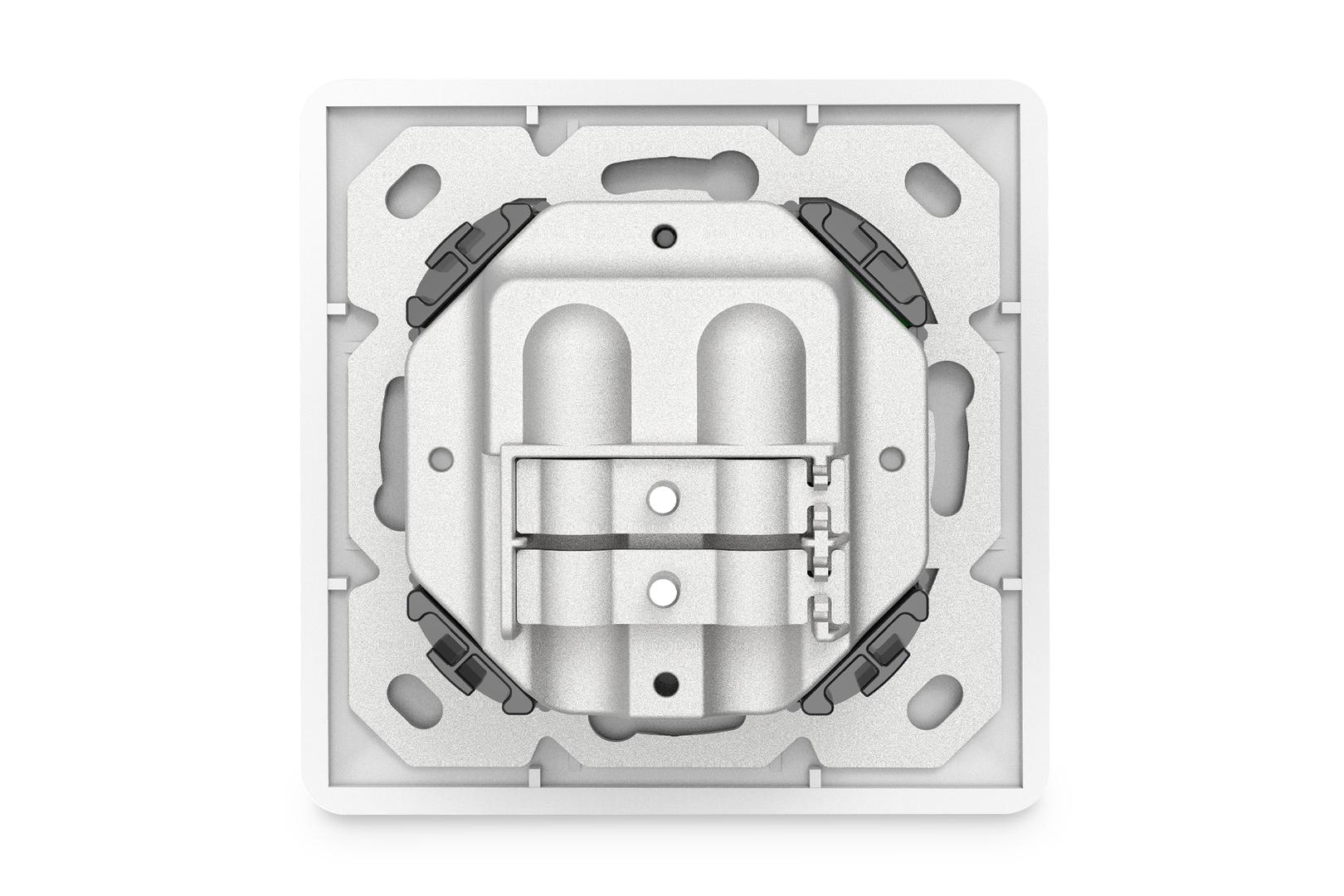

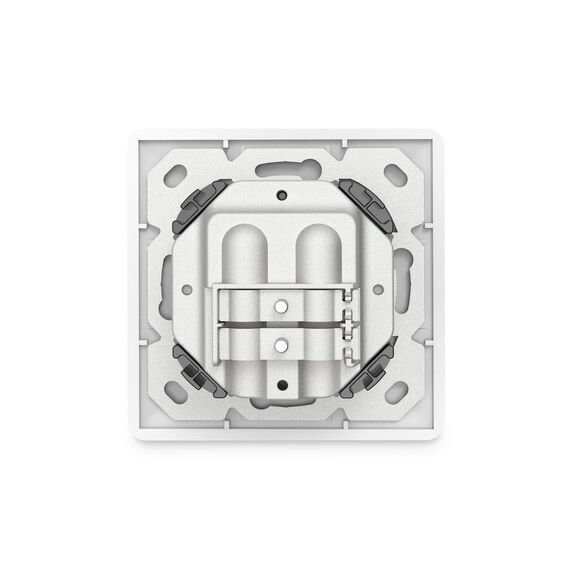

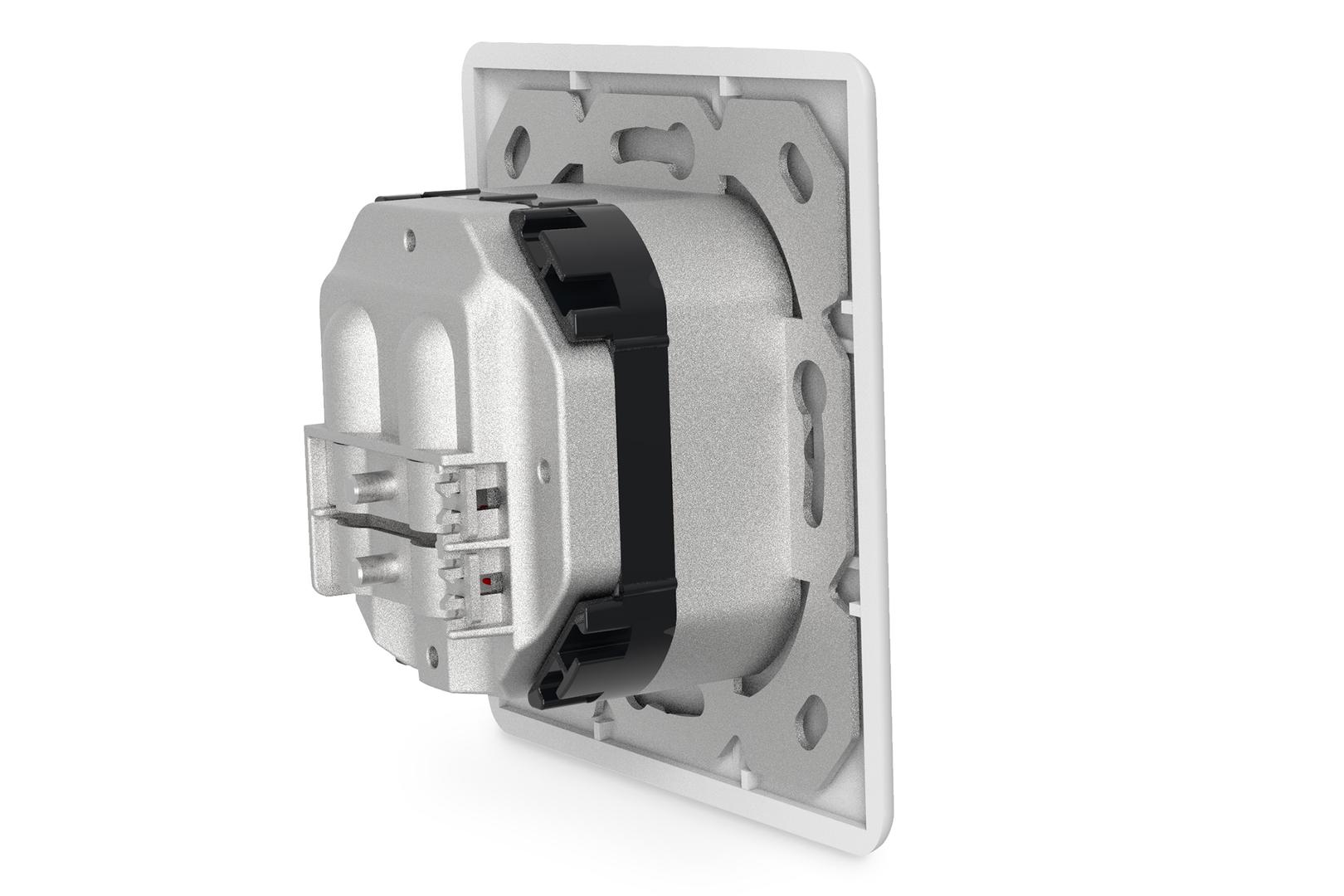

· Complete shielding of RJ45 sockets and IDC strips due to zinc die-cast housing

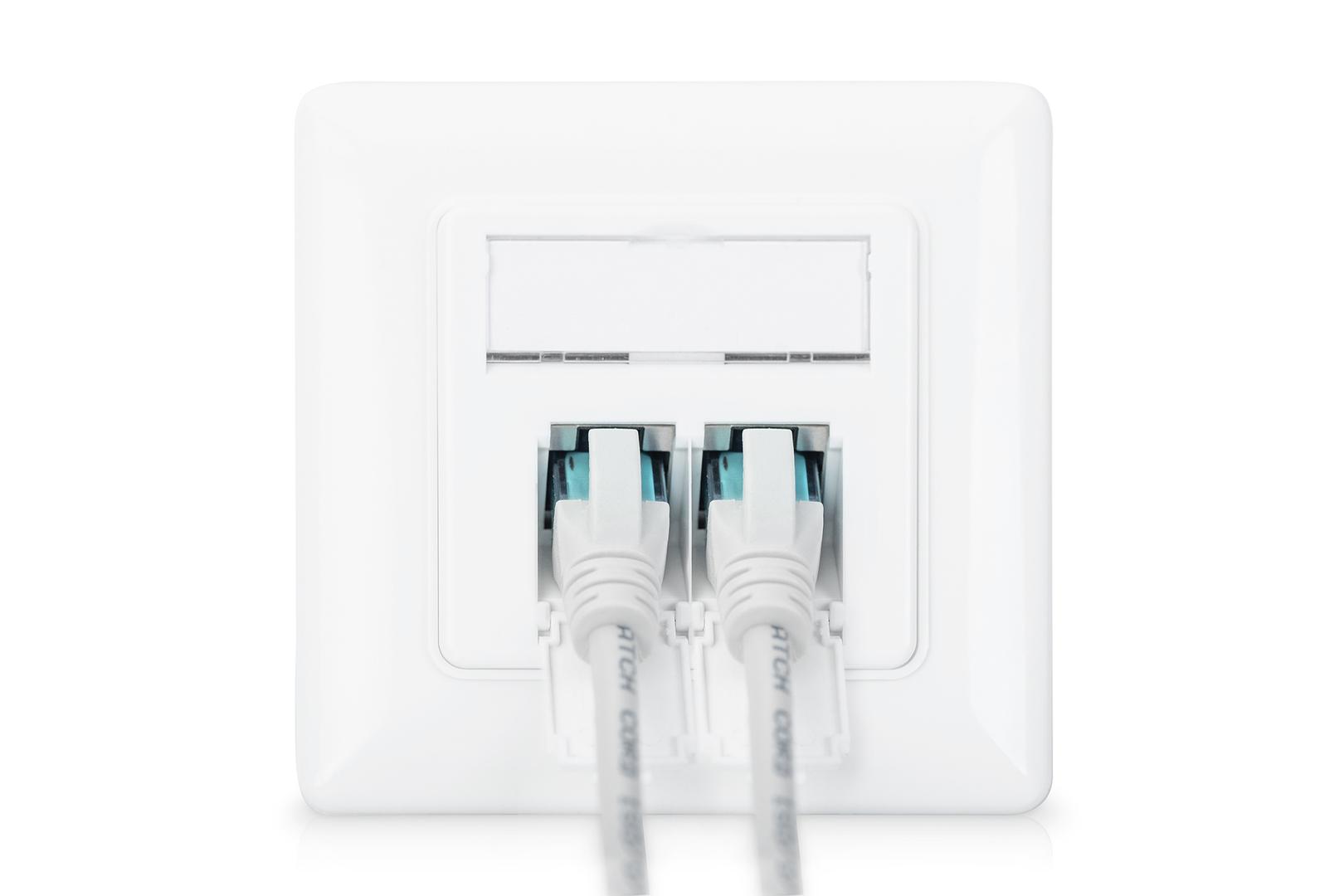

· Strain relief 40°-angled female for patch cord
· Central plate: 50 x 50 mm
· Frame: 80 x 80 mm

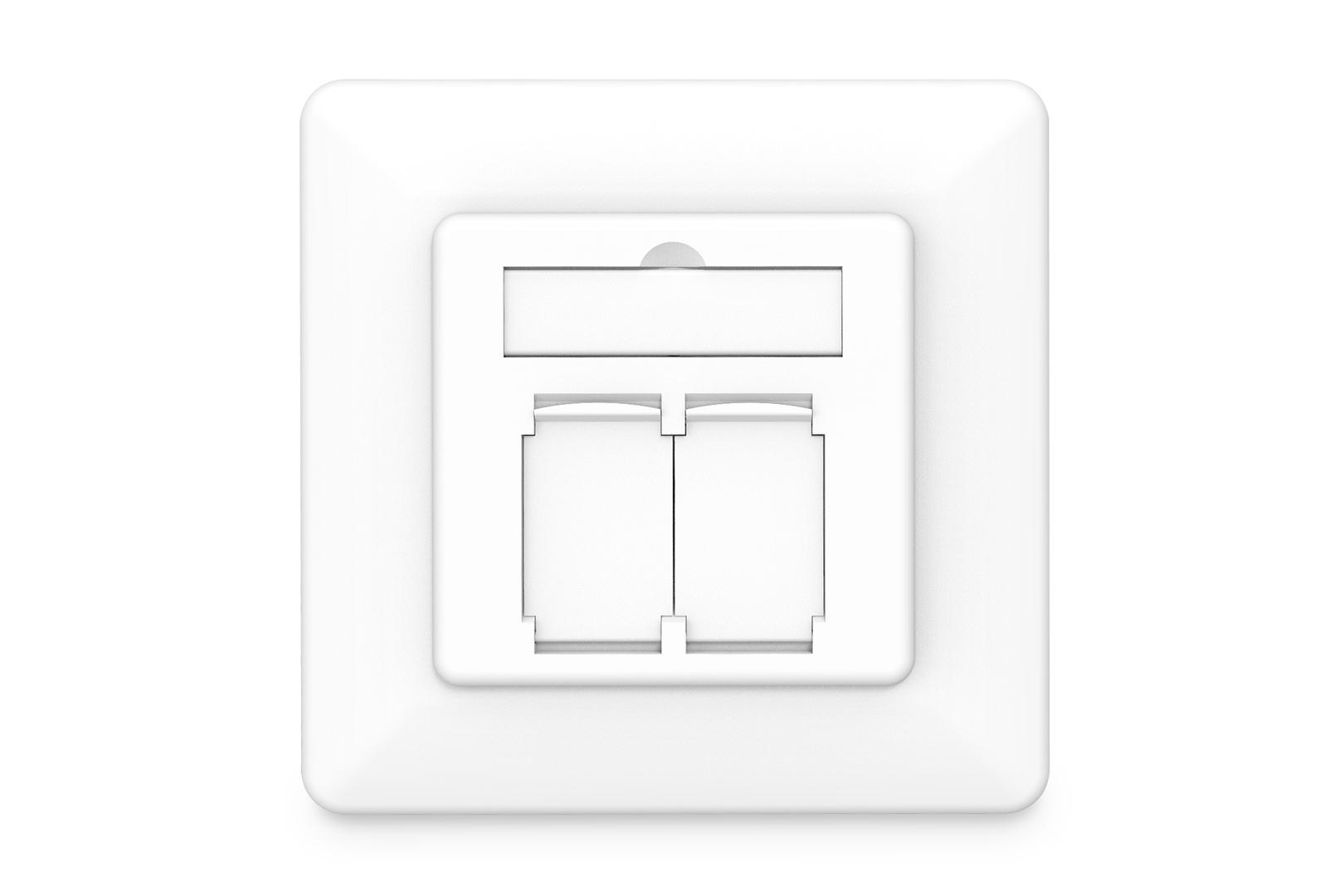

· Central plate with integrated dust covers
· Design compatible to common switch ranges
· Technical properties:
· Housing material: Die-cast metal
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 gold-plated contact
· RJ45 shielding: Tinned bronze
· IDC termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
· Not compatible with R&M freenet patch cords
· Installation depth: 28 mm
· Colour: White RAL9003

Special Fetures

· Design compatible to common switch ranges
· Easy installation via color coded IDC strips
· Central plate with integrated dust covers
· Integrated strain relief for installation cable

Product Specification

Product Type	Faceplate - CAT 6a
Placing / Mounting	Flush mountable
Product Material	Die-cast metal
Width	8 cm
Depth	8 cm
Height	4.3 cm
Enclosure Colour	White, RAL 9003
Cabling & Wiring
Port Qty	2 ports
Technology	Shielded
Features	22-26 AWG
Compliant Standards	IEEE 802.3af
Miscellaneous
Features	Dust cover, integrated strain relief, 500 MOhm insulation resistance, 20 mOhm contact resistance, 40° outlet
Compliant Standards	EN 50173-1, ISO/IEC 11801, IEC 60603-7-5, ISO/IEC 11801 Ed. 2, ANSI/TIA/EIA 568-C, EIA/TIA 568B, PoE+, 802.3at, EIA/TIA 568-C, EIA/TIA 568A
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	70 °C
