DIGITUS Fiber Optic DIN-Rail Splice Distributor, Angled · 6 × SC simplex or 6 × LC duplex · Aluminium, Grey, Unloaded
Brand:
Digitus
DIGITUS Fiber Optic DIN-Rail Splice Distributor, Angled · 6 × SC simplex or 6 × LC duplex · Aluminium, Grey, Unloaded
€29.63 inc. VAT
DN-96894
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-96894 — DIN-Rail Fiber Splice Distributor, 6 × SC simplex / LC duplex
6 × SC simplex or LC duplexTS35 DIN railAngled frontAluminium · grey

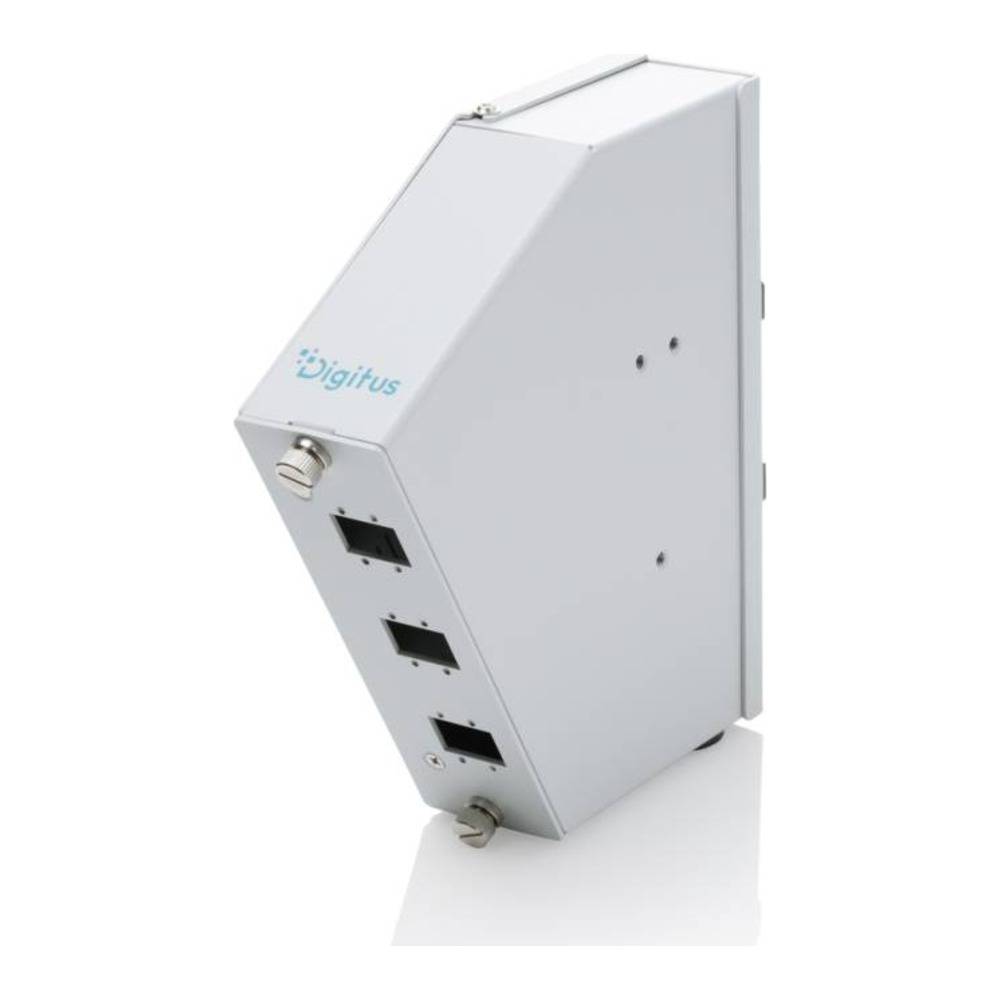

The DIGITUS DN-96894 is a compact fiber optic splice distributor that clips onto a TS35 DIN rail and terminates an incoming fiber cable onto 6 SC simplex or 6 LC duplex adapters. It is built for FTTH, industrial and building networks where fiber has to end inside a control cabinet or distribution board rather than in a 19" rack.

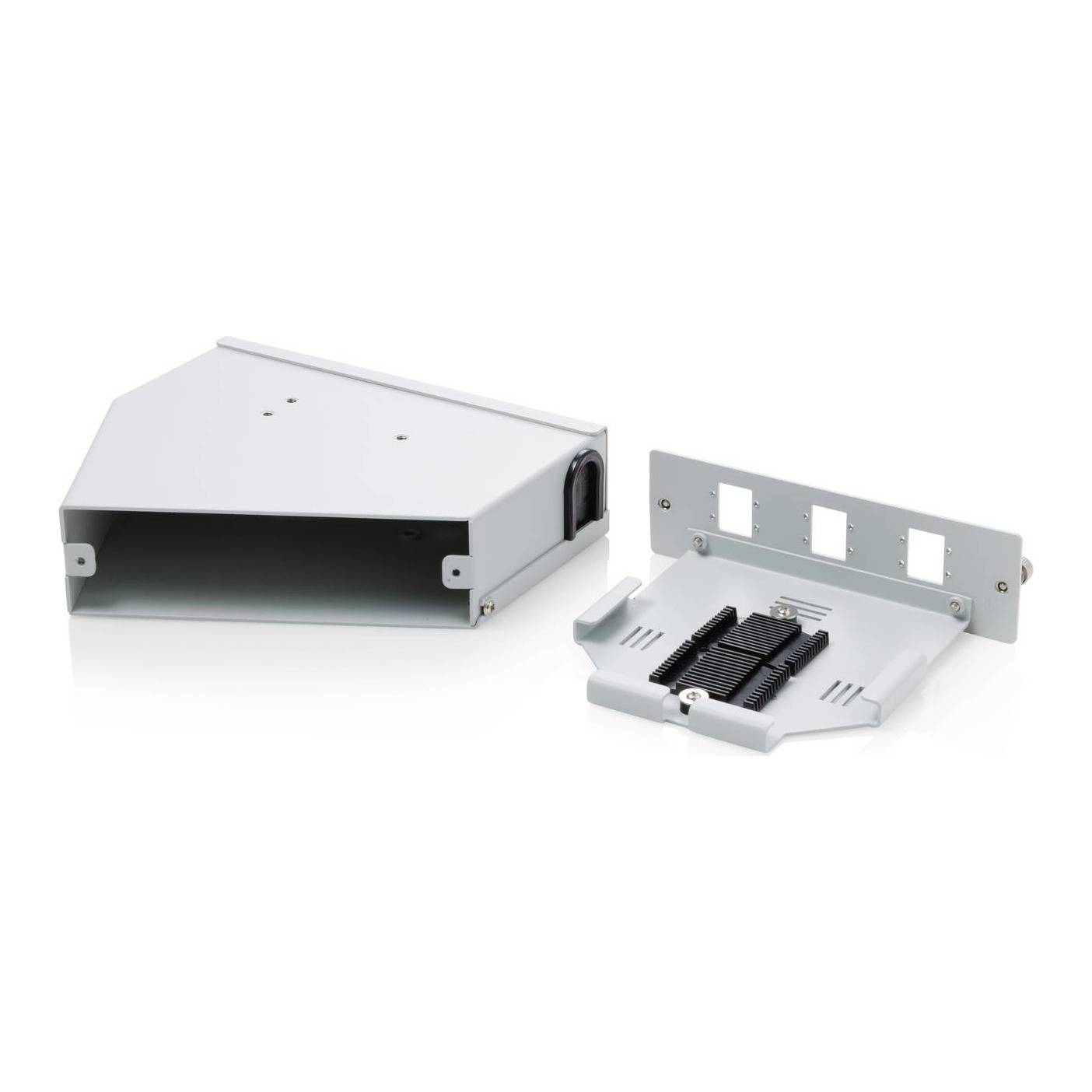

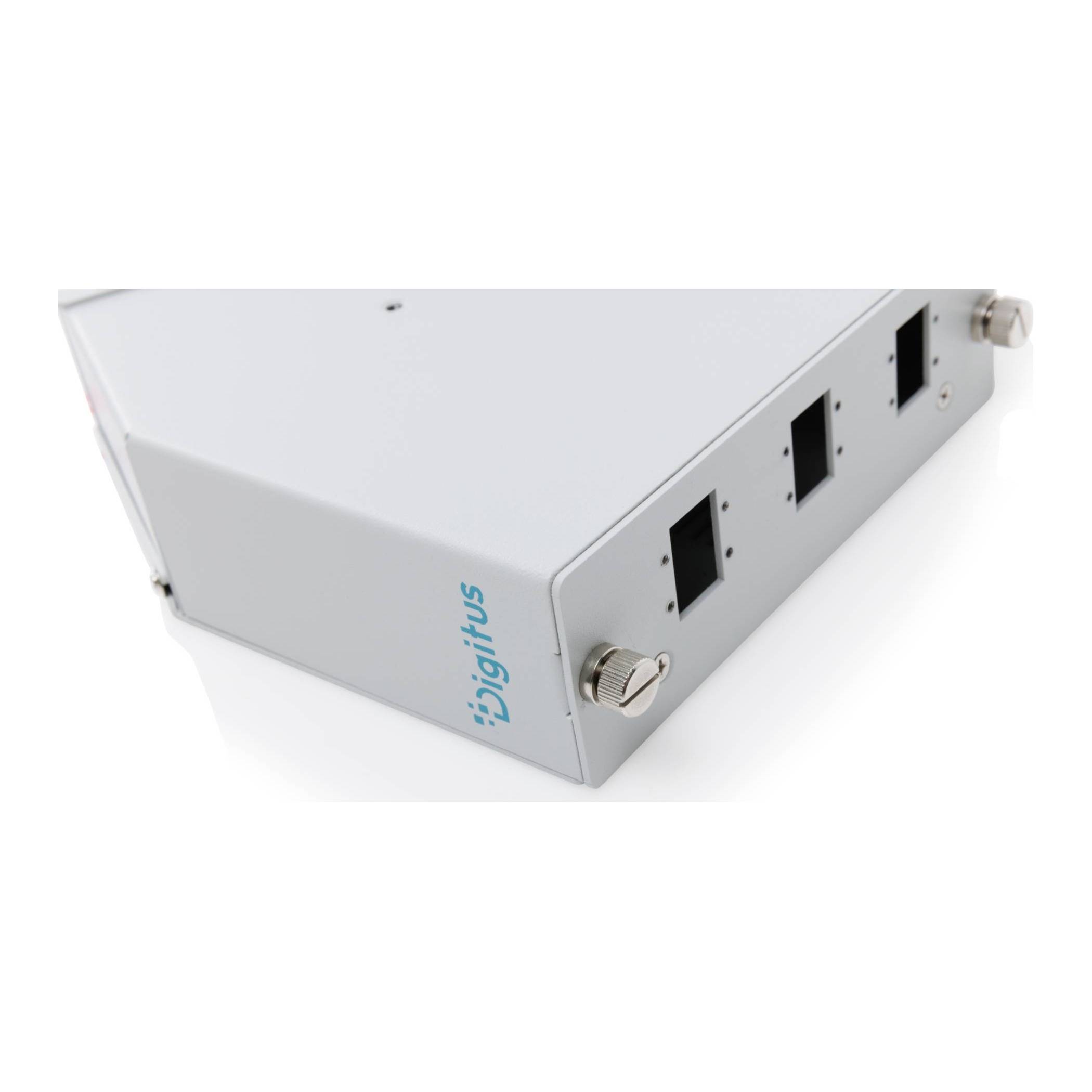

The aluminium housing has an angled front panel, so patch cords leave at an angle and are not crushed by the cabinet door. Inside is a splice cassette that accepts both crimp and heat-shrink splice protectors, with a splice comb for 6 splices (SC) / 12 splices (LC). The cable enters through a U-shaped entry with a closed membrane for cables of 5–14 mm diameter.
Before you order: The distributor is supplied EMPTY: no couplers (adapters), no pigtails and no splice protectors are included. You need 6 × SC simplex or 6 × LC duplex couplers, matching pigtails and protectors for your fiber type.

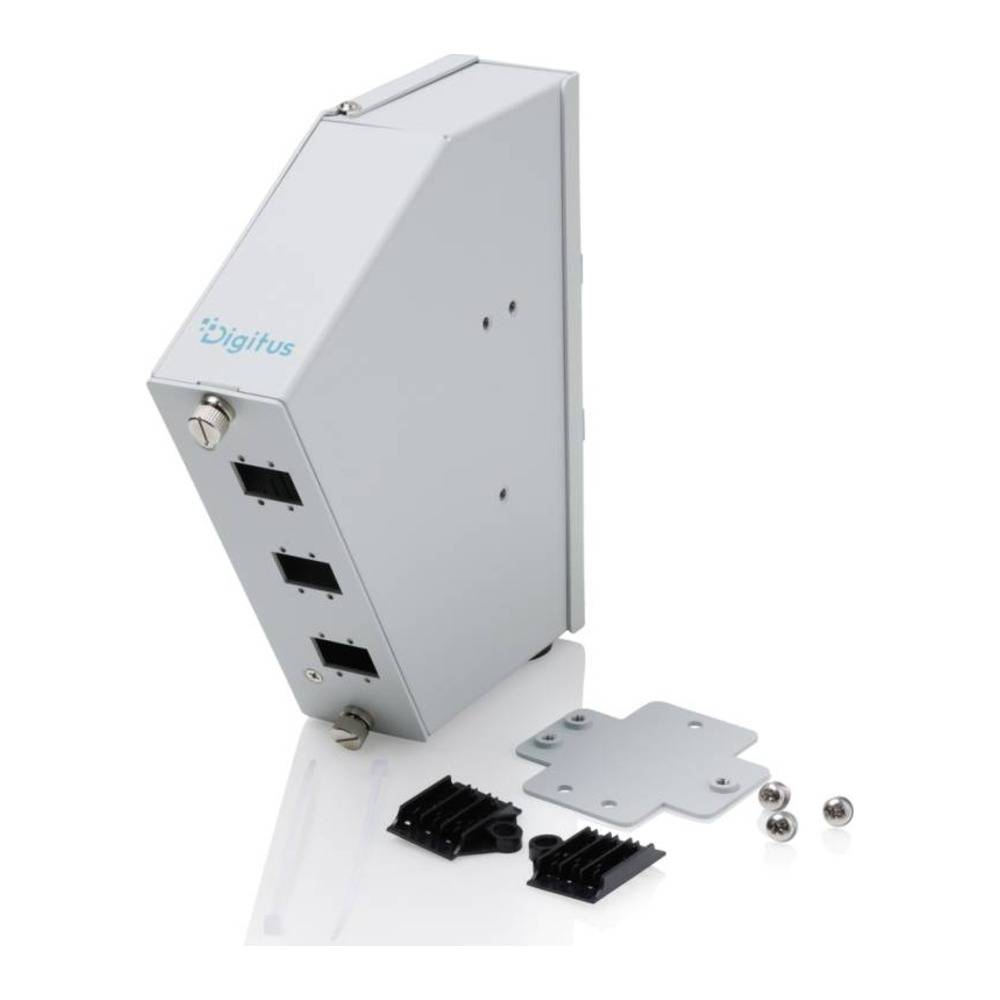

What's in the Box
- 1 × DIGITUS DIN-rail splice distributor, angled (DN-96894)
- 1 × mounting bracket
- 1 × heat-shrink splice holder
- No couplers, pigtails or splice protectors
What It Means in Practice
- Width on the rail is 45 mm, height 177 mm and depth 161 mm — check the cabinet depth and door clearance.
- With LC duplex couplers you get the highest fiber count (12 fibers); with SC simplex couplers 6 fibers.
- Accepts crimp protectors (e.g. DIGITUS DN-CSP-015) and heat-shrink sleeves.
- The angled front reduces bending stress on patch cords in shallow cabinets.
What Will Not Work
- It does not work without couplers and pigtails — budget for them separately.
- Do not order it for SC duplex or LC quad couplers — that is the DN-96893.
- It is not a 19" rack product and will not mount on rack rails.
- No IP rating is published, so use it inside a closed cabinet.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A DIN-rail splice box is the cleanest way to bring fiber into an industrial or building control cabinet. Remember it ships empty — the couplers, pigtails and protectors make up most of the job. Ask us for a complete set, and see our switches with SFP ports for the active side.
✓ Buy it if you need to terminate up to 12 fibers on a DIN rail inside a control cabinet.
✕ Skip it if you are terminating fiber in a 19" rack — a rack-mount splice box is the better fit.
→ Also consider DIGITUS DN-96893 for 6 × SC duplex or 6 × LC quad (up to 24 fibers).
Send us your fiber type and connector choice and we will check couplers, pigtails and protectors for this distributor before you order.
Features - Digitus - DN-96894
Colour
grey
More Details
Product Code
04:588630
EAN Code
4016032508021
Manufacturer
Digitus
