DIGITUS DN-FC-9101-APC LC/APC Fiber Optic Fast Connector, Single-Mode 9/125µm, Field Installable, Green, Pack of 10
Brand:
Digitus
DIGITUS DN-FC-9101-APC LC/APC Fiber Optic Fast Connector, Single-Mode 9/125µm, Field Installable, Green, Pack of 10
€39.82 inc. VAT
DN-FC-9101-APC
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-FC-9101-APC — LC/APC Single-Mode Fiber Optic Fast Connector, Pack of 10
LC/APC single-modeField installable≤0.2 dB · ≥50 dB10 pieces
The DIGITUS DN-FC-9101-APC is a pack of ten LC/APC fast connectors for single-mode 9/125 µm fibre, made to terminate a fibre in the field without a fusion splicer or polishing — for FTTH drops, repairs and short runs where a splice cassette is not practical.
Each connector has a ceramic 1.25 mm ferrule with angled (APC) polish and fits 0.9 mm buffered fibre as well as 2.0 mm and 3.0 mm cable. DIGITUS publishes an insertion loss of ≤0.2 dB and return loss of ≥50 dB.
Before you order: these are APC (angled) single-mode connectors. Use them only on single-mode fibre and only with LC/APC adapters and ports — not with LC/UPC equipment or multimode fibre.
What's in the Box

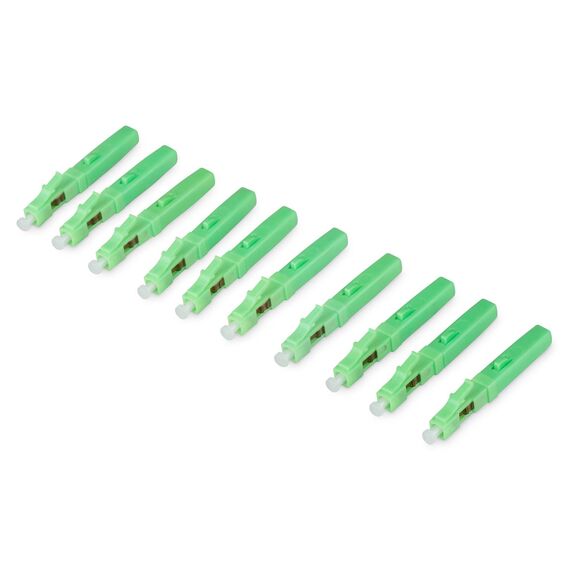

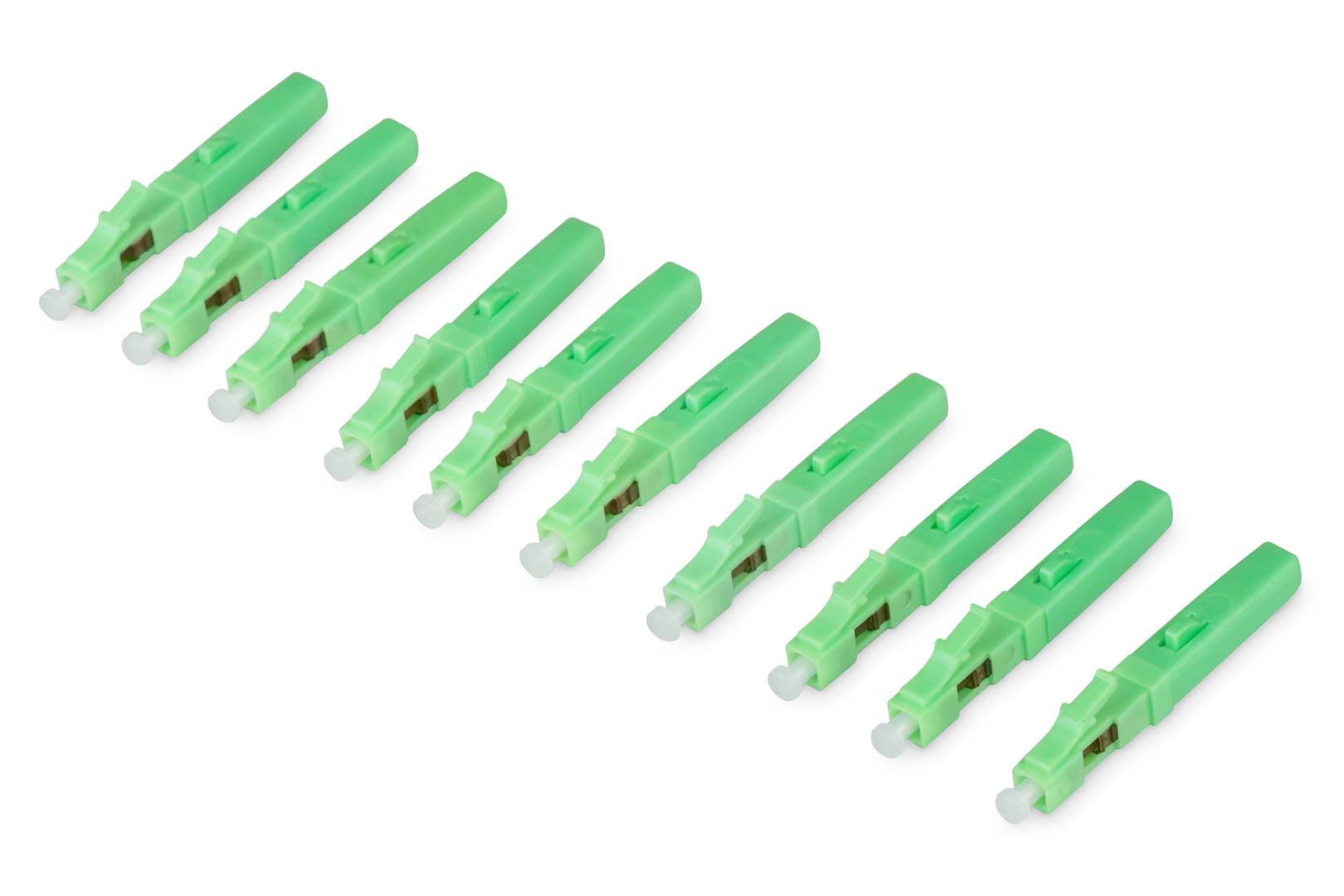

- 10 × LC/APC fibre optic fast connector, single-mode
What It Means in Practice
- Termination is mechanical: strip the fibre, cleave it to the right length, insert it and lock the connector — no epoxy, no polishing, no splicer.
- You still need basic fibre tools (stripper and a precision cleaver); they are not included.
- APC polish keeps back-reflection low, which is why it is standard on FTTH, PON and RF-video links.
- At 45 mm long and with a strain-relief boot for 2.0/3.0 mm cable, the finished connector fits standard LC/APC adapters and wall outlets.
What Will Not Work
- Multimode fibre (OM1–OM5) — these are single-mode only.
- LC/UPC (blue) adapters and most standard SFP optics — PC/UPC and APC must never be mated.
- Termination without a fibre cleaver — a bad cleave gives high loss.
- Outdoor exposure without a closure or outlet box.
Key Features
No splicer needed
Field-installable mechanical connector for quick terminations.
LC/APC, 1.25 mm ceramic
Angled polish for ≥50 dB return loss.
0.9 / 2.0 / 3.0 mm
Fits buffered fibre and common drop and patch cable diameters.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Fast connectors are ideal for occasional terminations, repairs and FTTH drops where bringing a splicer is not worth it. Check that every adapter on the link is LC/APC; most switch optics on switches with SFP ports are LC/UPC and need a different connector.
✓ Buy it if you terminate single-mode fibre in the field and the equipment or outlet is LC/APC.
✕ Skip it if the fibre is multimode, the ports are LC/UPC, or you terminate large fibre counts (splicing with pigtails is faster then).
→ Also consider pre-terminated single-mode patch cords if the length is known in advance.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Digitus - DN-FC-9101-APC
Colour
green
More Details
Product Code
04:472649
EAN Code
4016032494638
Manufacturer
Digitus
