DIGITUS PCIe Card USB 3.1 Gen 2 (10 Gbps) · 2 × USB-C + 3 × USB-A · PCI Express 2.0 x4 for Windows and Linux
Brand:
Digitus
DIGITUS PCIe Card USB 3.1 Gen 2 (10 Gbps) · 2 × USB-C + 3 × USB-A · PCI Express 2.0 x4 for Windows and Linux
€74.98 inc. VAT
DS-30222
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DS-30222 — PCIe Card with 2 × USB-C and 3 × USB-A, USB 3.1 Gen 2
10 Gbps USB 3.1 Gen 22 × USB-C · 3 × USB-APCIe 2.0 x4Windows · Linux

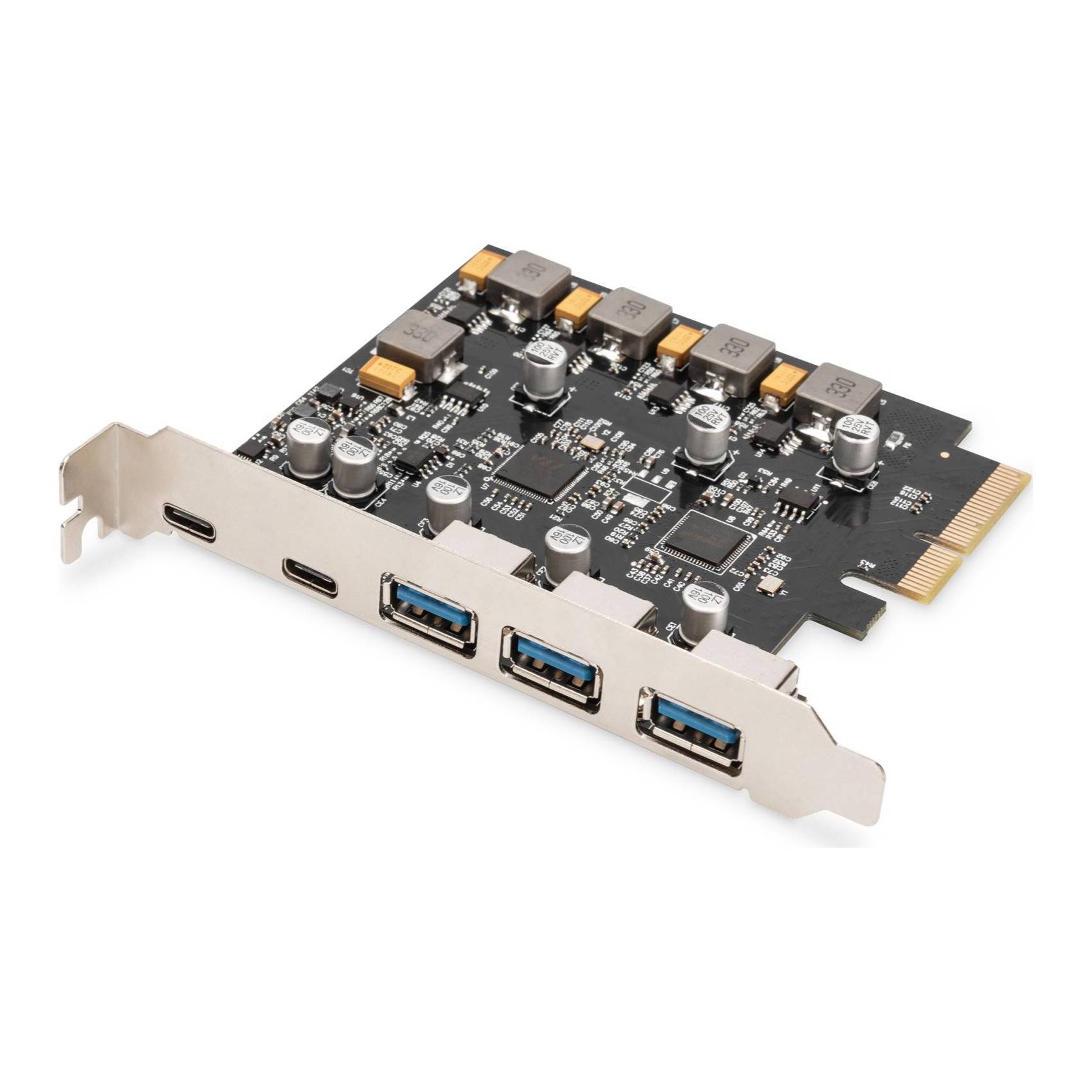

The DIGITUS DS-30222 is a PCI Express expansion card that adds five USB 3.1 Gen 2 ports — two USB-C and three USB-A, each up to 10 Gbps — to a desktop PC. It is for users whose motherboard has too few or too slow USB ports, or no USB-C at all, and who connect fast external SSDs, capture devices or docks.
The card uses a PCIe 2.0 x4 interface and supplies up to 5 V / 3 A on each USB-C port and 5 V / 1 A on each USB-A port. It works with Windows 7 to 11 and Linux; DIGITUS describes it as plug and play and also supplies a driver CD (a driver download is available).
Before you order: The card needs a PCIe slot that physically accepts an x4 card (x4, x8 or x16). DIGITUS does not publish whether a low-profile bracket is included or whether an extra power connector is used — tell us your PC model if it is a small-form-factor case.

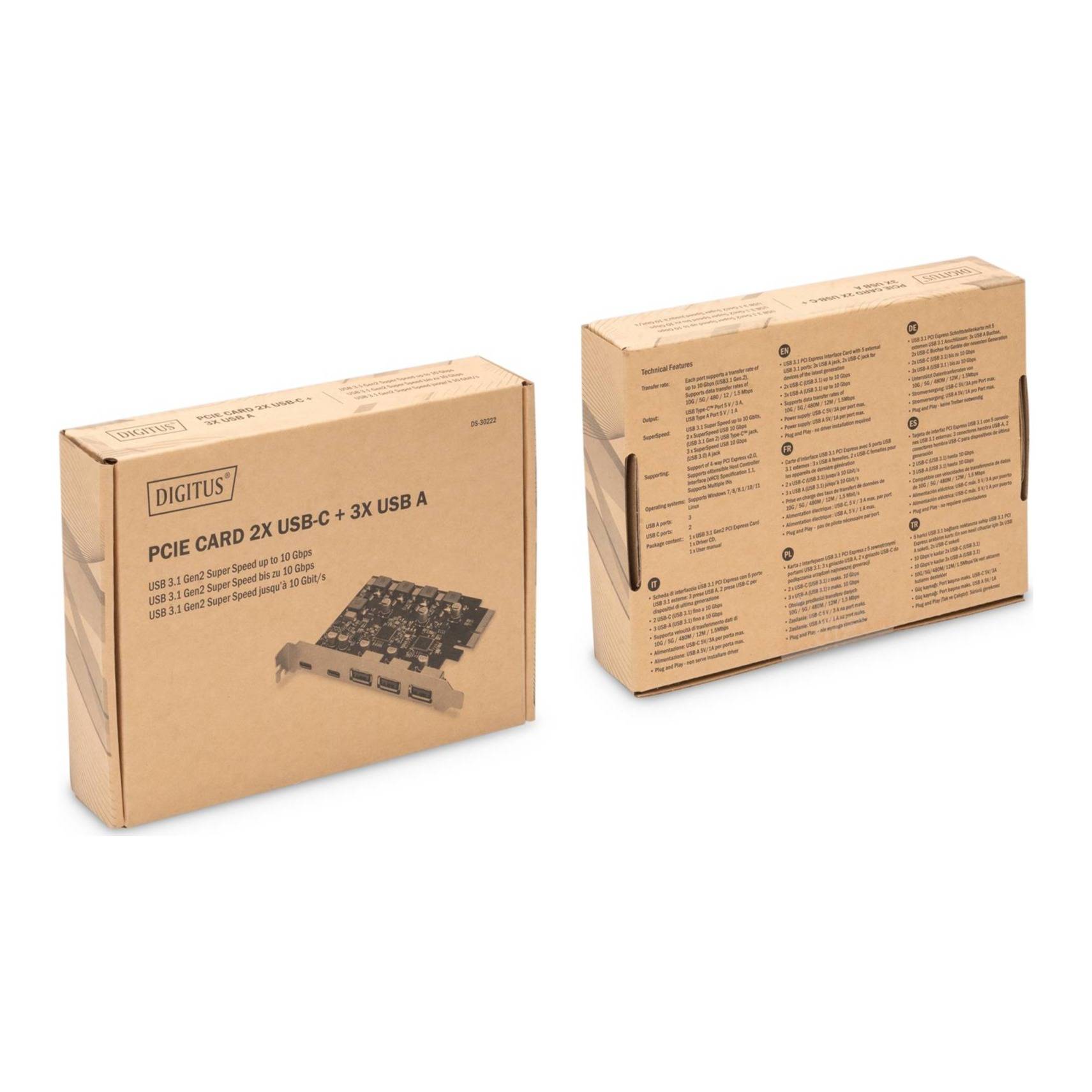

What's in the Box
- 1 × USB 3.1 Gen 2 PCI Express card (DS-30222)
- 1 × driver CD
- 1 × user manual
What It Means in Practice
- 10 Gbps per port is twice the speed of USB 3.0 — fast external NVMe SSDs reach their full Gen 2 speed.
- USB-C ports deliver up to 3 A at 5 V, enough for bus-powered drives and most accessories.

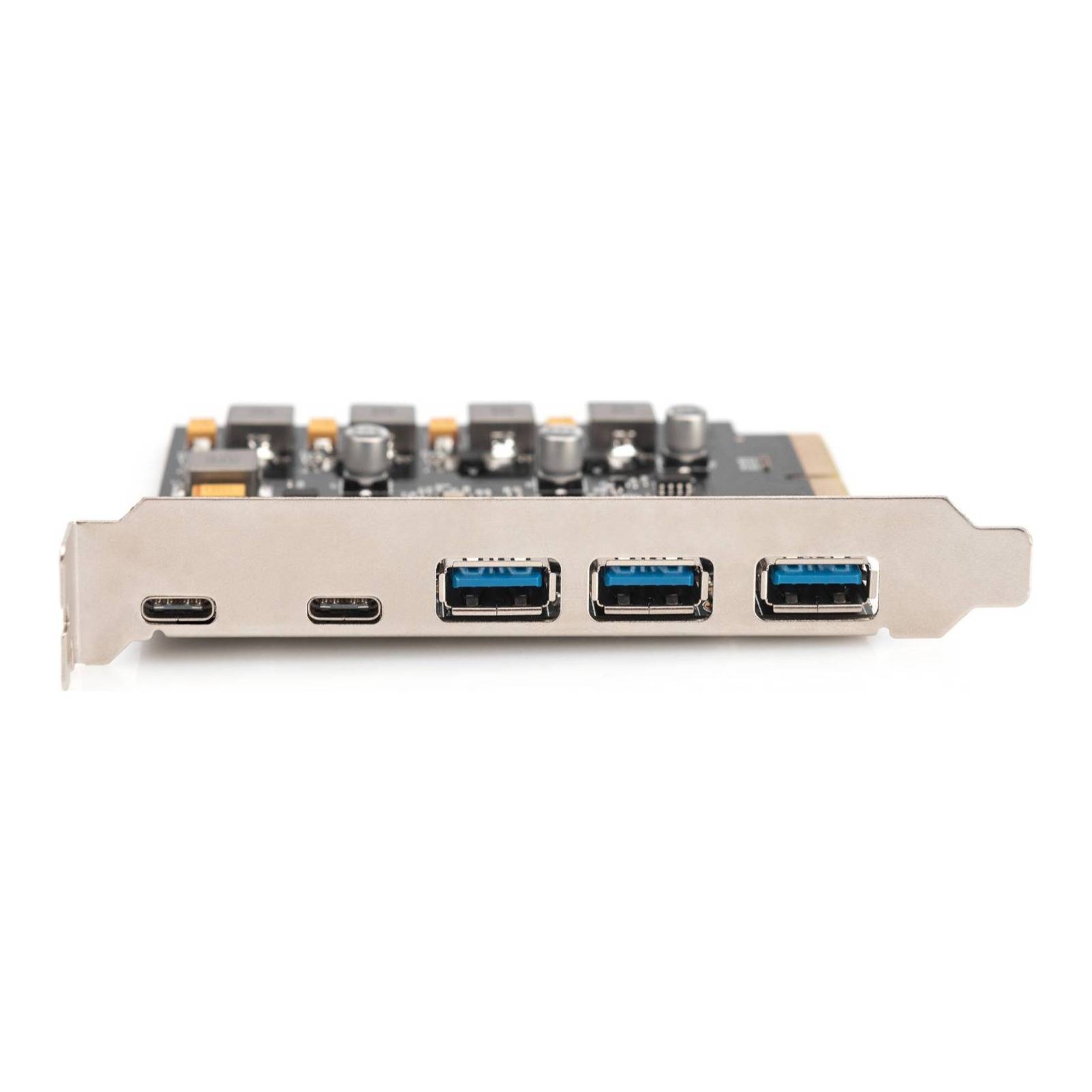

- Front-panel USB-C headers are not published, so the ports are on the rear bracket only.
- Install in an x4 or longer slot; in an x16 slot it works but uses only 4 lanes.
What Will Not Work
- The USB-C ports carry no video (DisplayPort Alt Mode) and no Power Delivery charging — they will not drive a monitor or charge a laptop.
- It will not fit a PCIe x1 slot.
- macOS is not listed as supported.
- It does not provide Thunderbolt.
Key Features
Five 10 Gbps ports
2 × USB-C and 3 × USB-A, all USB 3.1 Gen 2.
Strong port power
Up to 3 A per USB-C port, 1 A per USB-A port, with surge protection.
PCIe 2.0 x4
Enough host bandwidth to share between several fast devices.
Wide OS support
Windows 7/8/8.1/10/11 and Linux, xHCI 1.1.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For a desktop that lacks USB-C or 10 Gbps ports, this card is the most direct upgrade: five Gen 2 ports from one x4 slot. It pairs well with fast external SSDs. Check slot availability first — many boards share x4 slots with M.2 drives.
✓ Buy it if your desktop has a free PCIe x4 (or larger) slot and you need fast USB-C and USB-A ports.
✕ Skip it if you need USB-C video, laptop charging, Thunderbolt or macOS support, or only have an x1 slot free.
→ Also consider DIGITUS DS-30225, a smaller PCIe card with USB-C and USB-A.
Send us your PC or motherboard model and we will check slot type, bracket height and lane sharing before you order.
Features - Digitus - DS-30222
More Details
Product Code
04:430465
EAN Code
4016032485810
Manufacturer
Digitus
