DIGITUS DN-95427 19" 1U Rack PDU, 8 x IEC C13 + 2 x C19 Outlets, IEC C20 Input for UPS, 16 A, Cord Lock

Brand:
Digitus
DIGITUS DN-95427 19" PDU 8x C13 + 2x C19, C20 In
DIGITUS DN-95427 19" 1U Rack PDU, 8 x IEC C13 + 2 x C19 Outlets, IEC C20 Input for UPS, 16 A, Cord Lock
€73.95 inc. VAT
Buy
DN-95427
€62.14
€73.95 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:415089
EAN Code
4016032483533
Manufacturer
Digitus

Quick Specs

Type
19" 1U rack PDU for UPS
Connectors
Input IEC C20 plug · 8 x C13 + 2 x C19
Key spec
16 A / 3.6 kVA · pull-out protection
Compatibility
UPS / PDU C19 outlet · IEC C14 and C20 cords
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DIGITUS DN-95427 — 19" 1U PDU with 8 x C13 and 2 x C19 outlets and C20 input for UPS connection

8 x C13 + 2 x C19IEC C20 input16 A · 3.6 kVAPull-out protection

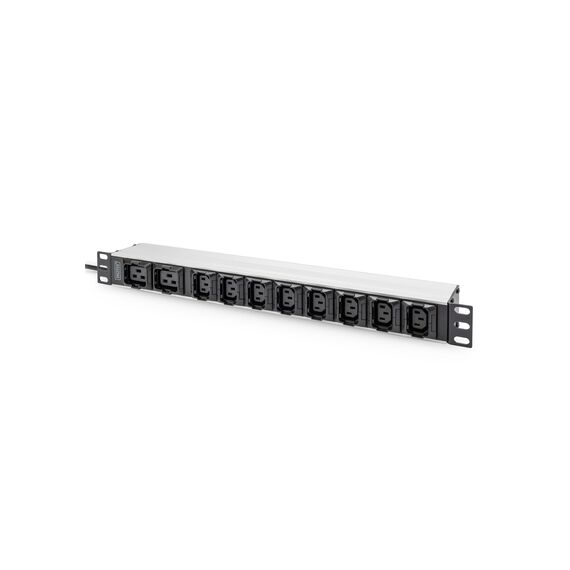

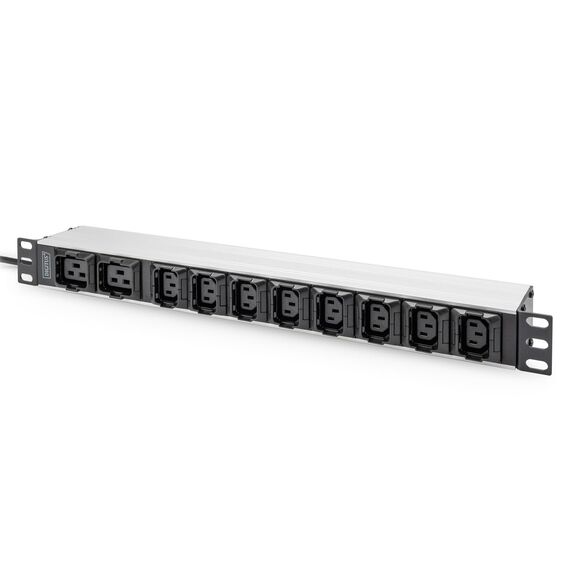

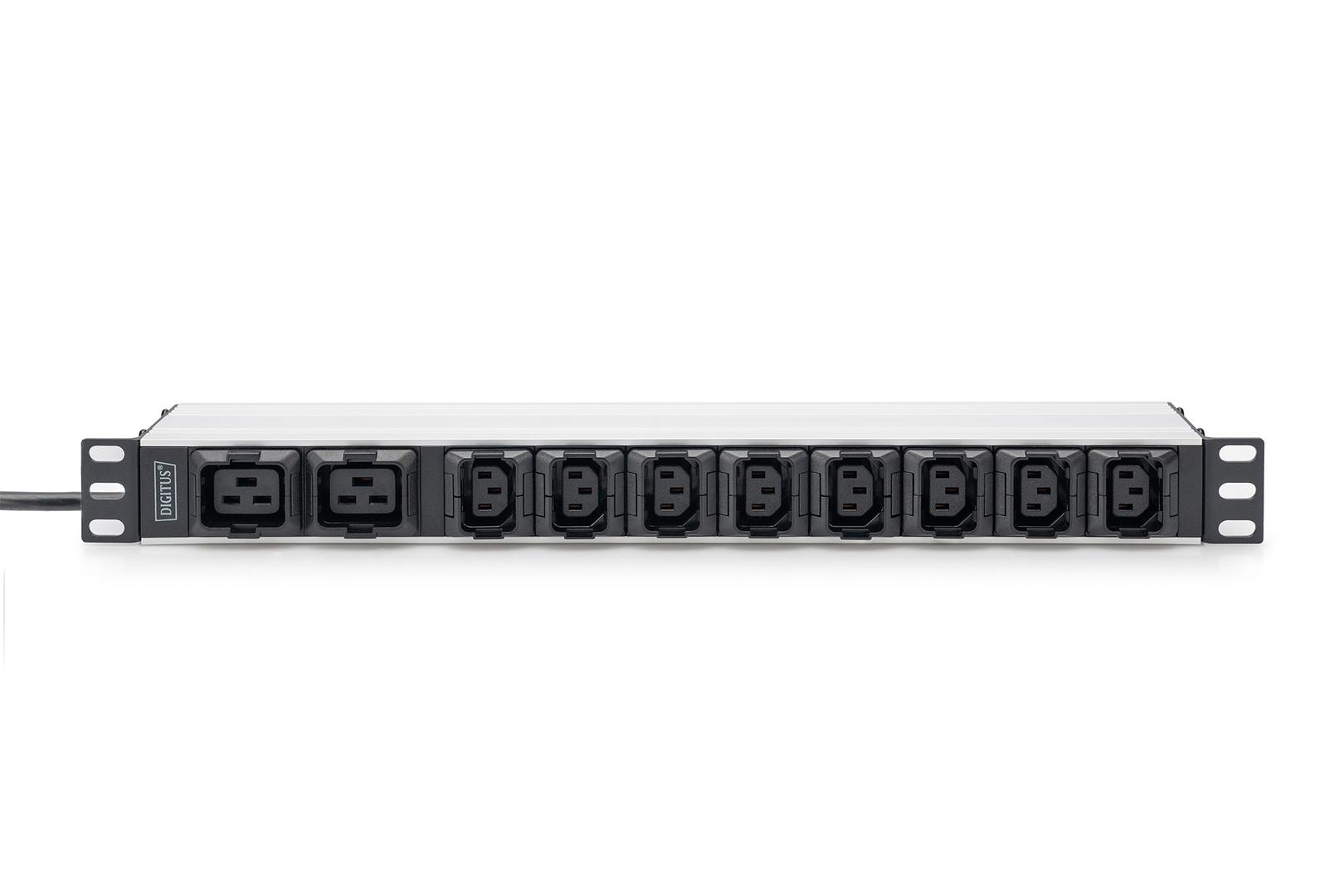

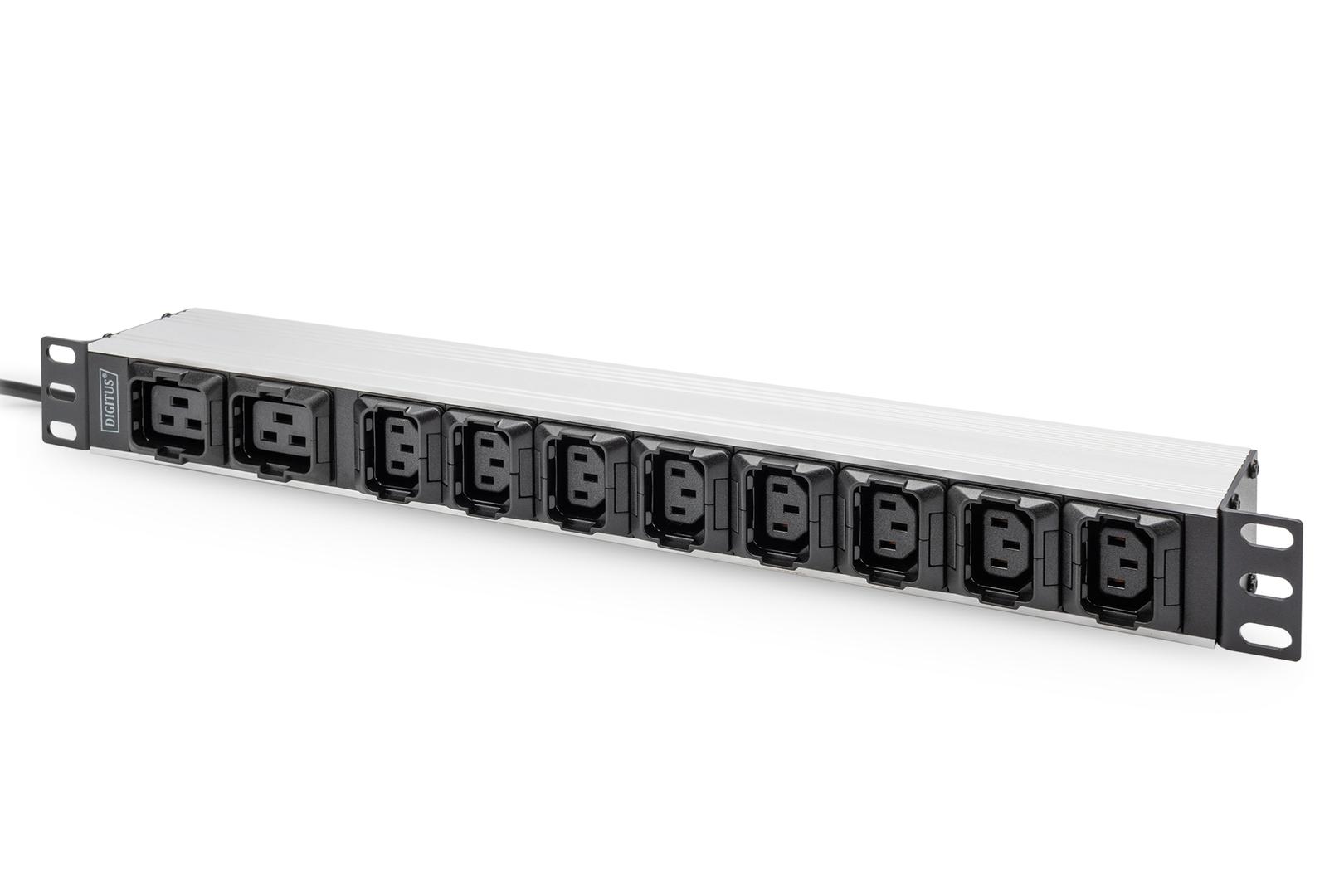

The DIGITUS DN-95427 is a 19-inch, 1U rack PDU with eight IEC C13 and two IEC C19 outlets, fed through a 2 m cable with an IEC C20 plug and rated 16 A / 3.6 kVA. DIGITUS designs it to be connected to a UPS: one C19 output of the UPS feeds the whole rack.

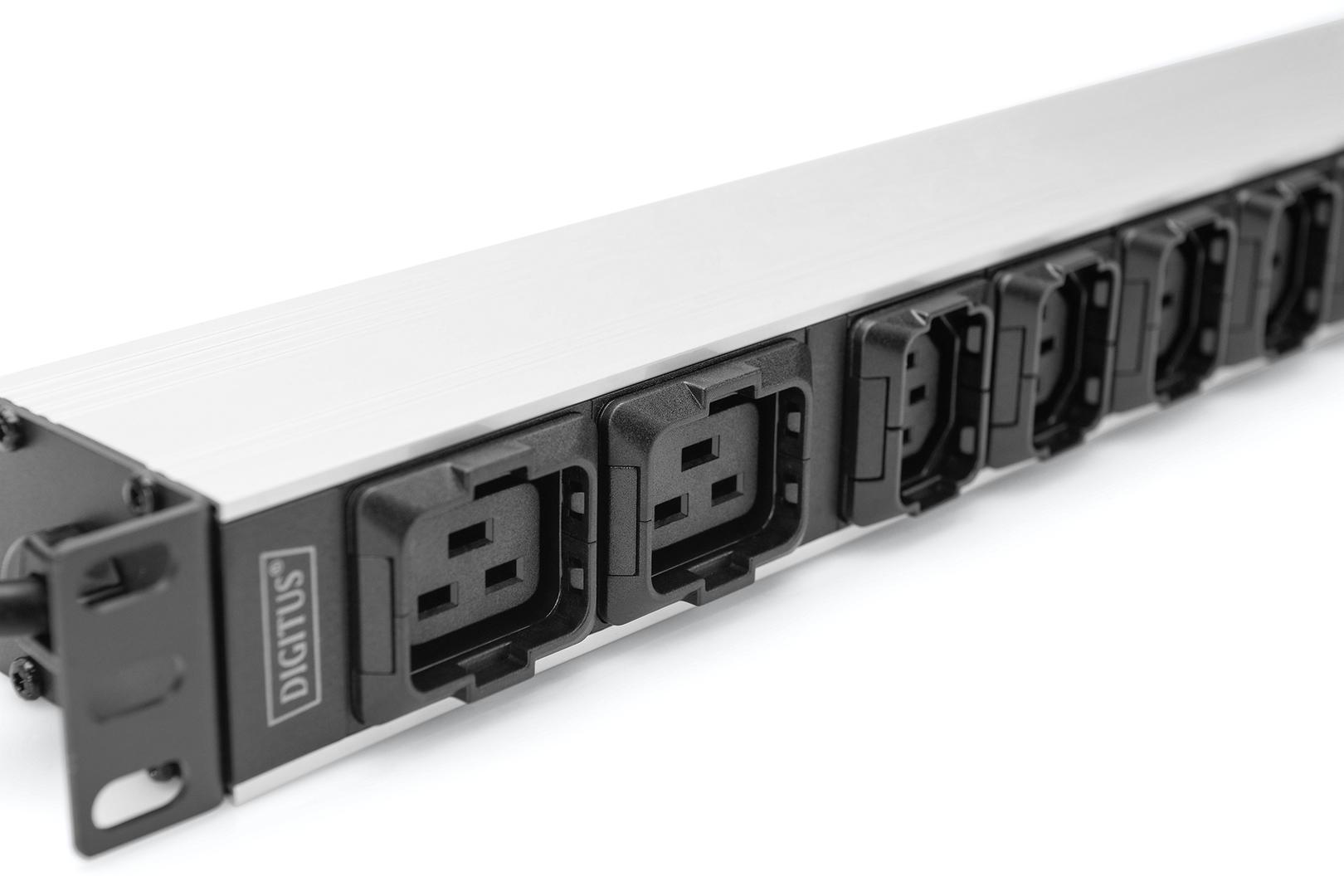

Every outlet has pull-out (extraction) protection, so C13 and C19 cords stay seated when the rack is serviced. The two C19 outlets take high-power devices such as larger servers or blade chassis; the C13 outlets cover switches, firewalls and storage.

Before you order: The input is an IEC C20 plug: it needs a C19 outlet on a UPS or upstream PDU, not a wall socket. Your devices need C14-to-C13 cords (or C20-to-C19 for the two high-power outlets). DIGITUS lists the outlets as having pull-out protection; standard IEC cords fit.

What's in the Box

  • 1 x DIGITUS DN-95427 19" PDU with fixed 2 m supply cable (IEC C20 plug)
  • 2 x 19" mounting brackets
  • 1 x safety instructions
  • No device power cords included

What It Means in Practice

  • Plug the C20 into the UPS C19 outlet and all ten rack outlets run on UPS power — the standard layout for a protected server rack.
  • Two C19 outlets mean high-draw equipment does not need an adapter or a second PDU.
  • Pull-out protection keeps cords from working loose when you move cables behind the rack.
  • The 16 A / 3.6 kVA limit is for the whole PDU and must also fit within the UPS output rating.

What Will Not Work

  • Plugging into a wall socket — the C20 plug needs a C19 outlet on a UPS or PDU.
  • Device cords with Schuko or BS 1363 plugs — use C14-to-C13 or C20-to-C19 cords.
  • UPS units without a C19 outlet — most small UPS models only have C13 or Schuko outlets.
  • Surge protection, fuse or on/off switch — none on this model.

Key Features


C20 input for UPS

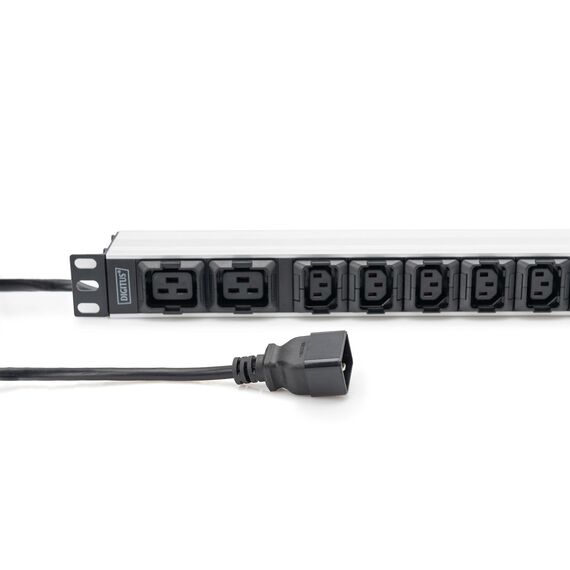

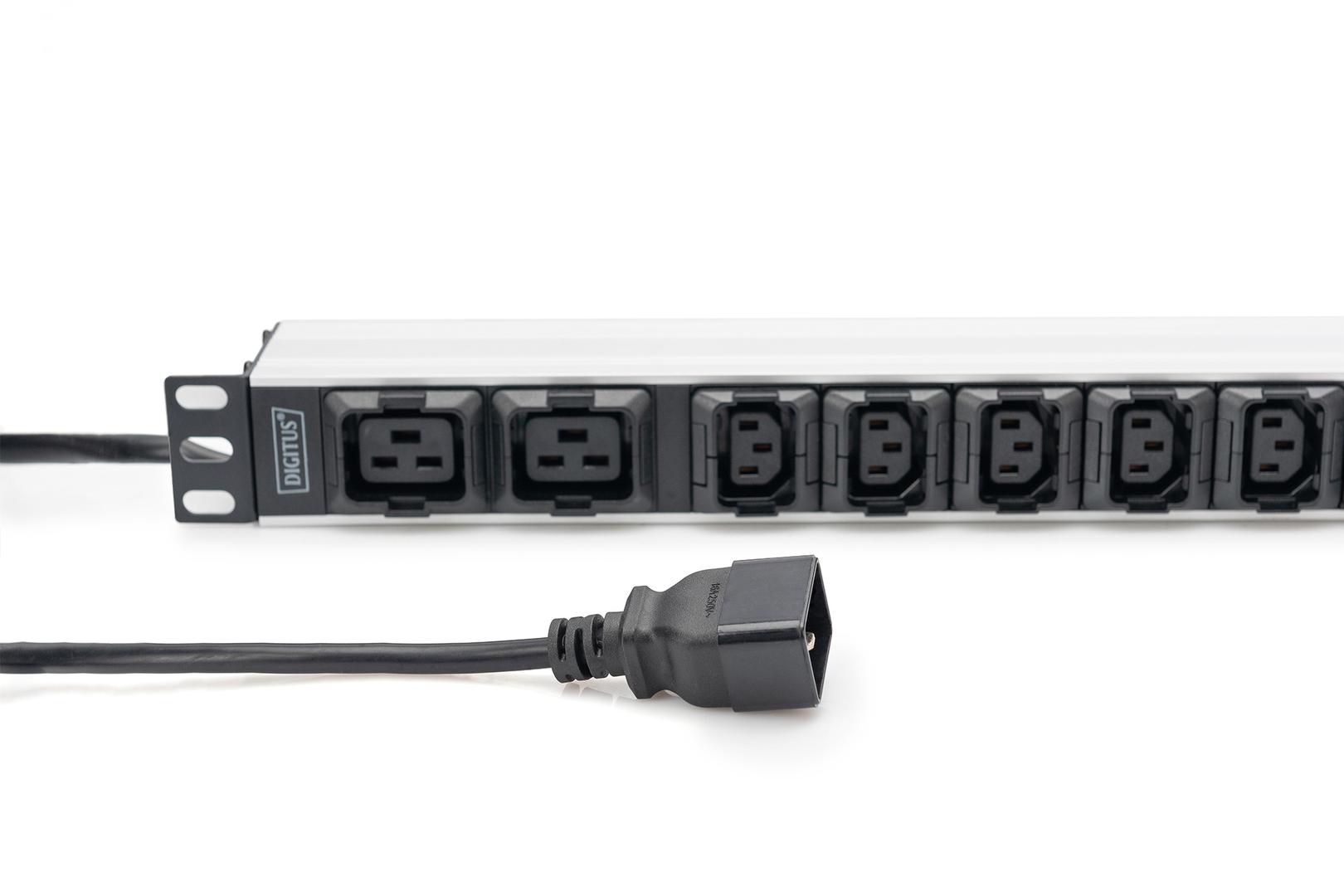

2 m cable with IEC C20 plug for a UPS C19 output.

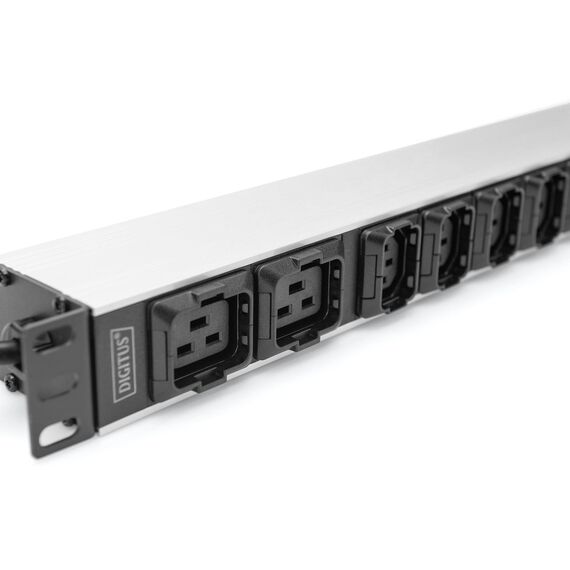

8 x C13 + 2 x C19
Ten IEC outlets in 1U, including two high-power C19.

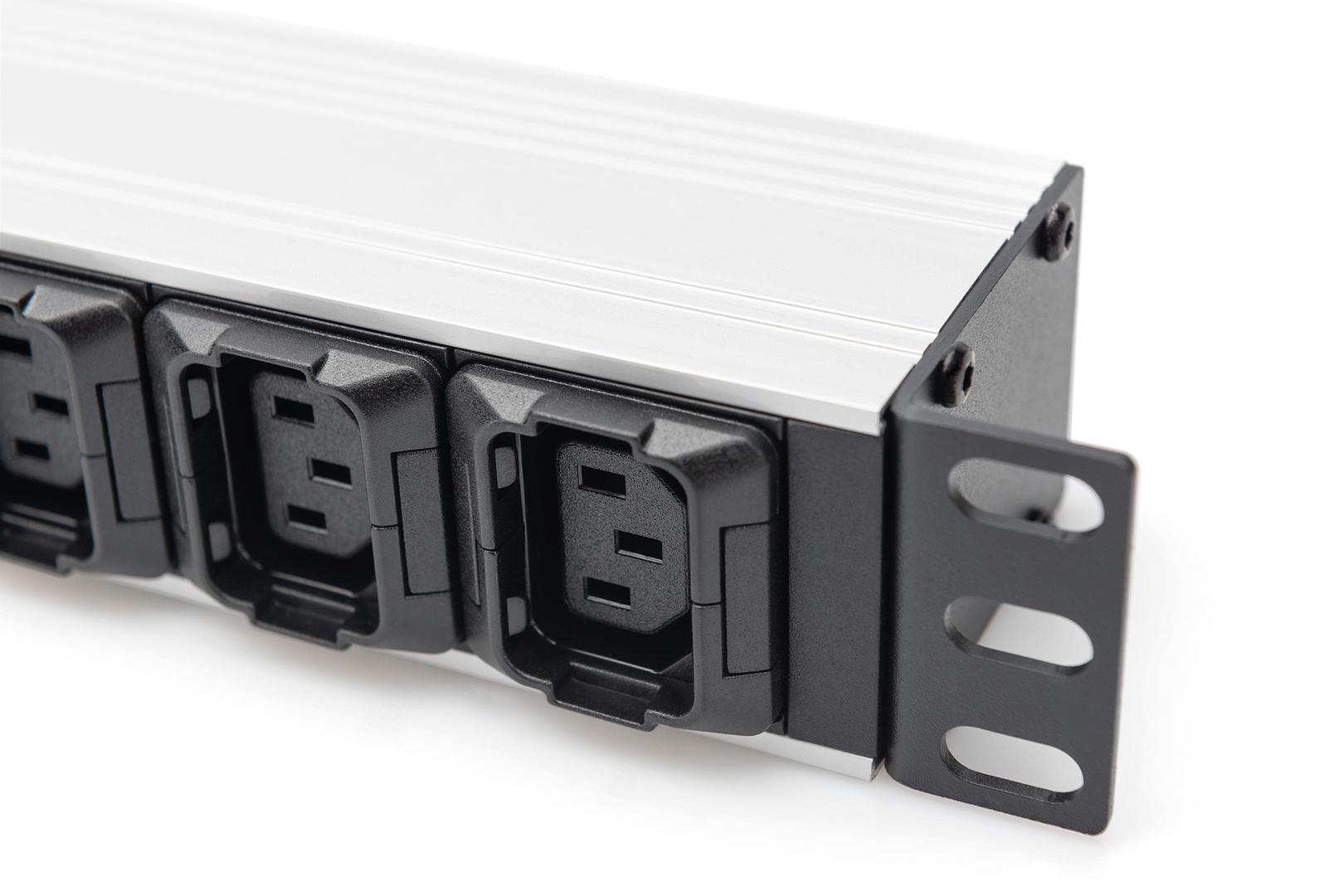

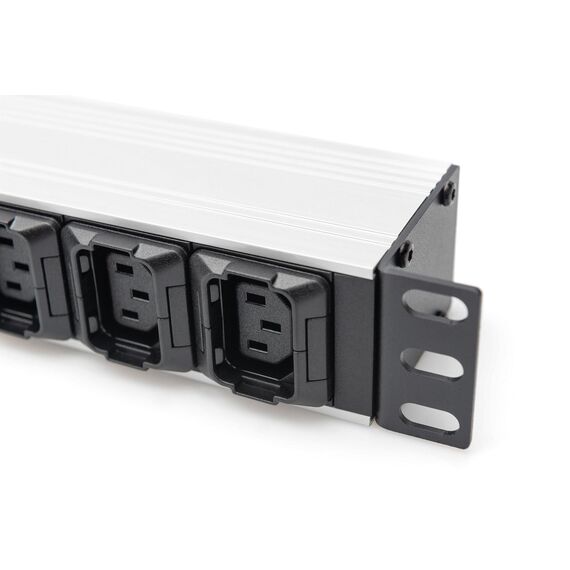

Pull-out protection
Each outlet holds its C13 or C19 cord in place.

Aluminium profile
Rigid housing, ABS UL-94 V-0 plastic parts.

Technical Specifications

Identification
Part Number DN-95427
EAN / GTIN 4016032483533
Brand DIGITUS (ASSMANN Electronic)
Product type 19" socket strip, aluminium profile, IEC outlets, C20 input
Electrical
Input plug IEC 60320 C20, 230 Vac / 16 A, single phase
Outputs 8 x IEC 60320 C13 + 2 x IEC 60320 C19, with pull-out protection
Max load 16 A / 3.6 kVA
Rated voltage 230–250 Vac, 50/60 Hz
Switch / fuse / surge protection None
Physical
Form factor 19", 1U
Housing Aluminium profile, plastic parts ABS UL-94 V-0
Supply cable 2 m, 1.5 mm²
Dimensions 482.6 x 45 x 60 mm
Weight 0.85 kg (net)
Mounting Horizontal in a 19" rack (2 brackets included)
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published by DIGITUS — claims handled through Singular

Frequently Asked Questions

Does my UPS need a C19 outlet?
Yes. The C20 plug fits only a C19 outlet. Many 2–3 kVA rack UPS models have one; check the back panel or send us the UPS model.
What goes into the C19 outlets?
Devices with a C20 inlet, connected with C20-to-C19 cords — typically larger servers, storage arrays or PoE switches with high power draw.
How deep is it?
60 mm, slightly deeper than DIGITUS strips with Schuko outlets, so leave room behind the rack rails.
Can I plug it into the wall with an adapter?
No. Use a PDU with a CEE 7/7 plug, such as the DN-95426, for wall-fed racks.
Singular Expert Insight · Buyer's Guide
This is the PDU to pair with a rack UPS that has a C19 output: one cable from the UPS, ten locked IEC outlets in the rack. If your UPS only has C13 outlets, it cannot feed it. More rack power and mounting parts are in our rack accessories.
✓ Buy it if you feed the rack from a UPS with a C19 outlet and use IEC-corded equipment.
✕ Skip it if your UPS has no C19 outlet or the rack is fed straight from a wall socket.
→ Also consider DIGITUS DN-95426 (12 x C13 with CEE 7/7 plug) or DN-95410-IT (C14 input, 8 x Italian sockets).
Not sure your UPS has a C19 outlet? Send us the UPS model and we will check before you order.
