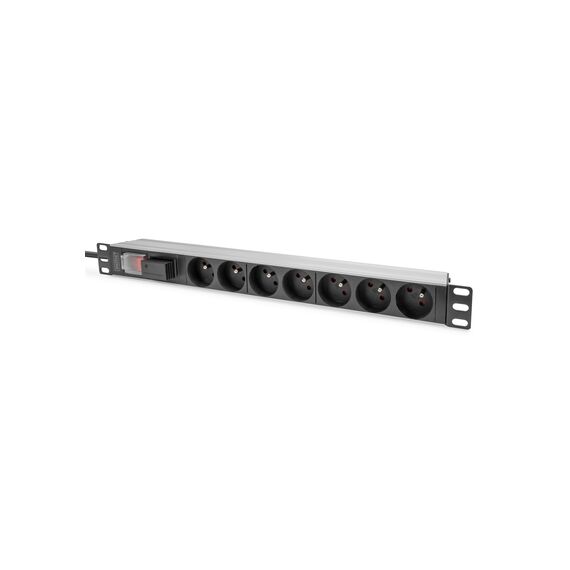

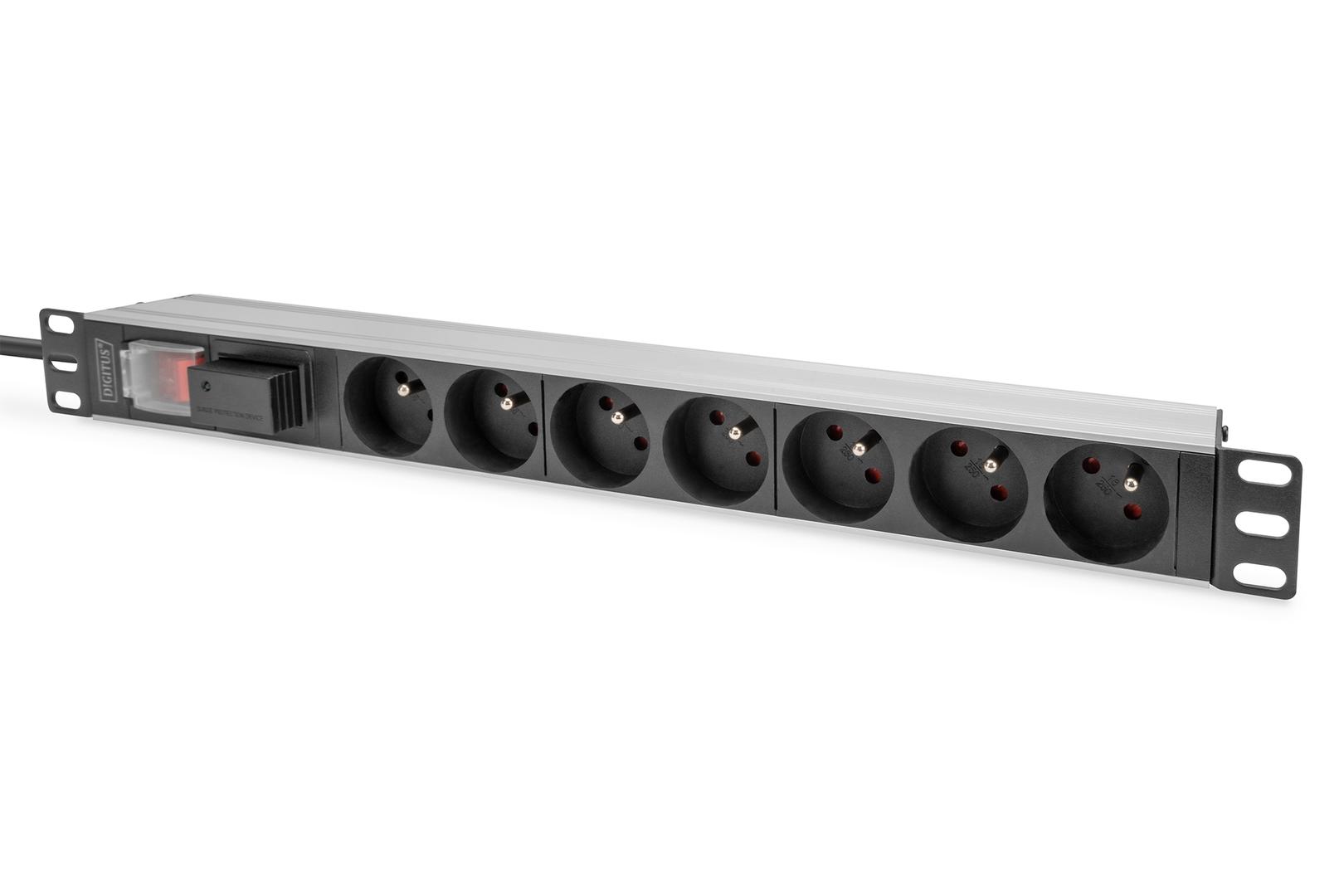

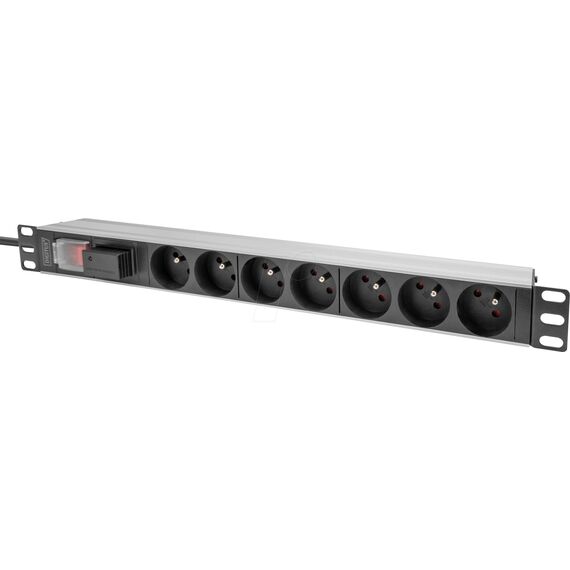

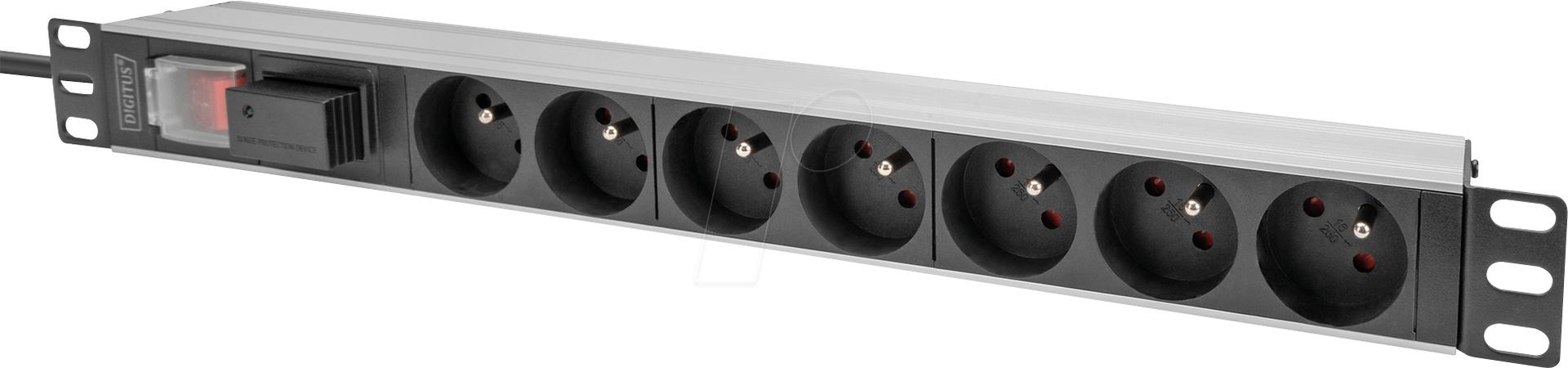

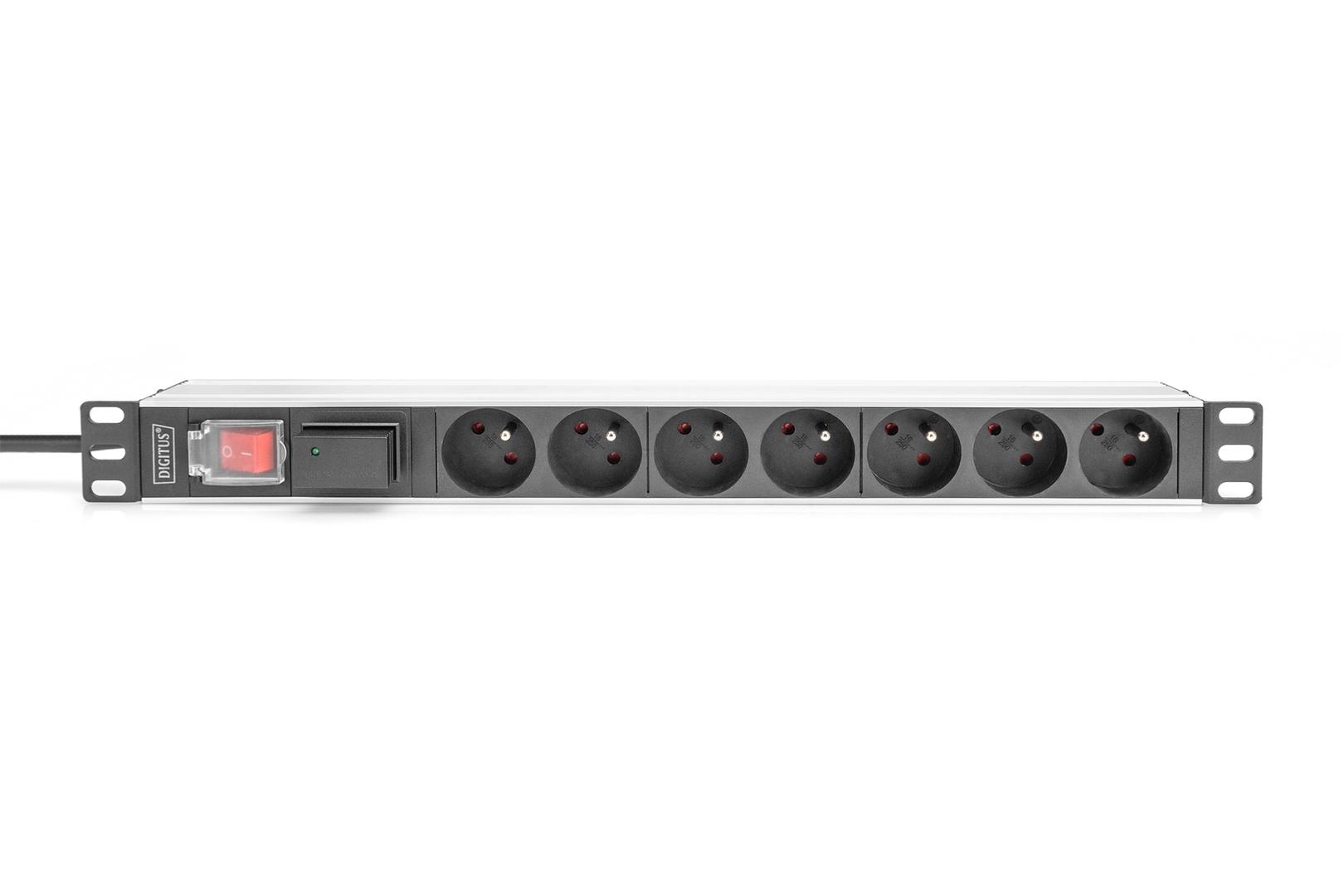

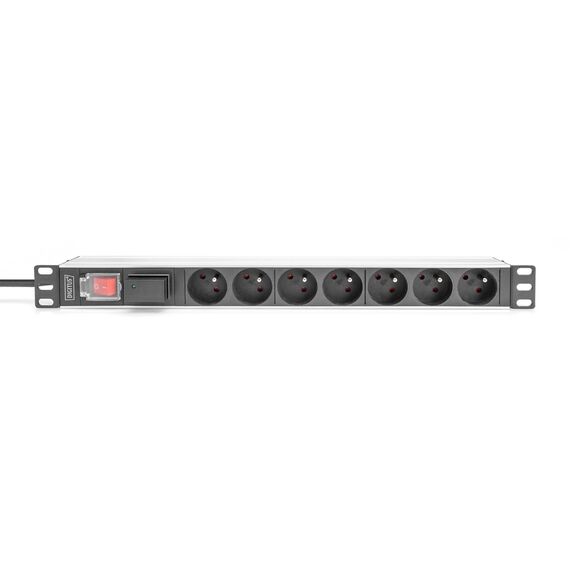

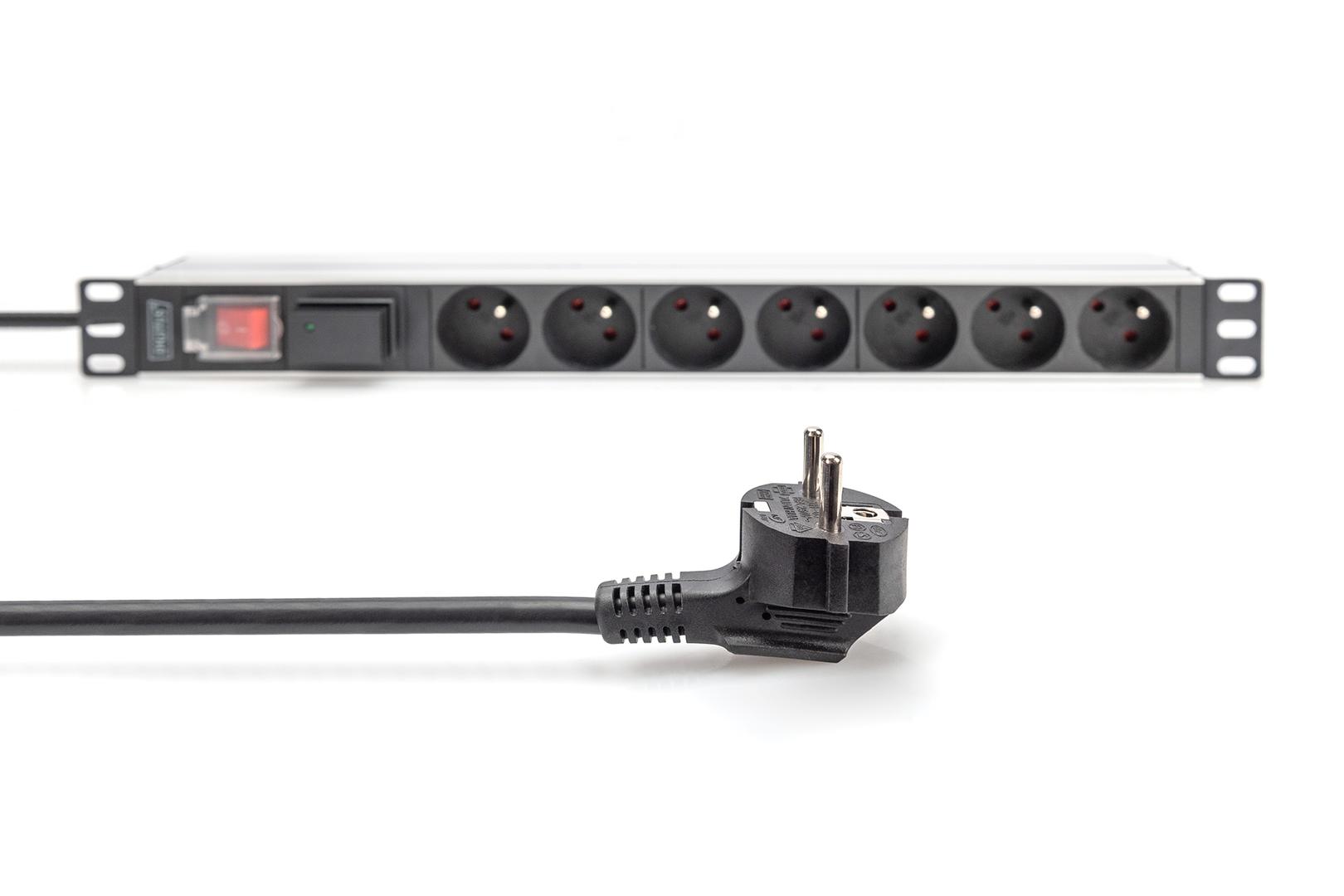

DIGITUS - Power distribution unit (rack-mountable) - AC 230 V - input: power CEE 7/7 - output connectors: 7 (CEE 7/5) - 1U - 19" - 2 m cord | DN-95407-FR
DN-95407-FR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

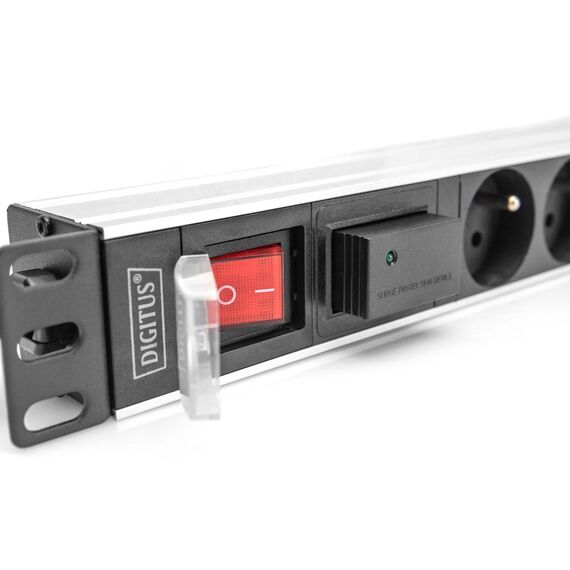

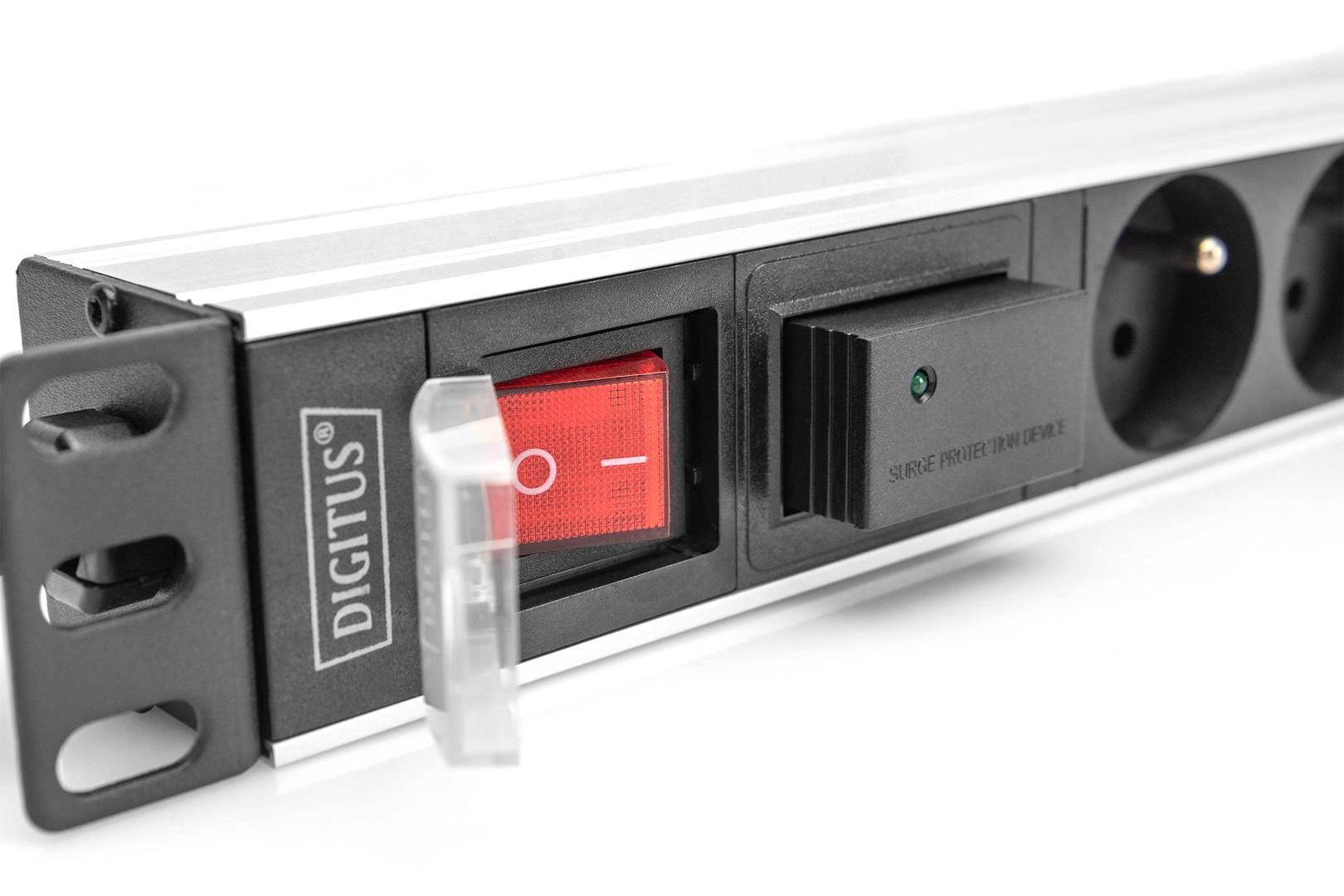

· Surge protection module against overvoltage· Surge protection: Nominal discharge current (In) 5 kA
· Switch - protected against accidentally being switched off
· Horizontal 19" installation in the rack
· Socket rotation: 35°
· Housing: Aluminum profile
· Plastic components made of ABS UL-94V-0

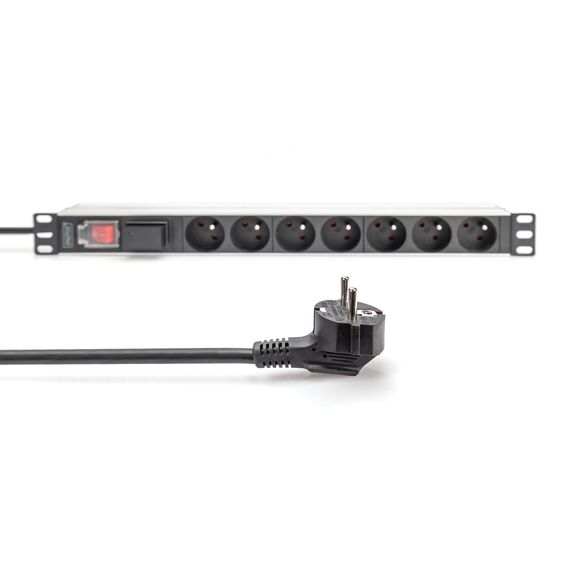

· Input: Plug grounding contact CEE 7/7, 230 Vac / 16 A
· Output: 7 x CEE 7/5, max. 16 A per output
· Cable: Cable cross section: 1.5 mm², length: 2 m
· Dimensions: 482.6 mm (19") x 45 (1U) x 45 mm (HxWxD)
Special Fetures
· Perfect current distribution for your network and IT rack· Integrated surge protection protects connected users from overvoltage.
· Jacks are rotated by up to 35°, which offers optimal space management and easy access
· Compact construction, 19" 1U housing
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Cord Length | 2 m |
| Power Device | |
| Input Voltage | AC 230 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |
| Power Output Connectors Details | 7 x power CEE 7/5 |
| Max Electric Current | 16 A |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets |
| Cables Included | Power cable 2 m |
| Features | Surge protection, horizontal mount, aluminium profile, on/off switch with cover, over voltage protection, 35° rotating outlets |
| Compliant Standards | UL 94 V-0 |
| Dimensions & Weight | |
| Width | 4.5 cm |
| Depth | 4.5 cm |
| Height | 48.26 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.5 cm |
| Shipping Depth | 5 cm |
| Shipping Height | 50.5 cm |
| Shipping Weight | 1.04 kg |
Features - Digitus - DN-95407-FR
More Details
Product Code
CF63097
EAN Code
4016032481966
Manufacturer
Digitus
