Zebra DS5502-LB Labs Fixed Mount 1D/2D Scanner, USB/RS232, White, Cable Separate

Brand:
Zebra
Zebra DS5502 LB White Labs Fixed Mount 2D Barcode Scanner
Zebra DS5502-LB Labs Fixed Mount 1D/2D Scanner, USB/RS232, White, Cable Separate
€284.1 inc. VAT
Buy
DS5502-LB4000WZZWW
€238.74
€284.10 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
CL04693
EAN Code
4805388883803
Manufacturer
Zebra

Quick Specs

Variant
Labs · white
Sensor
1280 × 800 · 1MP
Interfaces
USB / RS232
Package
Scanner only · cable/mount separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Compact Labs scanning for a planned workstation installation

Labs white1D + 2DUSB / RS232IP54

The white DS5502-LB is the Labs version of Zebra’s compact fixed-mount imager. It reads 1D/2D labels, including small and curved codes used in laboratory and pharmacy workflows, while its wipeable housing suits regular cleaning under the manufacturer’s instructions. This exact SKU is the scanner, with host cable and mounting solution selected separately.

Before you order:

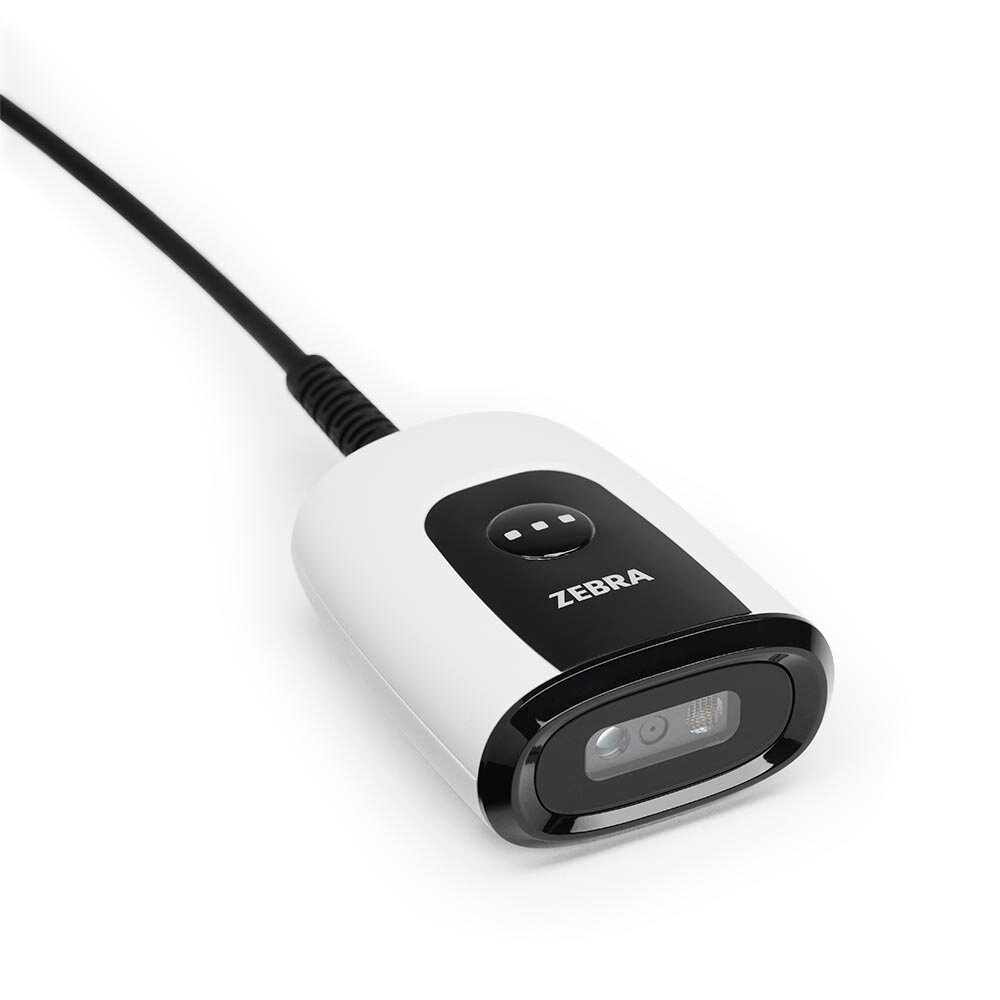

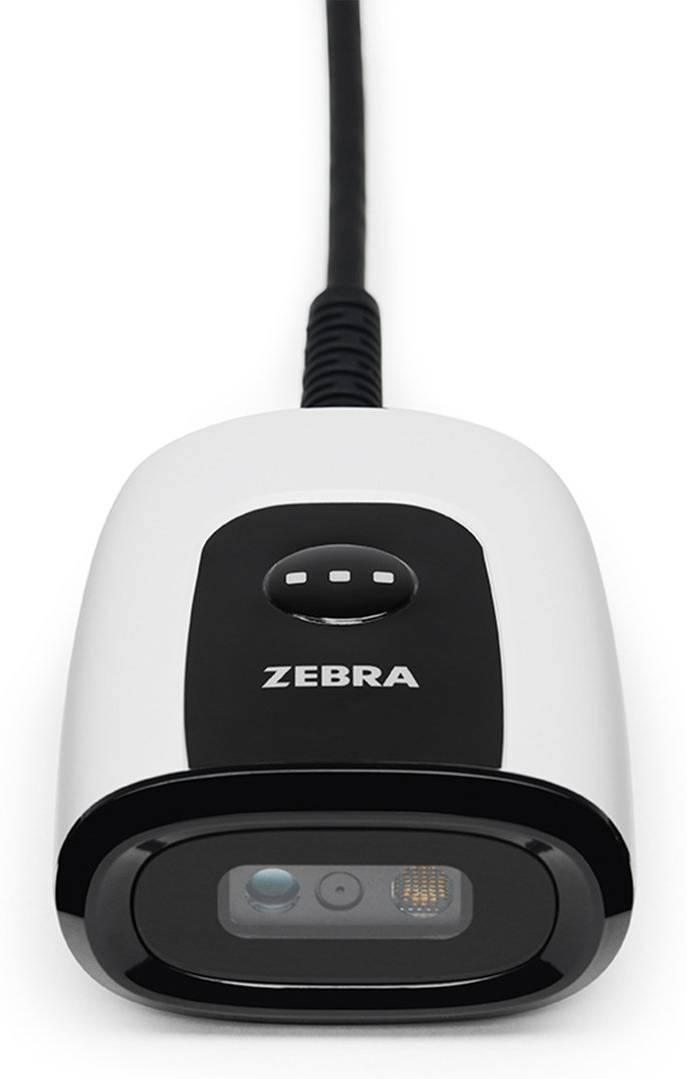

Cable and mounts are separate, including the optional 3-in-1 and gooseneck stands. Any cable shown in product imagery illustrates connection. LB identifies the white Labs version; it does not imply the LL/DL driver-license parsing option or a pre-integrated laboratory information system.

What's in the Box

  • White DS5502-LB scanner
  • Regulatory Guide

What Will Not Work

  • No included host cable, power supply or mounting stand is listed for this scanner-only SKU.
  • No direct wireless Bluetooth connection; specialist parsing and application integration need verification.

Key Features


Labs design, shared compact format
The white wipeable housing is intended for lab, pharmacy and admissions workstations. Follow the approved cleaner list; IP54 does not mean immersion or a claimed antimicrobial coating.

Separate trigger and presentation distances
The same barcode has different typical ranges by mode. UPC 13 mil is 4.1–62.7 cm in Trigger mode and 4.1–35.6 cm in Presentation mode. Match the installation to the required labels and handling.

Integrate capture into the actual workflow
USB or RS232 transfers decoded data to the host. Barcode capture alone does not identify or approve a specimen, medication or patient record; the configured application must perform the intended matching and validation.

Technical Specifications

Identity & installation
MPN DS5502-LB4000WZZWW
EAN 4805388883803
Variant / colour Labs, Standard Range, white (Alpine White)
Package Scanner, Regulatory Guide; host cable and mounting accessories separate
Housing Wipeable, no exposed openings; approved cleaners per Product Reference Guide
Mounting Standard 1/4–20 camera mount; optional gooseneck / 3-in-1 display-wall-presentation mount
Dimensions H × W × D 30 × 56 × 72 mm
Weight 65.2 g
Imaging & reading
Sensor 1280 × 800 pixels
Swipe speed Up to 254 cm/s for 13 mil UPC in optimized mode
Aimer / illumination Circular green LED 525 nm / one warm white LED
Field of view 48° horizontal × 30° vertical nominal
Minimum contrast 15% reflectance difference
Skew / pitch / roll ±60° / ±60° / 0–360°
Feedback Good-decode LEDs; speaker with adjustable tone/volume
Image formats BMP, JPEG, TIFF
Document imaging 200 PPI on 15.2 × 9.5 cm document at 17.8 cm
1D Code39, Code128, Code93, Codabar/NW7, Code11, MSI Plessey, UPC/EAN, I2of5, Korean3of5, GS1 DataBar, Base32 Italian Pharma
2D PDF417, MicroPDF417, Composite, TLC39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal, SecurPharm
OCR OCR-A, OCR-B, MICR, US Currency; configuration/application dependent
Minimum resolution Code39 / Code128: 3 mil; Data Matrix / QR: 5 mil
Typical decode ranges
Mode key / conditions T = Trigger; P = Presentation. Typical distances depend on barcode type, size and conditions
Code39 3 mil T: 7.1–14.2 cm / P: 7.1–14.2 cm
Code39 4 mil T: 6.1–20.3 cm / P: 6.1–20.3 cm
Code39 5 mil T: 4.1–25.4 cm / P: 4.1–22.9 cm
Code39 7.5 mil T: 5.3–38.1 cm / P: 5.6–25.4 cm
Code39 20 mil T: 4.1–91.2 cm / P: 5.1–45.7 cm
Code128 3 mil T: 7.1–14.0 cm / P: 7.1–14.0 cm
Code128 5 mil T: 5.3–24.4 cm / P: 5.3–21.6 cm
PDF417 6.7 mil T: 5.8–25.1 cm / P: 5.8–22.6 cm
UPC 13 mil T: 4.1–62.7 cm / P: 4.1–35.6 cm
Data Matrix 10 mil T: 4.8–27.4 cm / P: 4.8–24.1 cm
QR 20 mil T: 2.3–43.9 cm / P: 2.3–35.6 cm
Power & interfaces
Supported host interfaces USB, RS232; USB Certified
Input voltage 4.75–5.25 V DC, host or external source
Typical operating current Presentation: 360 mA RMS / Trigger: 350 mA RMS
Typical idle current Presentation: 185 mA RMS / Trigger: 155 mA RMS
Environment
Protection IP54
Drop specification Multiple 1.5 m drops to concrete
Operating / storage −20–50 °C / −40–70 °C
Humidity 5–95% RH, non-condensing
ESD ±15 kV air / ±8 kV direct and indirect
Ambient light 0–107,600 lux
Management / integration 123Scan, Scanner SDK, SMS, Zebra DNA, IoT Connector; host integration required
Environmental compliance RoHS, WEEE, China RoHS, REACH
Electrical / LED safety EN / IEC / UL / CSA 62368-1; EN / IEC62471
EMI / RFI FCC Part15B, ICES003, EN55032/55035, EN61000-6-2, EN/IEC60601-1-2, VCCI, SABS
Manufacturer warranty 3 years from shipment; Zebra hardware warranty terms apply

Frequently Asked Questions

How does LB differ from the black SR model?
LB is the white Labs configuration with a wipeable housing intended for medical workflows. The black SR model is the general fixed-mount version; the listed imaging performance is shared.
Is the 3-in-1 mount included?
No. The manufacturer guide lists it as optional. Choose the cable and mounting arrangement for the host and work surface.
Does it automatically update a laboratory system?
It sends captured data to a compatible host. Correct field mapping, record matching and validation depend on the laboratory application and integration.
Singular Expert Insight
Plan the cable, mounting angle, reading mode and real label samples before ordering the scanner. For a lab workstation, the housing and cleaning process matter as much as the decode table; verify specialised UDI or blood-bag parsing requirements separately. Compare fixed and handheld scanners

Buyer’s Guide

✓

Buy it if

 You need a compact white Labs scanner and can specify the cable, mount and host integration.
✕

Skip it if

 You expect a complete ready-mounted USB kit or cordless reader.
→

Also consider

 The black DS5502-SR for a general counter/kiosk installation, or a complete presentation kit when a stand and cable are needed together.
Confirm host interface, mounting, approved cleaning method, code samples and application/parsing requirements.
