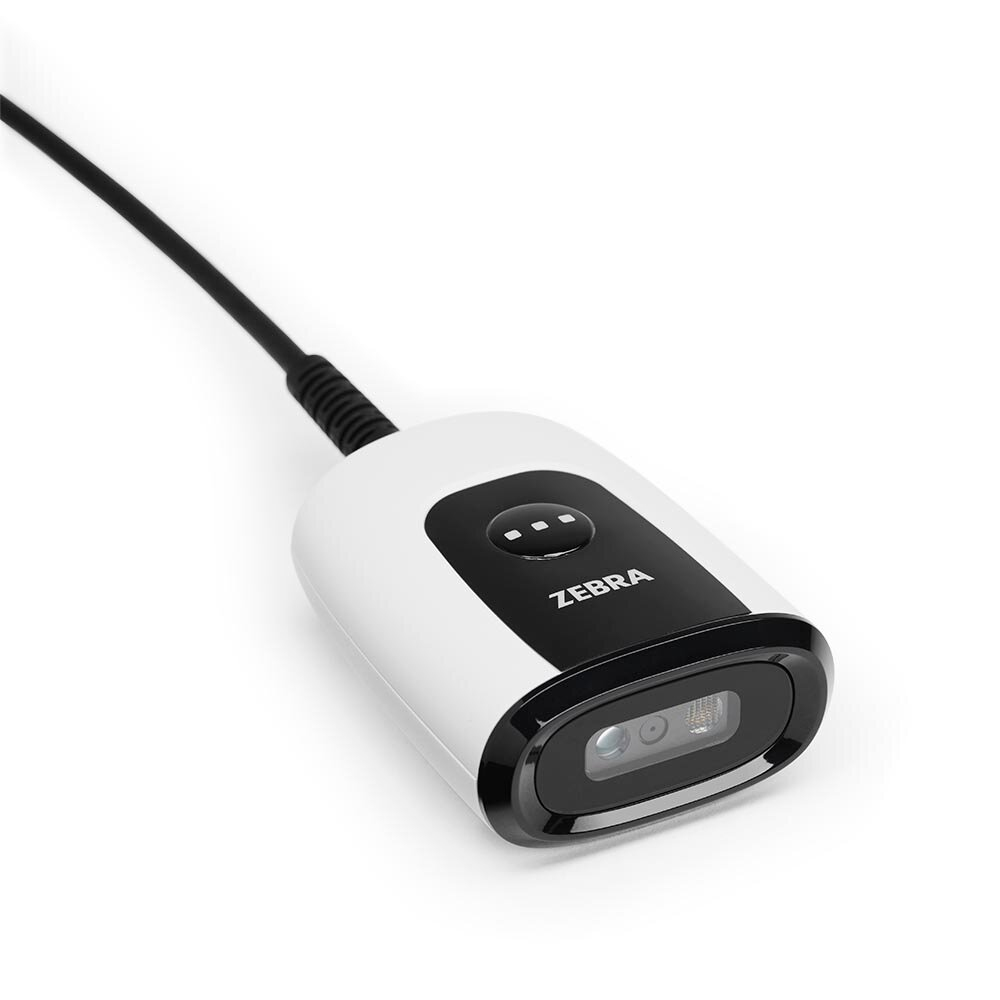

Zebra DS5502 Desktop Barcode Scanner | 2D Imager | USB/RS-232 | White

Brand: Zebra
Zebra DS5502 Desktop Barcode Scanner White
Zebra DS5502 Desktop Barcode Scanner | 2D Imager | USB/RS-232 | White
€311.58 inc. VAT
Buy
DS5502-LB4000WZZWW
€261.83
€311.58 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product CodeCL04693 EAN Code4805388883803 ManufacturerZebra

Quick Specs

Interfaces
1 x RS-232 - DB-9 1 x USB - Type A
Power
Power adapter
Product Type
Barcode scanner - desktop
Colour
White
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Zebra DS5502 Desktop Barcode Scanner | 2D Imager | USB/RS-232 | White

The Zebra DS5502 is a desktop barcode scanner for wired point-of-sale and data capture use. It combines a 2D imager with USB and RS-232 connectivity, green LED indication and ESD protection, making it a practical fit for everyday scanning tasks where reliable integration matters.
1 x RS-232 - DB-9 1 x USB - Type A Power adapter Barcode scanner - desktop White

The Zebra DS5502 is a desktop barcode scanner for wired point-of-sale and data capture use. It combines a 2D imager with USB and RS-232 connectivity, green LED indication and ESD protection, making it a practical fit for everyday scanning tasks where reliable integration matters.

Best For
✓ A good fit for retailers, reception desks
✓ Counter-based workflows that need a wired desktop scanner with both USB
✓ Visual
✓ Audible scan confirmation

Key Features


Commercial Fit
The main reason to buy this model is the mix of desktop convenience and broad 2D decoding support, backed by wired USB/RS-232 integration, ESD protection and a 1.5 m drop specification.

Connectivity
Connectivity: Wired

Interfaces
1 x RS-232 - DB-9 | 1 x USB - Type A | 1 x RS-232 - DB-9 1 x USB - Type A

Power
Power: Power adapter

Technical Specifications

Product Type Barcode scanner - desktop
Scan Engine 2D imager - green LED
Sensor Resolution 1280 x 800
Scan Mode Single-pass
Interfaces 1 x RS-232 - DB-9 | 1 x USB - Type A | 1 x RS-232 - DB-9 1 x USB - Type A
Connectivity Wired
Decode Capability Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, IATA 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, Postal Code, SecurPharm, OCR-A, OCR-B, MICR, US currency serial number
Minimum Bar Width 3 mil
Max Working Distance 91.2 cm
Skew 60°
Pitch 60°
Print Contrast Signal 15%
Notifications Beeper | LED indicator
ESD Protection 15 kV air discharge | 8 kV direct discharge | 8 kV indirect discharge
Drop Specification 1.5 m to concrete
Colour White

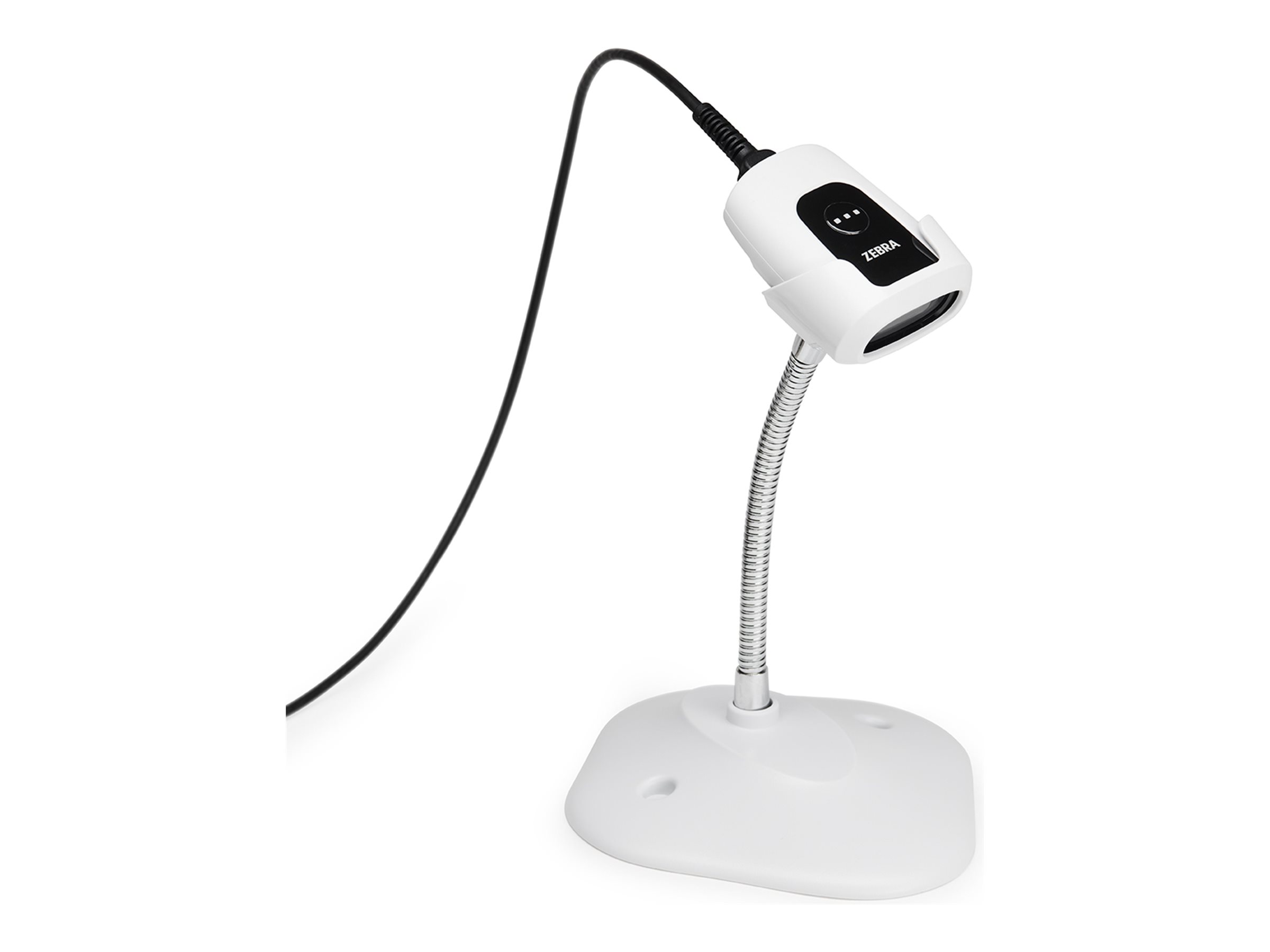

Package Contents 3-in-1 mount
Power Power adapter
Voltage 4.75 - 5.25 V
Current Required 360 mA (typical)
Width 5.6 cm
Depth 7.2 cm
Height 3 cm
Weight 65.2 g
Compliant Standards EN 61000-4-2, EN/IEC 63000:2018, RoHS 2015/863, WEEE 2012/19/EU, REACH 2006/1907/EC, EN 62368-1:2014/AC:2015, ANSI/UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, IEC62368-1:2014, EN 55032, EN 55035, EN60601-1-2, EN61000-6-2, FCC 47 CFR Part 15 Subpart B, ICES-003, IEC 60601-1-2, IEC/EN 62471, SABS, VCCI, IP54
SKU / EAN DS5502-LB4000WZZWW | 4805388883803

Frequently Asked Questions

What should I know before buying?
This is a wired desktop scanner, so it is not a mobile handheld unit. The listing confirms a 3-in-1 mount and power adapter, but system setup will still depend on the host interface you plan to use.
What connectivity does it offer?
1 x RS-232 - DB-9 | 1 x USB - Type A | 1 x RS-232 - DB-9 1 x USB - Type A
What is included in the box?
3-in-1 mount
Singular Expert Insight
The main reason to buy this model is the mix of desktop convenience and broad 2D decoding support, backed by wired USB/RS-232 integration, ESD protection and a 1.5 m drop specification.

Buyer’s Guide

Buy it if
A good fit for retailers, reception desks and counter-based workflows that need a wired desktop scanner with both USB and RS-232 connectivity. It also suits users who want a compact unit with broad barcode decoding and visual and audible scan confirmation.
Skip it if
This is a wired desktop scanner, so it is not a mobile handheld unit. The listing confirms a 3-in-1 mount and power adapter, but system setup will still depend on the host interface you plan to use.
Also consider
If you only need a simpler desktop barcode scanner for basic counter use, a more straightforward USB-only model may be enough. Choose this one when RS-232 support, ESD protection and the included mount are useful to your setup.
