Zebra DS55 Series DS5502 Barcode Scanner | 2D Imager | USB/RS-232 | Midnight Black

Name: Zebra DS55 Series DS5502 Barcode Scanner | 2D Imager | USB/RS-232 | Midnight Black
Brand: Zebra
SKU: DS5502-SR40004ZZWW
Price: 311.58 EUR
Availability: InStock

Brand: Zebra

€311.58 inc. VAT

Buy

Zebra DS5502 Barcode Scanner | USB/RS-232

CODE (SKU):

DS5502-SR40004ZZWW

€261.83

€311.58 inc. VAT

Ships from EU stock: 28 item(s)

+ −

Add to wish list Ask a question

Product CodeCL04694 EAN Code4805388883797 ManufacturerZebra

Quick Specs

Interfaces

1 x RS-232 - DB-9 1 x USB - Type A

Power

Power adapter

Product Type

Barcode scanner

Connectivity

Wired

Dimensions

5.6 cm x 7.2 cm x 3 cm

Weight

65.2 g

Delivery

Order Today...

Ships...

Delivery...

ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.

Payment options

✓ Viva Wallet

✓ Revolut

✓ Bank Deposit

Secure checkout with flexible payment methods

Trusted Tech Choice

Buying Benefits Verified

Competitive EU pricing

Delivered to Cyprus from EU stock

Local warranty support

Description
Features

Singular Selected

Zebra DS55 Series DS5502 Barcode Scanner

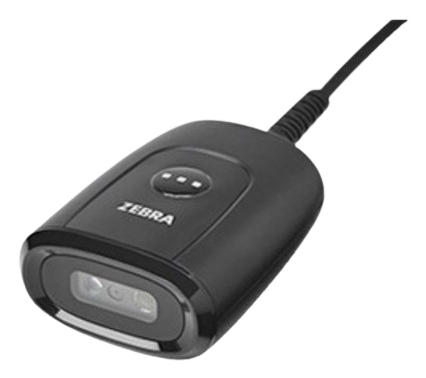

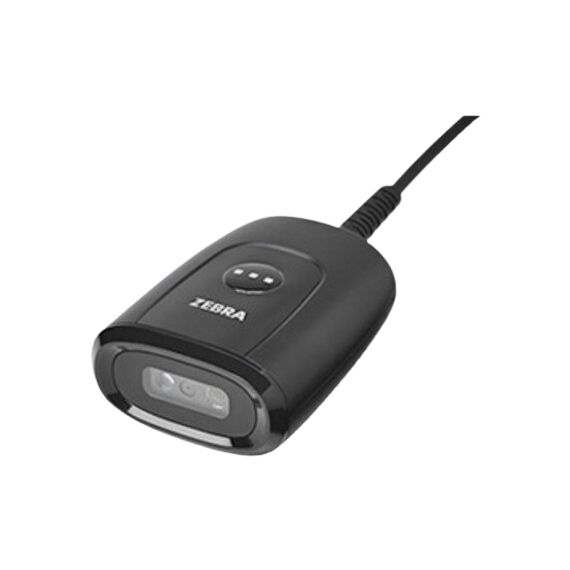

The Zebra DS5502 is a desktop barcode scanner from the DS55 Series, built for wired barcode capture at the point of sale or on a counter. It uses a 2D imager with standard range scanning, supports USB and RS-232 connectivity, and comes in midnight black.

1 x RS-232 - DB-9 1 x USB - Type A Power adapter Barcode scanner Wired

Best For

✓ Suitable for shops

✓ Counters that need a wired desktop scanner with both USB

✓ RS-232 connectivity, plus broad 1D

✓ 2D barcode support

Key Features

Commercial Fit

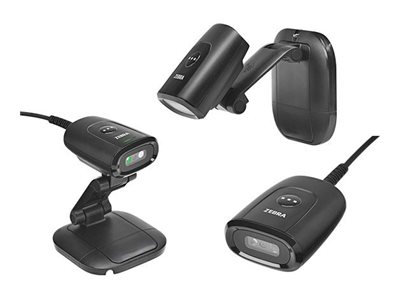

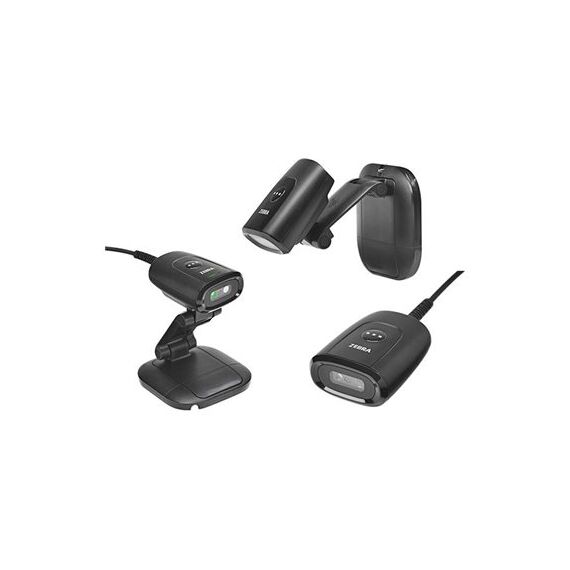

The main reason to choose this model is its combination of desktop form factor, 2D decoding, dual interface support and included 3-in-1 mount, which suits fixed scanning stations.

Connectivity

Connectivity: Wired

Interfaces

1 x RS-232 - DB-9 | 1 x USB - Type A | 1 x RS-232 - DB-9 1 x USB - Type A

Power

Power: Power adapter

Technical Specifications

Product Type	Barcode scanner
Form Factor	Desktop
Scan Engine	Standard Range (SR)
Imager Type	2D imager - green LED
Sensor Resolution	1280 x 800
Decode Capability	Code 93 \| Code 39 \| Code 128 \| Codabar \| NW-7 \| Code 11 \| MSI-Plessey \| UPC/EAN extension \| IATA 2 of 5 \| Korean 3 of 5 \| GS1 DataBar \| Base 32 \| PDF417 \| MicroPDF417 \| Composite Codes \| TLC39 \| Aztec \| Data Matrix \| MaxiCode \| QR code \| Micro QR code \| Han Xin \| Postal Code \| SecurPharm \| OCR-A \| OCR-B \| MICR \| US currency serial number
Minimum Bar Width	3 mil
Max Working Distance	91.2 cm
Skew	60°
Pitch	60°
Print Contrast Signal (PCS)	15%
Connectivity	Wired
Interfaces	1 x RS-232 - DB-9 \| 1 x USB - Type A \| 1 x RS-232 - DB-9 1 x USB - Type A
Notifications	Beeper \| LED indicator
ESD Protection	15 kV air discharge \| 8 kV direct discharge \| 8 kV indirect discharge
Power	Power adapter
Voltage	4.75 - 5.25 V
Current Required	360 mA (typical)
Colour	Midnight black
Dimensions	5.6 cm x 7.2 cm x 3 cm
Weight	65.2 g
Operating Temperature	-20 °C to 50 °C
Operating Humidity	5 - 95% RH (non-condensing)
Drop Specification	1.5 m to concrete
Included Accessories	3-in-1 mount
Compliant Standards	EN 61000-4-2 \| EN/IEC 63000:2018 \| RoHS 2015/863 \| WEEE 2012/19/EU \| REACH 2006/1907/EC \| EN 62368-1:2014/AC:2015 \| ANSI/UL 62368-1 Third Edition \| CAN/CSA C22.2 No. 62368-1-19 \| EN 62368-1:2014/A11:2017 \| EN IEC 62368-1:2020+A11:2020 \| IEC 62368-1:2018 \| IEC62368-1:2014 \| EN 55032 \| EN 55035 \| EN60601-1-2 \| EN61000-6-2 \| FCC 47 CFR Part 15 Subpart B \| ICES-003 \| IEC 60601-1-2 \| IEC/EN 62471 \| SABS \| VCCI \| IP54
EAN	4805388883797
Package Contents	3-in-1 mount
SKU / EAN	DS5502-SR40004ZZWW \| 4805388883797

Frequently Asked Questions

What should I know before buying?

This is a desktop barcode scanner, not a handheld unit. It needs a power adapter and uses wired USB or RS-232 connectivity; the package also includes a 3-in-1 mount.

What connectivity does it offer?

Wired

What is included in the box?

3-in-1 mount

Singular Expert Insight

The main reason to choose this model is its combination of desktop form factor, 2D decoding, dual interface support and included 3-in-1 mount, which suits fixed scanning stations.

Buyer’s Guide

Buy it if

Suitable for shops and counters that need a wired desktop scanner with both USB and RS-232 connectivity, plus broad 1D and 2D barcode support.

Skip it if

This is a desktop barcode scanner, not a handheld unit. It needs a power adapter and uses wired USB or RS-232 connectivity; the package also includes a 3-in-1 mount.

Also consider

If you only need a straightforward wired barcode scanner without the broader 2D decode set, a simpler desktop model may be enough.
