EFB-Elektronik ECOLAN Cat 6 S/FTP Patch Cable 0.5 m Green K5514.0,5 AWG 27/7 Copper LSZH 250 MHz RJ45

Brand:
EFB
EFBElektronik ECOLAN Patch cable RJ45 (M) to RJ45 K5514.0,5
EFB-Elektronik ECOLAN Cat 6 S/FTP Patch Cable 0.5 m Green K5514.0,5 AWG 27/7 Copper LSZH 250 MHz RJ45
€3.93 inc. VAT
Buy
K5514.0,5
€3.30
€3.93 inc. VAT
Ships from EU stock: 85 item(s)
+ −
Add to wish list Ask a question
Product Code
04:261815
EAN Code
4049759021436
Manufacturer
EFB
Quick Specs
Category
Cat 6 S/FTP
Length / Colour
0.5 m · Green
Conductor
AWG 27/7 Copper
Bandwidth
250 MHz
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

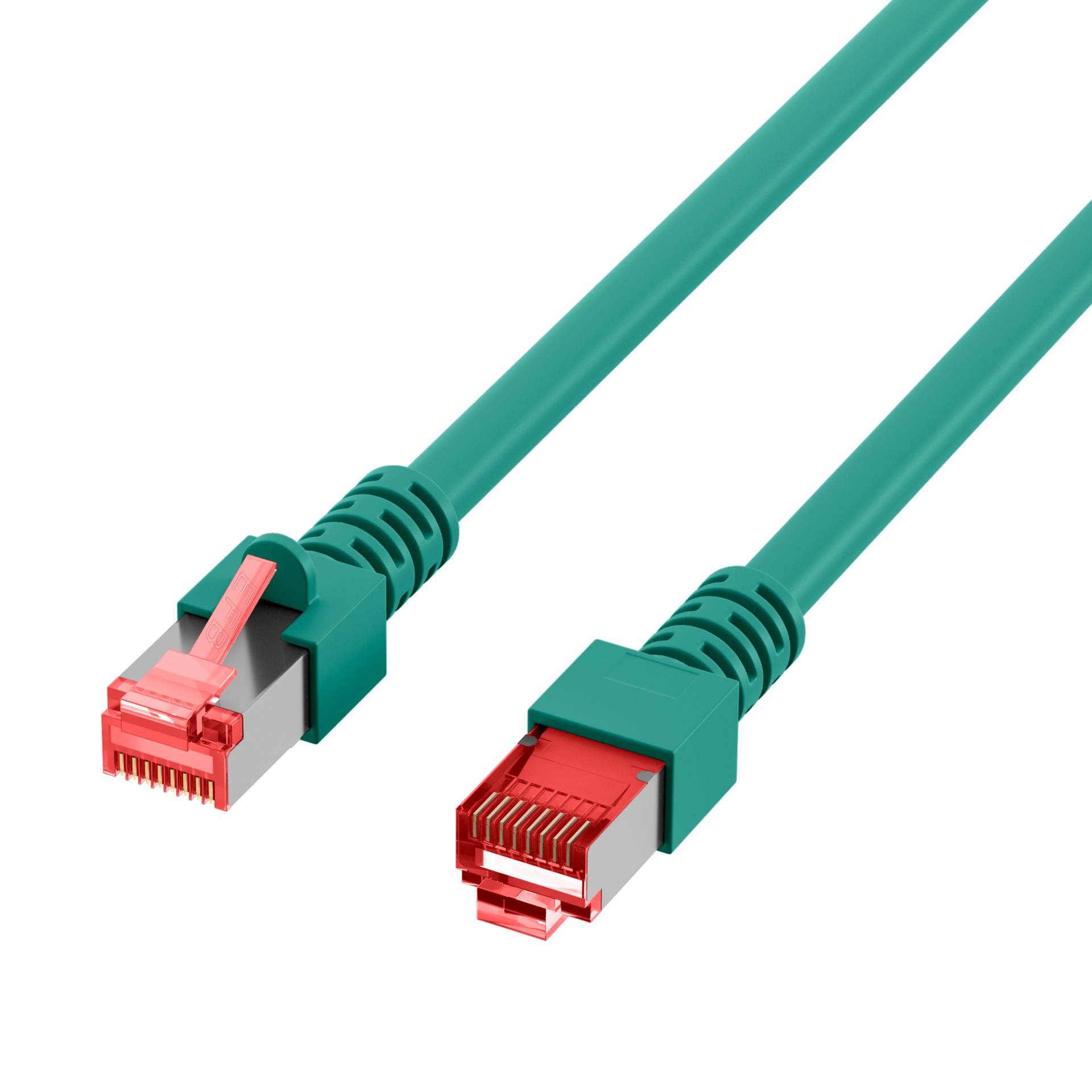

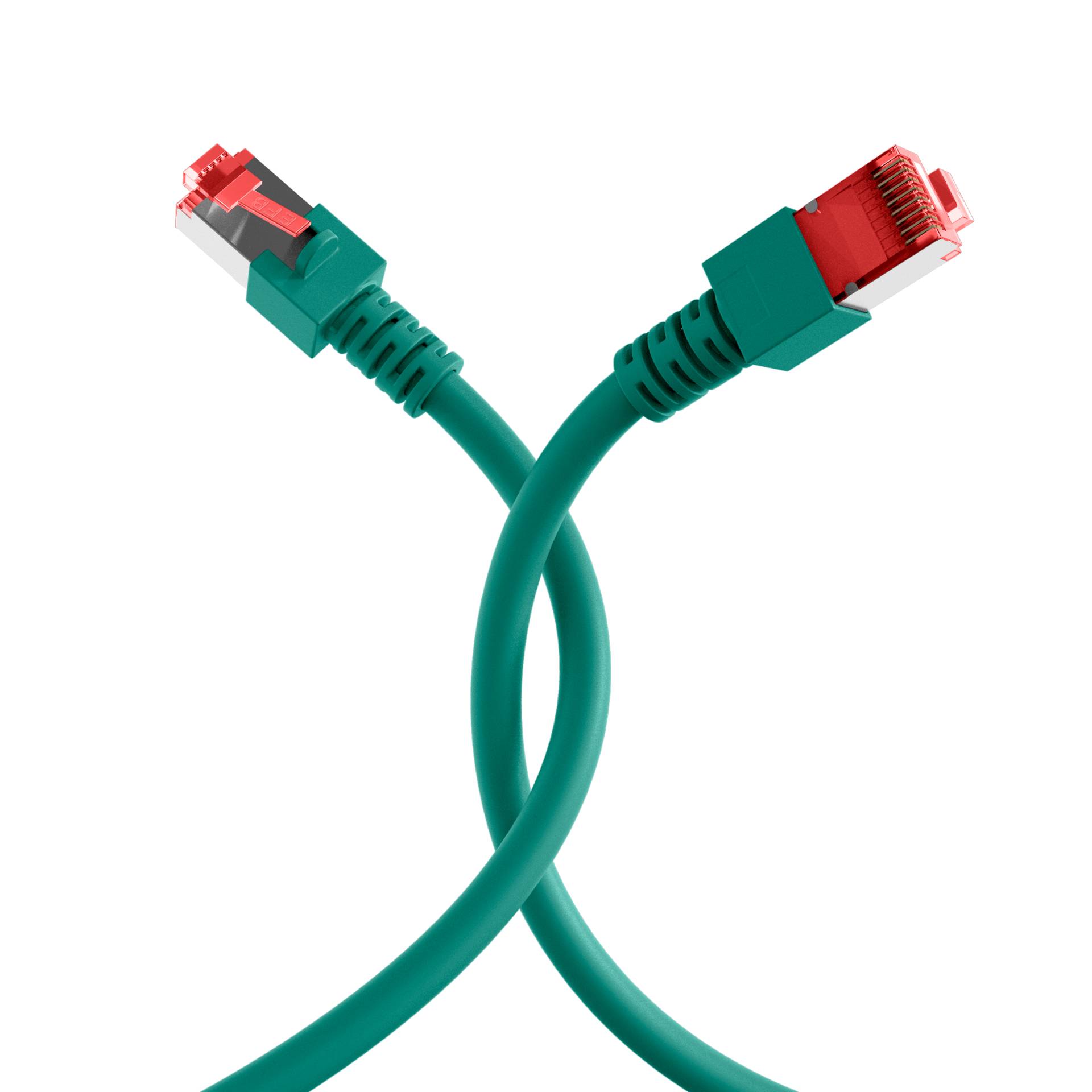

EFB-Elektronik ECOLAN Cat 6 S/FTP PiMF Patch Cable — 0.5 m Green

Cat 6 S/FTP0.5 m Green250 MHzAWG 27/7 Copper
The EFB-Elektronik ECOLAN K5514.0,5 is a 0.5 m green Cat 6 S/FTP patch cable with bare-copper AWG 27/7 conductors and a halogen-free LSZH jacket, built for short rack and desk links between switches, patch panels and servers. Part number K5514.0,5 (EAN 4049759021436) belongs to EFB's ECOLAN range, which is sold in eight colours so you can colour-code VLANs, uplinks or PoE ports. Typically in stock with fast delivery across Cyprus.
Before you buy
This is a Cat 6 (250 MHz) cord: it is ideal for Gigabit Ethernet and short 2.5/5 GbE runs, but for a certified 10 GbE link choose a Cat 6A cord. Shielding only pays off end-to-end — use it with shielded jacks or patch panels; into unshielded ports it works as a normal Cat 6 cable.

Key Features


Full S/FTP PiMF shielding
Every pair sits in its own foil and the bundle is wrapped in a braid, so crosstalk and interference from power cables in a busy rack stay out of the signal.

Halogen-free LSZH jacket
Low-smoke, zero-halogen and silicone-free, with EN 50575 CPR classification — the sensible choice for offices, schools and server rooms.

Colour-coding in 0.5 m
A short 50 cm length for switch-to-panel patching in the same rack, available in eight ECOLAN colours for clear port identification.

Technical Specifications

Identification
Brand EFB-Elektronik (ECOLAN line)
Part Number K5514.0,5
EAN / GTIN 4049759021436
MPN K5514.0,5
Cable
Category Cat 6
Shielding S/FTP PiMF — each pair wrapped in its own foil plus an overall braid, the highest-shielded Cat 6 construction
Bandwidth Up to 250 MHz
Data Rate 1 Gbps (1000BASE-T); EFB rates the cord for up to 5 Gbit/s transmission
Conductor bare copper
Wire Gauge AWG 27/7 — 27-gauge conductor made of 7 fine strands, flexible patch-cord construction
Jacket LSZH halogen-free, silicone-free jacket, 6.2 mm OD
Bend Radius > 31 mm
Connectors
Connectors RJ45 (8P8C) male to RJ45 (8P8C) male
Plugs Shielded RJ45 to IEC 60603-7-5, gold-plated contacts, locking lever protection, length imprint, ≥750 mating cycles
Wiring T568B, 1:1 straight-through
Contact Rating 1 A / 50 V DC
Physical
Length 0.5 m
Colour Green
Operating Temperature −20 °C to +60 °C
Compliance & Support
Standards Cat 6 / Class E (ISO/IEC 11801, EN 50173), EN 50575 CPR cable, IP20
PoE IEEE 802.3af / at and 4PPoE 802.3bt (EFB: suitable for limited lengths)

Frequently Asked Questions

Is the ECOLAN K5514.0,5 suitable for 10 Gigabit Ethernet?
It is a Cat 6 cord tested to 250 MHz, and EFB rates it for up to 5 Gbit/s. It is perfect for 1 GbE and multi-gig 2.5/5 GbE; for guaranteed 10 GbE use a Cat 6A cord.
Does the K5514.0,5 support PoE?
Yes. EFB lists it for IEEE 802.3af/at and 4-pair PoE 802.3bt at limited lengths, so it can power access points, IP cameras and VoIP phones from a PoE switch.
What's the difference between K5514.0,5 and the other ECOLAN colours?
Only the jacket colour. The whole K551x.0,5 series shares the same Cat 6 S/FTP, AWG 27/7, LSZH construction: K5510 grey, K5511 yellow, K5512 red, K5513 blue, K5514 green, K5515 black, K5516 orange and K5519 magenta.
Singular Expert Insight
For rack patching we like the ECOLAN line because it combines full PiMF shielding, bare copper and an LSZH jacket at a price close to basic U/UTP cords. At 0.5 m the green K5514 is ideal for switch-to-panel jumpers; if you are wiring a new 10 GbE core, step up to a Cat 6A cord instead. Browse matching network switches for the other end of the link.

Buyer's Guide

Buy it if
You need a short, fully shielded Cat 6 jumper with LSZH jacket for Gigabit or 2.5/5 GbE racks.
Skip it if
You need certified 10 GbE over the full channel — Cat 6A is the right class.
Also consider
Other ECOLAN colours of the same 0.5 m cord, or the 1 m K551x.1 versions for longer jumps.

Features - EFB - K5514.0,5

Colour
green
Length
0.5m
Standard
CAT6
More Details
Product Code
04:261815
EAN Code
4049759021436
Manufacturer
EFB
