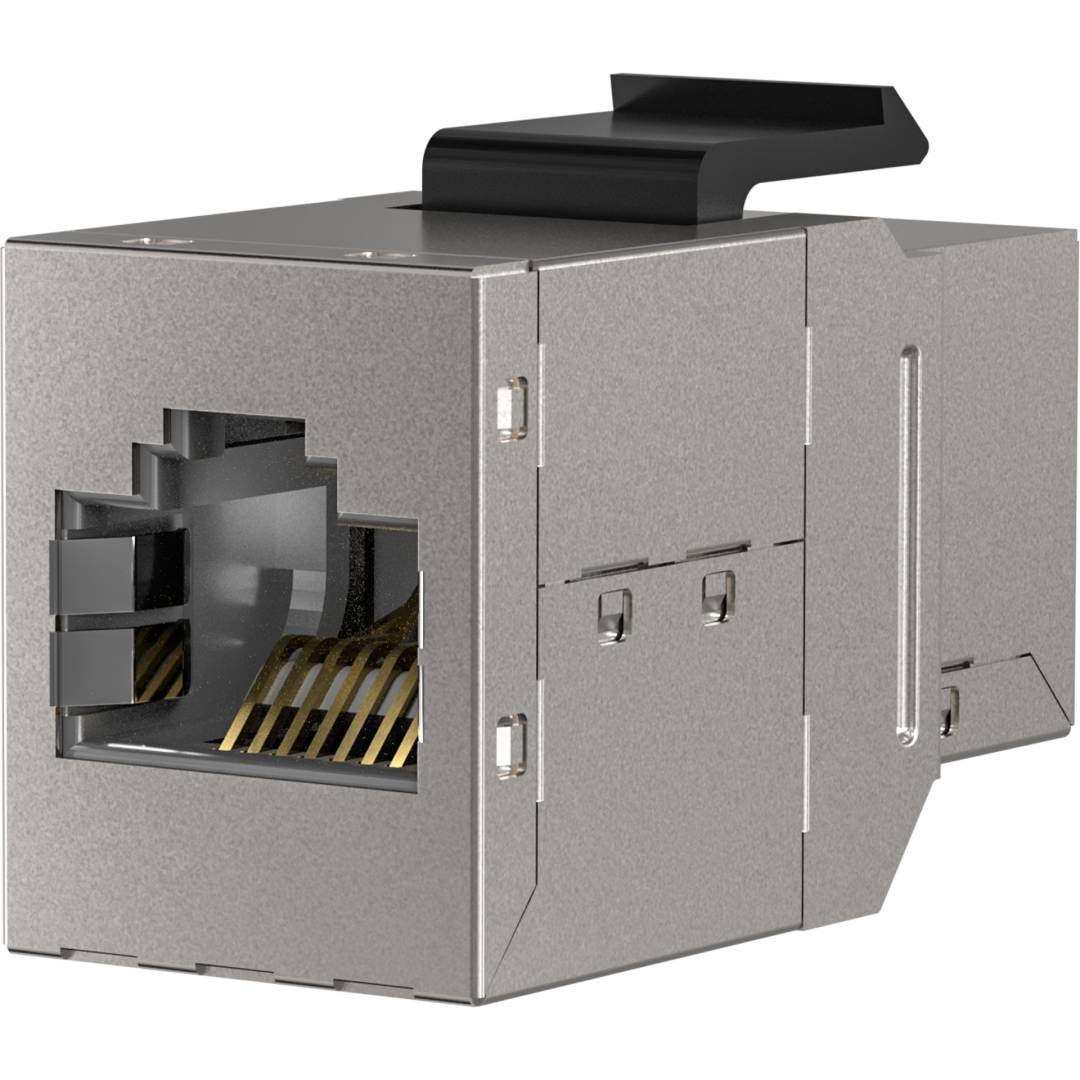

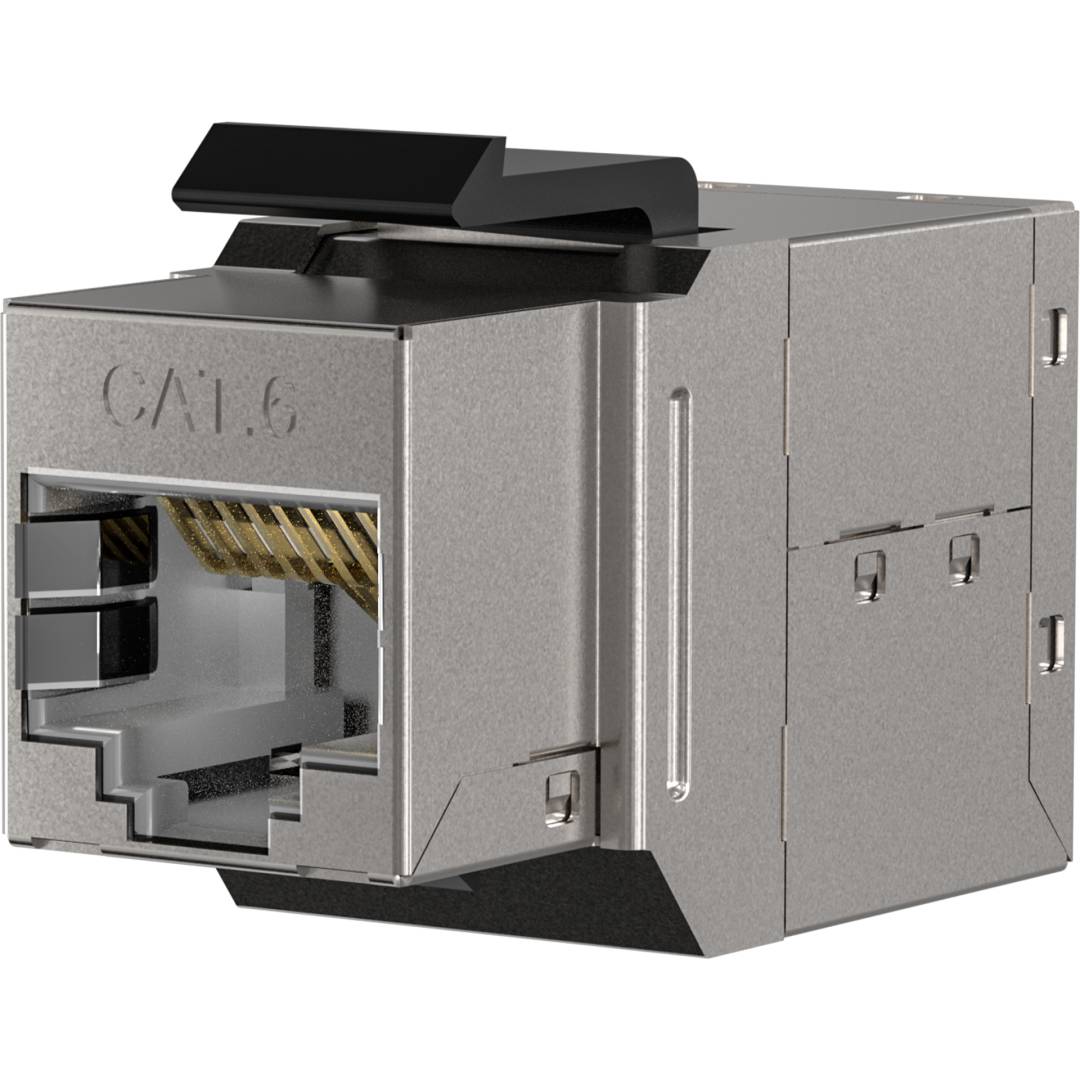

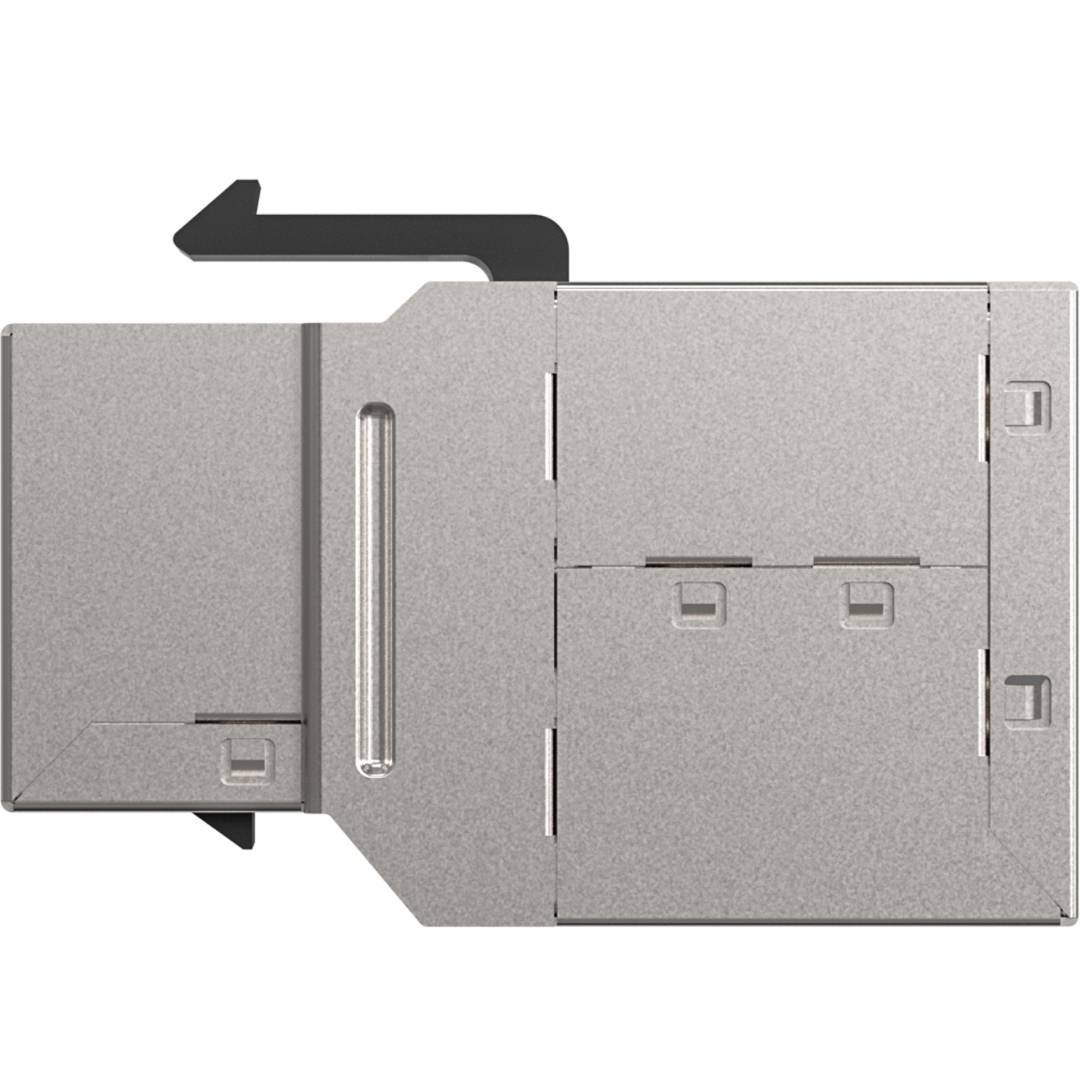

EFB-Elektronik 37486.1 Keystone Coupler RJ45 Cat.6 STP Shielded Female to Female Snap-In Module for Patch Panels and Outlets
Brand:
EFB
EFB-Elektronik 37486.1 Keystone Coupler RJ45 Cat.6 STP Shielded Female to Female Snap-In Module for Patch Panels and Outlets
€6.6 inc. VAT
37486.1
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB-Elektronik 37486.1 — Keystone Coupler RJ45 Cat.6 STP
Cat.6 STPRJ45 F/FKeystone snap-inMetal housing
The EFB-Elektronik 37486.1 is a Cat.6 shielded keystone coupler: a snap-in module with an RJ45 socket on each side, wired 1:1. It clips into any keystone opening — a blank patch panel, a surface box, a wall outlet or a desk socket — and lets you plug a patch cable in at the front and another at the back, with no punch-down work. The housing is metal for shield continuity, and a plastic snap-in latch holds it in the panel. In practice it is the quickest way to create a network port in a panel or box using ready-made patch cables instead of installation cable and tools.
Compatibility — check before buying:
A coupler, not a termination jack: both sides are RJ45 sockets, so you need a patch cable with RJ45 plugs on each side — it does not accept bare installation cable. It fits standard keystone openings; the snap-in latch is made for the usual keystone cut-out. It is Cat.6: for 10 Gbit links choose a Cat.6A coupler. Shielding only works end-to-end when the cables and the panel are shielded and grounded. Send us the panel model and we confirm the fit.
Best For
✓ Blank keystone patch panels
✓ Surface boxes and floor boxes
✓ Wall and desk outlets
✓ Pass-through ports in cabinets
✓ Extending patch cables
✓ Quick temporary installations
Key Features
RJ45 on both sides
A 1:1 female-to-female connection for two patch cables.
Keystone snap-in
Clips into standard keystone openings in panels, boxes and outlets.
Shielded metal body
Metal housing keeps the shield continuous across the coupler.
No tools needed
No punch-down or termination — just plug in the cables.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 37486.1 when a panel or outlet should offer ports without terminating installation cable — for example a pass-through in a cabinet wall or a quick desk port fed by a patch cable. For permanent installation cable, use termination keystones instead. Browse our patch panels and keystone parts and cable accessories. Local support in Cyprus comes with every order.
Buyer’s Guide
Buy it if
You want an RJ45 port in a keystone panel or box using ready-made patch cables.
Skip it if
You need to terminate installation cable — choose a keystone jack instead.
Also consider
EFB E-20092 — Cat.8.1 keystone jack for terminating installation cable.
Features - EFB - 37486.1
More Details
Product Code
CL12769
EAN Code
4049759028091
Manufacturer
EFB
