EFB-Elektronik E-20092 RJ45 Keystone Jack Cat.8 Class I Cat8.1 STP Shielded 2000 MHz 40 Gbit Tool-Free Zinc Die-Cast

Brand:
EFB
EFB E-20092 RJ45 Keystone Jack Cat.8.1 Shielded 2000MHz
EFB-Elektronik E-20092 RJ45 Keystone Jack Cat.8 Class I Cat8.1 STP Shielded 2000 MHz 40 Gbit Tool-Free Zinc Die-Cast
€14.46 inc. VAT
Buy
E-20092
€12.15
€14.46 inc. VAT
Ships from EU stock: 26 item(s)
+ −
Add to wish list Ask a question
Product Code
CL12800
EAN Code
4049759210694
Manufacturer
EFB

Quick Specs

Category
Cat.8 Class I (Cat8.1)
Bandwidth
2000 MHz · 40 Gbit/s
Termination
Tool-free IDC, AWG 24–22
Housing
Zinc die-cast, shielded
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik E-20092 — RJ45 Keystone Jack Cat.8 Class I, Shielded

Cat.8.12000 MHz40 Gbit/sTool-free keystone

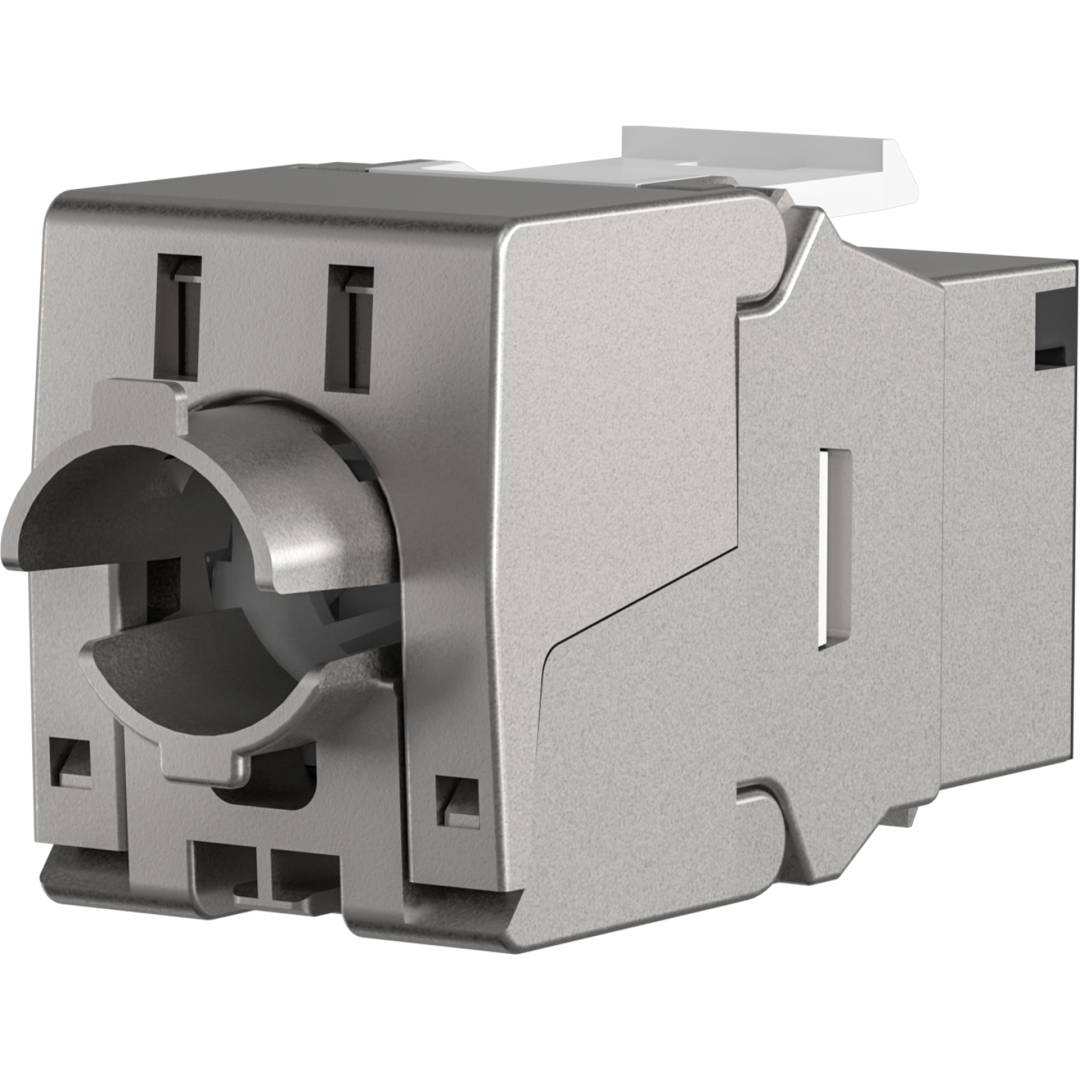

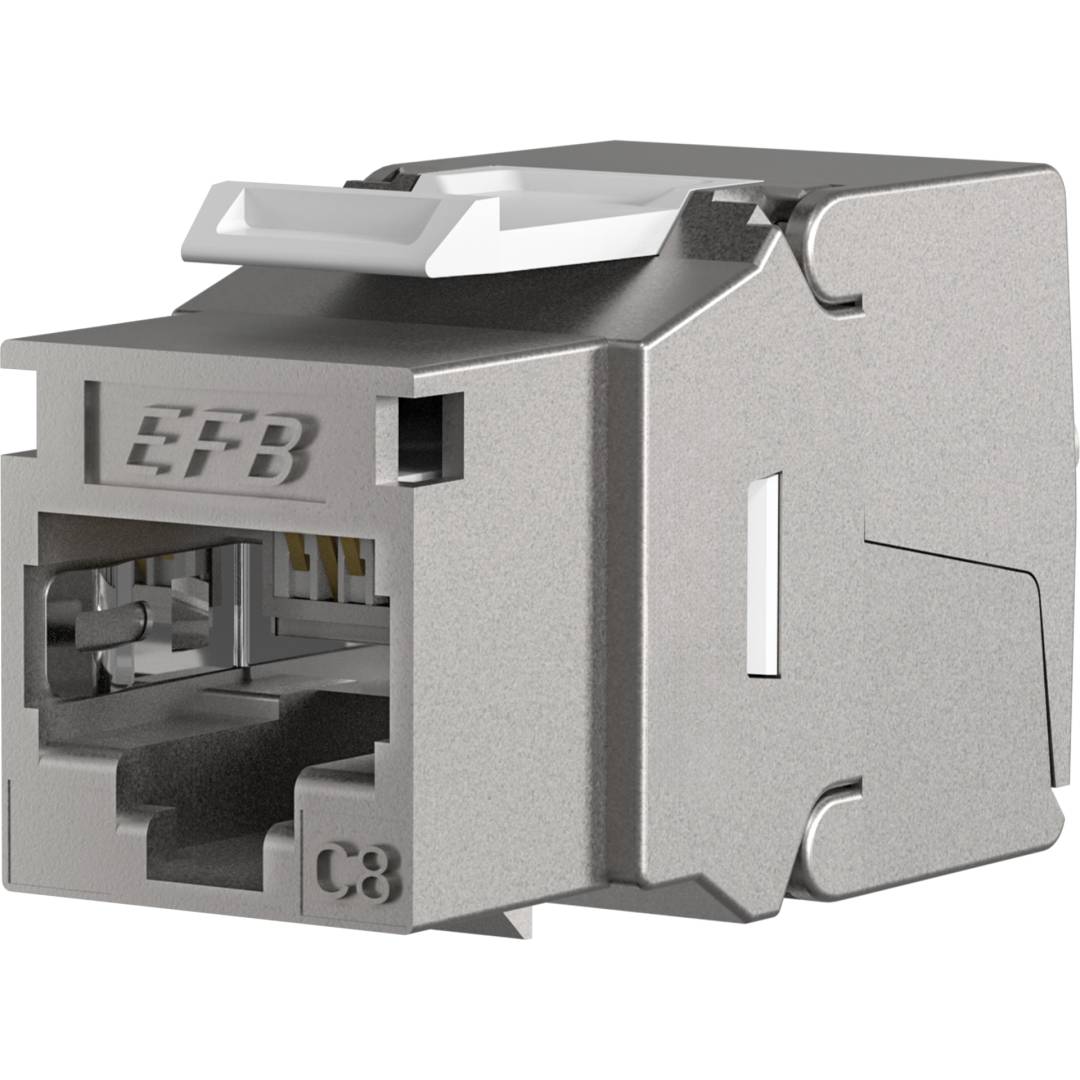

The EFB-Elektronik E-20092 is a shielded RJ45 keystone jack for Cat.8 Class I (Cat8.1) installations, rated for 2000 MHz and 40 Gigabit Ethernet. You terminate the installation cable on its IDC contacts without special tools, then snap the module into a keystone patch panel, wall outlet or floor box. A compact cable organizer handles AWG 24/1 to AWG 22/1 conductors and carries the TIA/EIA 568 A and B colour codes, and a sliding shield contact adapts to different cable diameters up to 8.5 mm. The housing is zinc die-cast with 360° shielding, and the dust cap is captive. EFB states the module is Cat8.1 channel and permanent-link certified.

Compatibility — check before buying:
Built for Cat.8 / Cat.7A cable: the IDC accepts solid or stranded conductors of AWG 24–22 — thinner conductors such as AWG 26 (slim cables) are outside this range. Cable diameter up to 8.5 mm. Cat.8 bandwidth is only reached over short distances with Cat.8 cable and components end-to-end; for 10 Gbit links a Cat.6A keystone is usually enough. It fits standard keystone openings in panels and outlets. Send us your cable type and panel and we confirm.

Best For

✓ Data-centre and server-room cabling
✓ Cat.8 / Cat.7A installation cable
✓ Keystone patch panels
✓ Wall and floor outlets
✓ Future-proof 25/40 Gbit links
✓ 4-pair PoE installations

Key Features


Cat.8 Class I, 2000 MHz
Cat8.1 channel/link-certified module for 40 Gbit Ethernet.

Tool-free termination
IDC contacts and a compact cable organizer — no punch-down tool needed.

Fully shielded
Zinc die-cast body, 360° shield contact that slides to fit the cable diameter.

Complete kit
Cable divider, copper foil, cable ties and a captive dust cap included.

Technical Specifications

Identification
Brand EFB-Elektronik
Product RJ45 Keystone STP, Cat.8 Class 1, 2000 MHz
Part Number E-20092
EAN / GTIN 4049759210694
Termination IDC, tool-free
Performance
Category Cat.8 Class I (Cat8.1)
Bandwidth 2000 MHz
Ethernet Up to 40 Gbit/s
PoE 4PPoE certified
Current Rating 2 A
Contact Resistance <20 mΩ
Termination
Method IDC, no special tool
Conductors AWG 24–22, solid or stranded
Cable Diameter Up to 8.5 mm
Colour Codes TIA/EIA 568 A and B (printed on the organizer)
Shield/Strain Relief Separate
Mechanical
Connector RJ45 8P8C socket
Mounting Keystone (panels and outlets with keystone openings)
Housing Zinc die-cast
Shielding 360°, sliding shield contact
Dust Cap Yes, captive
Mating Cycles ≥750
Environment
Operating Temperature −10 to 60 °C
Flammability UL94 V-0
Insulation Resistance ≥500 MΩ
In the Box

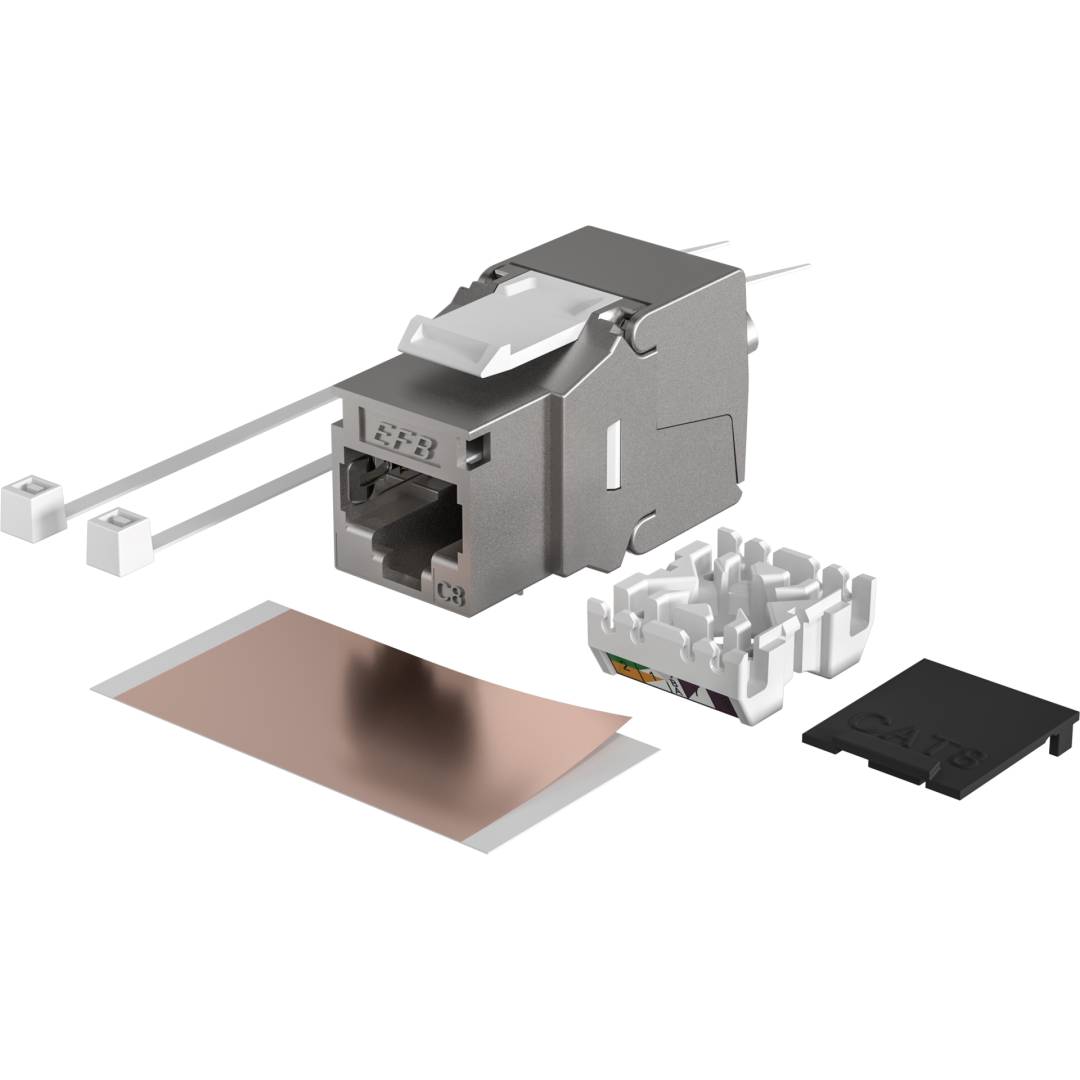

Included 1× RJ45 keystone, cable divider, 1× copper foil, 2× cable ties, captive dust cap, mounting instructions (English)
Not Included Patch panel or outlet, installation cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Do I need a punch-down tool?
No. The E-20092 terminates without special tools; you lay the conductors in the organizer and close the module.
What cable does it take?
Solid or stranded conductors of AWG 24–22, with an outer cable diameter up to 8.5 mm.
Is Cat.8 necessary for my office?
Usually not. Cat.8 targets short, high-speed links in data centres. For desks and 10 Gbit, Cat.6A is enough.
Will it fit my panel?
It is a standard keystone module. Send us the panel model and we confirm the fit.
Singular Expert Insight
We suggest the E-20092 for server rooms and data-centre patching where Cat.8 or Cat.7A installation cable is used and 25/40 Gbit links are planned. For general office cabling a Cat.6A keystone is the more economical choice. Browse our patch panels and keystone parts and network cables. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You terminate Cat.8 or Cat.7A installation cable in keystone panels or outlets.

Skip it if

Your cable uses AWG 26 or thinner conductors, or Cat.6A performance is all you need.

Also consider

EFB 37486.1 — Cat.6 keystone coupler for ready-made patch cables.
