EFB M6 Captive Nuts for Front Mounting — 50 Sets with Screws and Washers
50 setsM6 threadFront mountingNo tool needed

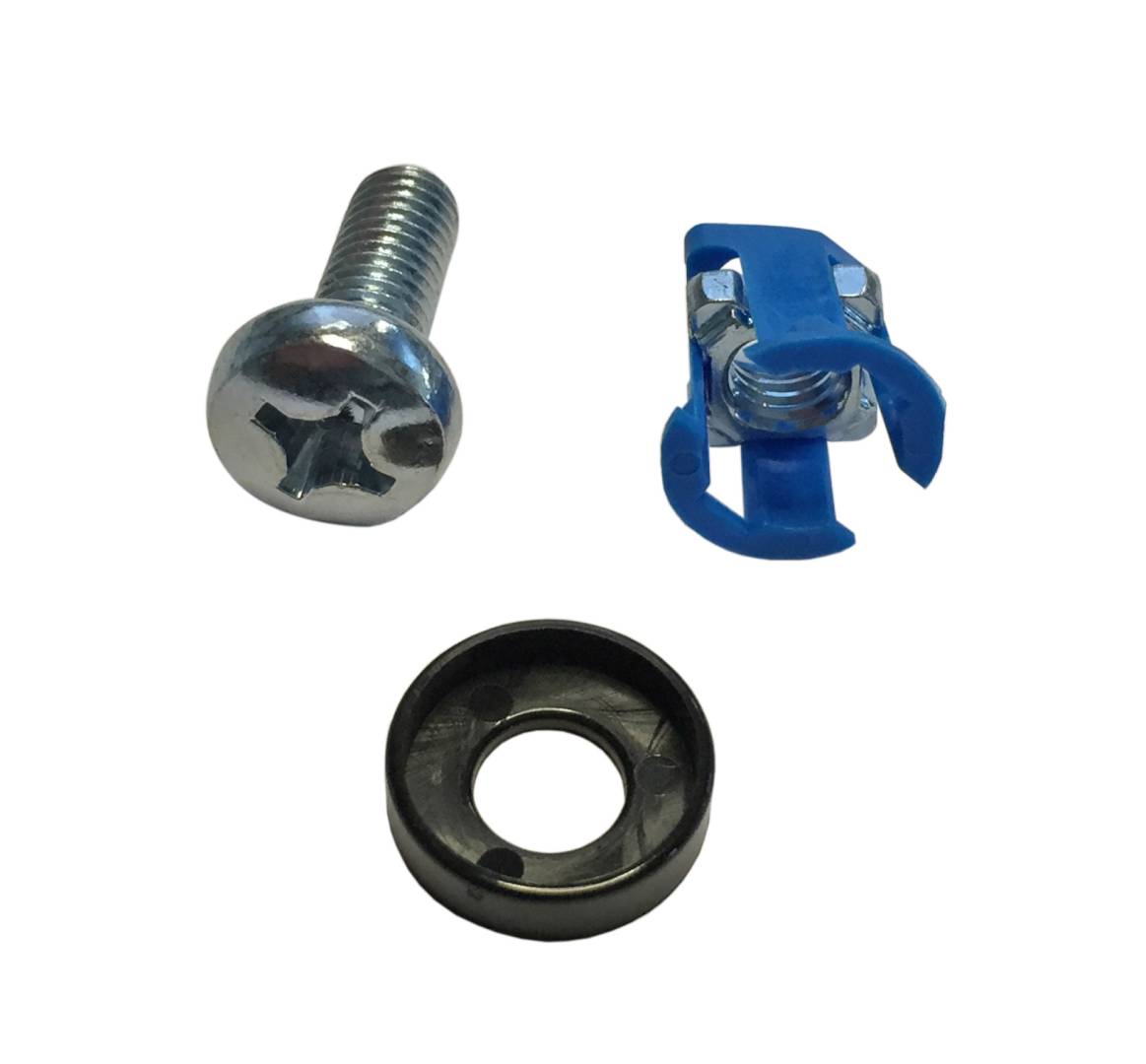

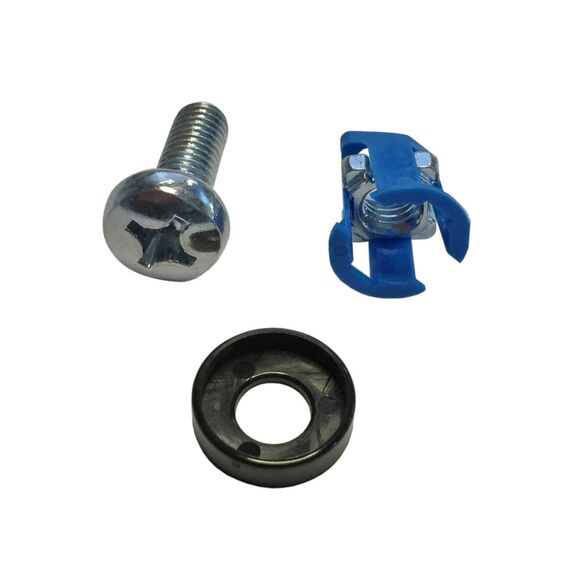

The EFB 691102 is a set of 50 M6 captive nuts for front mounting in 19-inch racks. Each set includes a cage nut, an M6 × 20 mm Phillips (PH3) screw and a washer — enough to mount around a dozen devices, panels or shelves at four points each.

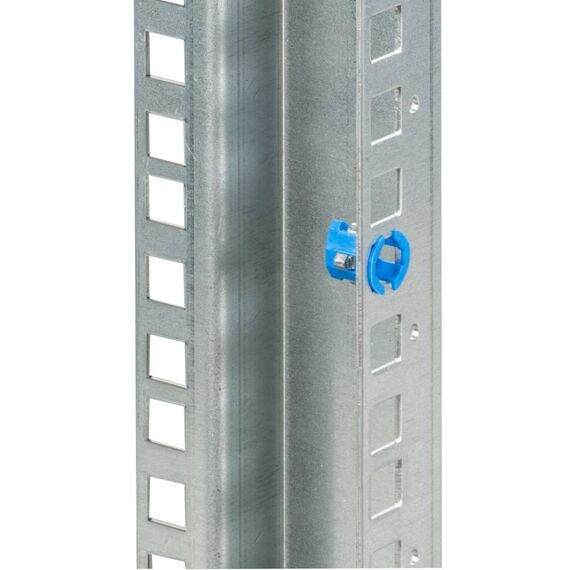

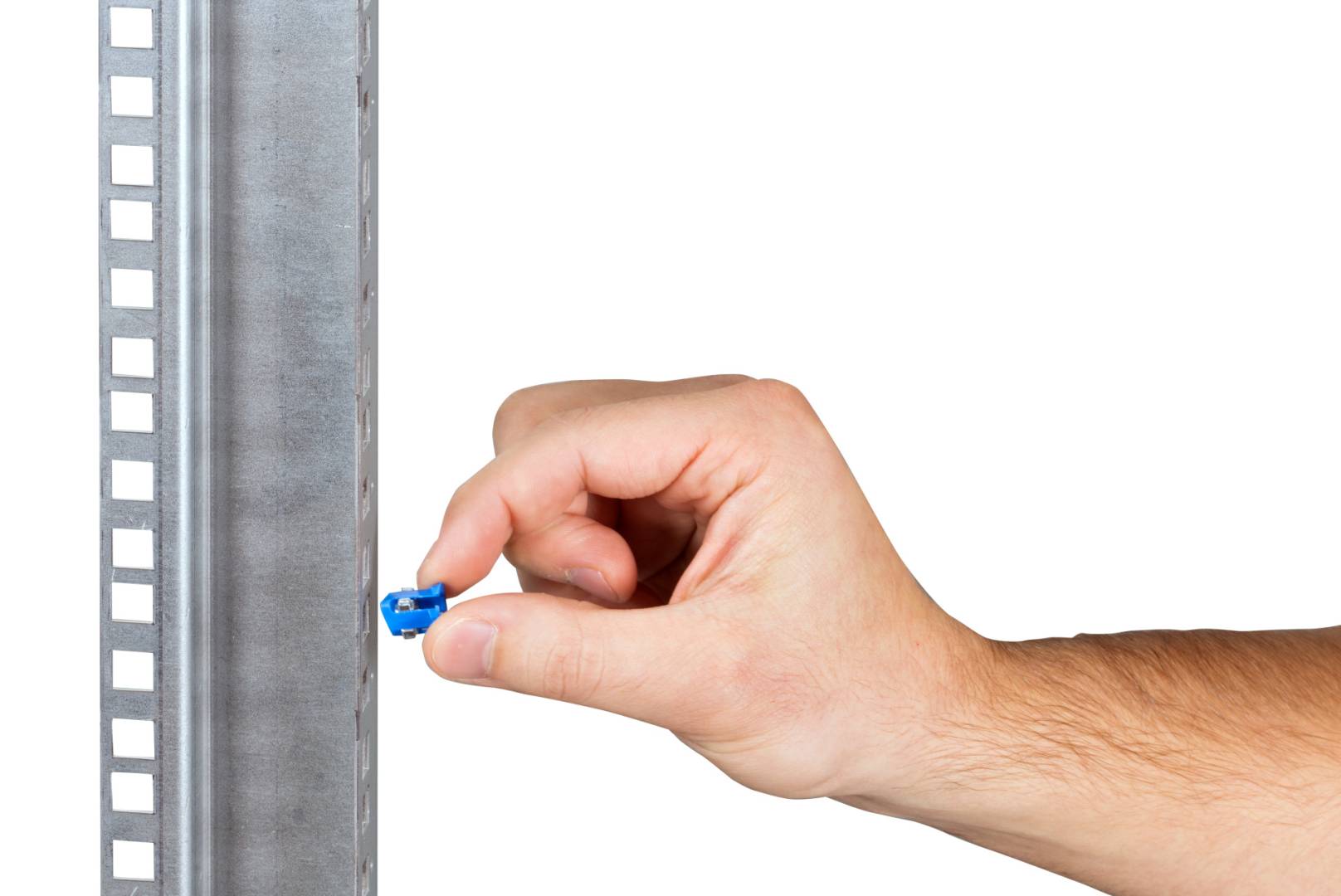

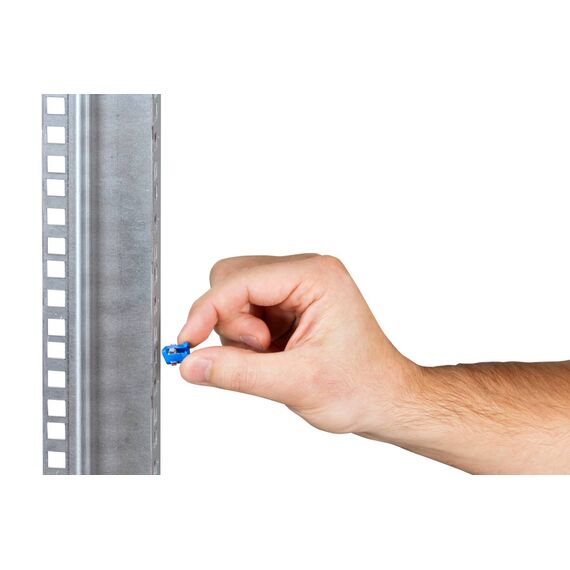

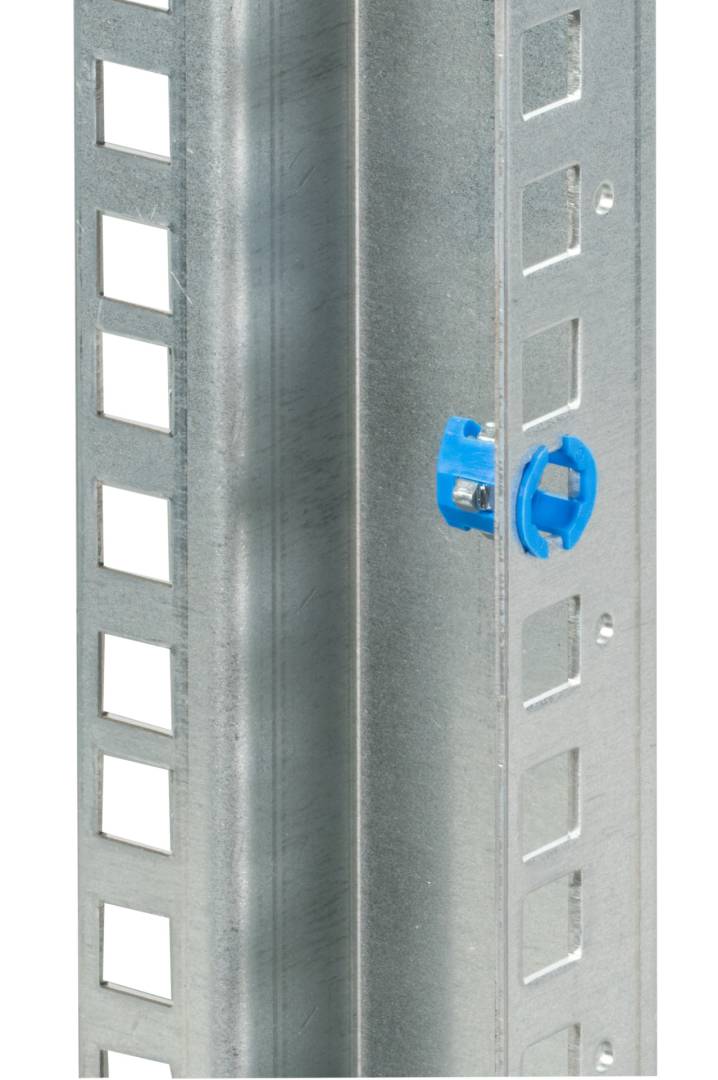

Unlike classic cage nuts, which have to be squeezed in from the back of the rail, these nuts snap into the square hole of the 19-inch profile from the front. EFB sums it up as no more wounded fingers. The set is made of steel and nylon.
Before you order: These are M6 captive nuts for square-hole 19-inch rails. They do not fit rails with round or pre-threaded holes.
What's in the Box
- 50 × M6 captive nuts for front mounting
- 50 × M6 × 20 mm screws, Phillips PH3
- 50 × washers
What It Means in Practice
- Mount patch panels, shelves, switches and blanking panels from the front of the rack
- No cage-nut tool or screwdriver levering needed to fit the nuts
- Enough hardware for about 12 devices with four screws each
- Useful as a spare set for racks whose original kit is lost
What Will Not Work
- They do not fit M5 equipment or M5 rail holes
- Not for round-hole or threaded rails
- Not a replacement for rail kits on heavy servers
- The screws are 20 mm long; very thick ears or brackets may need longer screws
Key Features
Front snap-in
The nut clips into the square hole from the front side.
Complete sets
Each nut comes with a matching screw and washer.
M6 × 20 mm PH3 screws
Standard rack screws with Phillips drive.
50 pieces
Enough for multiple devices or a full rack refresh.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Fitting cage nuts is the most annoying part of rack work, especially when the space behind the rail is already full of cables. Front-mount captive nuts solve that and come with matching screws, so one pack covers a whole small rack. See our rack accessories for shelves and panels to mount with them.
✓ Buy it if your rack uses square-hole rails and M6 hardware and you want easier installation.
✕ Skip it if your equipment and rails use M5, or your rails are threaded.
→ Also consider a StarTech M6 screw and cage nut kit if you prefer classic cage nuts.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
