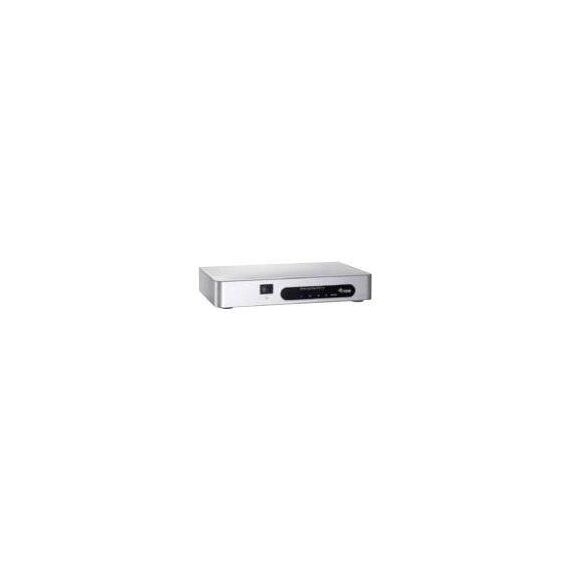

Equip 332714 4-Port HDMI 1.4 Splitter 1 In 4 Out 4K 30 Hz with Power Adapter Black

Brand:
Equip
Equip 4Port HDMI Splitter Videoaudio switch 4 x HDMI 332714
Equip 332714 4-Port HDMI 1.4 Splitter 1 In 4 Out 4K 30 Hz with Power Adapter Black
€70 inc. VAT
Buy
332714
€58.82
€70.00 inc. VAT
Ships from EU stock: 252 item(s)
+ −
Add to wish list Ask a question
Product Code
04:85666
EAN Code
4015867161951
Manufacturer
Equip
Quick Specs
Type
Active HDMI 1.4 splitter
Ports
1 in → 4 out
Max resolution
4K @ 30 Hz
Power
5 V / 1 A adapter
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Equip 332714 4-Port HDMI 1.4 Splitter, 4K 30 Hz

Aluminium 1x4 HDMI splitter with auto EDID for signage and classrooms.
1 in → 4 out4K @ 30 HzAuto EDID5 V adapter

The Equip 332714 is a 4-port HDMI 1.4 splitter that mirrors one HDMI source to four displays simultaneously at up to 4K 30 Hz. It is designed for digital signage, classrooms, shops and waiting areas that show the same content on several screens.

It offers auto EDID, full 3D and Deep Color up to 48-bit, and passes DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, AC3 and DSD audio. The black aluminium unit runs from the included 5 V/1 A adapter.

Key Features


Four outputs
Sends one HDMI source to four displays at the same time at up to 4K 30 Hz or 1080p 60 Hz.

Auto EDID
Negotiates a common format with the connected displays for reliable start-up in mixed installations.

Rugged aluminium housing
179 x 68 x 20 mm black aluminium case rated for 0 to 60 °C operation.

Technical Specifications

Identification
Part Number 332714
EAN / GTIN 4015867161951
MPN 332714
Brand Equip
Video & Audio
Ports 1x HDMI in, 4x HDMI out
Operation Simultaneous mirroring to all outputs
HDMI version 1.4
Max resolution 4K @ 30 Hz
Bandwidth 2.97 Gbps (as listed by Equip)
HDCP Not stated by Equip
EDID Auto EDID
3D & colour Full 3D · Deep Color up to 48-bit
Audio DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, AC3, DSD
Power
Power supply 5 V / 1 A adapter (included)
Physical
Housing Aluminium, black
Dimensions 179 x 68 x 20 mm
Weight 384 g
Operating temperature 0 to 60 °C
Certifications RoHS, CE

Frequently Asked Questions

Can the Equip 332714 show different content on each screen?
No. It is a splitter, so all four outputs show the same image from the single HDMI source.
What is the difference between the Equip 332714 and 332712?
They share the same HDMI 1.4 4K 30 Hz platform with auto EDID; the 332714 has four outputs, the 332712 has two.
Is the 332714 suitable for 4K HDR streaming devices?
It is limited to HDMI 1.4 at 4K 30 Hz and Equip does not state HDCP 2.2 or HDR, so it is best used with PCs, media players and 1080p content.
Singular Expert Insight
A cost-effective four-screen splitter for signage and classrooms running 1080p or 4K 30 Hz content from a PC or media player. For 4K 60 Hz HDR on four screens the Manhattan 208369 or DIGITUS DS-45323 are the modern alternatives. Pair it with our PC monitors for multi-screen displays.
✓ Buy it if you need to mirror a PC or media player to four screens at 1080p or 4K 30 Hz.
✕ Skip it if your source uses HDCP 2.2 or you need 4K 60 Hz HDR.
→ Also consider Manhattan 208369 or DIGITUS DS-45323 (4K60 HDR, 1x4).
