Equip E2000/APC to LC/APC Fibre Optic Cable OS2 Single-mode Duplex 9/125µm LSZH 3m Yellow
Brand:
Equip
Equip E2000/APC to LC/APC Fibre Optic Cable OS2 Single-mode Duplex 9/125µm LSZH 3m Yellow
€39.67 inc. VAT
255103
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

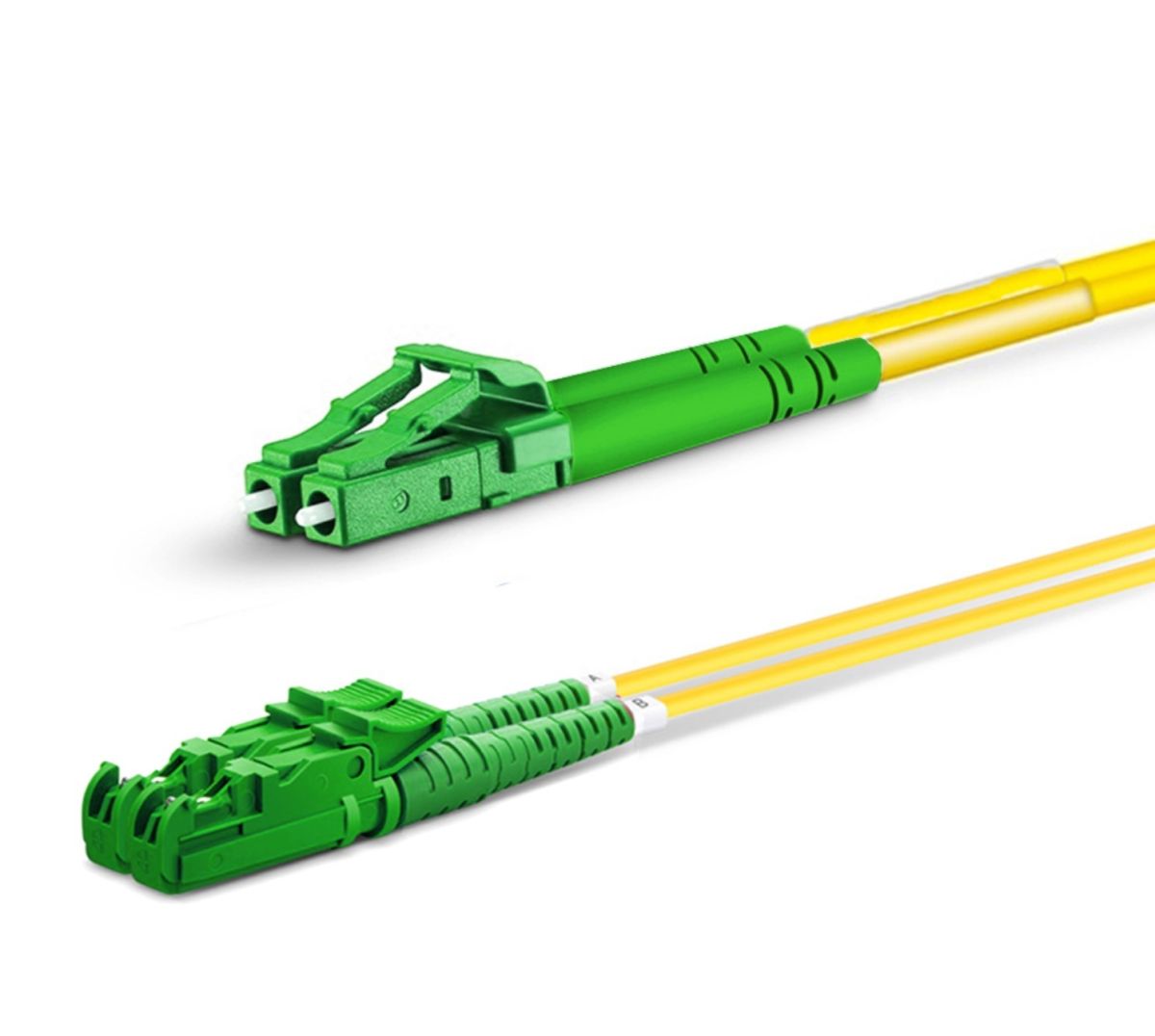

Equip E2000/APC to LC/APC OS2 Single-mode Duplex Fibre Cable, 3 m
OS2 9/125 µmE2000/APC–LC/APCDuplex3 m · LSZH
The Equip 255103 is a 3 m single-mode duplex fibre cable with E2000/APC and LC/APC connectors on OS2 9/125 µm fibre, made for APC-terminated links in telecom rooms, FTTH and PON installations, data centres and carrier racks.
Both ends use APC (angled) polish, the green-coded connector style used wherever low back-reflection matters, such as GPON/XGS-PON, RF-over-fibre and carrier hand-off panels. The E2000 end has a built-in spring-loaded shutter that protects the ferrule from dust and laser light, which is why it is common on carrier and telecom panels.
Before you order: APC only: E2000/APC and LC/APC here are angled (APC) connectors. They must mate with APC adapters, panels and equipment — plugging an APC connector into a UPC (blue) port causes high loss and can damage the ferrule end-faces.
What's in the Box
- 1 × Equip E2000/APC–LC/APC OS2 single-mode duplex fibre cable, 3 m
What It Means in Practice
- Duplex means two fibres: one carries transmit, the other receive, so it serves a normal two-fibre single-mode link.
- At 3 m it covers links inside one rack or between neighbouring racks.
- Single-mode OS2 fibre carries 1310/1550 nm signals over kilometres, so the cable length is never the limit — the optics and the connectors at each end are.
- Keep dust caps on until the moment you plug in; APC end-faces should be inspected or cleaned before mating, especially on PON and CATV systems.
What Will Not Work
- UPC (blue) single-mode ports or adapters — the angled APC end-face does not mate correctly with a flat UPC one.
- Multimode equipment (OM3/OM4, 850 nm SX/SR optics) — this is single-mode fibre.
- Ports that are not E2000/APC or LC/APC — e.g. SC/APC needs a different cable.
- Outdoor or direct-burial installation — the LSZH jacket is intended for indoor use.
Key Features
OS2 single-mode
9/125 µm fibre for long-reach 1310/1550 nm links, from in-building runs to carrier connections.
APC polish
Angled end-faces cut back-reflection, the requirement for PON, FTTH and RF video over fibre.
Mixed connectors
E2000/APC to LC/APC bridges two connector systems directly, without an extra adapter and its loss.
LSZH jacket
Low-smoke, zero-halogen yellow sheath, the usual single-mode colour code, for safer indoor installation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Equip 255103 is a specialised single-mode cable: OS2 fibre, and APC connectors at both ends. It is the right part for APC panels, PON equipment and telecom hand-offs; the most common mistake is ordering it for UPC ports. For the active equipment, see our switches with SFP/SFP+ ports.
✓ Buy it if both ends of your link are E2000/APC / LC/APC APC ports on single-mode equipment about 3 m apart.
✕ Skip it if your ports are UPC (blue) or multimode, or you need a standard duplex SFP link.
→ Also consider a UPC single-mode cable for standard LX/LR SFP links, or a different length of the same APC cable.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 255103
Colour
yellow
Length
3m
More Details
Product Code
04:572404
EAN Code
4015867243404
Manufacturer
Equip
