Equip EZFS-10 10-inch 1U Fixed Rack Shelf, 150 mm Deep, Vented Steel, Light Grey for Compact 254 mm Racks
Μάρκα:
Equip
Equip EZFS-10 10-inch 1U Fixed Rack Shelf, 150 mm Deep, Vented Steel, Light Grey for Compact 254 mm Racks
€16.12 inc. VAT
EZFS-10-1-15-G
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Equip EZFS-10-1-15-G — 10" 1U Fixed Shelf, 150 mm Deep, Light Grey
10" racks1U150 mm deepLight Grey

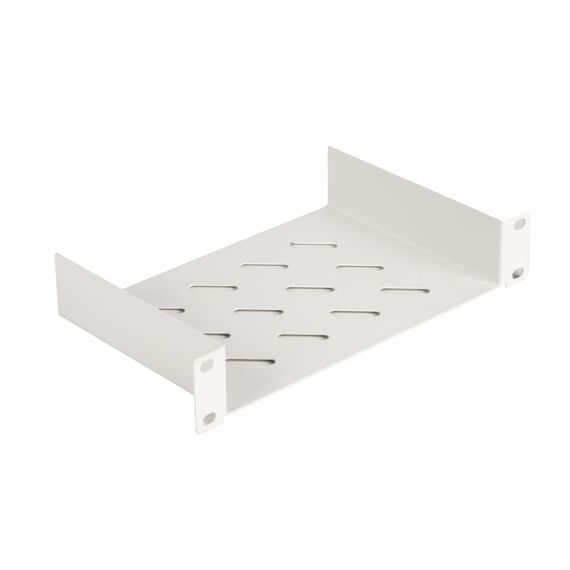

The Equip EZFS-10-1-15-G is a 1U fixed shelf for 10-inch (254 mm) racks with a physical depth of 150 mm, made from 1 mm steel in light grey. It gives devices without rack ears, such as a router, modem, PoE injector or small switch, a stable place in compact wall or desktop racks.

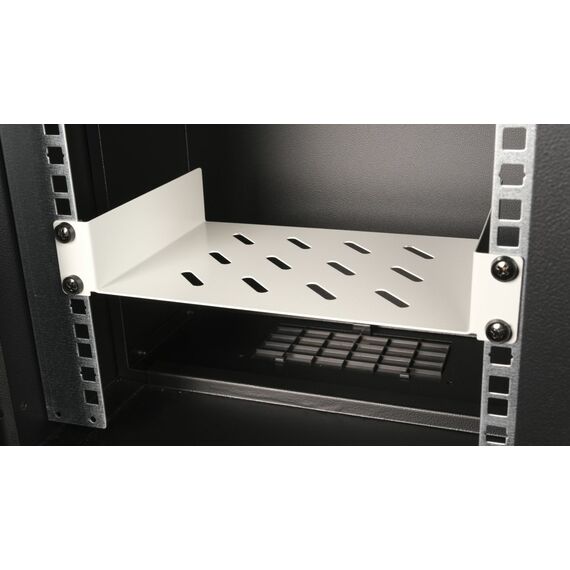

The shelf floor has ventilation slots so that heat from the device can escape, and the side flanges fix to the front 10" rails.
Before you order: This is a 10-inch shelf. It will not fit 19-inch racks. Equip does not include mounting screws, so plan on 4 × M6 screws and cage nuts.
What's in the Box
- 1 × Equip 10" 1U fixed shelf, 150 mm, light grey
- No mounting kit, manual or guide is included (per Equip). Use an M6 screw and cage nut set.
What It Means in Practice
- The 150 mm depth takes typical SoHo routers, fibre ONTs and compact switches. Measure deeper devices first.
- The vented floor lets air move under the device. Leave space above it too.
- The shelf occupies one rack unit. At 40 mm tall it sits cleanly between other 1U items.
- Equip does not publish a load rating for this grey version. For a 1 mm steel front-mounted shelf, use it for light network devices.
What Will Not Work
- 19-inch racks.
- Devices deeper than about 150 mm, or heavy items such as UPS units.
- Mounting without hardware, since there is no kit in the box.
- Sliding out. It is a fixed shelf.
Key Features
Vented floor
Slots let device heat escape.
Compact 150 mm
Made for shallow 10" racks.
1U height
Keeps small racks compact.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A 10-inch fixed shelf turns a small rack into a proper home for the router, ONT and power bricks that otherwise sit on the floor. Keep to light devices and it will serve for years. Looking for the router itself? See our routers range.
✓ Buy it if you need a place for a router, modem or small switch in a light grey 10" rack.
✕ Skip it if your rack is 19", or the device is deep or heavy.
→ Also consider an M6 fixing set, since screws are not included.
Send us the device model and we will check that it fits the 150 mm depth.
Colour
grey
Χαρακτηριστικά
Product Code
04:474401
EAN Code
4015867232736
Manufacturer
Equip
