Equip 119473 HDMI 2.1 Active Optical HDMI Cable Micro HDMI with Detachable Type A Heads 8K60 Hz 20 m

Brand:
Equip
Equip HDMI HS Ethernet 2.1 DA DAOC 8K60Hz Cable 119473
Equip 119473 HDMI 2.1 Active Optical HDMI Cable Micro HDMI with Detachable Type A Heads 8K60 Hz 20 m
€123.09 inc. VAT
Buy
119473
€103.44
€123.09 inc. VAT
Ships from EU stock: 72 item(s)
+ −
Add to wish list Ask a question
Product Code
04:549735
EAN Code
4015867242650
Manufacturer
Equip
Quick Specs
Type
HDMI 2.1 active optical cable
Connectors
Micro HDMI (D) + detachable HDMI A heads
Video
8K 60 Hz · 4K 120 Hz · 48 Gbps
Length
20 m · black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Equip 119473 HDMI 2.1 Detachable Active Optical HDMI Cable, 20 m

Pull the slim cable through conduit on its micro HDMI plugs, then clip on the full-size HDMI heads.
8K @ 60 Hz48 Gbps20 m AOCDetachable heads

The Equip 119473 is a 20 m HDMI 2.1 active optical cable (AOC) that carries 8K at 60 Hz and 4K at 120 Hz at up to 48 Gbps for projectors, displays and AV installations. It terminates in micro HDMI (Type D) plugs with detachable standard HDMI (Type A) heads, so the same cable connects cameras, laptops and full-size HDMI equipment.

The small plugs pass through tight holes and conduits before the Type A heads are fitted, which simplifies installation in meeting rooms, lecture halls and home cinemas. Optical fibre inside the cable keeps the signal stable over the full 20 m without external boosters.

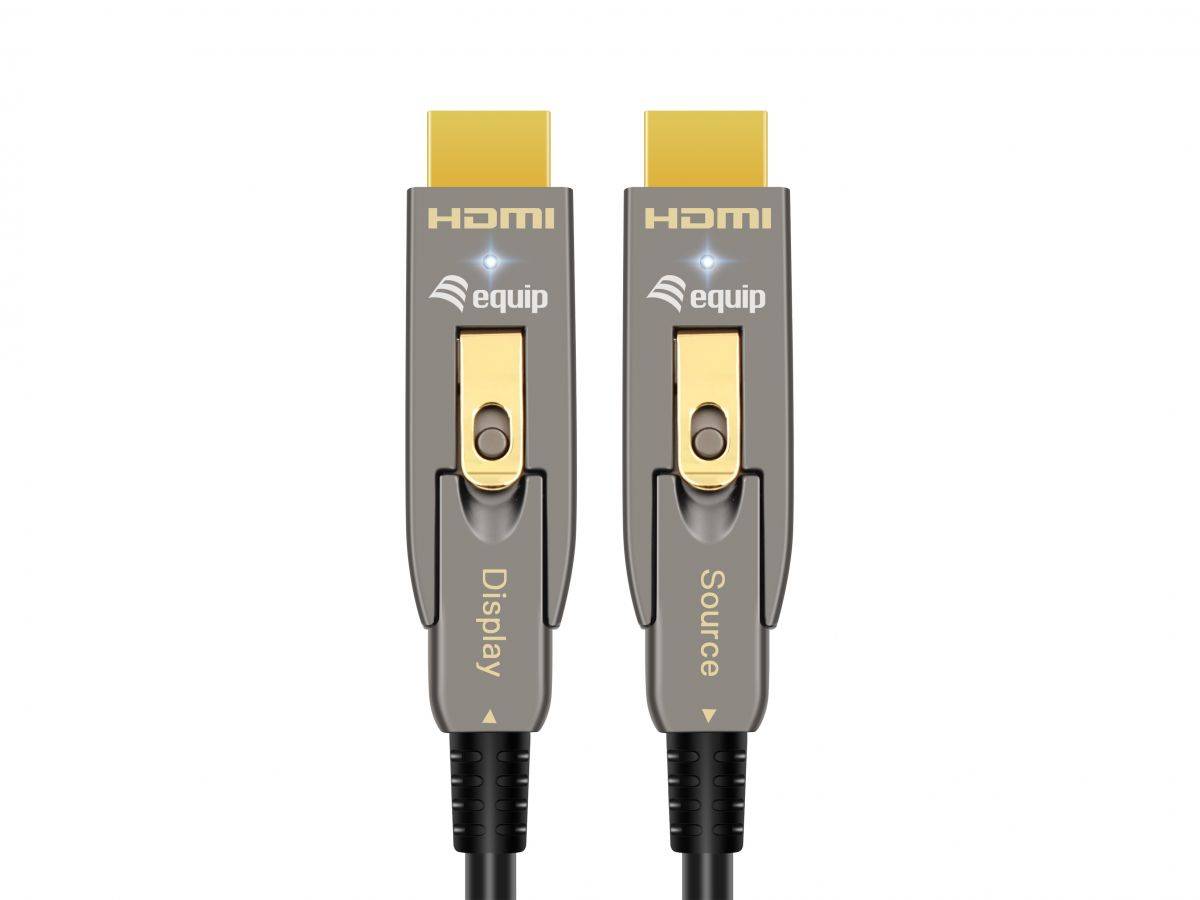

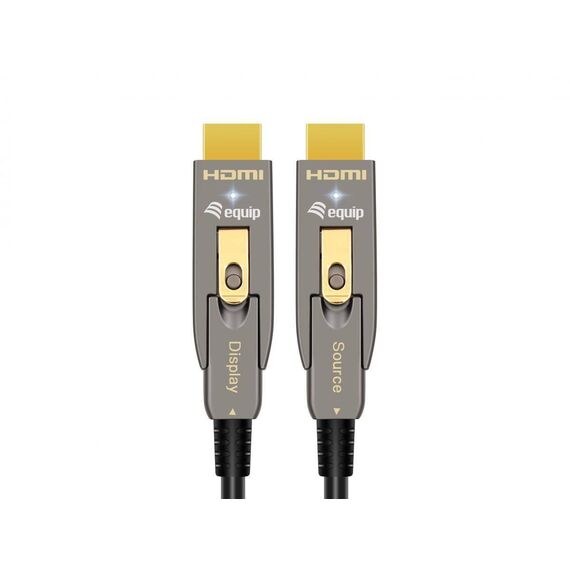

Compatibility Note: Active optical HDMI cables are directional — connect the end marked for the source to the player or PC and the other end to the display.

Key Features

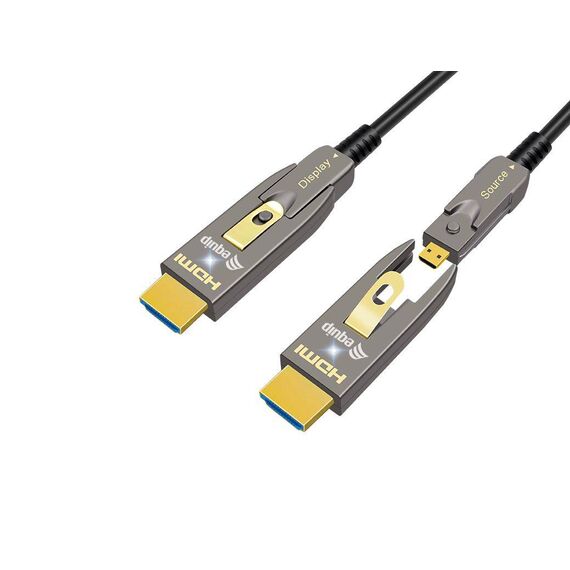

Detachable connector heads
The removable Type A heads let installers route the cable on its slim micro HDMI plugs, and the cable can also connect micro HDMI devices such as cameras directly.

Optical signal transmission
Fibre carries the video data over 20 m without the loss and interference that affect long copper HDMI cables.

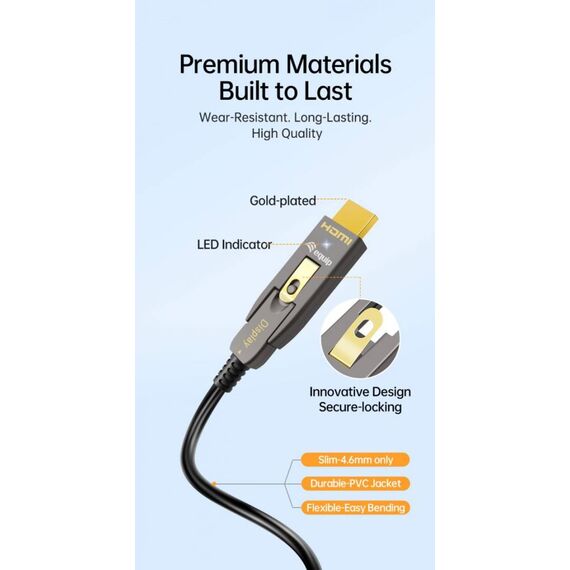

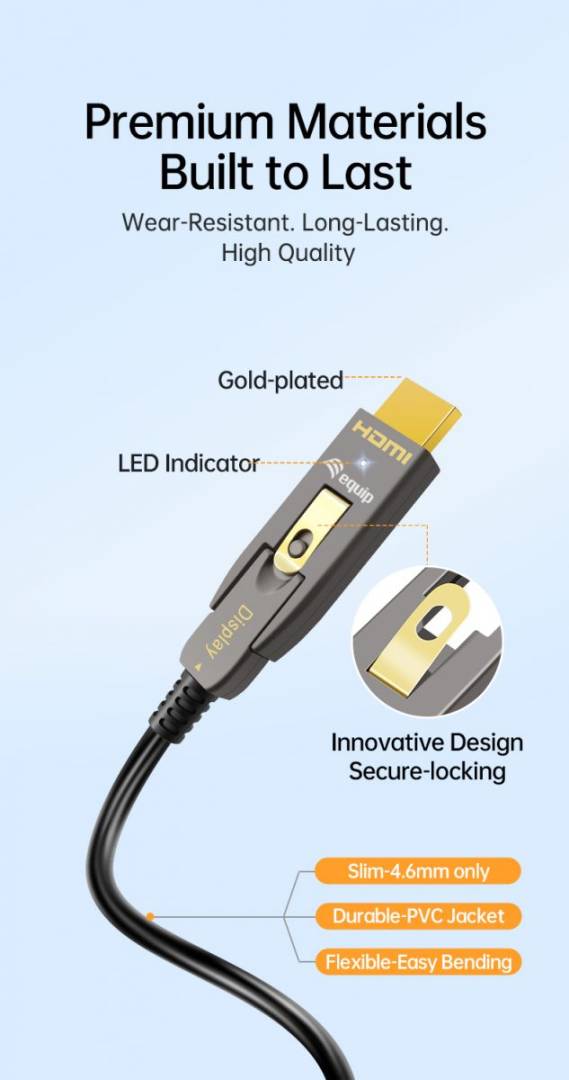

Robust connectors
Zinc alloy housings and gold-plated contacts protect the plugs during installation and repeated connections.

Technical Specifications

Identification
Part Number 119473
EAN / GTIN 4015867242650
MPN 119473
Brand Equip
Video
HDMI Version HDMI 2.1
Maximum Resolution 8K at 60 Hz · 4K at 120 Hz
Bandwidth Up to 48 Gbps
Construction
Cable Type Active optical cable (AOC) — directional
Connectors Micro HDMI (Type D) male plugs with detachable HDMI Type A male heads
Connector Housing Zinc alloy, gold-plated contacts
Length 20 m
Colour Black
Physical & Compliance
Weight 0.58 kg
Package Contents HDMI 2.1 Detachable Type D + A Active Optical Cable, 20 m
Compliance CE, RoHS, REACH

Frequently Asked Questions

Can I connect the Equip 119473 to two standard HDMI devices?
Yes. With the Type A heads attached to both micro HDMI plugs it works as a normal HDMI A-to-A cable. Remove a head to connect a device with a micro HDMI port, such as a camera.
Is the Equip 119473 suitable for gaming at 4K 120 Hz?
Yes, if the console or PC and the display both have HDMI 2.1 ports. The cable is rated for 48 Gbps, enough for 4K at 120 Hz and 8K at 60 Hz. Connect the source-marked end to the console or PC.
What is the difference between the 119473 and other lengths in the range?
Equip AOC range: 119471 = 10 m, 119472 = 15 m and 119473 = 20 m (HDMI 2.1, 8K); 119413 = 20 m and 119414 = 30 m (HDMI 2.0, 4K). All share the detachable-head design; choose the shortest length that covers your run.
Singular Expert Insight
The 119473 is a good installer cable: the detachable heads make conduit pulls far easier than a fixed HDMI plug, and optical transmission keeps 8K and 4K 120 Hz stable at 20 m. If the display is only 4K 60 Hz, the HDMI 2.0 detachable versions cost less.
✓ Buy it if you need to route HDMI 2.1 through narrow conduit or wall openings over 20 m.
✕ Skip it if you need a bidirectional cable, as AOCs only work source-to-display.
→ Also consider the Equip 119452 (20 m HDMI 2.1 AOC with fixed Type A plugs) when conduit size is not an issue.
