Equip 127608 · 2-Port Cat5e RJ45 Splitter · Shielded
1 → 2 RJ45Cat5e shielded15 cmPassive

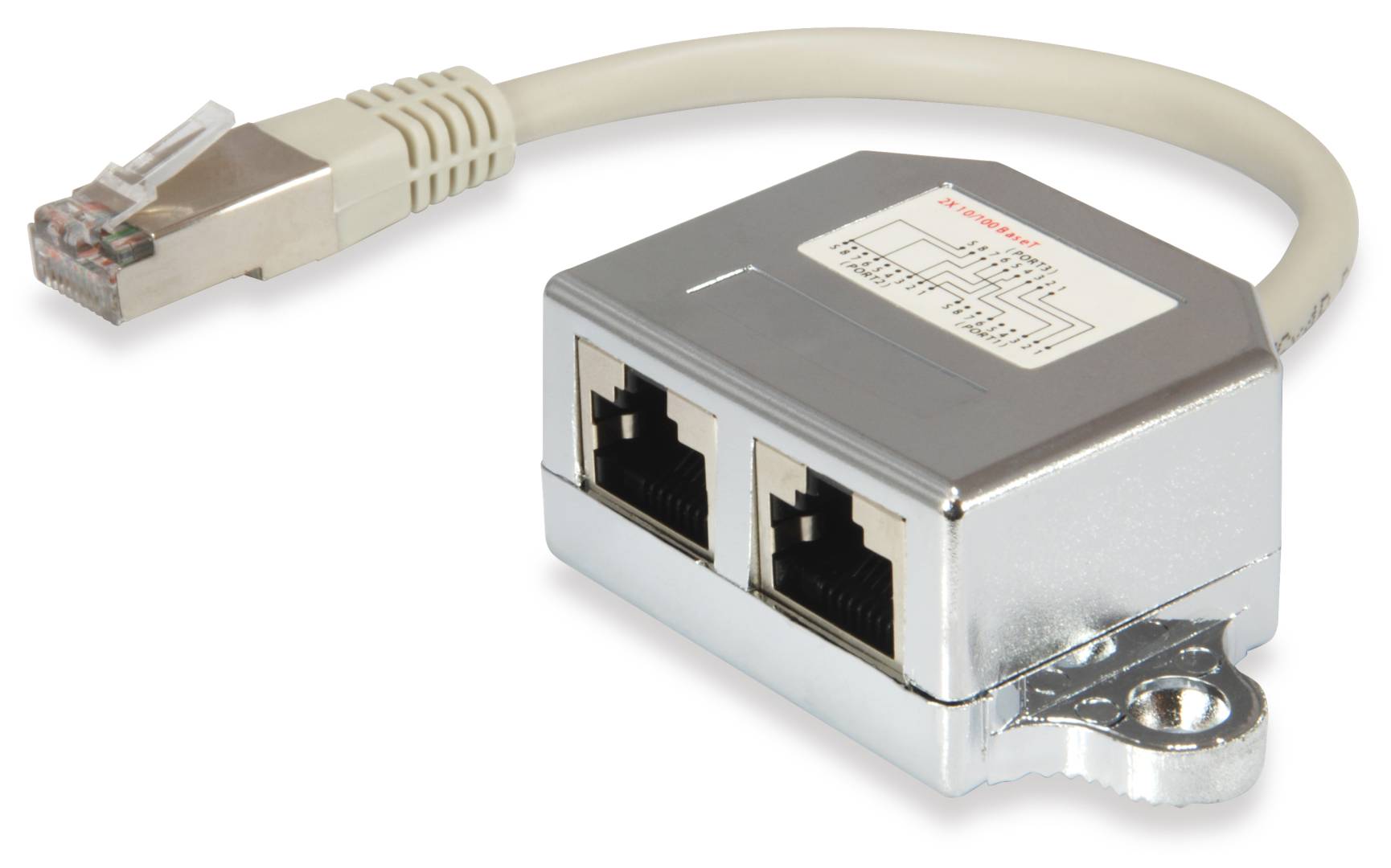

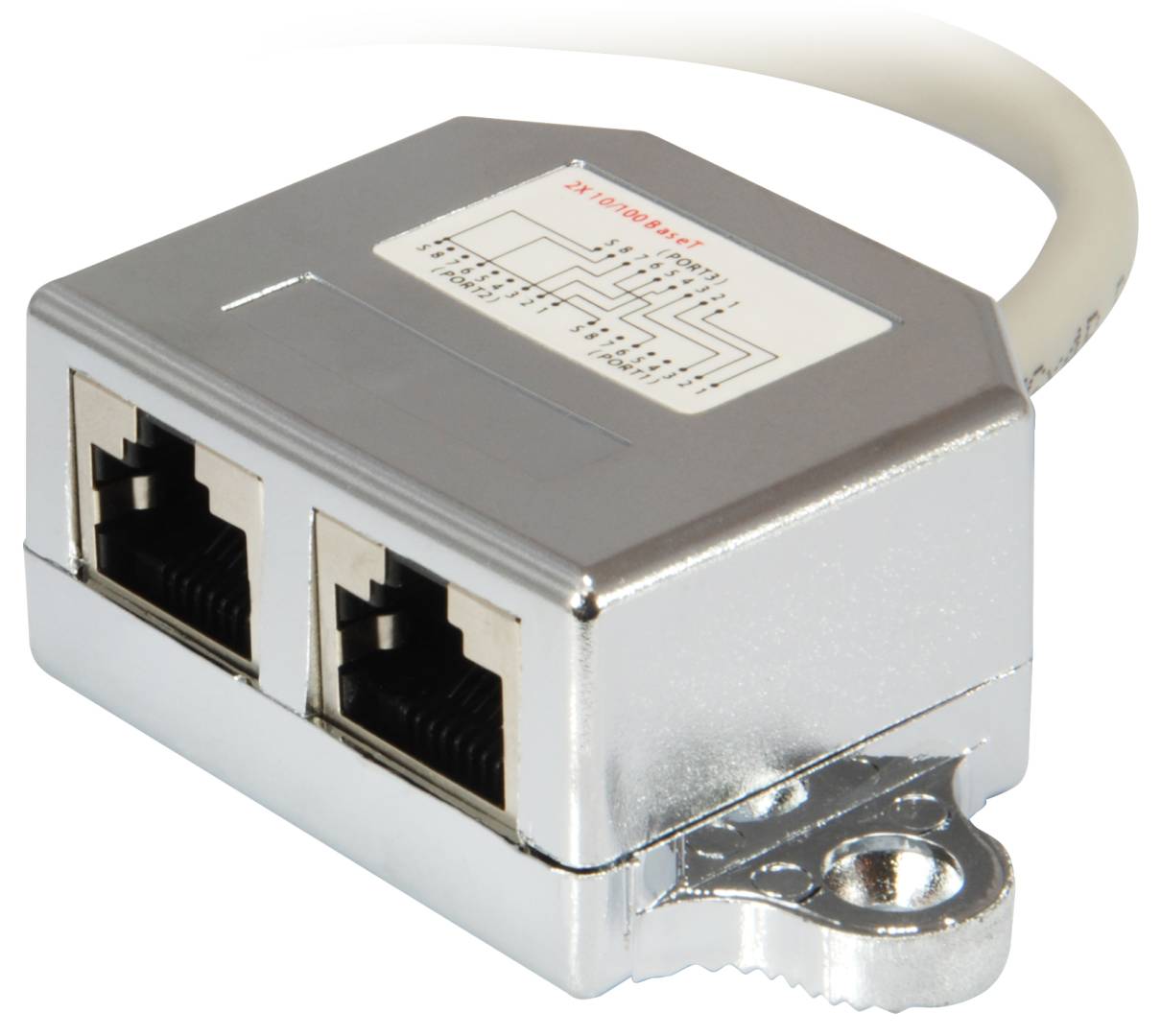

The Equip 127608 is a passive 2-port Cat5e RJ45 splitter with one RJ45 plug and two RJ45 jacks on a 15 cm shielded cable, for offices and homes that want to carry two network connections over one existing cable run and wall outlet.
It needs no power and no configuration. Equip notes that each device operates on a separate pair allocation and that maximum speed depends on the pin split — in other words, the eight wires of the cable are divided between the two ports instead of being shared.
Before you order: This is a pair splitter, not a switch. Because each port uses its own pairs, the cable behind the outlet must carry both connections on separate pairs — normally with a second splitter of the same type at the switch end. Plugged into a single switch port on its own, it will not give two devices a working link.
What's in the Box
- 1 x Equip 127608 2-port Cat5e RJ45 splitter, 15 cm shielded cable
What It Means in Practice
- Typical use: one cable runs from the patch panel to a room that needs two connections; a splitter at each end puts two links on that one cable.
- Each port gets only part of the cable pairs, so expect Fast Ethernet (10/100) class connections rather than Gigabit.
- Shielded construction suppresses interference at the split point.
- The short 15 cm lead keeps the splitter close to the outlet or patch panel.
What Will Not Work
- Not a switch or hub: it cannot share one active switch port between two devices.
- No Gigabit per port — Gigabit Ethernet needs all four pairs of the cable.
- Do not use it with PoE devices or on links that must run at Gigabit speed; ask us for a small switch instead.
Key Features
Two links, one cable
Splits the cable pairs so two connections share one run.
Passive
No power supply and no configuration needed.
Shielded
EMI-suppressing shielded cable and housing.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Pair splitters are a low-cost way to get a second connection into a room when pulling a new cable is not possible, but they trade speed for convenience. If you need Gigabit or PoE at the desk, a small switch is the better answer. For new cabling, see our network cables.
✓ Buy it if you have one cable run, need two basic connections in a room and can install a splitter at both ends.
✕ Skip it if you need Gigabit, PoE, or want two devices on one switch port — choose a small switch.
→ Also consider a compact unmanaged switch, or a second cable run with matching patch cords.
Not sure a splitter will work on your cabling? Tell us how the room is wired and what you want to connect, and we will suggest the right solution.
