equip 605627 Cat 6A Platinum S/FTP Patch Cable — 0.5 m Red
Cat 6A · 10 Gbps0.5 mPoE / PoE+3P certified + UL

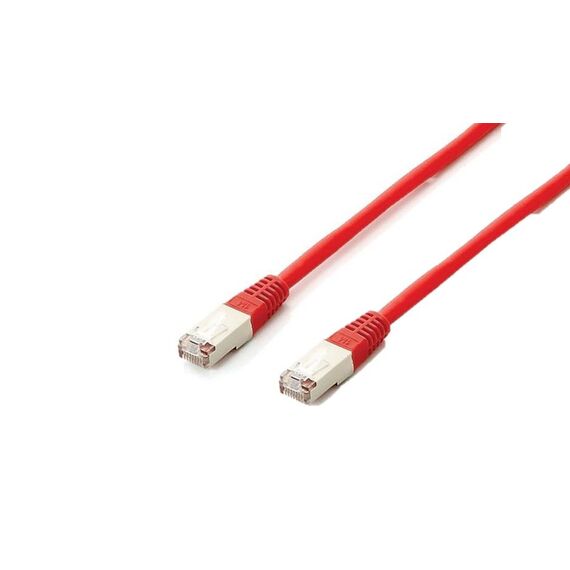

The equip 605627 is a 0.5 m Cat 6A Platinum S/FTP PiMF patch cable in red, built for short 10 Gigabit runs between patch panels, switches and servers in racks and cabinets.
Part number 605627 uses fully shielded pairs (foil per pair plus overall braid), stranded bare-copper AWG 26/7 conductors and a low-smoke zero-halogen jacket, and the Platinum line is independently 3P certified and UL listed. Typically in stock with fast delivery across Cyprus.
Before you buy
This is a 0.5 m patch cord with RJ45 male plugs at both ends — it is meant for rack patching, not for fixed in-wall installation. Shielding only pays off when the switch ports and patch panel are shielded and grounded; on unshielded gear it still works as a normal Cat 6A cable. PoE/PoE+ (802.3af/at) is supported; equip does not publish an 802.3bt rating for this line.
Key Features
10 Gigabit, 500 MHz
Cat 6A rated to 500 MHz for 10GBASE-T, so it will not be the bottleneck when you move uplinks, NAS or servers to 10 GbE.
S/FTP PiMF shielding
Each pair is foil-wrapped inside an overall braid — the best protection against crosstalk and EMI in dense racks full of power cables.
Platinum quality
3P certified and UL listed, stranded bare copper 4×2 AWG 26/7 and an LSZH jacket for data-centre and office installations.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For short 10 GbE patching between a patch panel and network switches, the 605627 is a sensible default: 0.5 m keeps racks tidy, and PiMF shielding matters in cabinets crowded with power leads. Colour-code by function — for example red for one VLAN or uplink group — with the other Platinum 0.5 m colours (605617 white, 605627 red, 605647 green, 605667 yellow, 605677 orange). If your rack uses unshielded Cat 6 at 1 Gbps only, a cheaper U/UTP cord does the same job.
Buyer's Guide
Buy it if
You patch 10 GbE switches, servers or NAS in a rack and want certified Cat 6A shielded cords at 0.5 m.
Skip it if
You only need 1 Gbps on unshielded equipment — a Cat 6 U/UTP cord costs less.
Also consider
equip 605807 / 605897 angled-to-straight Cat 6A 0.5 m for tight spots behind wall-mounted gear.
Colour
red
Length
0.5m
Standard
CAT6a
Χαρακτηριστικά
Product Code
04:85797
EAN Code
4015867152386
Manufacturer
Equip
