Equip Internal Power Adapter Cable 4-Pin Molex (Male) to SATA 15-Pin Power, 15 cm, 1 Output, Black
Brand:
Equip
Equip Internal Power Adapter Cable 4-Pin Molex (Male) to SATA 15-Pin Power, 15 cm, 1 Output, Black
€3.46 inc. VAT
112050
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Equip 112050 · Molex to SATA Power Adapter Cable, 15 cm
Molex → SATA15 cm1 outputInternal

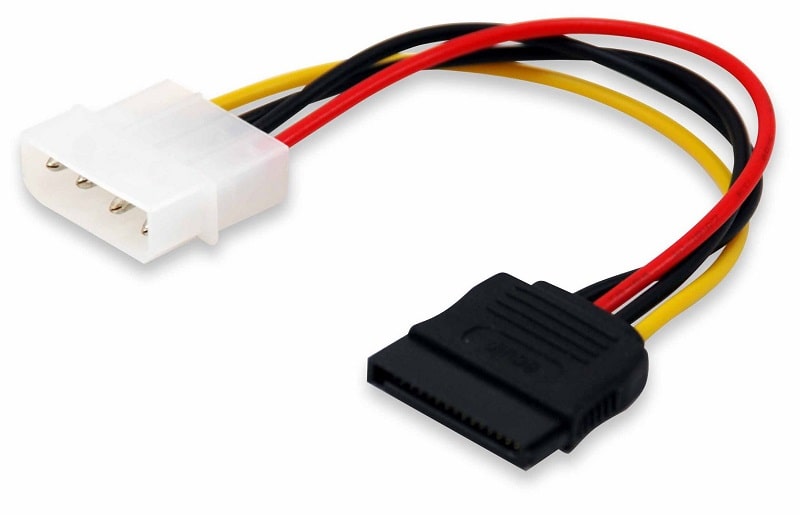

The Equip 112050 is a 15 cm internal power adapter that turns a 4-pin Molex lead from a PC power supply into a SATA 15-pin power connector, so you can power a SATA hard drive, SSD or optical drive from a PSU that has no free SATA connector.
Equip builds it with copper conductors and a PVC jacket, 15 cm long, RoHS compliant.
Before you order: This cable carries power only. The drive still needs its own SATA data cable to the motherboard or controller.
What's in the Box
- 1 x Equip Molex to SATA power adapter cable, 15 cm
What It Means in Practice
- Plug the Molex end into a free 4-pin peripheral lead of the power supply and the SATA end into the drive.
- Typical use: adding an SSD or second HDD to an older PC whose power supply has run out of SATA connectors.
- Use one adapter per drive; do not chain several drives from one Molex lead through adapters.
What Will Not Work
- It does not transfer data: a separate SATA data cable is needed.
- It does not supply 3.3 V, because the Molex connector carries only 5 V and 12 V; the few SATA devices that need 3.3 V will not work from it.
- It does not power graphics cards, CPU (EPS) or PCIe devices.
- It does not add capacity to the power supply.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Molex to SATA adapters keep older PCs useful when you add an SSD, but they are a workaround: if you are adding several drives, a power supply with enough native SATA connectors is the better fix. See our PC power supplies.
✓ Buy it if your power supply has a free Molex lead but no free SATA power connector for a new drive.
✕ Skip it if the drive needs 3.3 V, you need to power several drives, or your PSU already has a free SATA connector.
→ Also consider a SATA power Y splitter if you have a free SATA lead and need two connectors.
Not sure which connectors your power supply has? Send us the PC or PSU model and we will check.
Features - Equip - 112050
Colour
black
More Details
Product Code
04:37728
EAN Code
4015867104897
Manufacturer
Equip
