equip LC-LC Duplex Fibre Optic Patch Cable, OS2 single-mode 9/125µm, LSZH, 5m, Yellow
Brand:
Equip
equip LC-LC Duplex Fibre Optic Patch Cable, OS2 single-mode 9/125µm, LSZH, 5m, Yellow
€14.48 inc. VAT
254435
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
equip LC to LC OS2 Duplex Fibre Patch Cable, 5 m
OS2 single-modeLC ↔ LC5 mLSZH Yellow

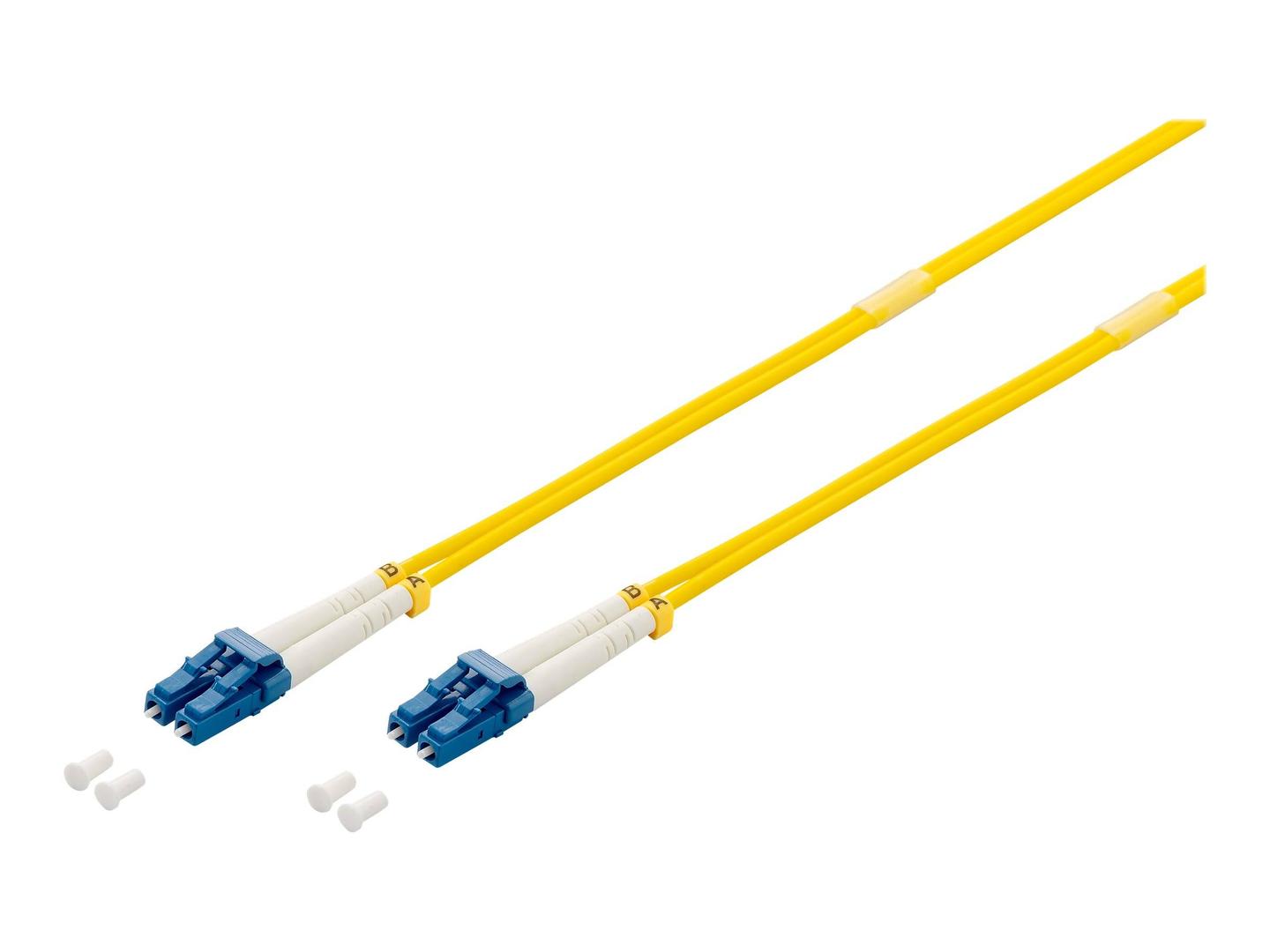

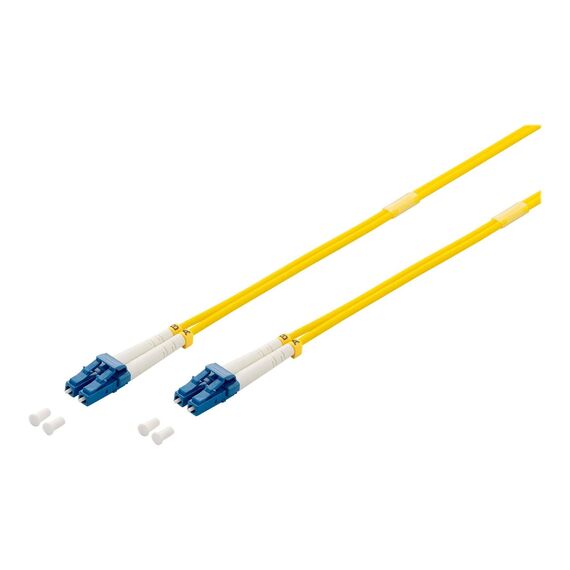

The equip 254435 is a 5 m duplex OS2 single-mode 9/125 µm fibre optic patch cable with LC connectors on both ends, for linking switches, servers, media converters and patch panels in racks and comms rooms.
OS2 is low-loss 9/125 µm single-mode fibre with a yellow jacket, used with 1310/1550 nm optics. With single-mode, the distance is set by the transceivers, not the cable (LR optics typically cover 10 km).
What's in the Box
- 1 × LC-LC duplex fibre optic patch cable, 5 m (package contents as listed by the manufacturer)
What It Means in Practice
- At 5 m it reaches between neighbouring racks or across a small comms room.
- Duplex means two fibres in one cable: one carries transmit and the other receive, so one cable completes one link between two transceivers.
- The LSZH (low smoke, zero halogen) jacket is the usual requirement in offices, data centres and public buildings: in a fire it gives off little smoke and no corrosive halogen gas.
- Keep the end faces covered until you plug in: a dirty connector is the most common reason a new fibre link does not come up.
What Will Not Work
- Multimode optics (SX, SR at 850 nm): they need an OM3 or OM4 multimode cable.
- APC ports (green connectors), common on FTTH/PON and CATV equipment: they need an APC cable, not this UPC one.
- SC or ST ports, or a mix of connector types: this cable is LC on both ends.
- Copper RJ45 ports: fibre needs an optical transceiver or a media converter at each end.
Key Features
OS2 single-mode fibre
9/125 µm single-mode for 1310/1550 nm optics; the distance is set by the transceivers, not the cable (LR optics typically cover 10 km).
LC on both ends
LC is the small duplex connector used on SFP, SFP+ and SFP28 transceivers and most modern patch panels.
LSZH jacket
low smoke, zero halogen sheath in yellow, the colour code for OS2.
Ceramic ferrules
Ceramic ferrules on every connector for precise fibre alignment and repeatable mating.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Fibre patch cords rarely fail on quality; they fail because the grade or the connector does not match the port. Check three things before you order: the fibre type your transceivers expect (single-mode LX/LR for this cable), the connector on each port, and UPC versus APC. If you are adding optics too, see our network switches with SFP/SFP+ ports.
✓ Buy it if you need a 5 m OS2 link between LC and LC ports.
✕ Skip it if your optics are multimode SR/SX, or your ports are APC.
→ Also consider equip OS2 patch cables in other lengths and connector pairs: ask us for the exact code.
Not sure which cable you need? Send us the model of your switch, transceiver or patch panel and we will confirm fibre type and connectors before you order.
Features - Equip - 254435
Colour
yellow
Length
5m
More Details
Product Code
04:246298
EAN Code
4015867176726
Manufacturer
Equip
